Polyurea coating is widely used in waterproofing, anti-corrosion, flooring and industrial protection projects because it can form a seamless, durable and highly protective membrane. However, the final performance of a polyurea coating system depends not only on the material itself, but also on substrate preparation, primer selection, application control, detail treatment and site conditions.
A well-designed polyurea system usually includes several key parts: substrate preparation, primer, main polyurea coating layer, detail reinforcement and, when required, a weather-resistant or wear-resistant topcoat. For different project types, such as concrete roof waterproofing, old waterproofing layer renovation, wastewater tank lining, steel tank anti-corrosion, color steel roof protection, industrial flooring and vehicle protection, the construction process must be adjusted according to the substrate and service environment.
This guide explains practical polyurea application guidelines, construction standards and important precautions for industrial coating projects.
1. Understand the Project Before Choosing the Application Method
Before starting polyurea construction, the first step is not spraying or coating. The first step is to understand the real project condition.
The contractor should confirm:
- What is the substrate: concrete, steel, old membrane, color steel sheet, tank wall, industrial floor or special equipment surface?
- Is the project mainly for waterproofing, anti-corrosion, abrasion resistance, impact protection or weather resistance?
- Is the area exposed outdoors, indoors, underground, underwater, in wastewater, in marine environments or under mechanical traffic?
- Is spray equipment available on site?
- Are there complex details such as drains, parapets, corners, pipe roots, lap seams, screw holes, expansion joints or equipment bases?
- Is a UV-resistant or weather-resistant topcoat required?
Spray polyurea is suitable for large-area, fast-curing and high-performance protective projects. Hand-applied polyurea is useful for repair areas, complex details, small areas and sites where spray equipment is not practical. Polyaspartic topcoat or other protective topcoats are often used in exposed outdoor systems to improve weather resistance, color stability and long-term surface durability.
For BW Polyurea systems, the coating route may include concrete primers such as BW8009 or BW8010, steel primers such as BW8008, spray polyurea layers such as BW3 series products, hand-applied polyurea layers such as BW6 series products and exposed protective topcoats such as BW0 series products. The exact product combination should be selected according to substrate type, application method and project performance requirements.
2. Substrate Preparation Is the Foundation of Polyurea Performance
Most polyurea coating failures are related to poor substrate preparation. Even a high-performance coating cannot work well if the substrate is weak, dusty, oily, wet or poorly profiled.
The substrate should be clean, dry, sound and stable before primer application. Oil, grease, dust, loose particles, weak old coatings, rust, laitance and other contaminants should be removed.

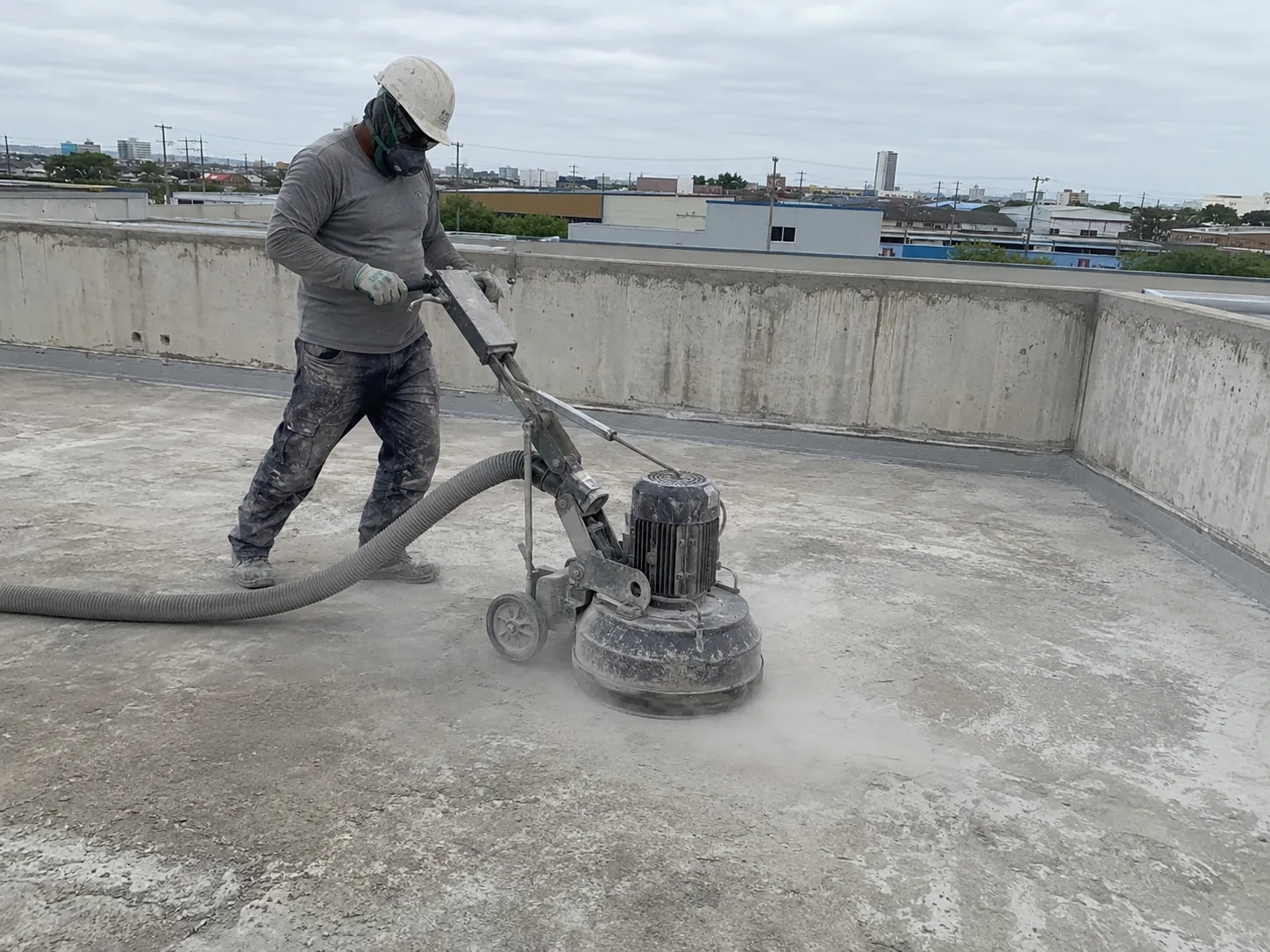

Concrete Substrate Preparation
For concrete roofs, tank interiors, wastewater basins, basement decks and industrial floors, the concrete surface should be structurally sound and free from loose cement skin, dust, oil, curing agents and weak surface layers.
Common preparation methods include grinding, shot blasting, sanding, cleaning and vacuuming. The surface should have enough roughness to support mechanical bonding, but should not be so rough that it causes excessive material consumption or uneven film thickness.
Before coating, check:
- Concrete strength and surface hardness
- Moisture condition
- Cracks, pores, honeycombs and weak areas
- Surface contamination
- Slope and drainage condition
- Existing coating or waterproofing layer condition
Cracks, holes, honeycombs and uneven areas should be repaired before the main polyurea coating is applied. For wastewater tanks, pits and water-retaining structures, all weak concrete and hollow areas should be repaired carefully because these areas may become future leakage or delamination points.
Steel Substrate Preparation
For steel tanks, metal roofs, containers, marine steel structures, vehicle shells and equipment surfaces, rust, mill scale, old loose coating, oil and salts should be removed before priming.
Steel surfaces usually require mechanical cleaning, grinding or abrasive blasting depending on the corrosion level and project specification. Weld seams, sharp edges, bolt areas and corners should receive special attention because coating film is often thinner at edges and more likely to fail under corrosion or mechanical stress.
After surface preparation, the steel primer should be applied as soon as possible to reduce the risk of flash rust, especially in humid or marine environments.
3. Site Condition Control: Temperature, Humidity and Dew Point
Polyurea application is sensitive to site conditions. Before primer or main coating application, the contractor should measure and record ambient temperature, substrate temperature, relative humidity and dew point.
A common practical rule is that the substrate temperature should be at least 3 degrees C / 5 degrees F above the dew point. This helps reduce the risk of invisible condensation on the surface. If condensation forms on the substrate, adhesion failure, pinholes, blistering or delamination may occur.
Relative humidity should also be controlled according to the product technical data sheet. Many polyurea systems recommend application when relative humidity is below 85%, but the specific requirement should always follow the selected product and project specification.
Do not apply polyurea when:
- The substrate is wet or visibly damp
- Rain is expected before the system reaches safe curing
- The surface temperature is too close to the dew point
- The substrate is frozen
- There is heavy dust, wind or contamination on site
- The surface has oil, salt or chemical residue
- The primer has exceeded its recoat window
4. Primer Selection and Application
Primer is a critical part of a polyurea coating system. Its main function is to improve bonding between the substrate and the polyurea layer, seal porous surfaces and reduce the risk of pinholes or bubbles.
Different substrates require different primers.
For porous concrete substrates, a concrete primer such as BW8009 or BW8010 can help penetrate and seal the surface before the main polyurea layer is applied. For steel or metal substrates, a metal primer such as BW8008 is more suitable because it is designed for adhesion and anti-corrosion support on prepared metal surfaces.
Primer should be applied evenly. Do not leave dry spots, missed areas or thick puddles. On porous concrete, some areas may absorb primer quickly. If the surface is very porous, additional primer or local repair may be needed.
Before applying polyurea over primer, confirm:
- The primer has cured or dried to the correct condition
- The primer surface is clean and not contaminated
- The recoat window has not been exceeded
- There is no water, dust, oil or construction debris on the primer
- The primer is compatible with the selected polyurea layer
If the primer surface becomes contaminated or the recoat window is missed, the surface may need sanding, cleaning or re-priming before continuing.

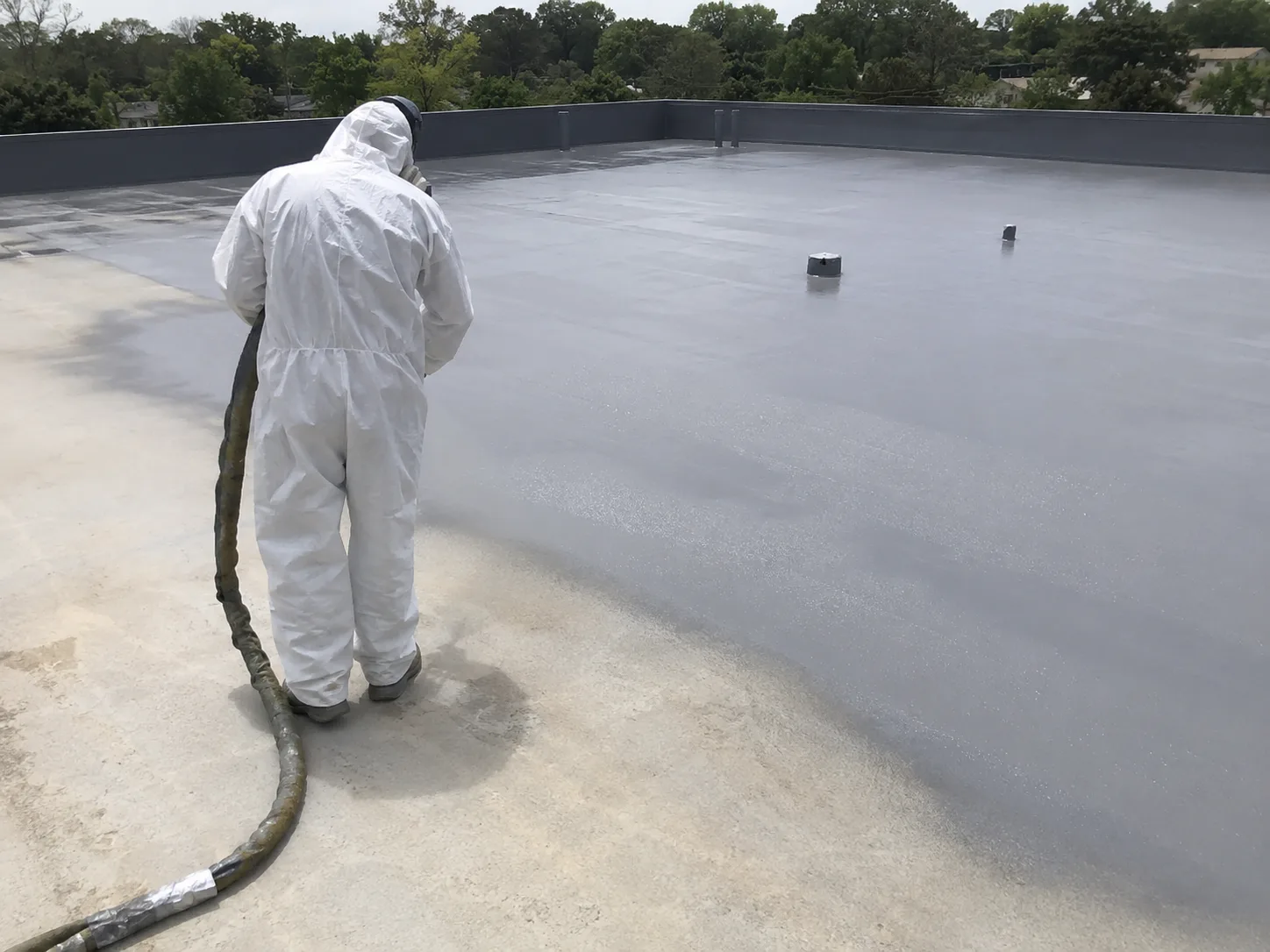

5. Spray Polyurea Application Guidelines
Spray polyurea is normally applied with plural-component spray equipment. The equipment must be properly calibrated and maintained to ensure correct material ratio, temperature and pressure.
Before spraying, check:
- A-side and B-side materials are correctly prepared
- Material drums are clean and protected from moisture
- Heating system is working
- Hose temperature is stable
- Spray pressure is balanced
- Spray gun is clean
- Mixing chamber is suitable
- Test spray is acceptable
- The film cures normally without tackiness, foam or softness
During spraying, the applicator should maintain a stable spray distance, angle and movement speed. The coating should be applied in a controlled pattern to achieve the required thickness without excessive overspray, sagging or thin spots.
For large areas, apply the coating in multiple passes if needed. Each pass should overlap properly. Corners, vertical surfaces, drains, upturns and equipment bases should be sprayed carefully to avoid insufficient thickness.
Common spray polyurea defects include:
- Pinholes caused by porous substrate or poor primer sealing
- Bubbles caused by moisture or contamination
- Soft or uncured areas caused by off-ratio spraying
- Rough excessive texture caused by poor spray distance or equipment setting
- Delamination caused by dust, condensation or missed recoat window
- Thin film at edges, corners and vertical details
If defects are found, stop and correct the cause before continuing large-area application.
6. Hand-Applied Polyurea Application Guidelines
Hand-applied polyurea is useful when spray equipment is not suitable or when local detail treatment is required. It can be applied by brush, roller, scraper or trowel depending on the product type and project condition.
Hand-applied polyurea is commonly used for:
- Roof detail waterproofing
- Old waterproofing layer renovation
- Lap seam reinforcement
- Pipe root treatment
- Drain and corner treatment
- Small-area repair
- Complex substrate shapes
- Areas where spray access is difficult
Before application, stir or prepare the material according to the product instructions. Apply the material evenly and avoid missed areas. For detail reinforcement, polyester fabric or reinforcement mesh can be embedded between coating layers when required by the system design.
For example, in old waterproofing membrane renovation, lap seams, cracks, corners and weak details should be reinforced first. A hand-applied polyurea layer can be applied over the prepared detail area, then reinforcement fabric can be embedded, followed by another coating layer to fully wet and cover the reinforcement. After detail treatment is completed, the full-area polyurea coating can be applied.
7. Important Detail Treatment for Polyurea Waterproofing
In waterproofing projects, leakage usually occurs at details, not in the middle of a flat surface. Therefore, details should be treated before large-area coating.
Important details include:
- Internal and external corners
- Parapet upturns
- Roof drains
- Pipe roots
- Equipment bases
- Expansion joints
- Construction joints
- Lap seams of old membranes
- Screw holes and fasteners on metal roofs
- Cracks and repaired areas
- Wall-floor junctions in tanks or basements
Corners and Upturns
Sharp internal corners should be rounded or filleted before coating. This helps the polyurea layer turn smoothly from horizontal to vertical surfaces and reduces stress concentration.
For roof parapets, tank walls and basement deck upturns, the coating should extend to the required height according to the waterproofing design. The upturn area should be continuous and free from cracks, pinholes or missed coating.

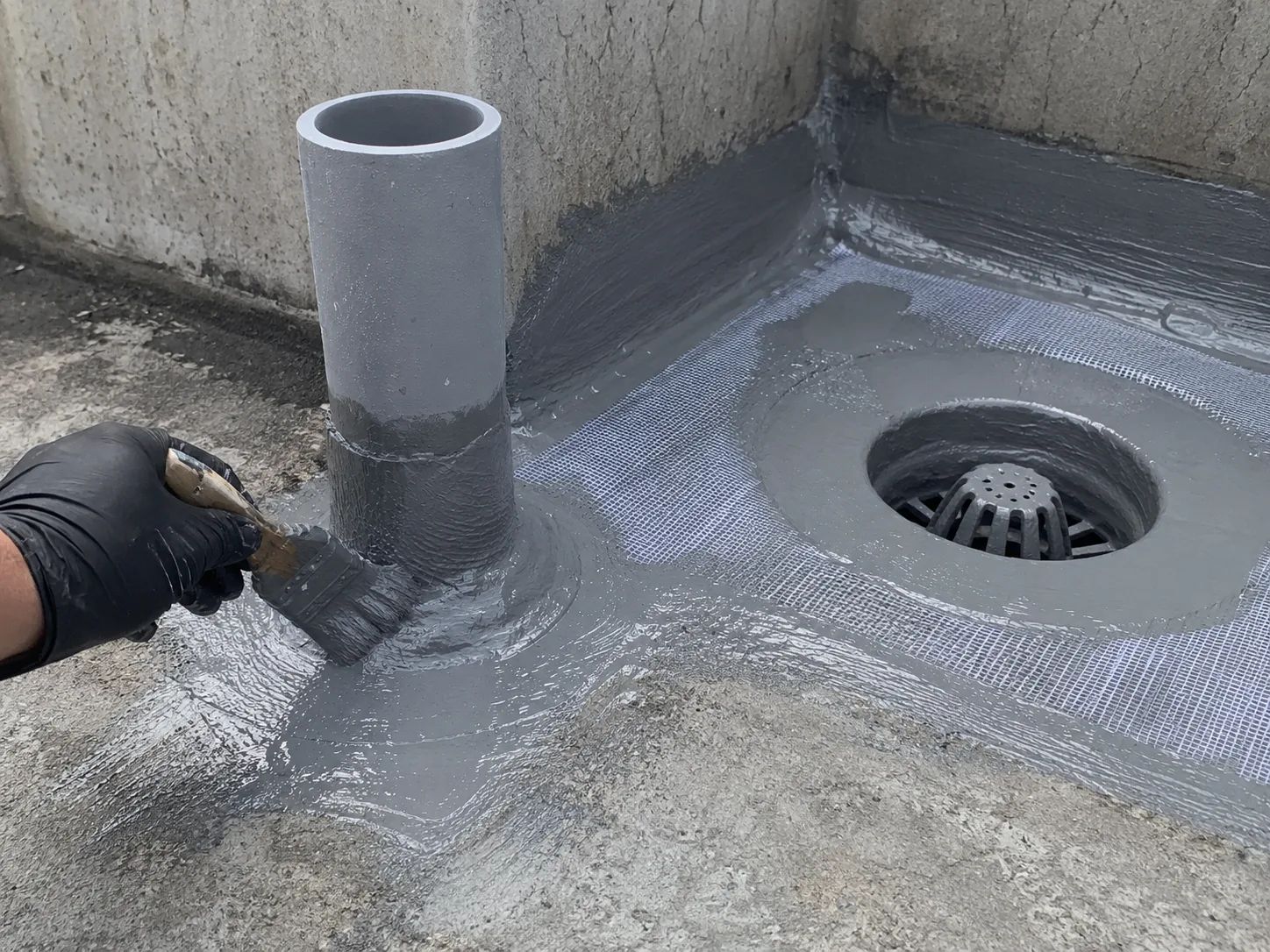

Drains and Pipe Roots
Drains and pipe roots should be cleaned, repaired and reinforced before full-area coating. The coating must connect tightly around the drain or pipe without gaps. For roof waterproofing, the slope around the drain should allow water to flow naturally without ponding.
Old Waterproofing Layer Renovation
When applying polyurea over an old waterproofing layer, the old layer must be checked carefully. Loose, hollow, cracked, oil-contaminated or severely aged areas should be removed or repaired. Lap seams and damaged areas should receive local reinforcement before full-area coating.
Polyurea renovation should not simply cover a failed substrate. The old system must still be stable enough to support the new coating.
Metal Roof Lap Seams and Screws
For color steel roofs and metal panels, lap seams, screw holes, fasteners, panel joints and rust spots are high-risk areas. These points should be cleaned, primed and locally reinforced before the final exposed protective coating is applied.
A thick hand-applied detail coating can be used around seams and fasteners to improve waterproofing and anti-corrosion performance.
8. Film Thickness Control and Inspection
Correct film thickness is essential for long-term performance. Too thin a coating may not provide enough waterproofing, abrasion resistance or corrosion protection. Too thick a coating in one pass may cause heat buildup, uneven texture or material waste.
The required thickness depends on the project type:
- Roof waterproofing may require a continuous elastic membrane
- Tank lining may require higher chemical and corrosion resistance
- Industrial floors may require wear-resistant build layers and topcoat
- Marine or steel anti-corrosion systems may require primer, main protective layer and topcoat
- Vehicle protection may require thicker impact-resistant spray polyurea
During construction, the applicator should check wet film thickness or dry film thickness according to the system design. After curing, the coating should be inspected for pinholes, holidays, thin areas, bubbles, delamination, cracks and mechanical damage.
For anti-corrosion and tank lining projects, holiday detection may be required depending on the project specification.
9. Topcoat Application for Exposed Systems
Polyurea is strong and durable, but exposed outdoor systems often require a suitable topcoat. A topcoat can improve UV resistance, weather resistance, color stability, surface cleanability and long-term appearance.
Polyaspartic or other exposed protective topcoats are commonly used for:
- Roof waterproofing systems exposed to sunlight
- Color steel roof anti-corrosion systems
- Outdoor industrial floors
- Marine steel protection
- Vehicle exterior protection
- Decorative and wear-resistant surfaces
Before applying the topcoat, confirm that the polyurea surface is clean and within the recoat window. If the surface has been exposed for too long, sanding or surface activation may be needed according to the product instructions.
The topcoat should not be used to replace the main polyurea protective layer. In a complete system, the primer supports bonding, the polyurea layer provides main protection and thickness, and the topcoat improves exposed surface performance.
10. Safety Precautions During Polyurea Application
Polyurea construction should be carried out by trained workers using appropriate personal protective equipment.
Important safety precautions include:
- Wear protective clothing, gloves and safety goggles
- Use suitable respiratory protection during spray application
- Keep good ventilation in enclosed areas
- Avoid skin contact with uncured materials
- Protect workers from overspray
- Keep ignition sources away if any flammable auxiliary materials are used
- Follow the product safety data sheet
- Store materials away from moisture and direct sunlight
- Keep work areas clean and organized
- Control access to the spraying area
Spray application should be especially controlled in tanks, pits, basements, workshops and other confined or semi-confined spaces. Ventilation, respiratory protection and site supervision are important for worker safety.
11. Common Polyurea Application Problems and How to Avoid Them
Poor Adhesion
Possible causes include dust, moisture, oil, weak substrate, wrong primer, missed recoat window or condensation. The solution is to improve substrate preparation, control dew point and choose the correct primer.
Pinholes
Pinholes often appear on porous concrete or poorly sealed substrates. Apply suitable primer and repair porous areas before the main coating.
Bubbles or Blisters
Bubbles may be caused by moisture, air release from concrete, high substrate temperature, trapped solvent or contamination. Check moisture, primer sealing and environmental conditions.
Off-Ratio Spray
If the spray equipment ratio, temperature or pressure is wrong, the coating may become soft, brittle, sticky or weak. Calibrate the machine and perform test spraying before full application.
Cracking at Details
Cracking may occur when sharp corners, joints or moving areas are not treated properly. Add fillets, reinforcement and flexible detail treatment before full-area coating.
UV Discoloration
Some polyurea coatings may discolor under long-term sunlight exposure. For exposed outdoor systems, use a suitable weather-resistant topcoat.

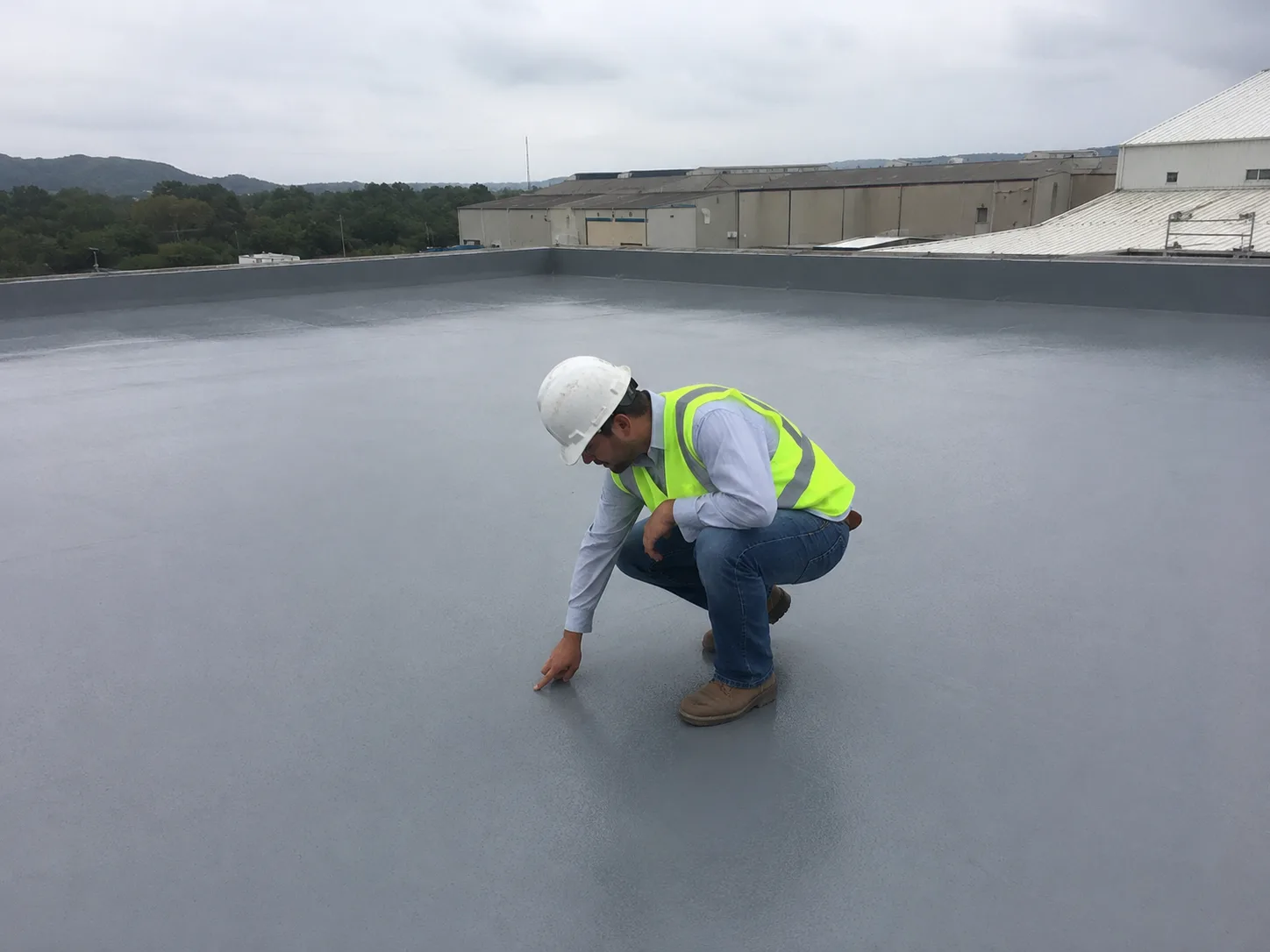

12. Quality Control Checklist Before Handover
Before project handover, check the following points:
- Substrate preparation records are complete
- Primer was applied correctly
- Detail treatment was completed before full-area coating
- Required coating thickness was achieved
- Surface is continuous and seamless
- No visible pinholes, bubbles, cracks or delamination
- Drains, corners, seams and pipe roots are fully sealed
- Topcoat is applied where required
- Repair areas are properly blended
- Site photos and inspection records are kept
- The coating has cured before service use
For waterproofing projects, water testing may be required if the structure and project condition allow. For anti-corrosion or tank lining projects, additional inspection such as thickness measurement or holiday testing may be required.
Conclusion
Polyurea coating application is a system-based construction process. Good material alone is not enough. Long-term performance depends on correct substrate preparation, primer selection, application method, detail treatment, environmental control and final inspection.
For concrete roofs, wastewater tanks, old waterproofing renovation, industrial floors, steel tanks, color steel roofs, marine structures and vehicle protection, the coating system should be designed according to substrate condition and service environment.
A reliable polyurea construction process should always follow this logic: substrate inspection first, surface preparation second, primer matching third, detail reinforcement fourth, main polyurea coating fifth, topcoat protection when needed, and final inspection before handover.
When these steps are controlled properly, polyurea coating can provide seamless waterproofing, strong anti-corrosion protection, abrasion resistance, impact resistance and long-term industrial surface protection.
Frequently Asked Questions About Polyurea Application
What is the most important step in polyurea application?
Substrate preparation is the most important step. The surface must be clean, dry, sound and properly profiled before primer and polyurea coating are applied. Poor substrate preparation is one of the main causes of adhesion failure, blistering and delamination.
Does polyurea always need a primer?
In most industrial waterproofing and anti-corrosion systems, a suitable primer is recommended. Concrete primers help seal porous substrates, while metal primers support adhesion and corrosion protection on prepared steel surfaces.
Can polyurea be applied over old waterproofing membranes?
Yes, in some renovation systems, polyurea can be applied over stable old waterproofing layers after cleaning, repair and detail reinforcement. However, loose, hollow, cracked or contaminated areas should be removed or repaired first.
What details should be reinforced before polyurea waterproofing?
High-risk details include parapet corners, roof drains, pipe roots, lap seams, cracks, expansion joints, screw holes, equipment bases and wall-floor junctions. These areas should be treated before large-area coating.
Does outdoor polyurea need a topcoat?
For exposed outdoor applications, a UV-resistant or weather-resistant topcoat is often recommended. The topcoat helps improve color stability, surface durability and long-term weathering performance.
