BW PolyureaProtective CoatingsContact

Two-Component Solvent-Free Polyurea Primer

BW8010

Two-component solvent-free polyurea primer for prepared concrete, marble, ceramic tile, wood, metal and other compatible substrates. It helps seal and penetrate the substrate before compatible coating systems.

View Technical DataRequest TDS & Quote

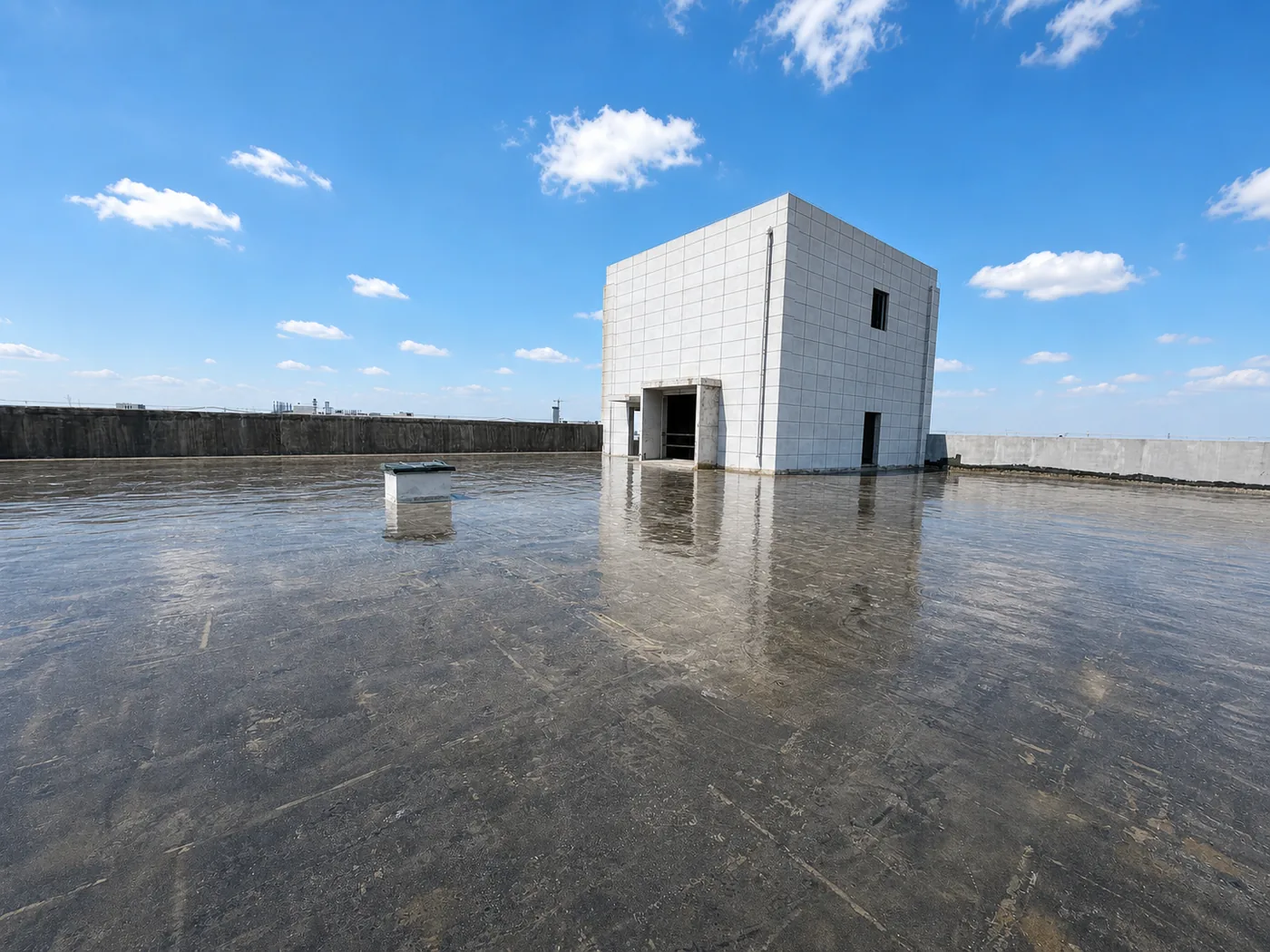

Sealed concrete rooftop surface after BW8010 primer application

Product Description

BW8010 Two-Component Solvent-Free Polyurea Primer is mainly composed of high-performance polyurethane resin prepolymers and polymer materials as film-forming components, manufactured through scientific production processes. The primer is solvent-free, odorless and environmentally friendly, causing no impact on the surrounding environment during application. It exhibits strong permeability to substrates and excellent sealing performance, and can significantly enhance the adhesion of the base layer.

BW8010 two-component solvent-free polyurea primer official product packaging image

Application Scope

BW8010 is used as an anti-corrosion and waterproof primer coating on concrete, marble, ceramic tile, wood, metal and compatible prepared substrates before follow-up coatings.

  • Concrete SubstratesPrimer review for strong, dense, flat, clean and dry concrete before compatible coating systems.
  • Marble and Ceramic TileSurface wet-out and adhesion support after cleaning, decontamination and compatibility review.
  • Wood SubstratesPrepared wood surfaces can be reviewed where the surface is clean, dry and free of burrs or loose debris.
  • Metal SubstratesMetal use requires rust removal and surface preparation to the specified standard before primer selection.

Designed for Solvent-Free Primer Preparation

BW8010 helps applicators build a sealed primer interface on properly prepared substrates before the following coating layer, while supporting adhesion, chemical-resistance review and waterproof coating preparation.

≥98%Solid ContentSupports dense primer film build without relying on solvent evaporation.
3.5 MPaAdhesive StrengthThe data supports adhesion review on dry concrete surfaces after proper preparation.
-40 to +150°CTemperature VariationThe listed 24 h temperature-variation test result is normal under the stated condition.
30 dAlkali ResistanceLists no corrosion, blistering or peeling under the stated 50% NaOH test condition.

Product Features and Advantages

BW8010 focuses on solvent-free primer preparation, helping build a sealed interface with high-solids film formation, substrate penetration, adhesion improvement and following-coat compatibility.

Sealing and Application Support

  • Adhesion ImprovementHelps improve adhesion between the substrate and the following compatible coating.
  • Sealing and PenetrationStrong substrate permeability and sealing performance help prepare the base layer before coating build-up.
  • Water and Moisture ResistanceSupports waterproof and moisture-resistance review for prepared compatible substrates.
  • Compatibility With Following CoatingsDesigned as a primer step before compatible coating layers, not as the main membrane layer.

Protection Performance

  • Chemical Medium ResistanceSupports acid, alkali, salt, salt spray and oil-resistance review under stated conditions.
  • Temperature Variation ResistanceThe physical table lists temperature-variation resistance under the stated laboratory test condition.
  • Bubble Reduction SupportHelps reduce bubble generation when used with proper substrate preparation and compatible following coats.
  • Odorless and VOC-Free ProfileBW8010 is positioned as odorless and VOC free; review SDS and project requirements before use.

Technical Data

These technical values are measured under controlled laboratory conditions to support product comparison, project selection and specification review. Please confirm final requirements with the latest approved TDS and project-specific conditions.

Product Information

BW8010 product information
ItemResult
AppearanceFlat and without bubbles
Solid content (%)≥98
Pot life (h)0.5
Surface dry time (h)≤3
Mixing ratioA:B = 1:2 by weight
Solid dry time (h)≤12
Theoretical coverage (DFT)0.2 kg/m² film thickness 100 µm

Physical Properties

BW8010 physical properties
ItemTest standardResult
Adhesive strength (dry concrete surface)ASTM D-33593.5 MPa or substrate broken
Impact resistance (kg.cm)GB/T 173260
Abrasion resistance (700 g / 500 r) mgGB/T 173212
Temperature variation (-40 to +150°C) 24 hGB/9278-1988Normal
Density g/cm³GB/T 6750-20071.02

Chemical Resistance

For reference: pay attention to the influence of ventilation, splash and spillage. Independent immersion testing is recommended if other specific data is required.

BW8010 chemical resistance data
Exposure itemResult
Acid resistance 30% H2SO4 or 10% HCl, 30 dNo corrosion, no blistering, no peeling
Alkali resistance 50% NaOH, 30 dNo corrosion, no blistering, no peeling
Salt resistance 50 g/L, 30 dNo corrosion, no blistering, no peeling
Salt spray resistance 2000 hNo corrosion, no blistering, no peeling
Oil resistance 0# diesel, crude oil, 30 dNo corrosion, no blistering, no peeling

Application Environment and Guide

Stable primer performance depends on substrate preparation, accurate mixing, pot life control and following-coat compatibility. Review the guide values before installation and confirm final parameters with the latest TDS and project requirements.

Application Environment

BW8010 application environment
ConditionRequirement
Environment temperature-5°C to +35°C
Relative humidity35-85% RH
Dew point≥3°C
Concrete substrateFully cured, clean, dry, dense and free from grease or stains
Damaged areasRepair obvious defects before primer application
Metal substrateSandblast and derust to Sa2.5 according to ISO8501-1 or GB8923 where applicable
Surface dust removalUse air grinding or vacuum cleaning before BW8010

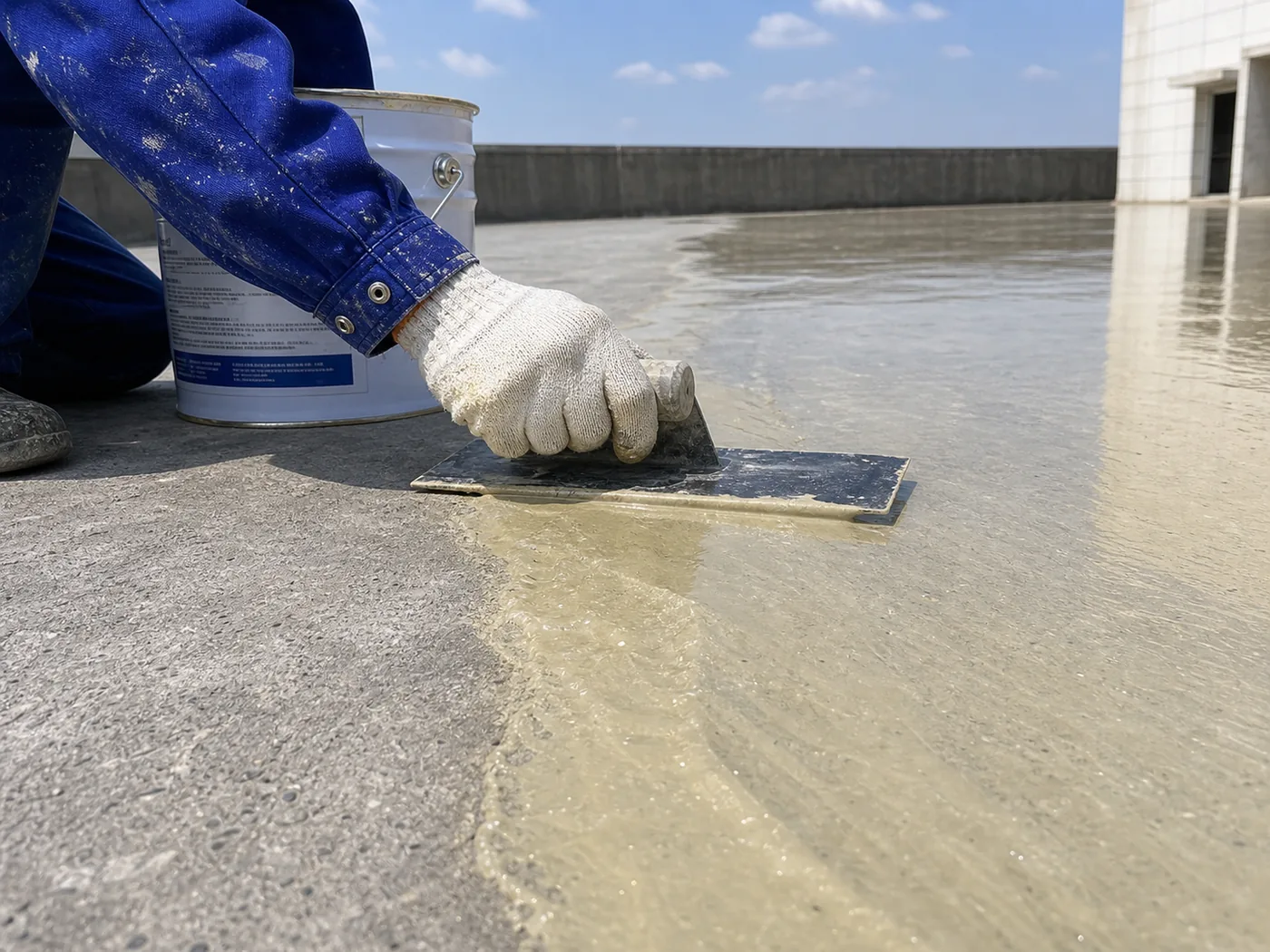

Application Guide

BW8010 application guide
Guide itemRecommendation
Mixing ratioA:B = 1:2 by weight
Pot life0.5 h at 25°C and RH 50%
Recommended dry film thickness30-60 µm
Theoretical coverage reference0.2 kg/m² at 100 µm
Recoating interval time3-24 h
Recommended coating methodBrush, roller, airless spray or air spray
Mixed-material handlingUse mixed material within 30 minutes

Surface Preparation and Application Notes

  • Concrete substrates should be fully cured, clean, dry, dense and free of grease, stains, loose material and visible damage.
  • Metal surfaces should be sandblasted and derusted to Sa2.5 according to ISO8501-1 or GB8923 where applicable.
  • Before use, make sure raw materials are accurately proportioned and evenly mixed. The mixed paint must be used within 30 minutes.
  • Do not return remaining mixed material to the original bucket, and do not add thinner without manufacturer guidance.

Product Curing Time, Shelf Life and Packing

Use the listed curing profile, shelf life, packing and storage requirements for application scheduling, warehouse handling and order planning.

Product Curing Time

The curing time varies with environmental conditions, especially temperature and relative humidity.

BW8010 curing time
Substrate temperatureSurface dry timeFoot trafficSolid cure time
+10°C10 h24 h21 d
+20°C8 h12 h14 d
+30°C3 h6 h7 d

Shelf Life & Packing

BW8010 shelf life and packing
ItemDetails
Storage temperature5°C-35°C
Shelf life12 months from date of production in sealed condition
PackingPart A: 5 kg/bucket; Part B: 10 kg/bucket
Package requirementKeep the product package tightly sealed
Storage precautionStore in a cool, ventilated place, avoid direct sunshine and keep away from heat

Product Health and Safety Information

Product health and safety information

For information and advice on safe handling, storage and disposal of chemical products, users should refer to the most recent Material Safety Data Sheet containing physical, ecological, toxicological and other safety-related data.

Integrity Declaration

All technical data in this sheet is based on laboratory tests. Actual testing methods may vary under different circumstances, so project teams should test and verify suitability before full system application.

FAQ about BW8010 Solvent-Free Polyurea Primer

These answers support solvent-free primer selection, substrate review, mixing control and coating-system planning before ordering.

BW8010 is a two-component solvent-free polyurea primer used for sealing penetration, substrate preparation and adhesion support before compatible follow-up coatings.

The technical sheet lists concrete, marble, ceramic tile, wood and metal substrates. Final use still requires surface preparation and compatibility review.

BW8010 is a primer and substrate-preparation layer. It should not be presented as the main waterproofing membrane, structural repair mortar or complete corrosion-control layer.

Yes. The technical sheet identifies BW8010 as a solvent-free primer and also describes it as odorless and VOC free. Handling should still follow the latest TDS and SDS.

The product information table lists A:B = 1:2 by weight. Accurate weighing, complete mixing and use within the listed pot life are required before application.

The technical sheet lists theoretical coverage of 0.2 kg/m² at 100 micrometers film thickness, 0.5 h pot life and 30-minute mixed-material use time in the application notes.

Buyers can request the latest TDS, SDS, packing information, chemical-resistance data and project-specific primer guidance before ordering.

Previous ProductBW8009View productProduct categoriesAll productsView categoryNext ProductBW8007View product

Request BW8010 Technical Documents or a Quotation

If you are evaluating BW8010 for concrete, marble, ceramic tile, wood, metal or compatible substrate primer work, share the substrate, surface condition, following coating, project area, exposure conditions and preferred application method for review.

By submitting this form, you agree that BW Polyurea may use the information provided to review and respond to this inquiry in accordance with our Privacy Policy. Website use is also subject to our Terms of Use.
