Hand-Applied Polyurea Tank and Pool System

Hand-Applied Polyurea
Tank and Swimming Pool Waterproofing System

A concrete tank and swimming pool waterproofing system using BW8010 substrate sealing and repair support, BW6-9528 hand-applied polyurea main membrane and BW0-8029 protective topcoat for continuous waterproofing over prepared concrete structures.

View Technical Specifications Get Solution and Quote

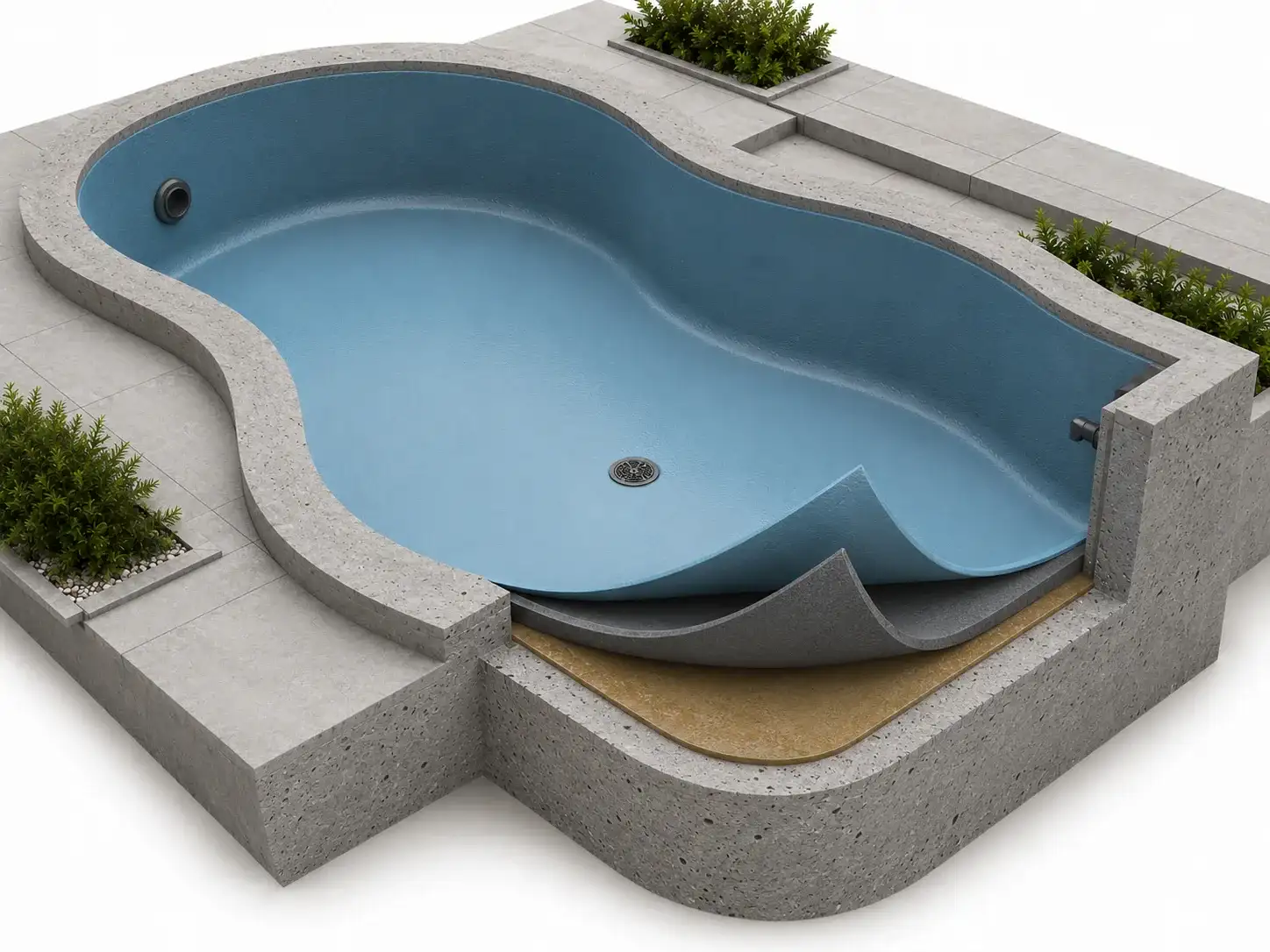

Hand-applied polyurea tank and swimming pool waterproofing system overview with BW8010 leveling repair, BW6-9528 main membrane and BW0-8029 topcoat

System Build-Up

System Build-Up

Concrete Primer / Repair Base + Hand-Applied Membrane + Protective Topcoat

  1. 01
    Concrete Primer / Repair Base BW8010

    Substrate sealing, adhesion support and local quartz-sand repair base

  2. 02
    Hand-Applied Polyurea Membrane BW6-9528

    Main hand-applied waterproofing membrane

  3. 03
    Protective Topcoat BW0-8029

    Protective topcoat for pool water, chloride-containing water exposure and surface durability review

Layer function

What Each Layer Solves

Each layer has a specific job: BW8010 prepares and repairs the concrete tank or pool substrate, BW6-9528 forms the main hand-applied waterproofing membrane, and BW0-8029 supports pool water, chloride-containing water exposure and outdoor surface durability review.

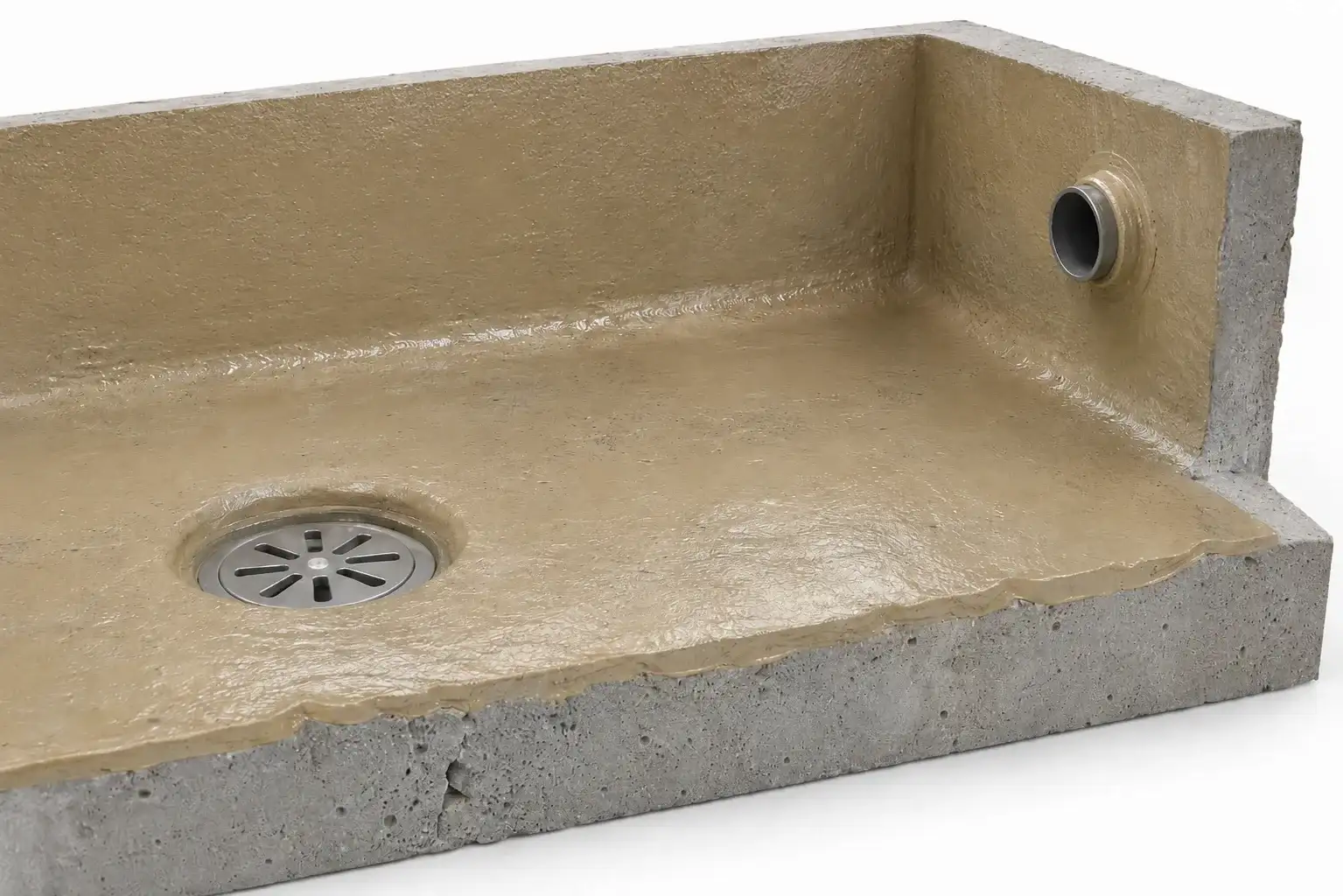

BW8010 quartz sand leveling and repair layer for tank and swimming pool hand-applied polyurea system
01

Primer / BW8010

Prepares and repairs the concrete base.

Main Function
Seals the prepared concrete tank or pool substrate and supports adhesion for the hand-applied polyurea membrane.
What It Solves
Porous concrete absorption, surface dusting, weak bonding, small defects and uneven areas before waterproofing.
Key Advantage
Helps create a stable bonding and repair base before the main hand-applied polyurea waterproofing membrane is applied.

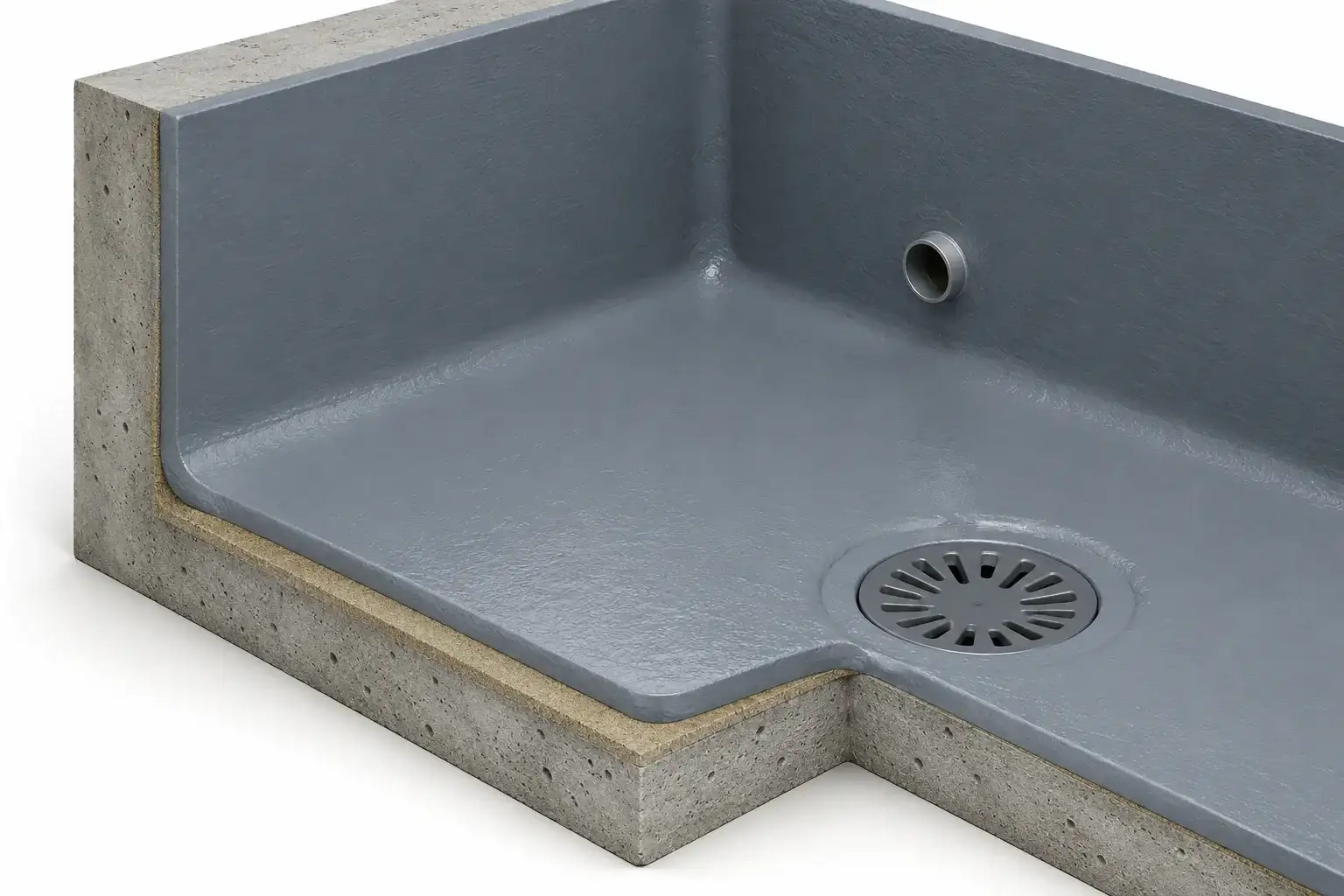

BW6-9528 hand-applied main waterproofing membrane for tank and swimming pool waterproofing system
02

Main Membrane / BW6-9528

Forms the main hand-applied membrane.

Main Function
Forms the main continuous hand-applied polyurea waterproofing membrane for concrete tanks and swimming pools.
What It Solves
Water leakage paths, wall-floor transitions, corners, steps, drains, pipe penetrations and detail areas that need continuous waterproofing.
Key Advantage
Creates a flexible, high-strength and seamless hand-applied waterproofing layer suitable for tanks, pools and detail-rich concrete structures.

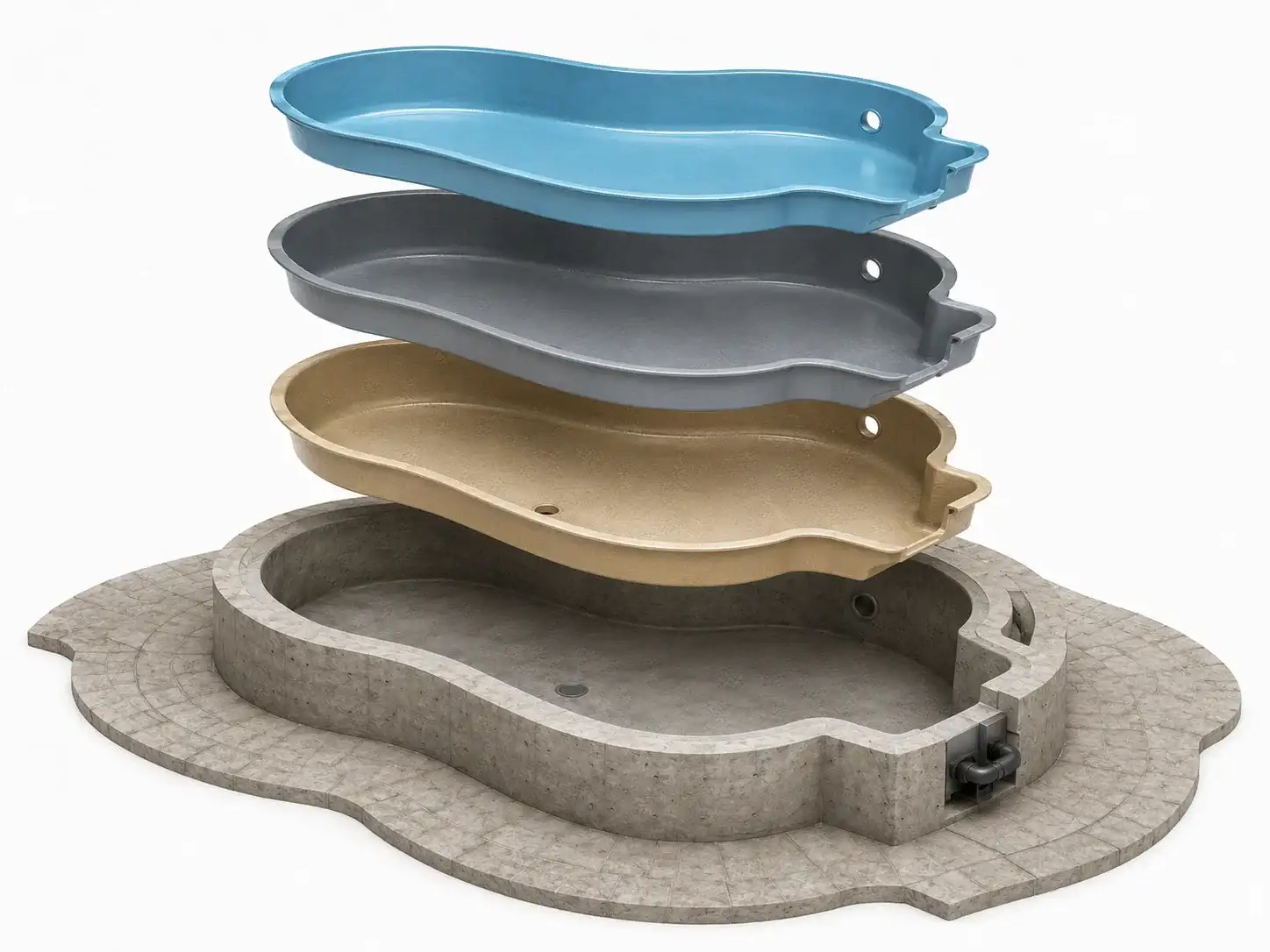

BW0-8029 protective topcoat over hand-applied tank and pool waterproofing membrane for pool water exposure review
03

Topcoat / BW0-8029

Protects the exposed membrane surface.

Main Function
Provides protective topcoat support over the BW6-9528 waterproofing membrane.
What It Solves
Pool water exposure, chloride-containing water exposure, surface wear, UV exposure and long-term surface protection needs.
Key Advantage
Helps improve surface durability, cleanability, weather resistance and long-term protection of the waterproofing membrane.

Application Stages

How This System Helps Reduce Tank and Pool Waterproofing Risks

Tank and swimming pool waterproofing risks often appear around wall-floor transitions, inner corners, drains, pipe penetrations, steps, cracks, pores, honeycombs and pits. Long-term immersion, pool water, chloride-containing water exposure and surface wear also require attention after the main waterproofing membrane is applied. This system uses BW8010 primer / repair base, BW6-9528 hand-applied polyurea membrane and BW0-8029 protective topcoat to help prepare the concrete base, form a continuous hand-applied waterproofing membrane and support surface protection under tank and pool service conditions.

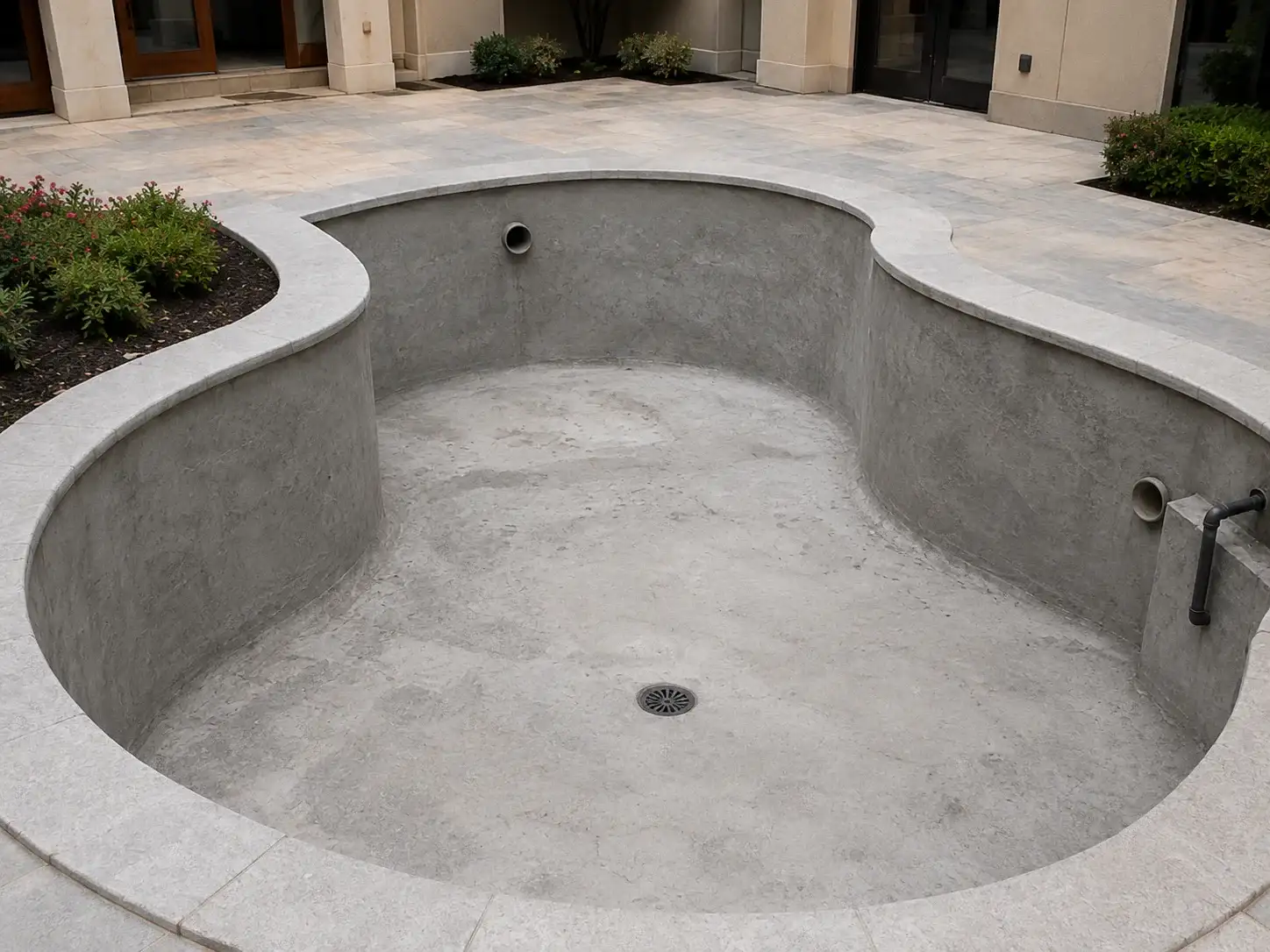

Concrete tank and swimming pool substrate preparation before BW8010 leveling repair and hand-applied polyurea waterproofing
01

Concrete Tank / Pool Substrate Preparation

Prepare the concrete tank or pool substrate by removing weak material, dust, oil and loose areas, then review pool floor and wall transitions, inner corners, drains, pipe penetrations, steps, cracks, pores, honeycombs, pits and repair patches before coating work.

Reference: remove weak concrete, dust, oil, standing water and loose areas before BW8010 application. Confirm repair scope around drains, pipe penetrations, inner corners and cracks.
02

BW8010 Quartz Sand Leveling / Repair Layer

Use BW8010 to seal prepared concrete, reduce absorption and support adhesion. Where needed, BW8010 can be blended with quartz sand for local repair preparation around pores, honeycombs, pits, cracks, inner corners and uneven tank or pool surfaces before the main membrane is applied.

Reference: BW8010 can be used for substrate sealing and, when blended with quartz sand, local pore filling, honeycomb repair and leveling preparation. Thickness and consumption are project-specific. BW8010 Two-Component Solvent-Free Polyurea Primer official product packaging image Product usedView BW8010 ->

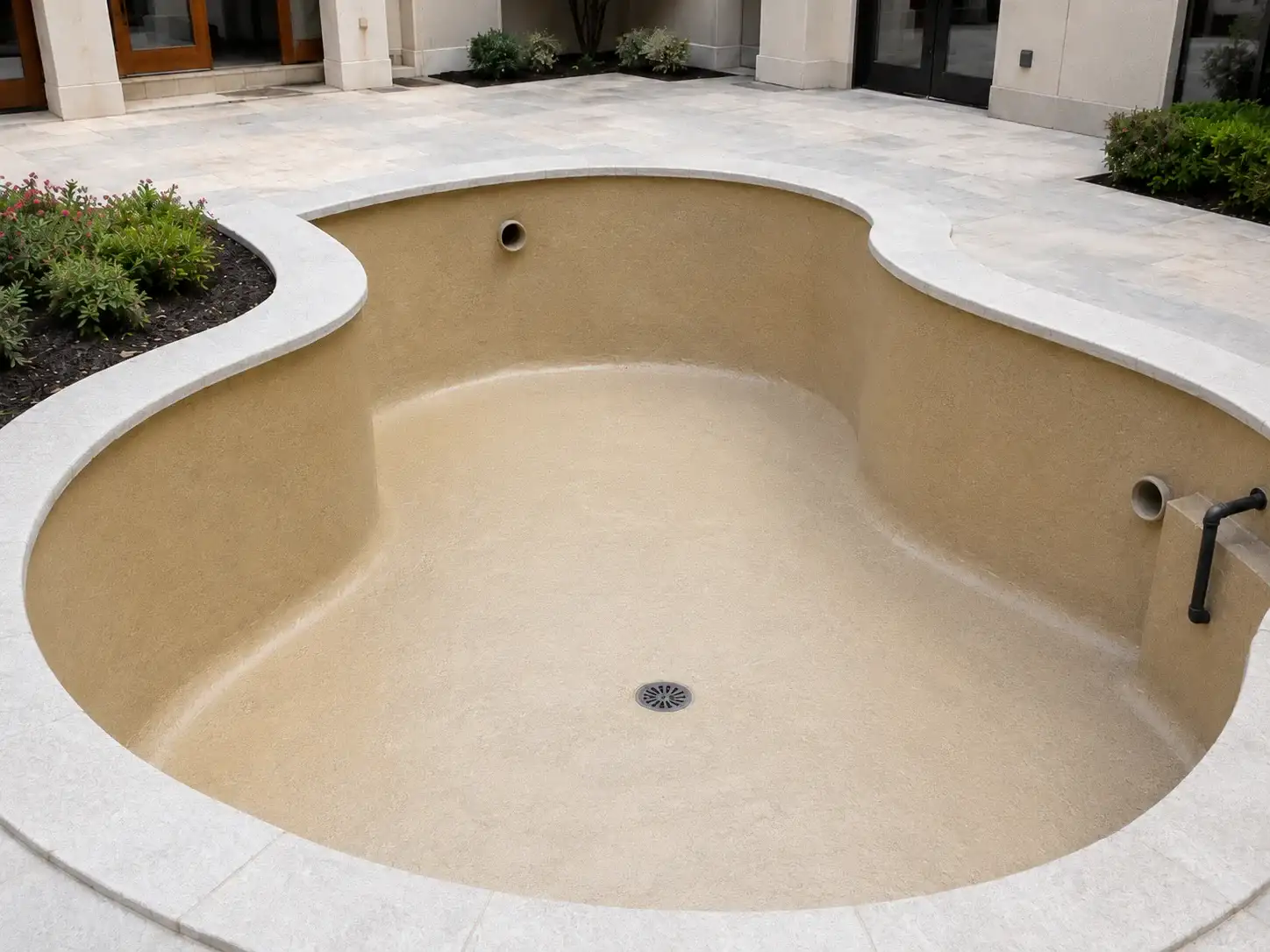

BW8010 quartz sand leveling repair application for hand-applied tank and swimming pool waterproofing system

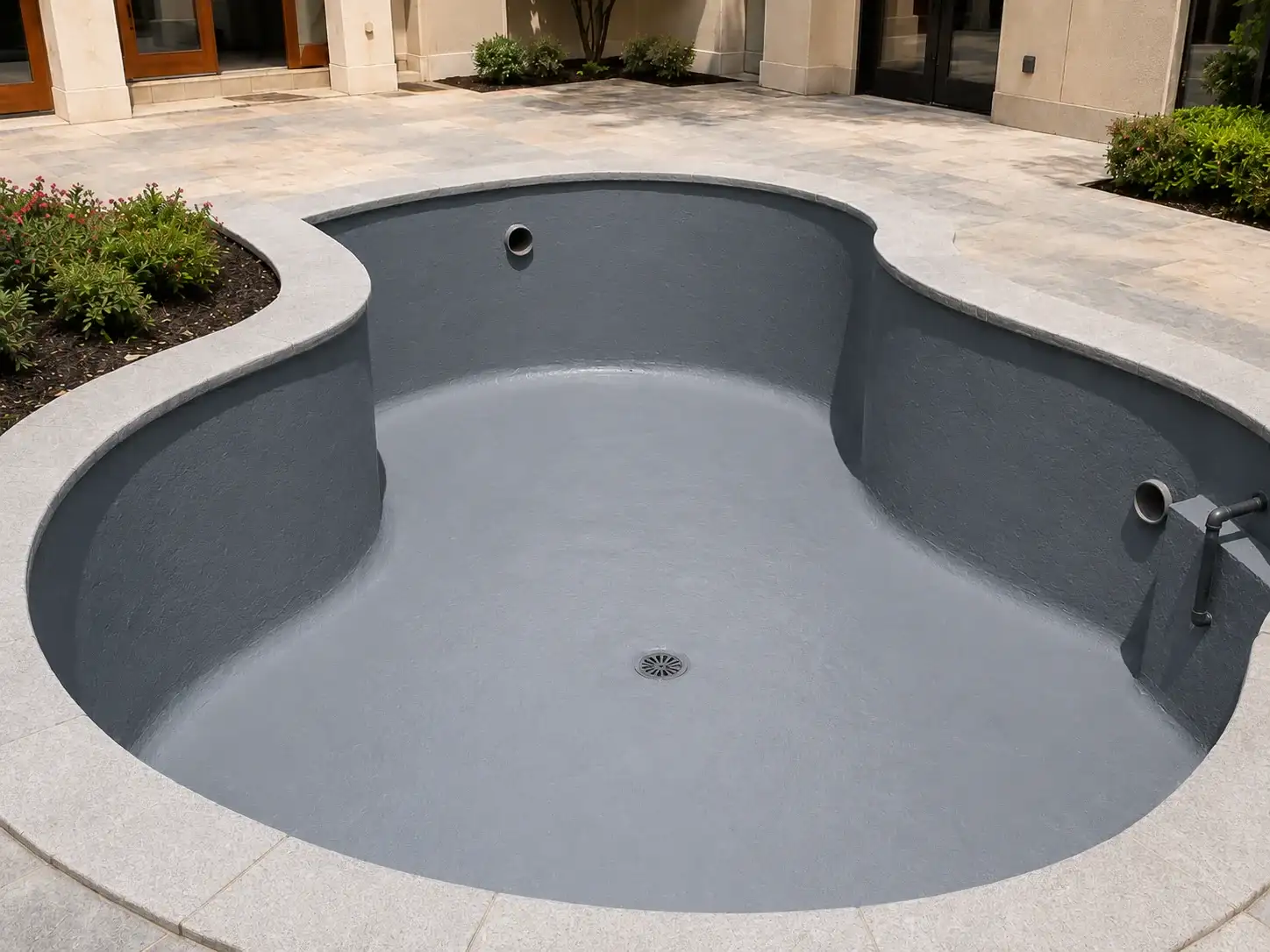

BW6-9528 hand-applied polyurea main membrane application for tank and swimming pool waterproofing system
03

BW6-9528 Hand-Applied Polyurea Main Waterproofing Membrane

Apply BW6-9528 by brush, roller or compatible hand-application method to form the main continuous hand-applied waterproofing membrane. It helps create a flexible, high-strength layer across wall-floor transitions, inner corners, drains, pipe penetrations, steps and other tank or pool detail zones that need continuous coverage.

Reference: about 1.5 mm membrane thickness / about 2.25 kg/m2. Confirm continuous coverage around wall-floor transitions, drains, pipe penetrations, steps and corners. BW6-9528 One-Component Modified Polyurea Waterproof Anticorrosion Protective Coating official product packaging image Product usedView BW6-9528 ->
04

BW0-8029 Protective Polyaspartic Topcoat

Apply BW0-8029 as the protective topcoat over the BW6-9528 main waterproofing membrane to support pool water exposure, chloride-containing water exposure review, surface wear resistance, cleanability and UV or weathering resistance when the surface is exposed.

Reference: recommended 30-60 um per coat; tank and pool total topcoat design may be specified as 60-120 um depending on water exposure and number of coats. BW0-8029 Two-Component Polyaspartic Protective Topcoat official product packaging image Product usedView BW0-8029 ->

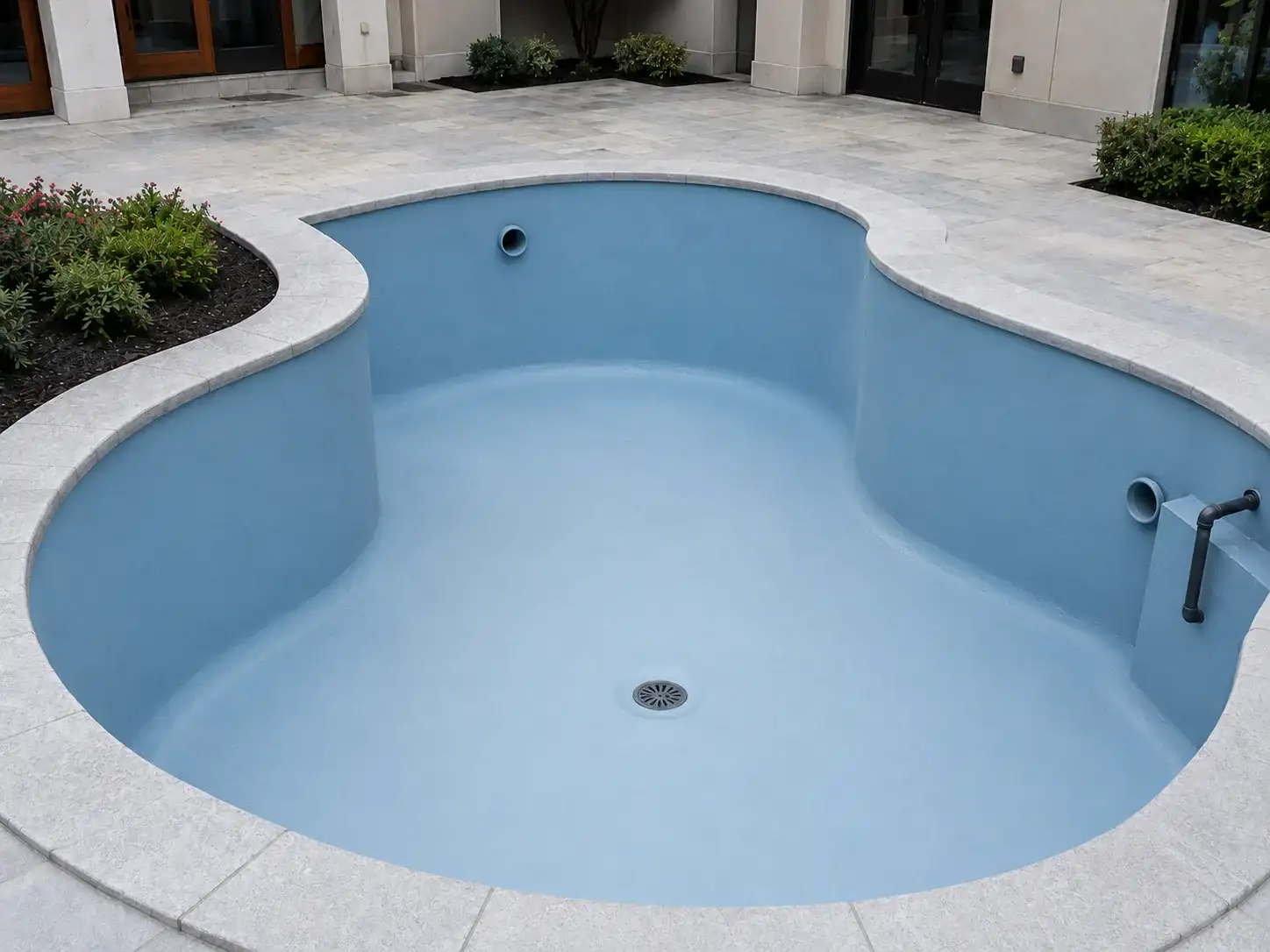

Finished hand-applied tank and swimming pool waterproofing surface with BW0-8029 protective topcoat

Technical data center

Technical Data Center

Key planning data for BW8010 concrete substrate sealing and repair support, BW6-9528 hand-applied main membrane and BW0-8029 protective topcoat in concrete tank and swimming pool waterproofing projects.

BW8010 Concrete Primer / Repair Base Key Data

ItemTest standard / referenceResult
Product role System planning Concrete primer, substrate sealing, adhesion support and local repair base before membrane work
Solid content Product data reference >=98%
Mixing ratio By weight A:B = 1:2
Theoretical coverage 100 um film thickness 0.20 kg/m2
Dry concrete adhesion ASTM D-3359 3.5 MPa or substrate broken
Pot life 25 deg C / RH 50% 0.5 h
Quartz sand option System repair use Scrape leveling, pore filling, honeycomb repair and local uneven concrete correction

BW6-9528 Main Hand-Applied Membrane Key Data

ItemTest standard / referenceResult
Product role System planning Main hand-applied waterproofing membrane
Solid content Product data reference >=80%
Recommended DFT Application guide 300-1000 um
Tank and pool system planning Recommended membrane thickness About 1.5 mm
Planning consumption 1.5 mm membrane thickness About 2.25 kg/m2
Concrete adhesion HG / T 3831-2006 3.3 MPa
Tensile strength ASTM D-412 17 MPa
Elongation ASTM D-412 400%

BW0-8029 Exposed Protective Topcoat Key Data

ItemTest standard / referenceResult
Product role System planning Exposed protective topcoat over BW6-9528 main membrane
Recommended DFT Product data reference 30-60 um per coat
Tank and pool system planning Topcoat design 60-120 um total topcoat design depending on water exposure and number of coats
Planning consumption Total topcoat design About 0.10-0.20 kg/m2 depending on specified total topcoat thickness
Waterproof test Product data reference 48 h, no bubbles, wrinkles, color change or peeling
Tensile strength ASTM D-412 20 MPa
Elongation rate ASTM D-412 200%
Accelerated aging GB / T 14522-1993, 1000 h Loss of light <1; chalking <1

Technical values are planning references extracted from product data and system calculations. Final material selection, film thickness, quartz sand ratio, consumption and application conditions should be confirmed according to substrate condition, immersion service and the latest technical data sheet.

Quality control

Application & Quality Control

Quality control should focus on substrate readiness, BW8010 quartz-sand repair quality, BW6-9528 membrane continuity and BW0-8029 exposed topcoat protection before the tank or pool returns to service.

01

Tank or Pool Substrate Readiness

Confirm the concrete surface before coating work starts.

  • Surface strength and moisture condition
  • Dust, oil and loose-area removal
  • Cracks, pores, honeycombs and pits
  • Drains, pipe penetrations and inner corners
02

Leveling and Membrane Control

Control BW8010 quartz-sand repair and BW6-9528 hand-applied membrane continuity.

  • Repair flatness
  • No loose sand or untreated voids
  • Continuous membrane film
  • Target membrane thickness
03

Topcoat and Handover Review

Review BW0-8029 as the exposed protective topcoat before immersion or regular service.

  • Topcoat continuity
  • Recoat timing
  • Color and finish review
  • Final inspection records
Inspection focus
  • Concrete repair readiness
  • Tank or pool floor and wall continuity
  • Corners and wall-floor junctions
  • Pipe penetrations and drains
  • Main membrane thickness
  • Topcoat surface finish

Suitable project conditions

Suitable Tank and Swimming Pool Conditions

Use this section to check whether the project fits a BW8010 + BW6-9528 + BW0-8029 hand-applied waterproofing and protection system before final specification.

  1. 01

    Small and Medium Concrete Tanks

    Concrete tanks can be reviewed when surface strength, moisture condition, cleaning and detail preparation are ready for leveling repair and membrane work.

    Check before specification: strength / moisture / cleaning

  2. 02

    Swimming Pool Repair Areas

    Repair zones with pores, honeycombs, pits or local unevenness can use BW8010 quartz-sand leveling before the main hand-applied membrane.

    Check before specification: pores / honeycombs / leveling

  3. 03

    Equipment-Limited Sites

    Projects where large equipment access is limited can be reviewed for brush, roller or compatible hand-application workflow.

    Check before specification: access / ventilation / workflow

  4. 04

    Pool Water Exposure Review

    Use BW0-8029 as the final exposed protective topcoat when the surface needs pool water, chloride-containing water exposure, UV, weathering and color-retention review.

    Check before specification: pool water / UV / color retention

Do not treat the BW8010 quartz-sand repair layer or BW0-8029 topcoat as the main waterproofing membrane. The main continuous waterproofing layer in this system is BW6-9528 hand-applied polyurea.

Before you request a quote

Before You Request a Quote

Share the tank or pool substrate condition and service targets so the BW8010 + BW6-9528 + BW0-8029 system can be reviewed before material planning.

Prepare the tank or pool project basics first.

A useful tank or swimming pool waterproofing quotation starts with concrete condition, repair scope, equipment access, immersion requirement, chlorine exposure and detail geometry.

Photos or drawings of drains, pipe penetrations, wall-floor junctions, corners, cracks, honeycombs and uneven areas can help review the build-up faster.

  • Tank or pool area
  • Concrete substrate condition
  • Moisture and surface strength
  • Cracks / honeycombs / pits
  • Leveling or repair scope
  • Floor and wall details
  • Pipe penetrations
  • Drains and outlets
  • Equipment access limits
  • Target membrane thickness
  • Topcoat color or finish target
  • Water chemistry or chlorine exposure
  • Project location
  • Construction timeline
  • Required documents

After these details are ready, use the inquiry form below to request a tank or pool system review.

FAQ

FAQ

Common questions about using BW8010, BW6-9528 and BW0-8029 for hand-applied tank and swimming pool waterproofing.

What is this tank and swimming pool waterproofing system used for?

It is designed for prepared concrete tanks, swimming pools, pool basins and water-retaining concrete structures where a hand-applied polyurea waterproofing system is more practical than spray equipment.

What does BW8010 do in this system?

BW8010 is used for concrete substrate sealing, adhesion support and local repair preparation. When blended with quartz sand, it can help adjust pores, honeycombs, pits and local uneven areas before membrane application. It is not the main waterproofing layer.

Which product forms the main waterproofing membrane?

BW6-9528 forms the main hand-applied polyurea waterproofing membrane in this system. It is the continuous waterproofing layer between the BW8010 preparation layer and the BW0-8029 protective topcoat.

What is the recommended BW6-9528 membrane thickness for this tank and swimming pool system?

BW6-9528 is the main hand-applied polyurea waterproofing membrane in this system and is recommended at about 1.5 mm. Final membrane thickness should be confirmed according to tank or pool structure, substrate condition, water exposure and project specification.

What role does BW0-8029 play in pool water exposure?

BW0-8029 is the protective polyaspartic topcoat. It supports surface protection for pool water, chloride-containing water exposure and UV or weathering review when exposed, but it does not replace the BW6-9528 membrane.

Which tank or pool details need special attention?

Wall-floor transitions, corners, drains, pipe penetrations, steps, overflow details, outlets and equipment bases should be checked and treated according to project detail requirements before the main membrane is applied.

Why use a hand-applied polyurea system instead of spray polyurea?

Hand application is useful for smaller tanks, swimming pool repair areas, detail-rich spaces and projects where spray equipment access, overspray control or site conditions make spray application less convenient.

How should the quartz-sand repair layer be specified?

The BW8010 quartz-sand repair or leveling layer should be confirmed according to concrete pores, honeycombs, pits, local unevenness and repair depth. Its thickness and consumption are project-specific.

What should be checked before application?

Check concrete strength, moisture condition, dust, oil contamination, loose areas, cracks, honeycombs, surface flatness, detail geometry, material compatibility, target membrane thickness and topcoat finish requirements.

What is the expected service life of this waterproofing coating system?

Based on laboratory testing and practical project verification, this waterproofing coating system is designed to support up to 20 years of service life when properly installed on suitable concrete substrates and maintained according to project requirements.
