Water Park and Swimming Pool Waterproofing System

A spray polyurea waterproofing and protection system for prepared concrete water park and swimming pool substrates, using concrete primer, BW3-900 spray polyurea main membrane and protective topcoat to support continuous waterproofing, detail coverage and surface durability under recreational water exposure.

View Technical Specifications Get Solution and Quote
Spray polyurea water park and swimming pool waterproofing system overview

System build-up

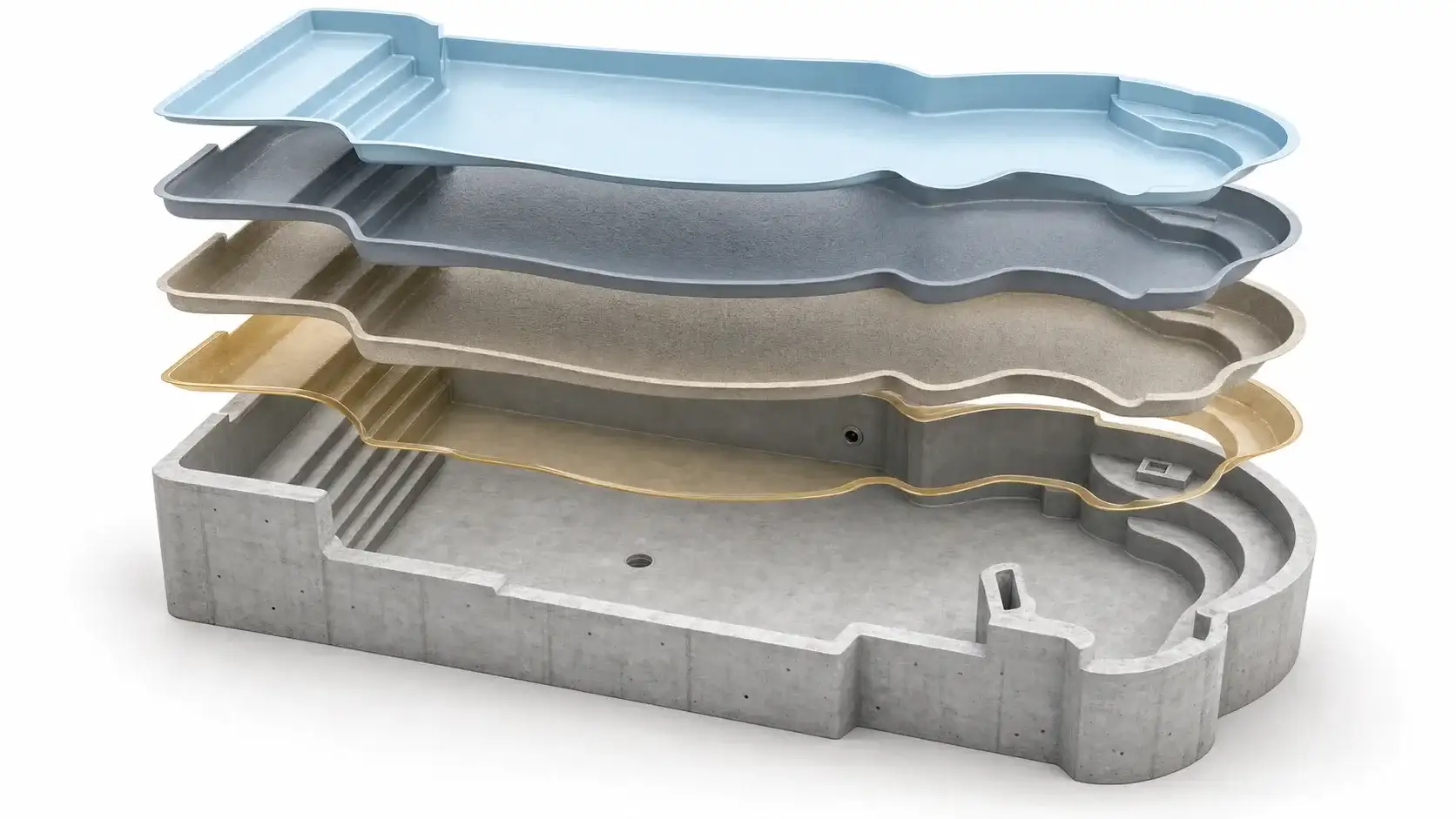

Four-Layer Spray Polyurea Pool Build-Up

BW8010 first primer, BW8010 quartz-sand leveling repair, BW3-900 spray polyurea membrane and BW0-8029 protective topcoat are reviewed as the coating build-up.

  1. 01
    First Primer BW8010

    Concrete sealing and adhesion support

  2. 02
    Quartz-Sand Leveling Repair BW8010 + Quartz Sand

    Pore filling, honeycomb repair and local leveling preparation

  3. 03
    Main Waterproofing Membrane BW3-900

    Main seamless spray polyurea waterproofing membrane

  4. 04
    Protective Topcoat BW0-8029

    Protective topcoat for pool water, chloride exposure, UV and surface wear

Layer function

What Each Layer Solves

Each application layer has a specific job: BW8010 first primer seals and supports adhesion, BW8010 blended with quartz sand repairs pores and local unevenness, BW3-900 forms the main spray polyurea waterproofing membrane, and BW0-8029 protects the exposed surface.

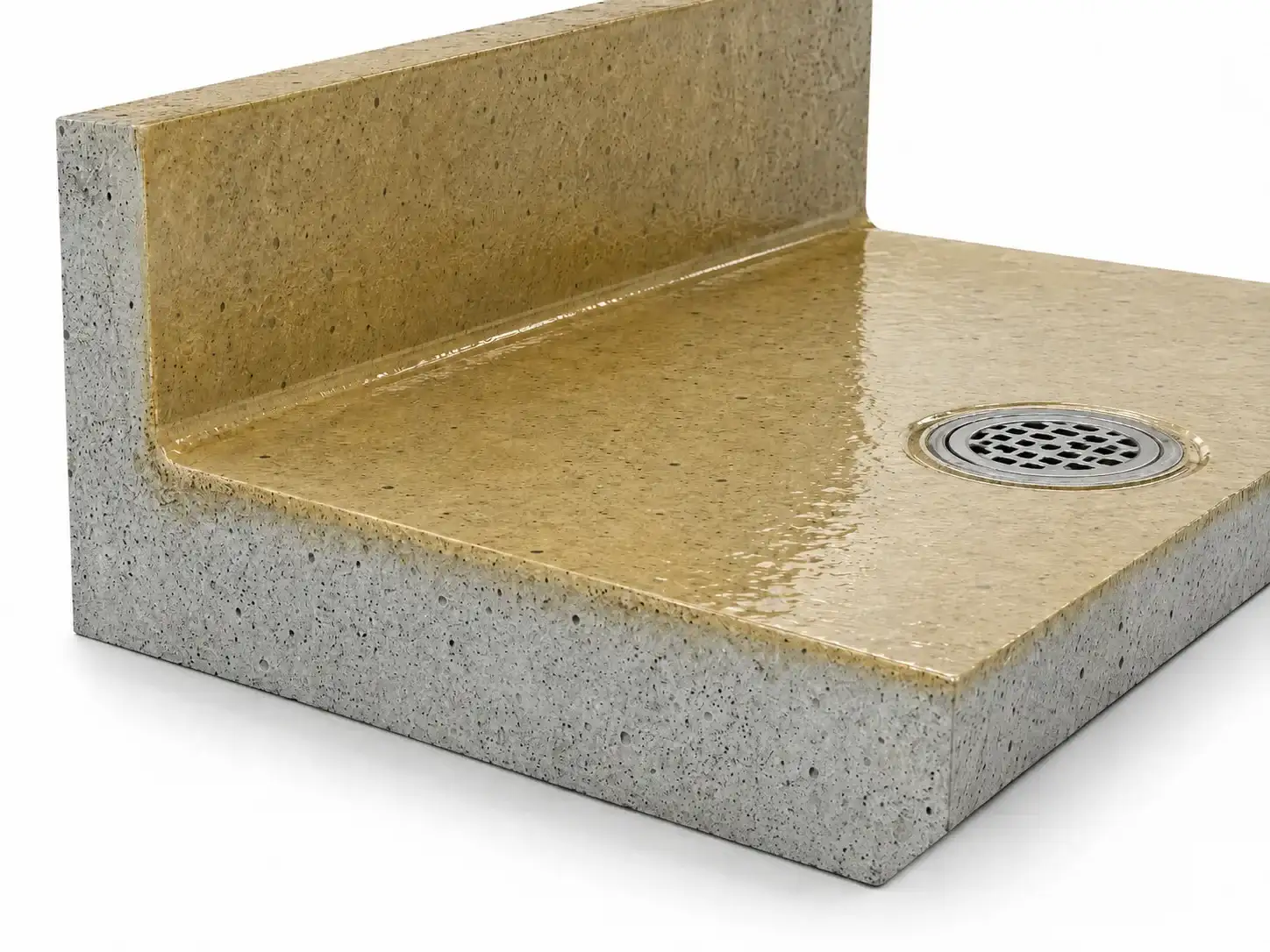

BW8010 primer layer sealing concrete pool substrate absorption
01

BW8010 Concrete Primer

Seals concrete and supports adhesion.

Main Function
Seals the prepared concrete pool or water park substrate and supports adhesion for the spray polyurea membrane.
What It Solves
Porous concrete absorption, surface dusting, weak bonding and uneven primer penetration before waterproofing.
Key Advantage
Helps create a stable bonding base before the leveling repair layer and main spray polyurea waterproofing membrane are applied.

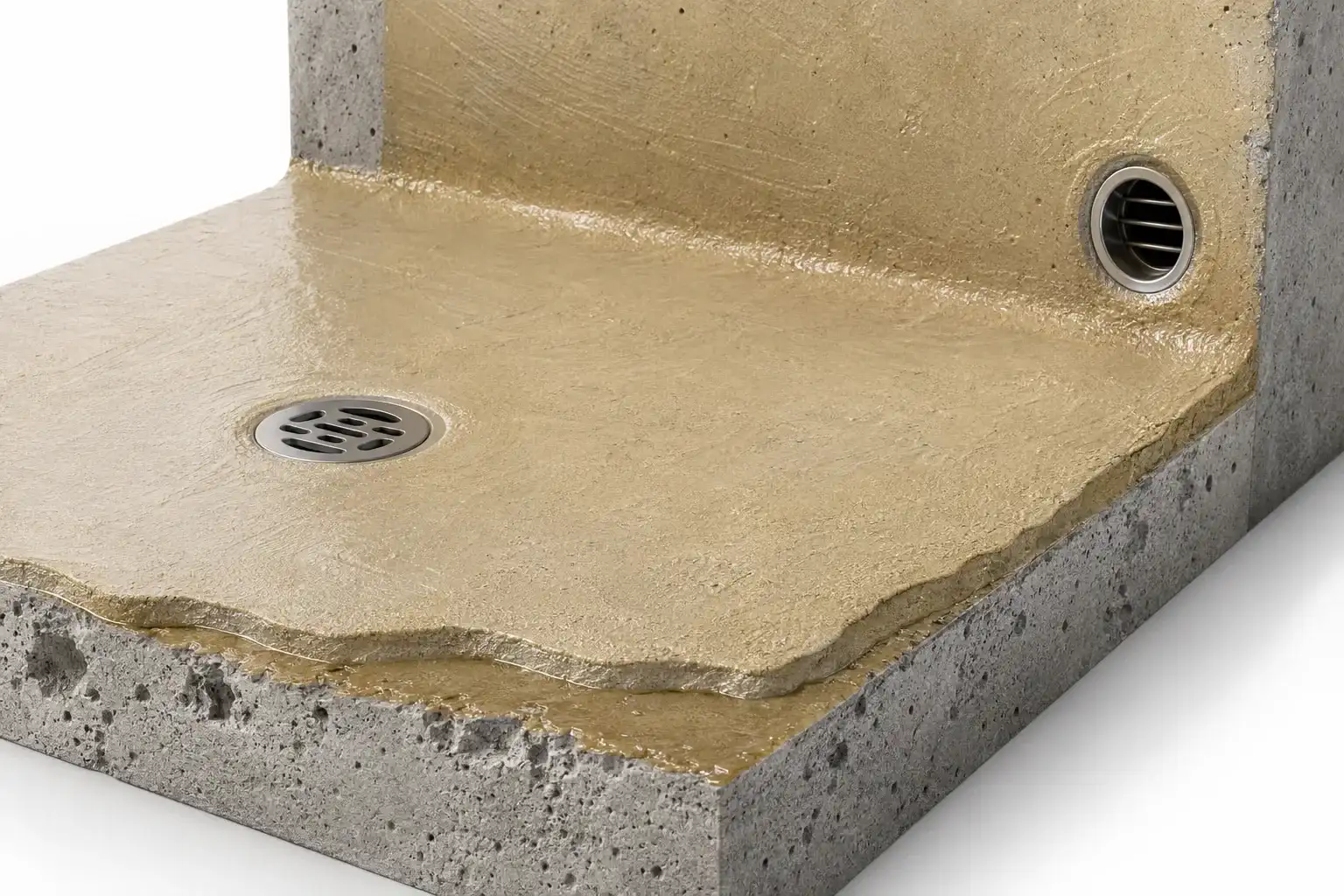

BW8010 quartz sand leveling and repair layer for concrete pool surface
02

BW8010 + Quartz Sand Leveling Repair

Fills pores and levels local defects.

Main Function
Uses BW8010 blended with quartz sand to fill pores, honeycombs, pits and local uneven areas before the main membrane is applied.
What It Solves
Open pores, honeycombs, pits, rough concrete, local low spots and uneven pool surfaces that may interrupt membrane continuity.
Key Advantage
Helps create a smoother and more continuous base so the BW3-900 spray polyurea membrane can form better coverage over pool floors, walls and detail areas.

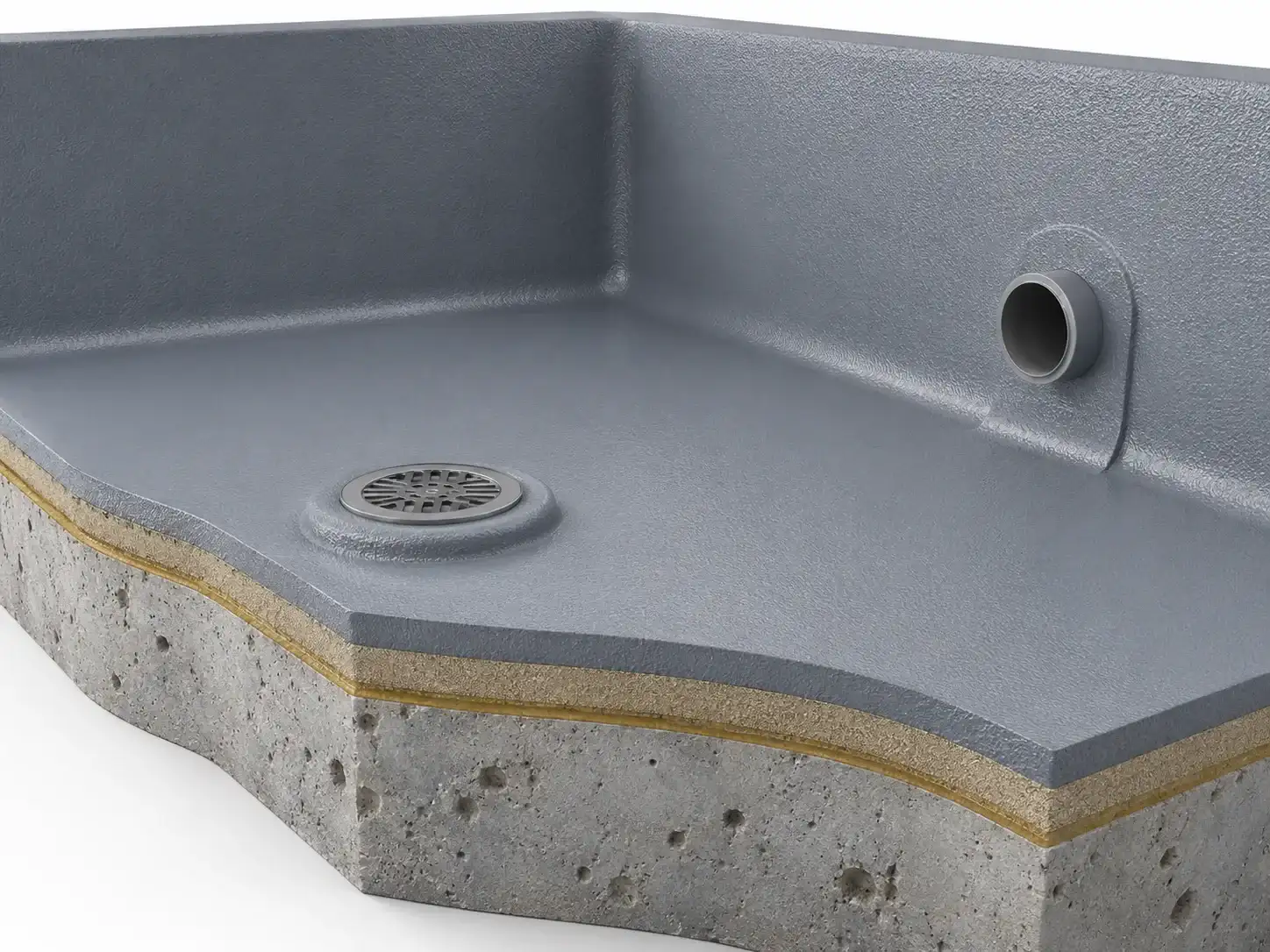

BW3-900 spray polyurea main waterproofing membrane in a pool system
03

BW3-900 Spray Polyurea Waterproofing Membrane

Forms the main seamless membrane.

Main Function
Forms the main seamless, continuous and flexible spray polyurea waterproofing membrane over prepared pool and water park concrete surfaces.
What It Solves
Leakage paths around pool floors, walls, water play areas, drains, pipe penetrations, inner corners, steps, joints and complex recreational water details.
Key Advantage
Fast spray-applied installation and seamless membrane formation help create continuous waterproofing coverage on large or detail-rich water park and swimming pool structures.
BW0-8029 chloride-resistant exposed protective topcoat for pool waterproofing surface
04

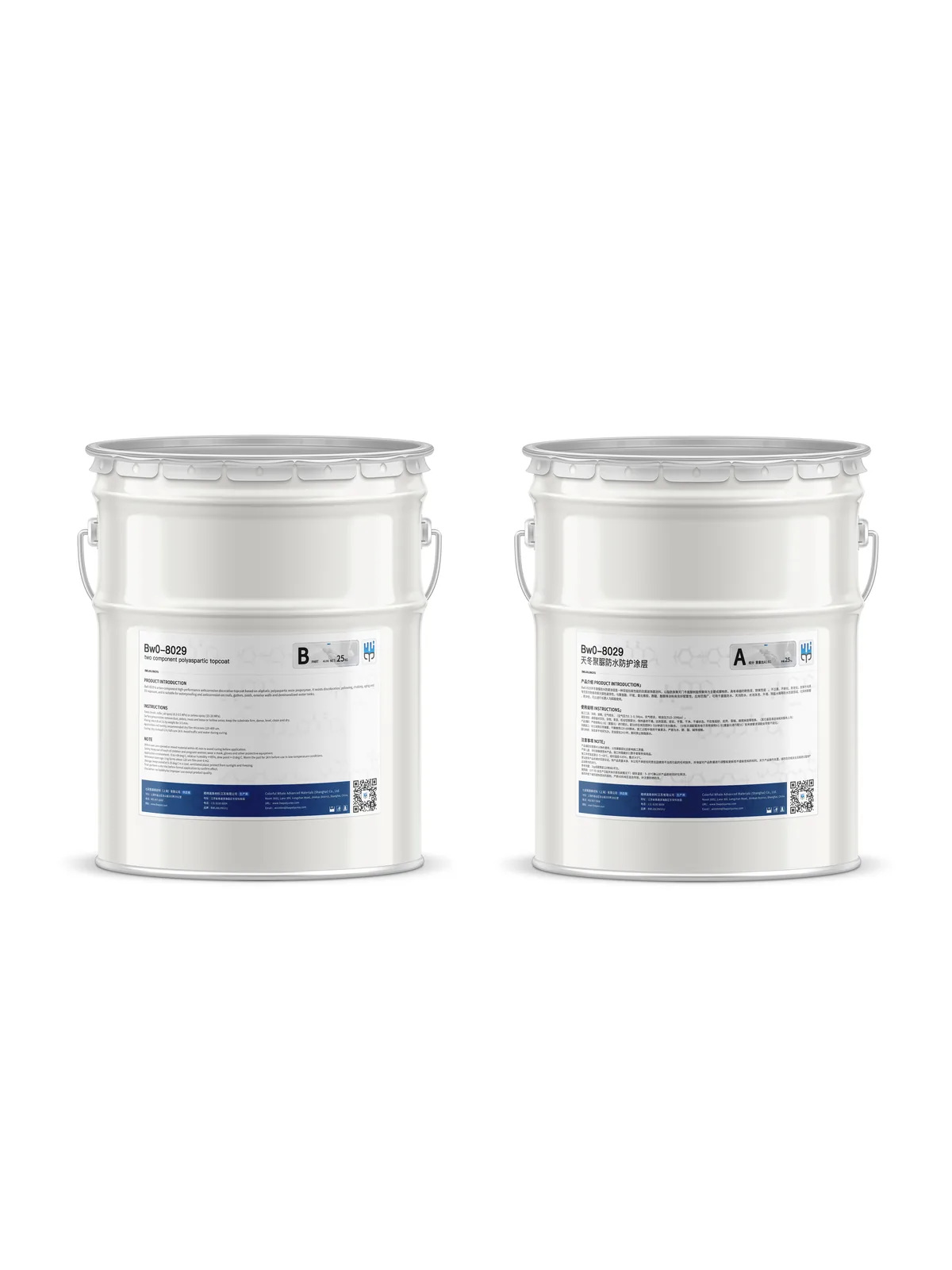

BW0-8029 Protective Topcoat

Protects the exposed membrane surface.

Main Function
Provides protective topcoat support over the BW3-900 spray polyurea waterproofing membrane.
What It Solves
Pool water exposure, chloride exposure, UV exposure, surface wear, color aging, cleaning demand and long-term surface protection needs.
Key Advantage
Helps improve surface durability, cleanability, weather resistance and long-term protection of the spray polyurea waterproofing membrane.

Application stage

How This System Helps Reduce Water Park and Pool Waterproofing Risks

Water park and swimming pool waterproofing risks often appear around pool floor and wall transitions, inner corners, drains, outlets, pipe penetrations, water play equipment bases, steps, slide landing zones, splash zones, cracks, pores, honeycombs and pits. Long-term water exposure, chloride exposure, outdoor UV and surface wear from foot traffic and cleaning also need to be considered. This spray polyurea system uses concrete primer, BW3-900 spray polyurea membrane and protective topcoat to help prepare the concrete base, form a seamless waterproofing membrane and support durable surface protection under recreational water service conditions.

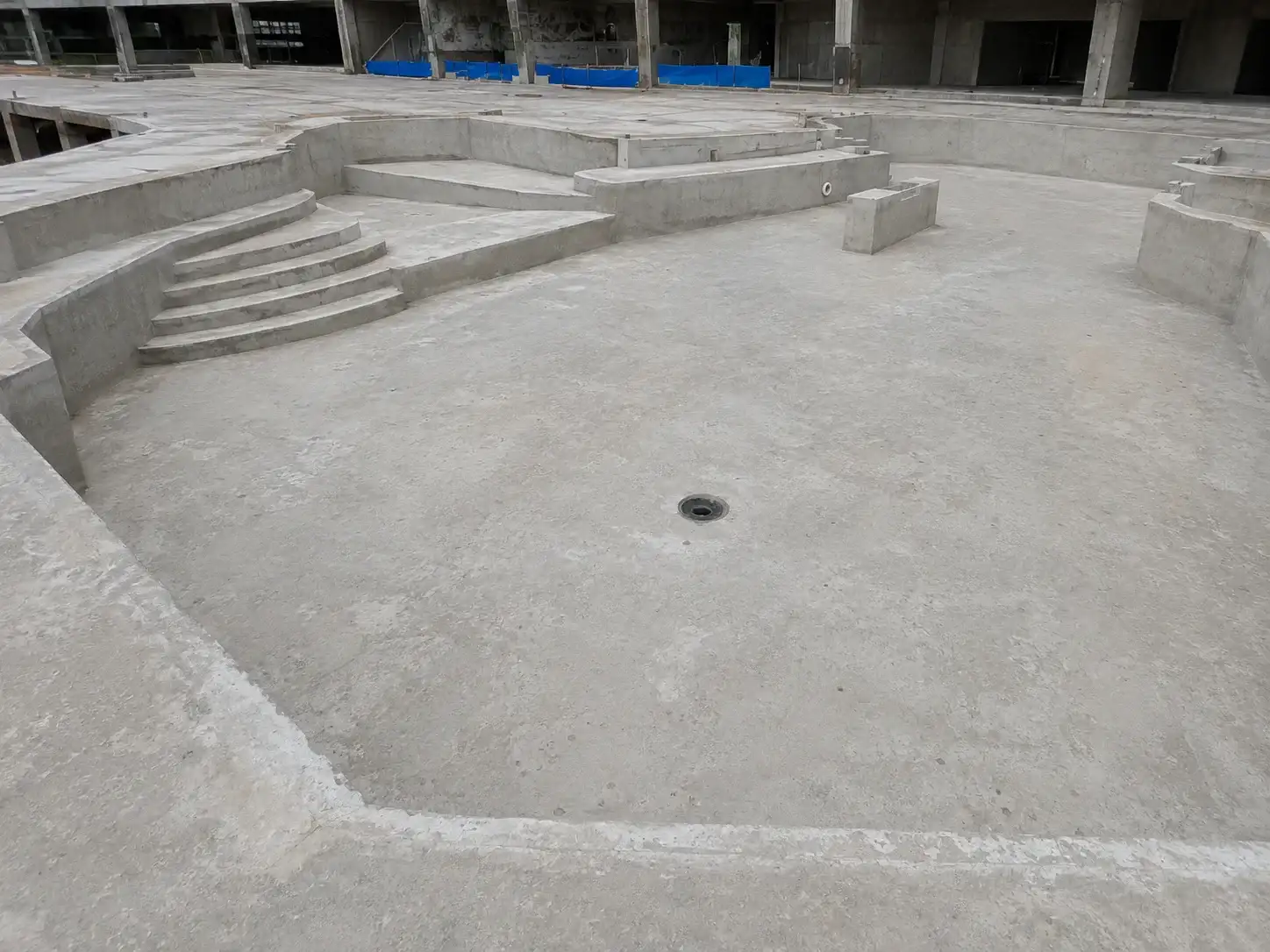

Concrete pool substrate preparation before BW8010 primer and spray polyurea waterproofing
01

Concrete Pool / Water Park Substrate Preparation

Prepared concrete should be checked for strength, dryness, pores, honeycombs, pits, cracks, laitance, dust, oil, standing water and loose areas. Pool floors, walls, inner corners, drains, outlets, pipe penetrations, steps and water play equipment bases should be reviewed before primer work.

Reference: confirm concrete strength, moisture condition, repair scope and detail readiness before coating.
02

BW8010 First Primer

Apply BW8010 as the first primer to seal prepared concrete, reduce absorption differences and support adhesion before the quartz-sand leveling repair layer.

System reference: about 100 um primer thickness / about 0.20 kg/m2. Final primer consumption depends on concrete porosity and absorption. BW8010 primer packaging for water park and swimming pool spray polyurea waterproofing system Product usedView BW8010 ->

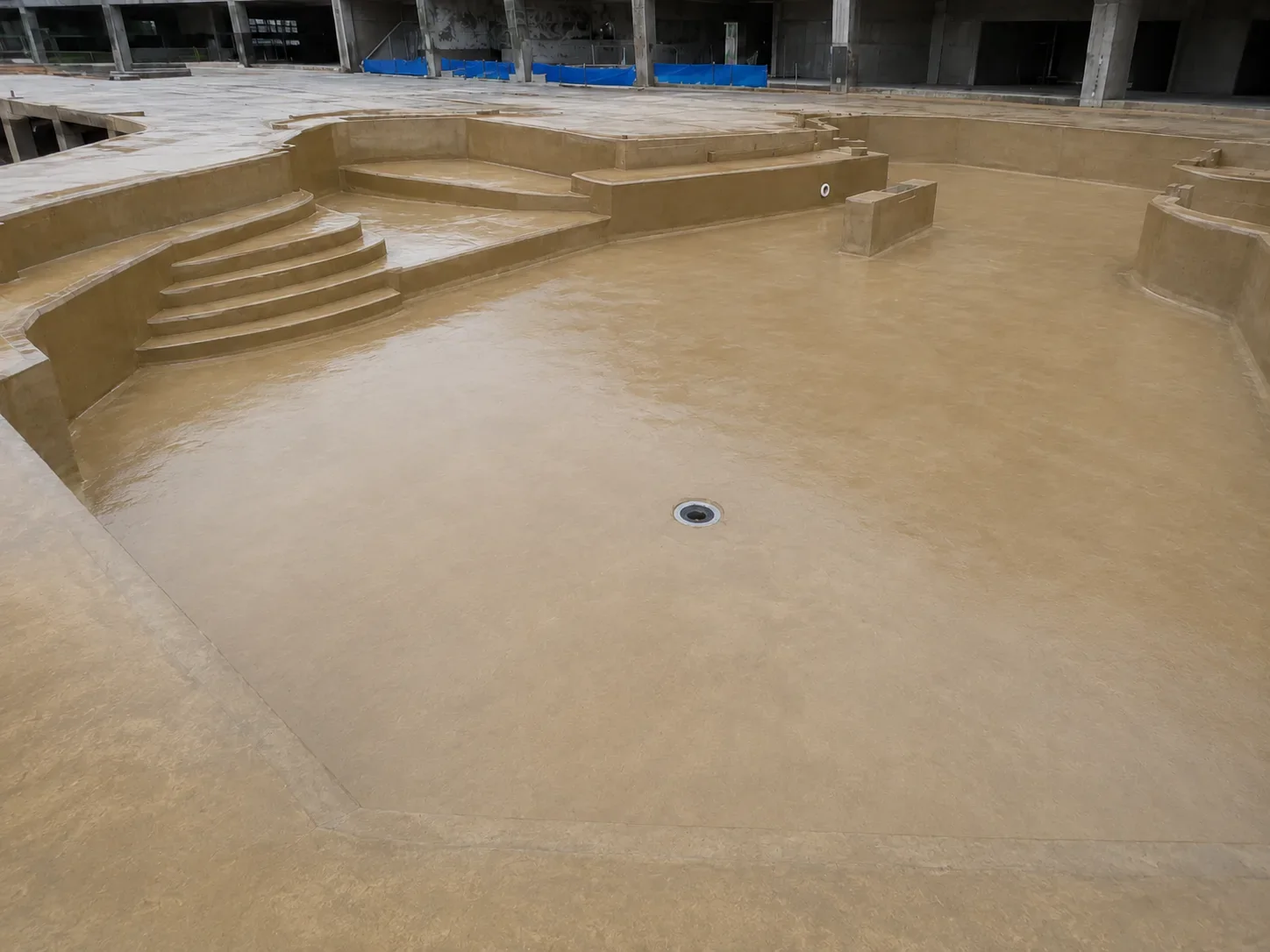

BW8010 primer application on a concrete pool substrate

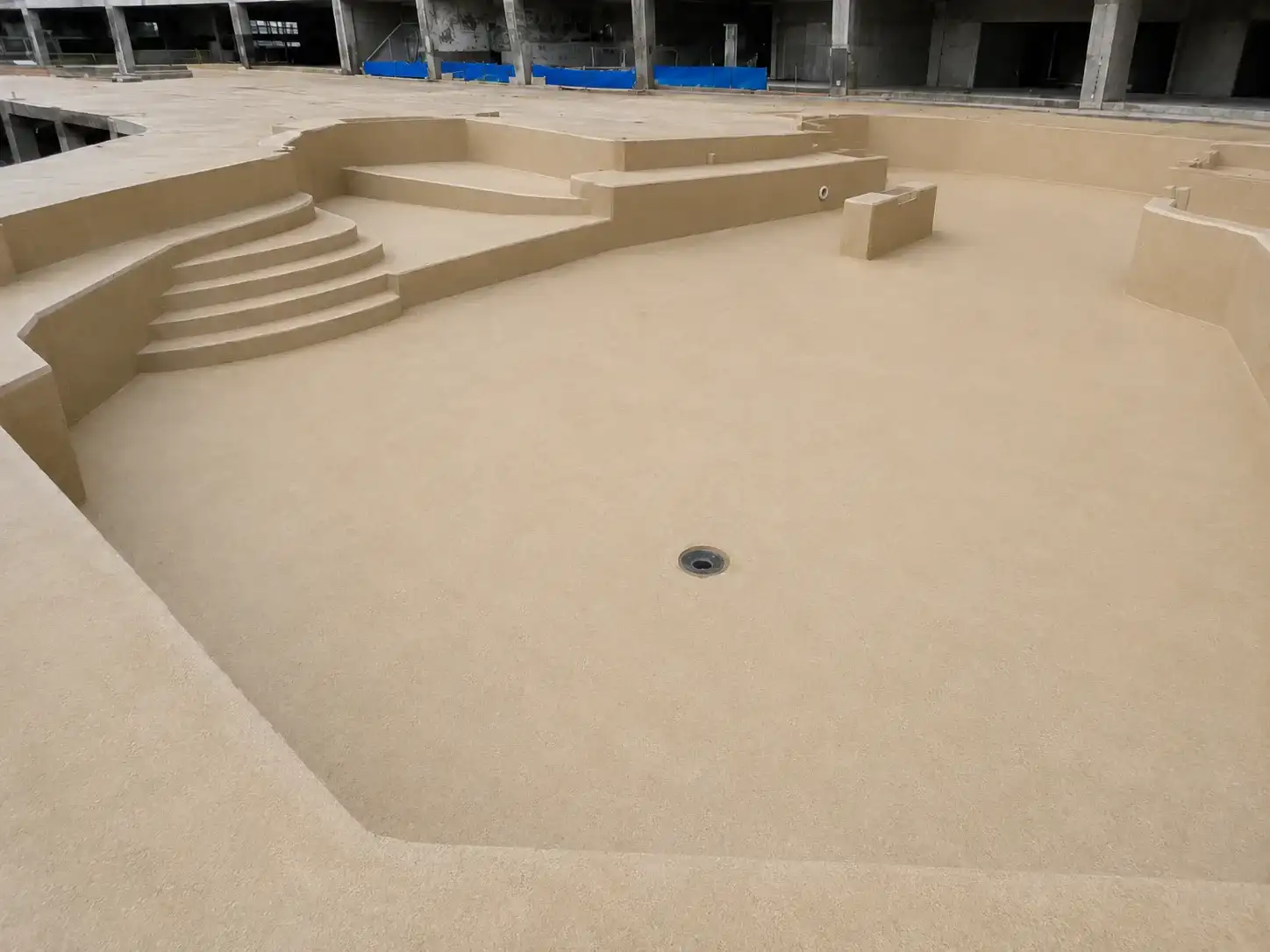

BW8010 quartz sand leveling repair application before BW3-900 spray polyurea
03

BW8010 Quartz-Sand Leveling / Repair Layer

Blend BW8010 with quartz sand for scrape-applied local repair and leveling. Use this layer to fill pores, honeycombs, pits and uneven areas before the main spray polyurea membrane is applied. It is not the main waterproofing membrane.

System reference: BW8010 blended with quartz sand for pore filling, honeycomb repair, pit filling and local leveling. Thickness and consumption are project-specific based on repair depth and substrate condition. BW8010 primer packaging for quartz sand leveling repair layer in water park and swimming pool system Product usedView BW8010 ->
04

BW3-900 Spray Polyurea Main Waterproofing Membrane

BW3-900 is spray-applied as the main seamless waterproofing membrane. It should continuously cover pool floors, walls, wall-floor transitions, inner corners, drains, outlets, pipe penetrations, steps, slide landing zones and water play equipment base details.

System reference: about 1.5 mm membrane thickness / about 1.62 kg/m2 planning consumption. BW3-900 spray polyurea membrane packaging for water park and swimming pool waterproofing system Product usedView BW3-900 ->

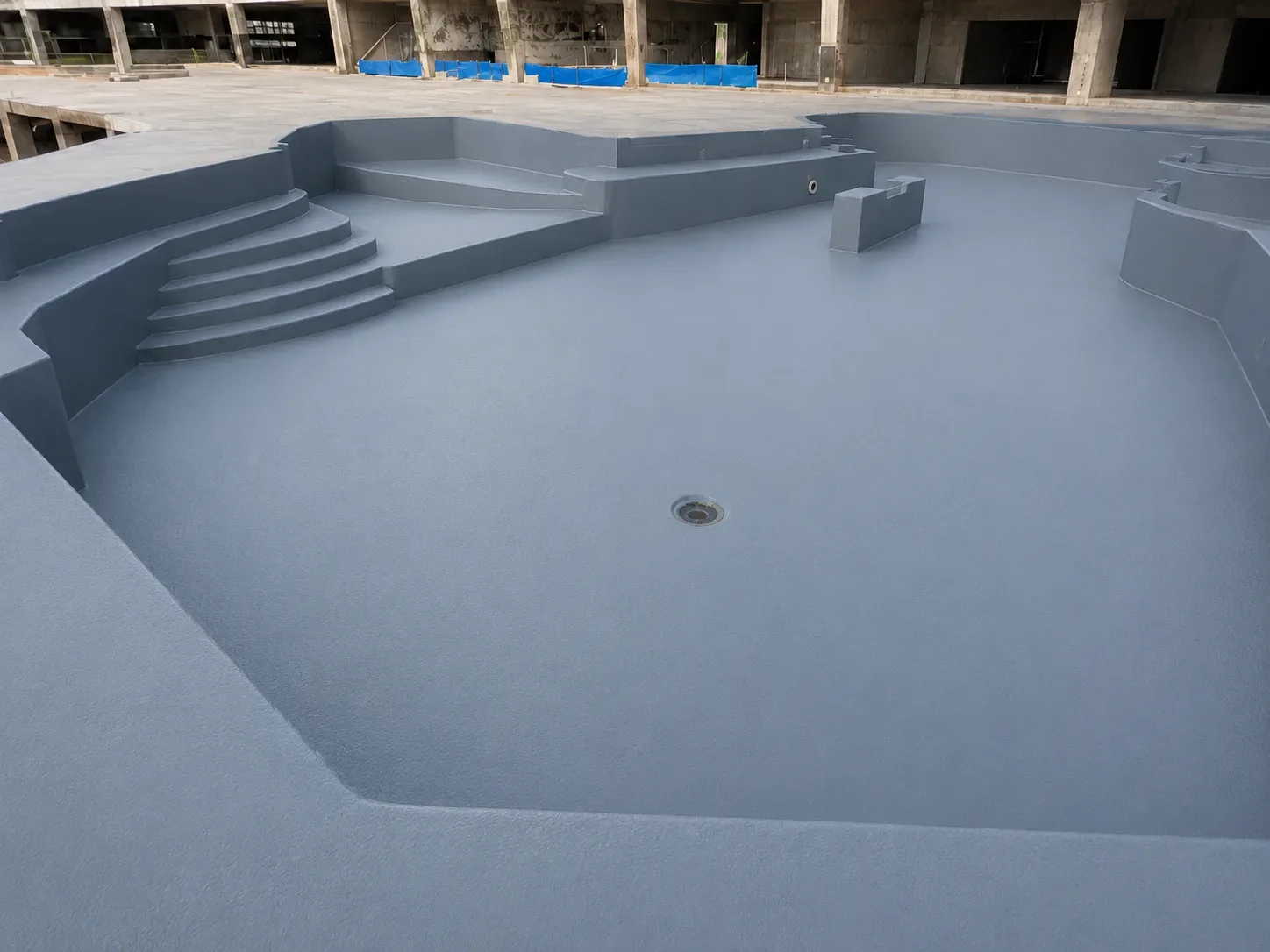

BW3-900 spray polyurea application forming the main pool waterproofing membrane

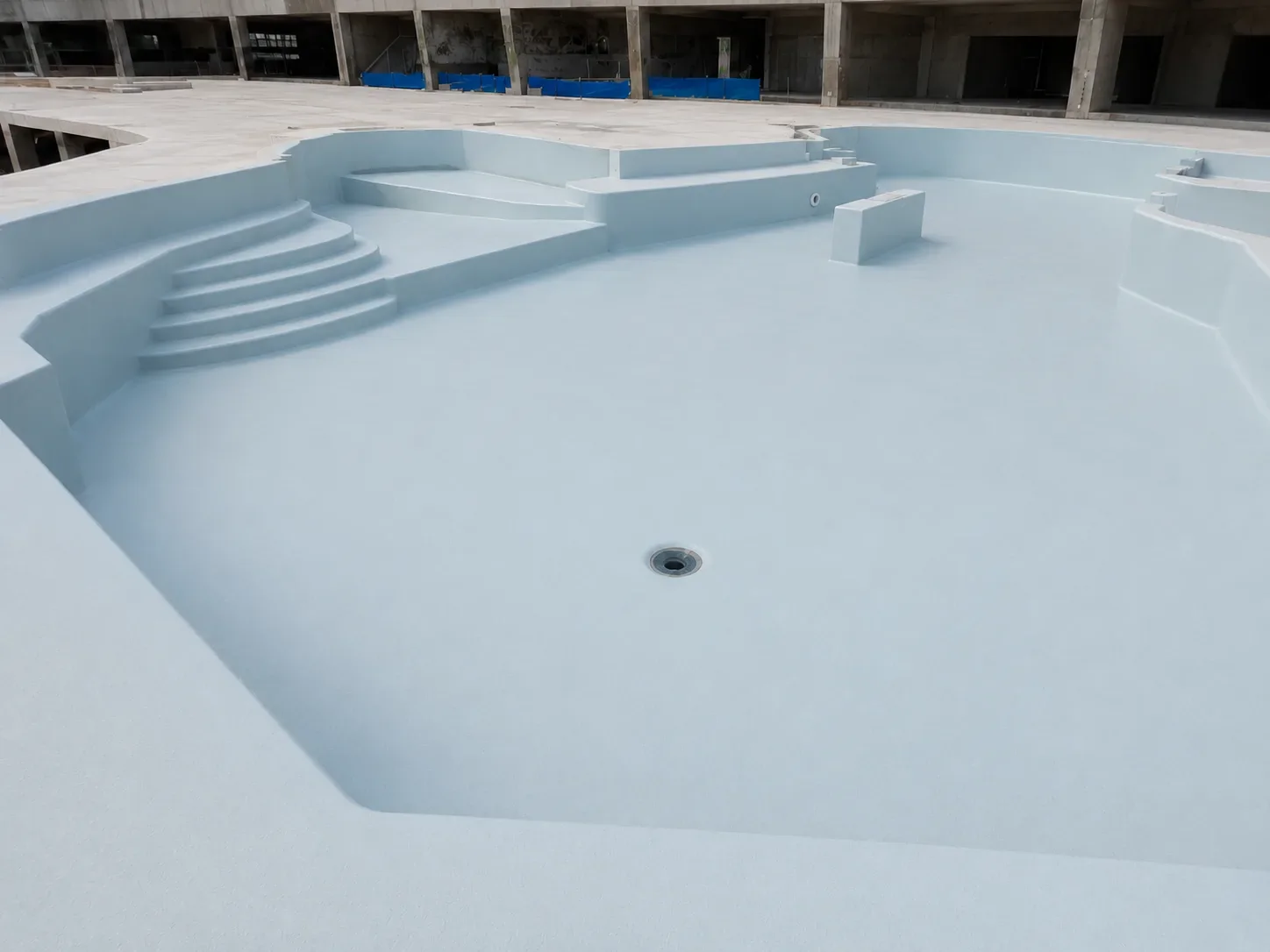

Finished swimming pool waterproofing surface after BW0-8029 chloride-resistant topcoat
05

BW0-8029 Protective Topcoat

BW0-8029 is applied over the BW3-900 membrane to support pool water exposure, chloride exposure, UV or outdoor weathering when exposed, surface durability, color stability and cleanability.

Recommended 30-60 um per coat. For water park and swimming pool exposure, final topcoat design may be specified as 60-120 um total thickness depending on service condition and number of coats. BW0-8029 polyaspartic topcoat packaging for chloride-resistant exposed protection in water park and swimming pool system Product usedView BW0-8029 ->

Technical data center

Technical Data Center

Key planning data for BW8010 primer and repair use, BW3-900 spray polyurea main membrane and BW0-8029 exposed protective topcoat in water park and swimming pool projects.

BW8010 Primer / Quartz Sand Repair Key Data

ItemTest standard / referenceResult
Product type Product data reference Solvent-free two-component polyurea primer
Solid content Product data reference >=98%
Mixing ratio By weight A:B = 1:2
Primer planning consumption 100 um DFT 0.2 kg/m2
Dry concrete adhesion ASTM D-3359 3.5 MPa or substrate broken
Pot life 25 deg C / RH 50% 0.5 h
Quartz sand option System repair use Scrape leveling, pore filling, honeycomb repair and local uneven concrete correction

BW3-900 Spray Polyurea Main Membrane Key Data

ItemTest standard / referenceResult
Product type Product data reference 100% solids aromatic pure polyurea elastomer
Solid content Part A / Part B 100% / 100%
Mix ratio By volume 1 : 1
Gel time @ 25 deg C Product data reference 4-6 s
Recommended film thickness Product data reference 1000-3000 um
Water park and pool system planning Recommended membrane thickness About 1.5 mm
Planning consumption 1.5 mm membrane thickness About 1.62 kg/m2
Impermeability 0.4 MPa / 2 h Impermeable
Elongation rate GB / T 23446-2009 482%

BW0-8029 Exposed Protective Topcoat Key Data

ItemTest standard / referenceResult
Product role System planning Protective topcoat over BW3-900 main membrane
Recommended DFT Product data reference 30-60 um per coat
Water park and pool system planning Topcoat design 60-120 um total topcoat design depending on service condition and number of coats
Planning consumption Total topcoat design About 0.10-0.20 kg/m2 depending on specified total topcoat thickness
Waterproof test Product data reference 48 h, no bubbles, wrinkles, color change or peeling
Tensile strength ASTM D-412 20 MPa
Elongation rate ASTM D-412 200%
Accelerated aging GB / T 14522-1993, 1000 h Loss of light <1; chalking <1

Technical values are planning references extracted from product data and system calculations. Final material selection, film thickness, quartz sand ratio, consumption and application conditions should be confirmed according to substrate condition, immersion service and the latest technical data sheet.

Quality control

Application & Quality Control

Quality control should focus on concrete pool and water park readiness, BW8010 sealing and repair support, BW3-900 membrane continuity and BW0-8029 protective topcoat condition before the area enters recreational water service.

01

Concrete Pool Readiness

Confirm the pool or water park substrate before primer application.

  • Surface strength and moisture condition
  • Laitance, dust, oil and loose-area removal
  • Cracks, pores, honeycombs and pits
  • Drains, outlets, pipe penetrations, steps and equipment bases
02

Primer and Repair Control

Control BW8010 primer coverage and local repair preparation before spraying.

  • Capillary pore sealing
  • Reduced substrate absorption
  • Quartz-sand repair flatness where used
  • No loose sand, hollow repair or untreated voids
03

Membrane and Topcoat Review

Review BW3-900 as the main membrane and BW0-8029 as the protective topcoat.

  • Continuous seamless BW3-900 film
  • Target membrane thickness
  • Wrapped water play details
  • BW0-8029 topcoat continuity and finish
Inspection focus
  • Concrete repair readiness
  • Pool floor and pool wall continuity
  • Corners and wall-floor junctions
  • Pipe penetrations and drains
  • Overflow outlets and steps
  • Main membrane thickness
  • Topcoat surface finish

Suitable project conditions

Suitable Water Park and Swimming Pool Conditions

Use this section to check whether the project fits a BW8010 + BW3-900 + BW0-8029 spray polyurea waterproofing and protection system before final specification.

  1. 01

    Concrete Swimming Pools and Water Park Basins

    Concrete basins can be reviewed when surface strength, moisture condition, cleaning and detail preparation are ready for primer and membrane work.

    Check before specification: strength / moisture / cleaning

  2. 02

    Long-Term Immersion Areas

    Use when the project needs a seamless elastic main membrane suitable for pool water and continuous immersion service after proper substrate preparation.

    Check before specification: immersion / membrane continuity

  3. 03

    Chloride and Pool Water Exposure

    Use BW0-8029 as the final exposed protective topcoat when the surface needs pool water, chloride exposure, UV, weathering and color-retention review.

    Check before specification: chloride / UV / color retention

  4. 04

    Detail-Heavy Pool Structures

    Steps, drains, pipe penetrations, overflow outlets, wall-floor junctions and equipment bases need continuous coating treatment so detail zones stay integrated with the field membrane.

    Check before specification: details / wrapping / continuity

Do not treat the BW8010 quartz sand repair layer or BW0-8029 topcoat as the main waterproofing membrane. The main continuous waterproofing layer in this system is BW3-900 spray polyurea.

Before you request a quote

Before You Request a Quote

Share the pool or water park substrate condition and service targets so the BW8010 + BW3-900 + BW0-8029 system can be reviewed before material planning.

Prepare the pool project basics first.

A useful water park or swimming pool waterproofing quotation starts with concrete condition, immersion requirement, chloride exposure, repair scope and detail geometry.

Photos or drawings of drains, pipe penetrations, overflow outlets, steps, equipment bases, cracks, honeycombs and uneven areas can help review the build-up faster.

  • Pool or water park area
  • Concrete substrate condition
  • Moisture and surface strength
  • Cracks / honeycombs / pits
  • Leveling or repair scope
  • Pool floor and wall details
  • Pipe penetrations
  • Drains and overflow outlets
  • Steps and equipment bases
  • Target membrane thickness
  • Topcoat color or finish target
  • Water chemistry or chlorine exposure
  • Project location
  • Construction timeline
  • Required documents

After these details are ready, use the inquiry form below to request a pool system review.

FAQ

FAQ

Common questions about using BW8010, BW3-900 and BW0-8029 for water park and swimming pool waterproofing.

What is this spray polyurea water park and swimming pool system used for?

It is designed for prepared concrete water parks, swimming pools, splash pools, water play zones and wet recreational concrete structures that need continuous spray polyurea waterproofing and surface protection.

Which product forms the main waterproofing membrane?

BW3-900 forms the main seamless spray polyurea waterproofing membrane in this system. BW8010 supports concrete sealing and adhesion, while BW0-8029 provides protective topcoat support.

Why does this system include BW8010 twice in the build-up?

BW8010 is used first as a concrete primer for sealing, absorption control and adhesion support. Where the concrete has pores, honeycombs, pits or local unevenness, BW8010 can also be blended with quartz sand as a leveling / repair layer before the BW3-900 spray polyurea membrane is applied.

What details need special attention in water park and swimming pool projects?

Pool floor and wall transitions, inner corners, drains, outlets, pipe penetrations, water play equipment bases, steps, slide landing zones, splash zones, cracks, pores, honeycombs and pits should be reviewed before spraying.

Is BW3-900 suitable for pool floor and wall transitions?

BW3-900 can be spray-applied as the main membrane across prepared pool floors, walls, wall-floor transitions and detail zones when substrate preparation, masking, spraying access and detail treatment are properly planned.

Why is BW0-8029 protective topcoat used?

BW0-8029 is used as the protective topcoat to support pool water exposure, chloride exposure, UV exposure, surface wear resistance, color stability and cleanability over the BW3-900 membrane.

What membrane thickness is recommended for BW3-900?

BW3-900 is recommended at about 1.5 mm as the main spray polyurea waterproofing membrane in this water park and swimming pool system. Final thickness should be confirmed according to substrate condition, exposure and project specification.

How should drains, pipe penetrations and equipment bases be treated?

Drains, outlets, pipe penetrations, steps and equipment bases should be cleaned, repaired, primed and wrapped continuously with the main membrane according to project detail requirements.

What is the expected service life of this waterproofing coating system?

Based on laboratory testing and practical project verification, this waterproofing coating system is designed to support up to 20 years of service life when properly installed on suitable concrete substrates and maintained according to project requirements.

How is this spray system different from hand-applied pool waterproofing systems?

This system uses BW3-900 as a spray-applied main membrane and is more suitable for larger or detail-rich water park and swimming pool structures where spray equipment access is practical. Hand-applied systems are usually reviewed for smaller repair areas or projects where spray equipment is not convenient.
