Basement Garage Roof Deck Waterproofing System

A concrete basement garage roof deck waterproofing system using BW8010 first primer, BW8010 quartz-sand leveling repair and BW3-900 spray polyurea main membrane to form a continuous waterproofing layer over prepared concrete decks.

View Technical Specifications Get Solution and Quote

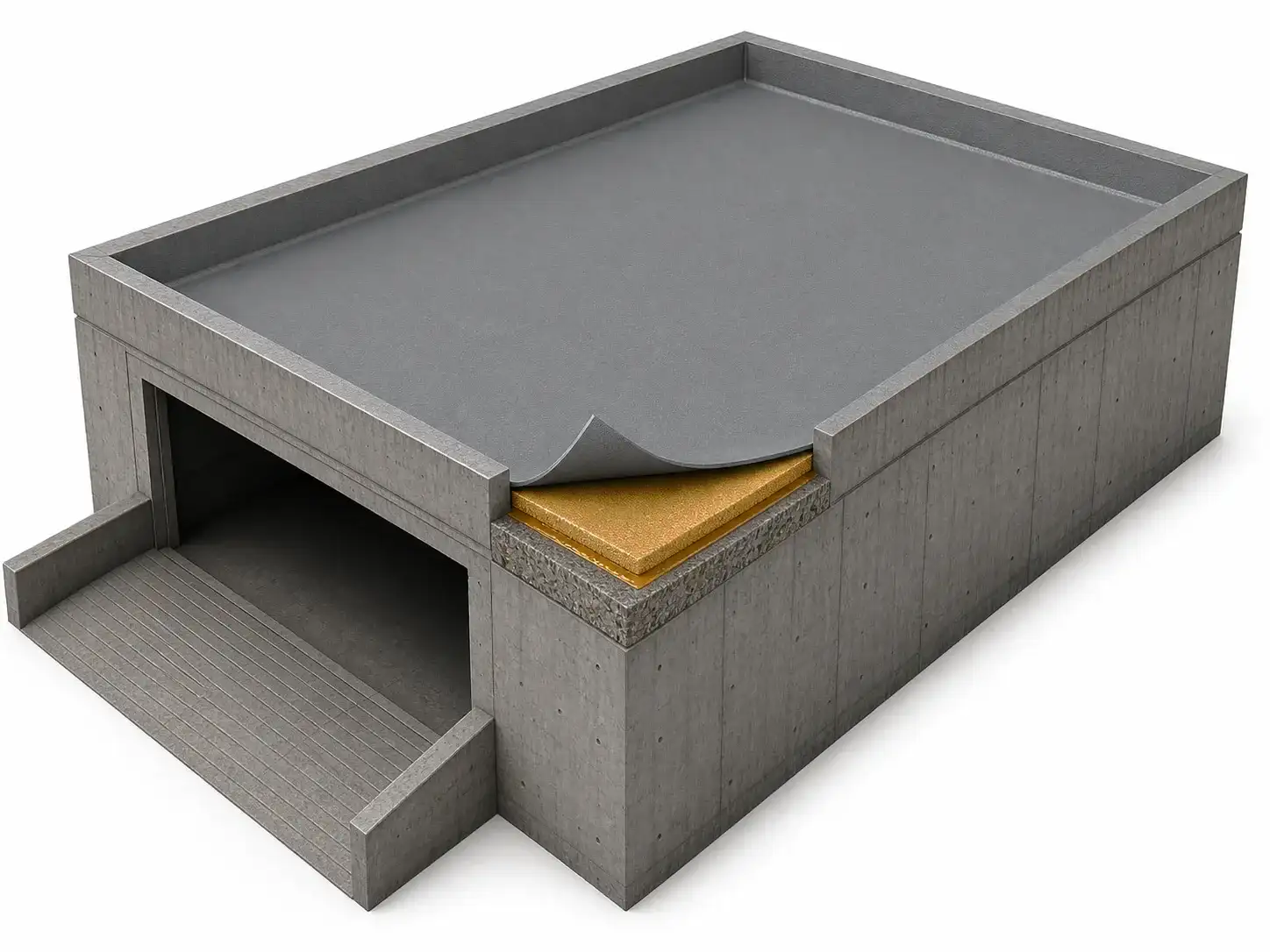

Basement garage roof deck spray polyurea waterproofing system layer cutaway with BW8010 primer, BW8010 quartz sand leveling repair and BW3-900 membrane

System build-up

Primer, Leveling Repair and Main Membrane

BW8010 primer, BW8010 quartz-sand leveling repair and BW3-900 membrane are reviewed as the coating build-up.

  1. 01
    First Primer BW8010

    Primer sealing and adhesion support

  2. 02
    Leveling Repair BW8010 + Quartz Sand

    Quartz-sand leveling and repair transition layer

  3. 03
    Main Membrane BW3-900

    Main seamless spray polyurea waterproofing membrane

Layer function

What Each Layer Solves

Each layer has a specific job: BW8010 seals and prepares the concrete deck, BW8010 blended with quartz sand repairs pores and uneven areas, and BW3-900 forms the main seamless spray polyurea waterproofing membrane.

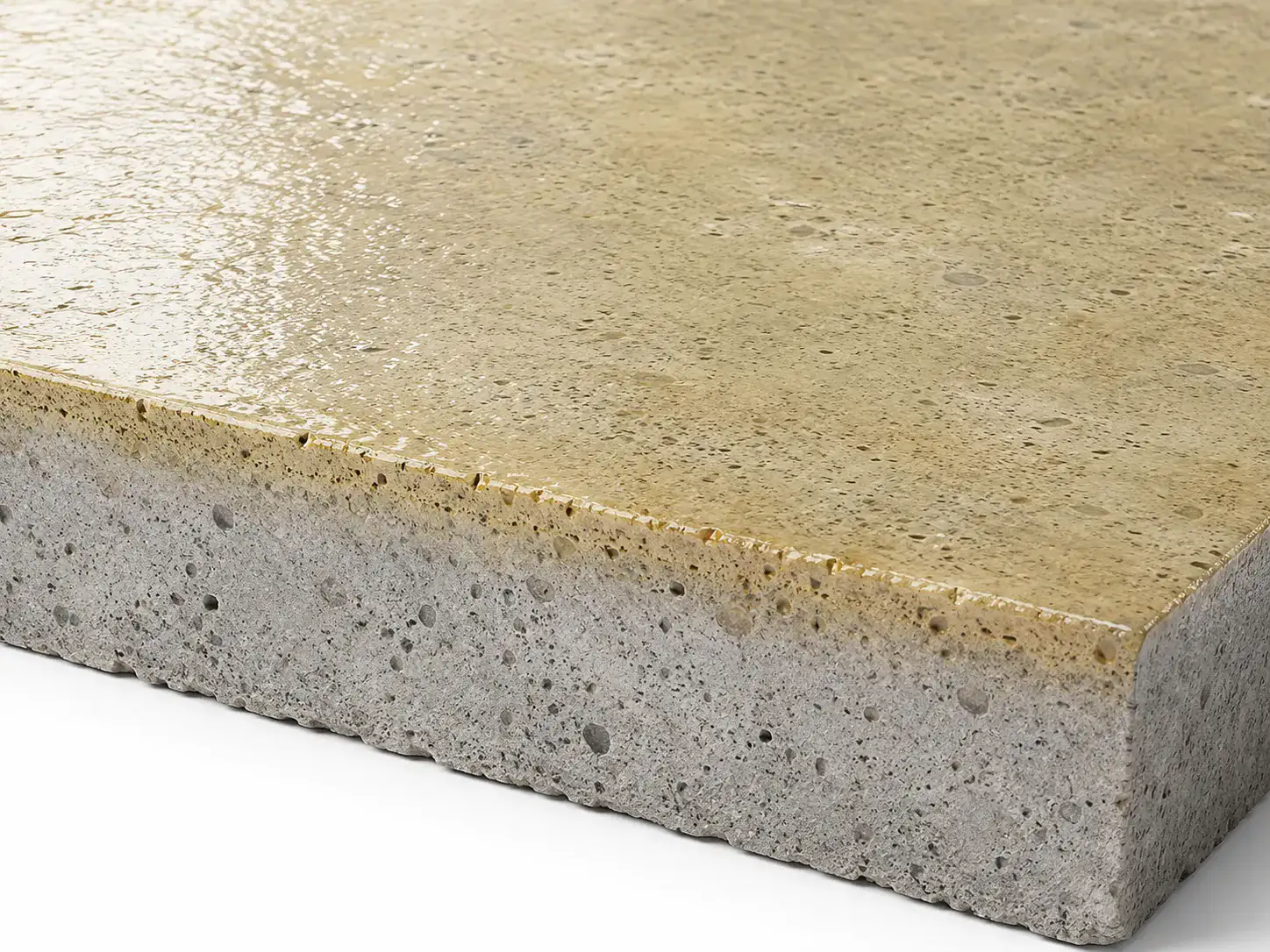

Concrete basement garage roof deck substrate before BW8010 primer and BW3-900 spray polyurea waterproofing membrane
01

BW8010 First Primer

Seals and prepares the concrete deck.

Main Function
Seals concrete capillary pores, improves adhesion and reduces surface absorption before repair leveling and membrane application.
What It Solves
Porous concrete, dusting surfaces, uneven absorption and weak bonding risk between concrete and the waterproofing build-up.
Key Advantage
Creates a more stable bonding base for the quartz-sand repair layer and the BW3-900 spray polyurea membrane.

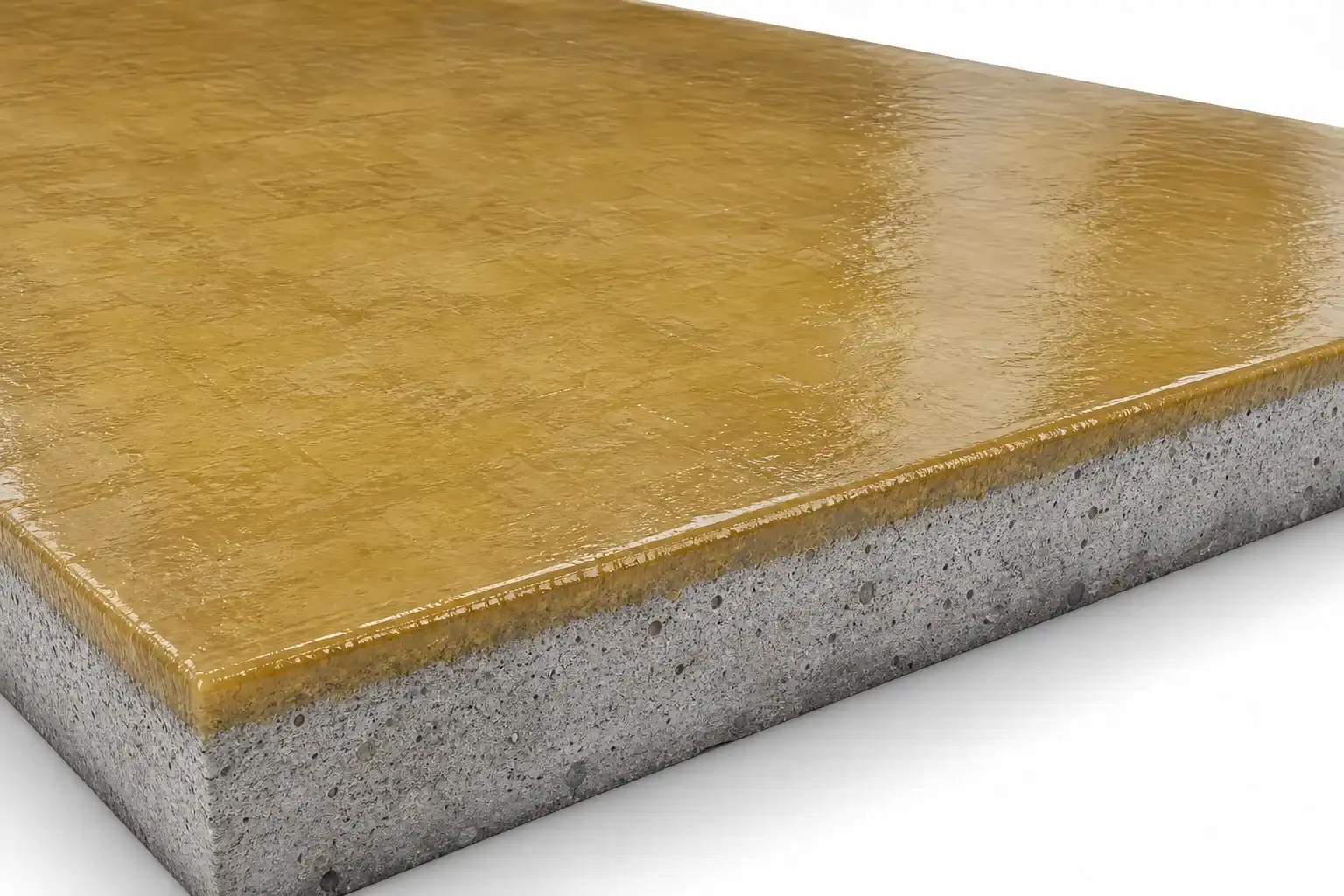

BW8010 quartz sand leveling repair layer for pores, honeycombs and uneven concrete before BW3-900 spray polyurea membrane
02

BW8010 + Quartz Sand

Repairs pores and uneven areas.

Main Function
Creates a thin mortar-like leveling and repair transition layer over prepared concrete.
What It Solves
Pores, honeycombs, pits, local uneven areas and small surface defects before the main membrane is sprayed.
Key Advantage
Improves deck surface continuity so the main BW3-900 membrane can form a more even waterproofing layer.

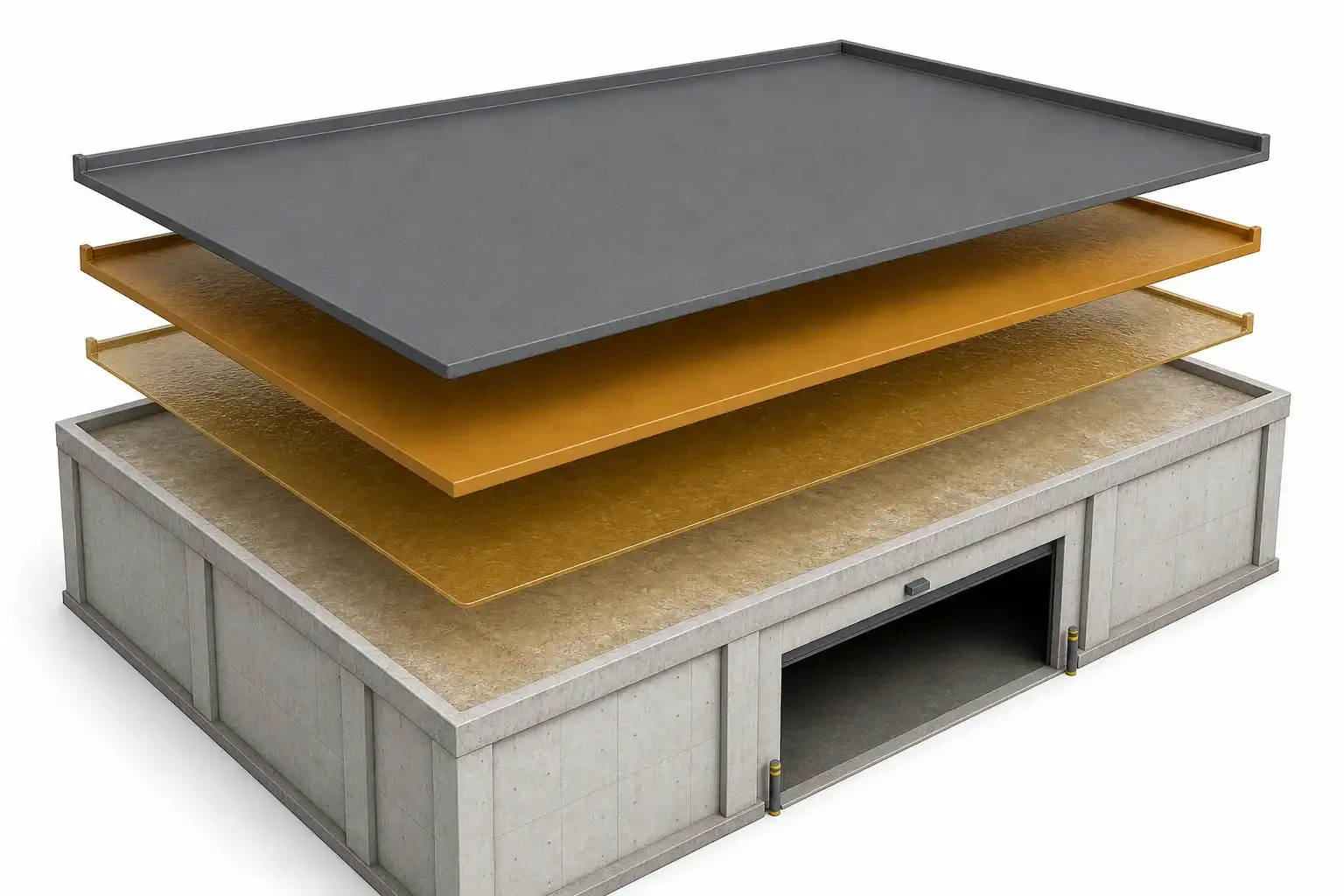

Three-layer basement garage roof deck waterproofing build-up with BW8010 first primer, BW8010 quartz sand leveling repair and BW3-900 membrane
03

BW3-900 Spray Polyurea Membrane

Forms the continuous waterproofing basin.

Main Function
Forms the main seamless spray polyurea waterproofing membrane across the deck and detail zones.
What It Solves
Leakage paths across buried concrete decks, weak points around wall roots, upturns, pipe penetrations, drains and equipment bases.
Key Advantage
Creates a continuous waterproofing basin with fast-curing, high-strength and flexible spray polyurea membrane coverage.

Build-up journey

How This System Helps Reduce Basement Deck Waterproofing Risks

Basement garage roof deck waterproofing risks often come from concrete pores, honeycombs, pits, uneven deck areas, wall roots, upturns, drains, pipe penetrations, outlets and equipment bases. Because the waterproofing layer may later be covered by protection or overburden layers, substrate repair, membrane continuity and detail wrapping must be reviewed before later construction. This system uses BW8010 primer, BW8010 quartz-sand leveling / repair and BW3-900 spray polyurea membrane to help reduce weak bonding, untreated voids and detail leakage paths.

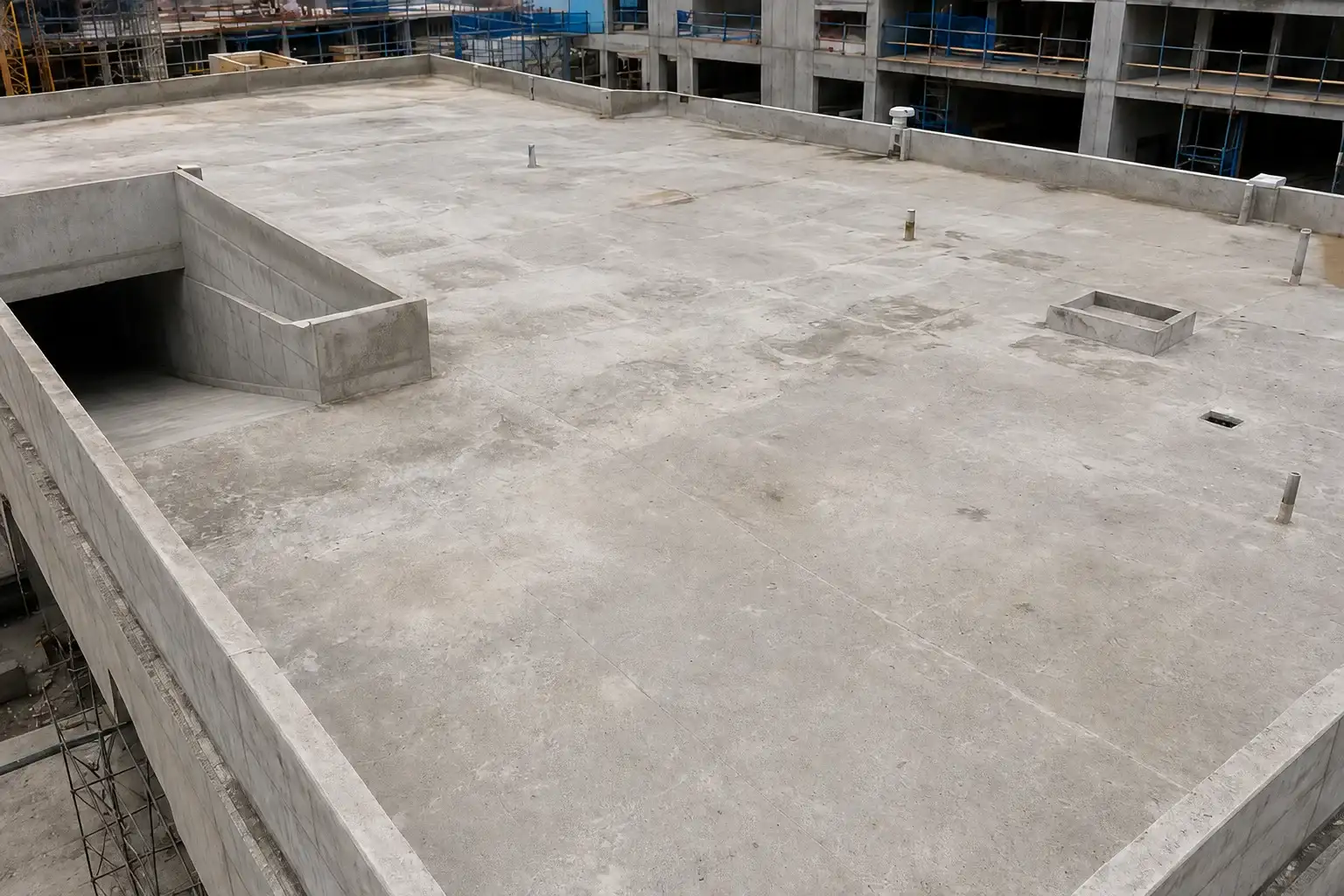

Prepared concrete basement garage roof deck before BW8010 primer and spray polyurea waterproofing work
01

Concrete Basement Garage Roof Deck Substrate

Start from a prepared concrete deck. Review surface strength, dryness, laitance, pores, honeycombs, pits, uneven deck areas, slope and drainage, wall roots, upturns, corners, outlets, pipe penetrations and equipment bases before coating.

Reference: concrete strength, moisture, cleaning, repair scope and detail geometry.
02

BW8010 First Primer

Apply BW8010 as the first primer to seal concrete capillary pores, improve adhesion and reduce surface absorption before the leveling repair pass, especially around wall roots, drains, outlets and other detail areas where bonding defects can spread.

System reference: about 100 um / about 0.20 kg/m2 for the BW8010 first primer; final consumption depends on concrete absorption. BW8010 primer packaging for basement garage roof deck spray polyurea waterproofing system Product usedView BW8010 ->

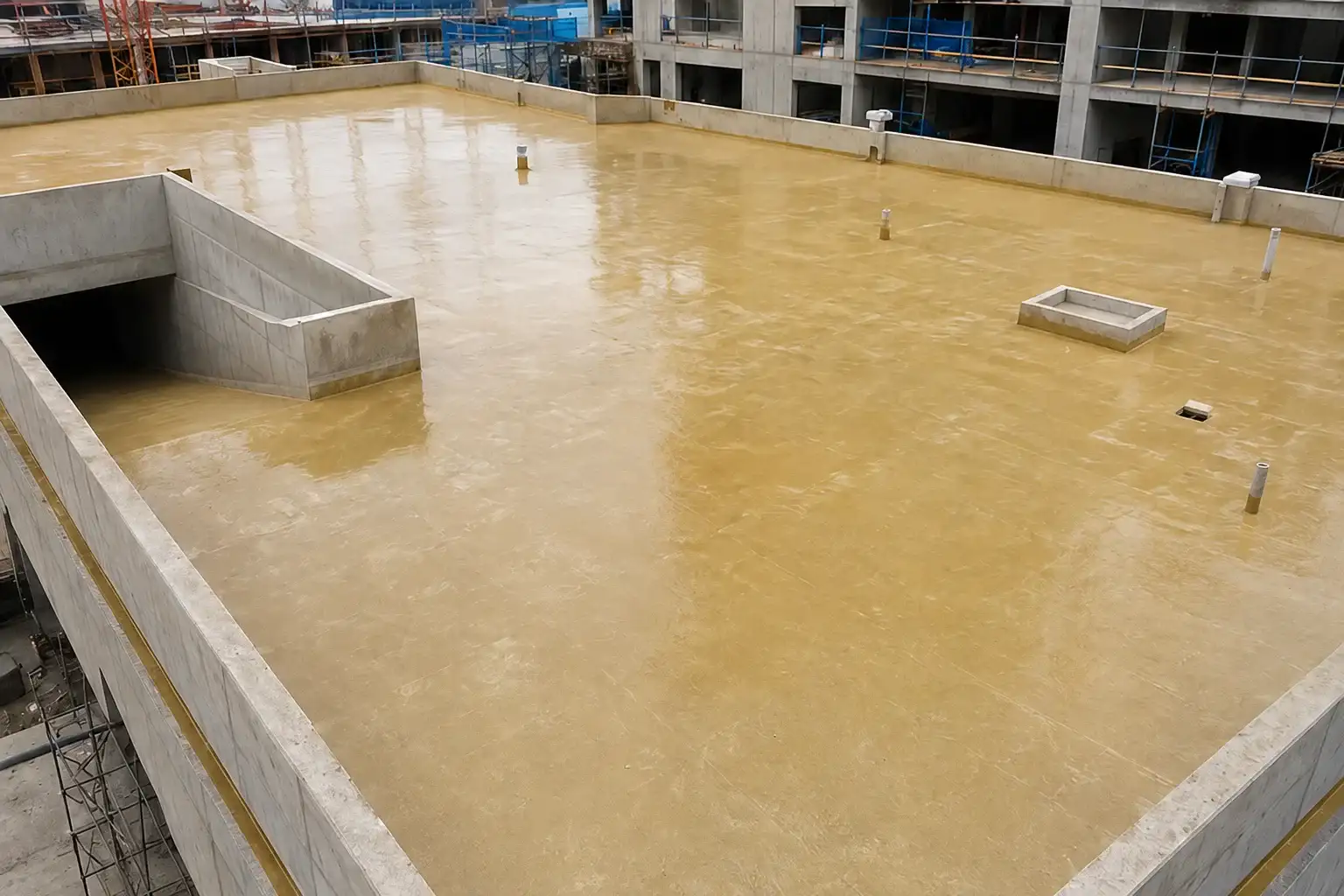

BW8010 primer and leveling preparation work on basement garage roof deck concrete before BW3-900 spray polyurea

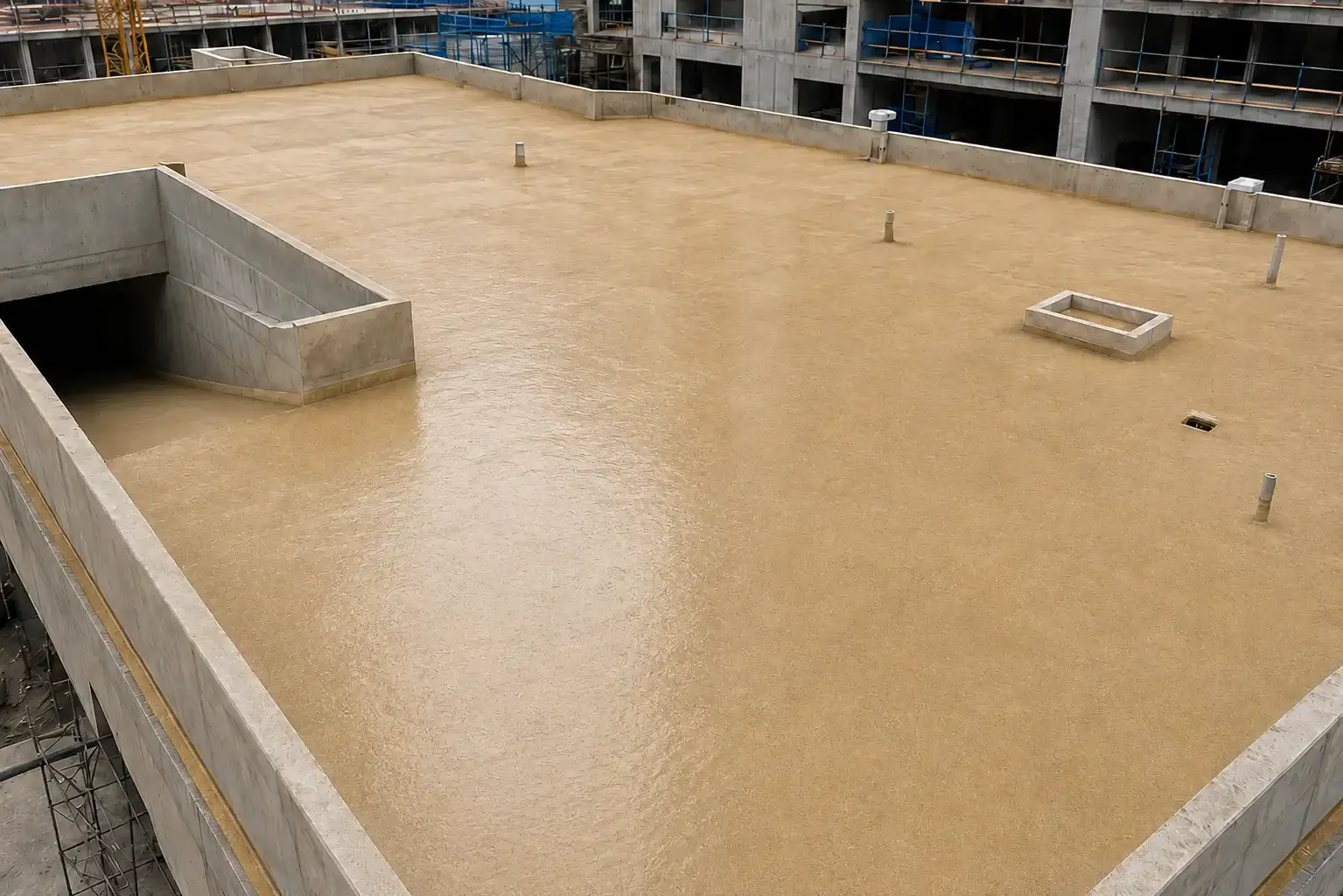

BW8010 quartz sand leveling repair surface on basement garage roof deck before main spray polyurea membrane
03

BW8010 Quartz Sand Leveling / Repair Layer

Blend BW8010 with quartz sand for scrape-applied leveling and local repair. Use this mortar-like layer to fill pores, honeycombs, pits and uneven deck areas before spraying the main membrane. It is a repair and leveling transition layer, not the main waterproofing membrane.

System reference: BW8010 blended with quartz sand for scrape leveling, pore filling and local repair; thickness and consumption are project-specific based on void depth and leveling scope. BW8010 primer packaging for quartz sand leveling repair layer in basement garage roof deck system Product usedView BW8010 ->
04

BW3-900 Spray Polyurea Main Membrane

Spray BW3-900 as the continuous seamless main waterproofing membrane. The membrane should turn up wall roots and vertical faces and wrap corners, pipe roots, drains, outlets and equipment bases so the buried deck waterproofing layer remains continuous before protection or overburden layers are installed.

System reference: about 1.5 mm membrane thickness / about 1.62 kg/m2 planning consumption. Where spray equipment access is not practical, BW6-9526 can be reviewed as a separate hand-applied route for the main waterproofing membrane instead of the BW3-900 spray-applied route. BW3-900 spray polyurea membrane packaging for basement garage roof deck waterproofing system Product usedView BW3-900 ->

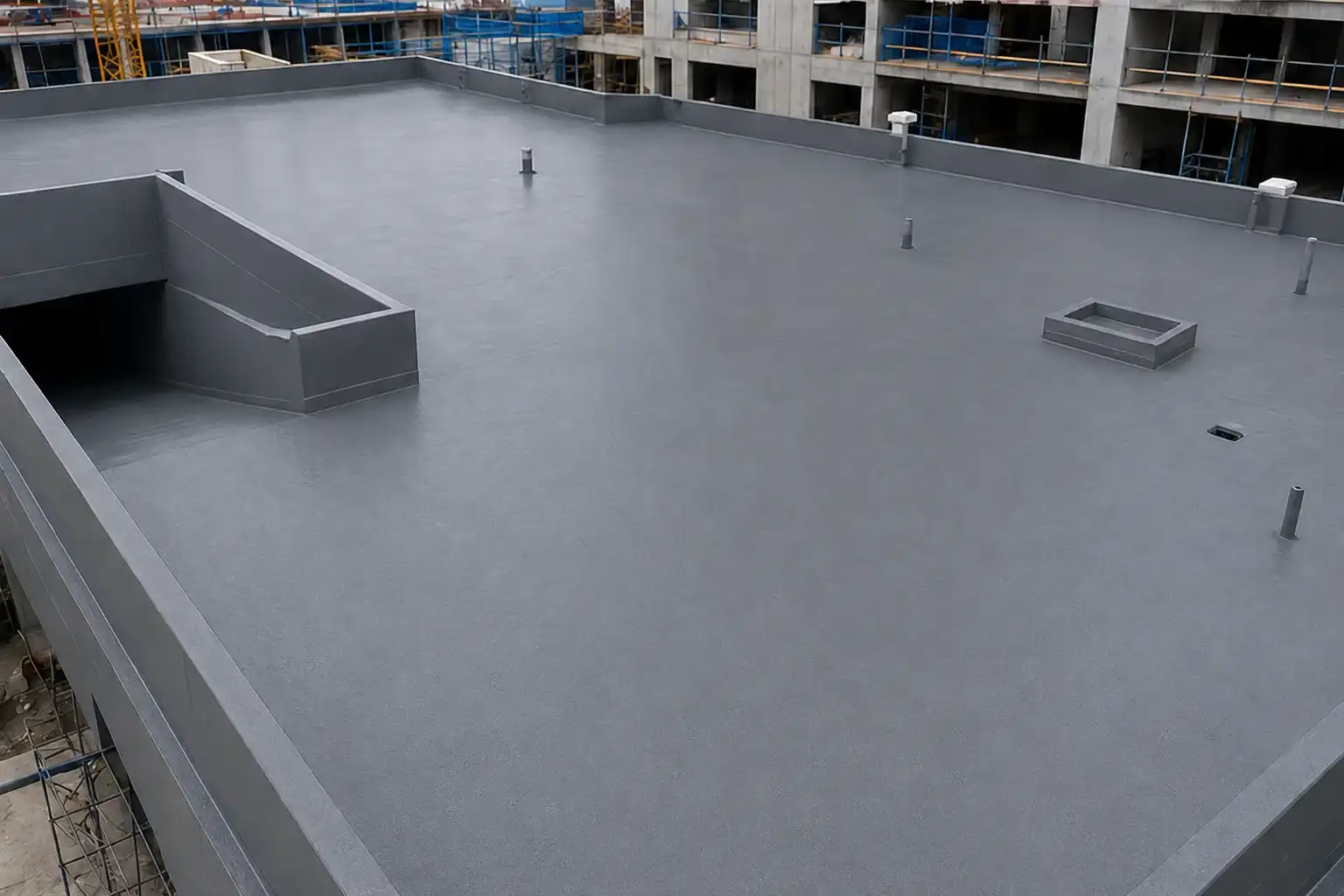

BW3-900 spray polyurea main waterproofing membrane on basement garage roof deck with continuous detail coverage

Technical data center

Technical Data Center

Key planning data for the BW8010 primer / repair layer and BW3-900 spray polyurea main membrane used in this basement garage roof deck system.

BW8010 Primer / Leveling Repair Key Data

ItemTest standard / referenceResult
Product type Product data reference Solvent-free two-component polyurea primer
Solid content Product data reference >=98%
Mixing ratio By weight A:B = 1:2
Theoretical coverage 100 um DFT 0.2 kg/m2
Dry concrete adhesion ASTM D-3359 3.5 MPa or substrate broken
Pot life 25 deg C / RH 50% 0.5 h
Quartz sand option System repair use Scrape leveling, pore filling, honeycomb repair and local uneven deck correction

BW3-900 Spray Polyurea Membrane Key Data

ItemTest standard / referenceResult
Product type Product data reference Spray pure polyurea elastomer waterproofing corrosion protection coating
Solid content Part A / Part B 100% / 100%
Mix ratio By volume 1 : 1
Gel time @ 25 deg C Product data reference 4-6 s
Theoretical coverage 1 mm film thickness 1.08 kg/m2
Tensile strength GB / T 23446-2009 22 MPa
Elongation rate GB / T 23446-2009 482%
Impermeability 0.4 MPa / 2 h Impermeable

Technical values are planning references extracted from product data. Final material selection, film thickness, quartz sand ratio, consumption and application conditions should be confirmed according to concrete substrate condition, detail geometry and the latest technical data sheet.

Quality control

Application & Quality Control

Quality control should focus on concrete deck readiness, BW8010 primer coverage, quartz sand repair quality and BW3-900 membrane continuity before the project moves to later construction work.

01

Concrete Deck Readiness

Confirm the basement garage roof deck before primer application.

  • Surface strength and dryness
  • Dust, laitance and contamination removal
  • Pores, honeycombs, pits and uneven areas
  • Wall roots, corners, drains, pipe roots and equipment bases
02

Primer and Leveling Repair

Control both BW8010 passes before spray polyurea application.

  • First primer coverage
  • Reduced surface absorption
  • Quartz sand repair flatness
  • No loose sand, hollow repair or untreated pores
03

Main Membrane Continuity

Review BW3-900 spray polyurea as the main waterproofing membrane.

  • Continuous seamless film
  • Target membrane thickness
  • Upturns on wall roots and vertical faces
  • Wrapped penetrations, drains and equipment bases
Inspection focus
  • Concrete pores and honeycombs
  • Deck leveling and repair
  • Wall root upturns
  • Pipe penetrations and drains
  • Equipment base wrapping
  • Main membrane thickness and continuity

Suitable project conditions

Suitable Basement Garage Roof Deck Conditions

Use this section to check whether the project fits a BW8010 primer / repair layer + BW3-900 spray polyurea waterproofing system before final specification.

  1. 01

    Concrete Basement Garage Roof Decks

    Concrete decks can be reviewed when surface strength, moisture, cleaning and detail preparation are ready for primer and membrane work.

    Check before specification: strength / moisture / cleaning

  2. 02

    Pores, Honeycombs and Uneven Deck Areas

    Deck areas with pores, honeycombs, pits or local unevenness can be repaired and leveled with BW8010 quartz sand mortar before the main membrane.

    Check before specification: pores / honeycombs / leveling

  3. 03

    Wall Roots, Upturns and Corners

    Wall roots, vertical faces, inner corners and outer corners need continuous membrane upturns to form a basin-like waterproofing layer.

    Check before specification: upturn height / corner continuity

  4. 04

    Pipe Penetrations, Drains and Equipment Bases

    Pipe roots, floor drains, outlets and equipment bases require wrapped membrane treatment so detail zones stay continuous with the field membrane.

    Check before specification: pipe roots / drains / bases

  5. 05

    When Spray Equipment Is Not Suitable

    If the project site does not allow spray equipment or spray application is not practical, a hand-applied route can be reviewed. In that route, BW6-9526 can be used as the main hand-applied waterproofing membrane together with BW8010 primer and substrate repair preparation. This should be treated as a separate hand-applied route, not mixed into the BW3-900 spray-applied build-up.

    Check before specification: spray access / site condition / hand-applied route

Do not treat BW8010 quartz sand leveling repair as the main waterproofing membrane. The main continuous waterproofing layer in this system is BW3-900 spray polyurea.

Before you request a quote

Before You Request a Quote

Share the basement garage roof deck condition and project targets so the BW8010 + BW3-900 system can be reviewed before material planning.

Prepare the concrete deck basics first.

A useful buried deck waterproofing quotation starts with concrete substrate condition, repair scope and detail geometry, not only the deck area.

Photos or drawings of wall roots, upturns, pipe penetrations, drains, equipment bases, honeycombs and uneven areas can help review the build-up faster.

  • Deck area
  • Concrete substrate condition
  • Moisture and surface strength
  • Pores / honeycombs / pits
  • Uneven deck repair scope
  • Wall roots and upturn heights
  • Pipe penetrations
  • Drains and outlets
  • Equipment bases
  • Target membrane thickness
  • Project location
  • Construction timeline
  • Required documents

After these details are ready, use the inquiry form below to request a basement garage roof deck system review.

FAQ

FAQ

Common questions about using BW8010 and BW3-900 for concrete basement garage roof deck waterproofing.

What is this basement garage roof deck system designed for?

It is designed for prepared concrete basement garage roof decks that need primer sealing, local leveling repair and a continuous spray polyurea main waterproofing membrane.

What does the first BW8010 primer pass do?

The first BW8010 primer pass seals concrete capillary pores, improves adhesion and helps reduce surface absorption before the leveling repair pass.

Why is BW8010 mixed with quartz sand for the second pass?

BW8010 mixed with quartz sand can be scrape-applied as a thin mortar-like repair layer to fill pores, honeycombs, pits and local uneven deck areas before spray polyurea.

Is the BW8010 quartz sand layer the main waterproofing layer?

No. The BW8010 quartz sand layer is a sealing, repair, leveling and adhesion transition layer. The main waterproofing membrane is BW3-900 spray polyurea.

What role does BW3-900 play?

BW3-900 forms the seamless spray polyurea main waterproofing membrane across the deck and detail zones.

What is the recommended BW3-900 membrane thickness for this basement garage roof deck system?

BW3-900 is the main spray polyurea waterproofing membrane in this system and is recommended at about 1.5 mm. Final membrane thickness should be confirmed according to project specification, deck condition and detail requirements.

Which details need continuous membrane treatment?

Wall roots, vertical faces, inner and outer corners, pipe roots, penetrations, drains, outlets and equipment bases should be wrapped or turned up as part of the continuous waterproofing basin.

Does this page include later construction layers?

No. This system page only presents BW8010 first primer, BW8010 quartz sand leveling repair and BW3-900 spray polyurea membrane. Later construction scope is outside this page scope.

What information helps before requesting a quote?

Deck area, concrete condition, moisture, pores, honeycombs, uneven areas, wall root upturns, pipe penetrations, drains, equipment bases, target membrane thickness, location and timeline are useful for review.

What is the expected service life of this waterproofing coating system?

Based on laboratory testing and practical project verification, this waterproofing coating system is designed to support up to 20 years of service life when properly installed on suitable concrete substrates and maintained according to project requirements.
