Water tanks, wastewater basins, swimming pools and water-retaining concrete structures are demanding environments for waterproofing and protective coating systems. These structures are exposed to long-term water contact, wet-dry cycles, cleaning chemicals, movement, cracks, hydrostatic pressure and, in some cases, wastewater corrosion or outdoor weathering.
Polyurea coating is widely used in water tank waterproofing and lining projects because it can form a seamless, flexible and durable protective membrane over properly prepared concrete or steel substrates. However, the final performance of a polyurea water tank coating system depends not only on the coating material itself. Substrate preparation, primer selection, surface repair, detail treatment, application control and final inspection are equally important.
This guide explains practical construction precautions for polyurea water tank coating systems, including concrete tank preparation, primer application, spray polyurea application, hand-applied detail treatment, topcoat selection and important waterproofing nodes.
1. What Types of Water Tanks Can Use Polyurea Coating?
Polyurea coating systems can be considered for many water-retaining or water-exposed structures, including:
- Concrete wastewater tanks
- Industrial sewage pools
- Water treatment basins
- Fire water tanks
- Landscape water features
- Swimming pools
- Water parks
- Concrete reservoirs
- Underground water-retaining structures
- Steel or metal tank lining projects
The system design should always be selected according to the tank type, substrate condition and service environment. A wastewater tank polyurea coating route may require stronger anti-corrosion performance, while a swimming pool may require a smooth waterproof layer and a compatible protective or decorative finish. A steel tank may require a metal anti-corrosion primer, while a concrete tank usually needs a concrete sealing primer and pore-filling repair before the main coating layer.
For BW Polyurea systems, common water tank routes may include BW8010 solvent-free substrate sealing primer, BW3-951 spray polyurea waterproofing and anti-corrosion coating, BW6-9527 hand-applied polyurea waterproof intermediate layer for pool or embedded waterproofing systems, and BW0-8029 elastic polyaspartic protective topcoat when an exposed surface finish is required. Project teams can also review the broader polyurea products range when matching primers, membranes and topcoats.
2. Do Not Start with Coating: Start with Tank Inspection
Before applying any primer or polyurea coating, the water tank should be inspected carefully. Many water tank failures are caused by substrate problems that were hidden before coating.
The inspection should focus on:
- Concrete strength and surface hardness
- Existing cracks, honeycombs, pores and spalling
- Hollow or weak concrete areas
- Water leakage points
- Pipe penetrations and drain details
- Internal corners and wall-floor joints
- Old coating or old waterproofing layer condition
- Moisture condition of the substrate
- Surface contamination, oil, algae, salts or chemical residue
- Whether the tank is for wastewater, clean water, swimming pool water or other liquid service
For old tanks, do not simply cover the old surface. Loose concrete, weak old coatings, hollow areas, algae, dust, oil and chemical contamination must be removed first. If the old base is unstable, the new polyurea membrane may bond to a weak layer and fail together with it.

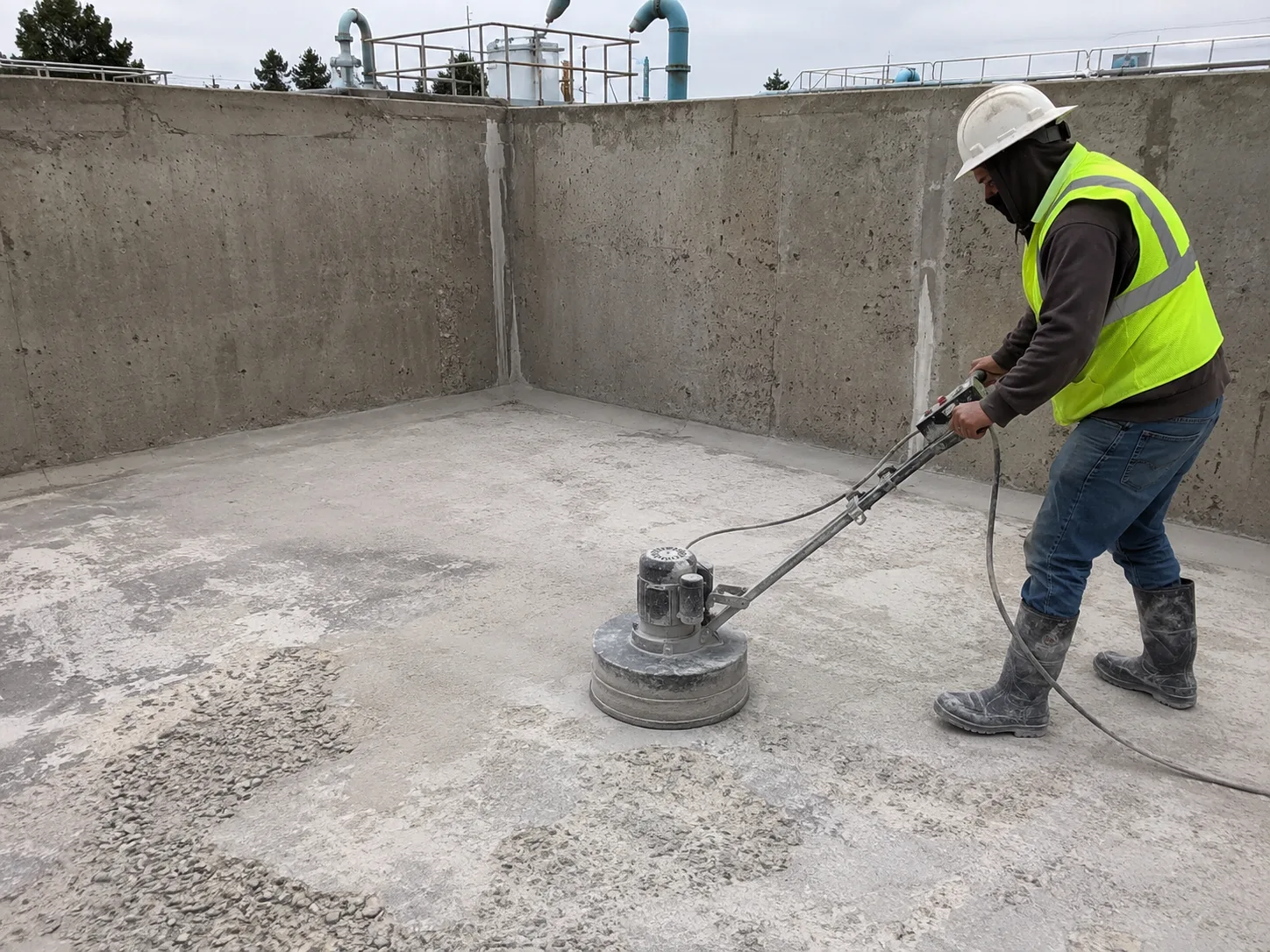

3. Concrete Surface Preparation for Water Tank Polyurea Coating
Concrete surface preparation is the foundation of a successful water tank coating system. The surface must be firm, clean, dry, oil-free and free of loose materials before primer application.
Common preparation methods include:
- Mechanical grinding
- Shot blasting
- Sanding
- High-pressure washing followed by full drying
- Vacuum cleaning
- Local chipping and repair of weak concrete
- Crack repair
- Honeycomb and void repair
- Surface leveling where needed
For water tanks, surface preparation should not only make the concrete clean. It should also create a stable surface profile that allows the primer and coating system to bond properly.
Before priming, check these points:
- The surface is not dusty
- The concrete surface is not weak or powdery
- No oil, grease, algae, laitance or chemical residue remains
- Cracks and holes have been repaired
- Internal corners have been rounded or filleted
- Pipe penetrations and drains are ready for detail treatment
- The substrate is dry enough for the selected primer and system
If the tank has been used for wastewater or chemicals, cleaning is especially important. Residual salts, acids, alkalis, oils or organic contamination may affect adhesion and long-term lining performance.

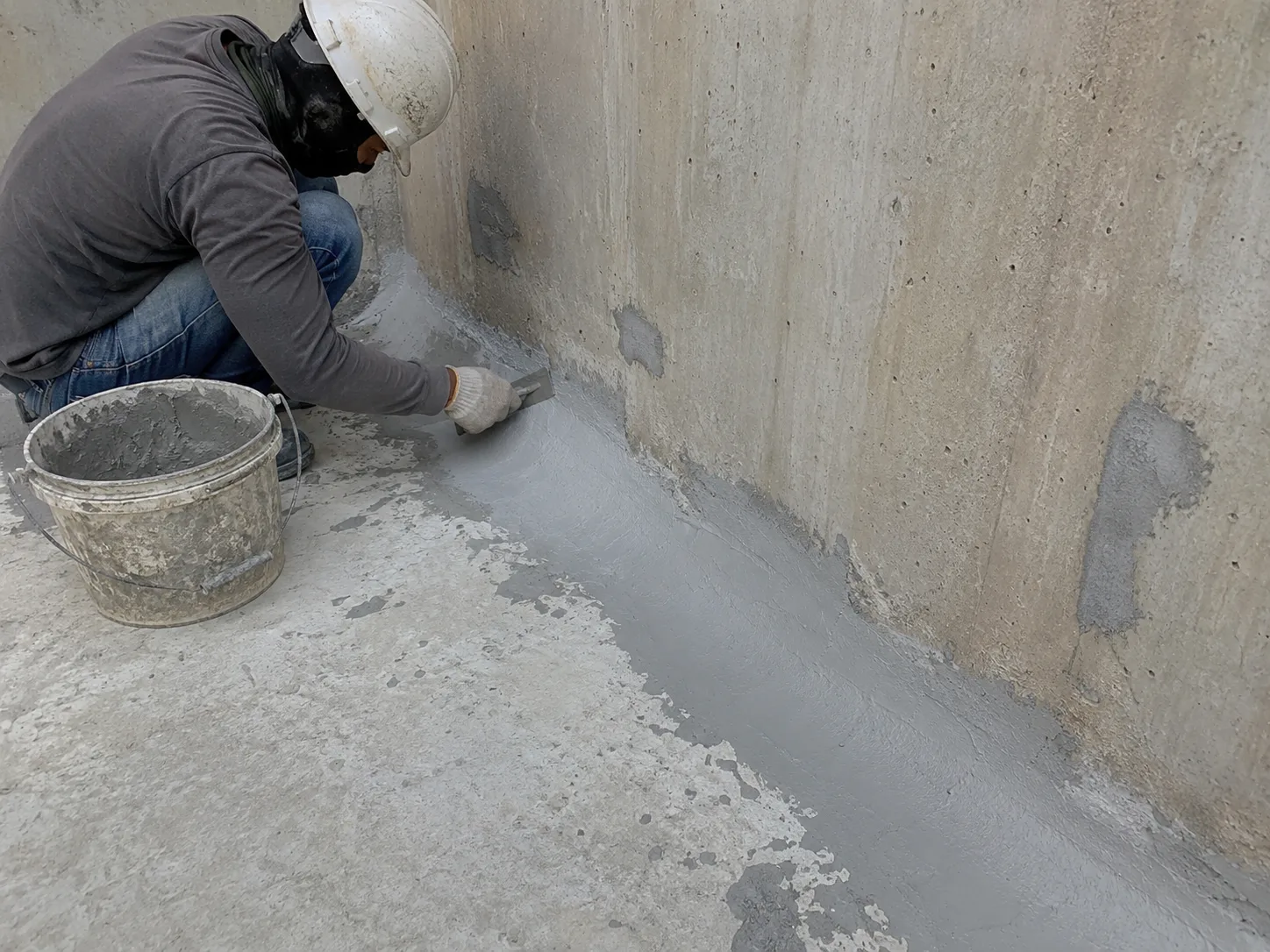

4. Repair Pores, Honeycombs and Uneven Areas Before Main Coating
Water tank concrete often has pores, pinholes, bugholes, honeycombs or local uneven areas. These defects must be repaired before the main polyurea layer is applied.
If pores and voids are not sealed, trapped air may escape during coating and cause pinholes or bubbles. In wastewater tanks, hidden voids can also become weak points under long-term liquid exposure.
For concrete tanks, BW8010 can be used as a solvent-free substrate sealing primer. On porous or uneven substrates, BW8010 may also be blended with quartz sand to form a putty-like primer mortar for local scraping, pore filling, larger void filling and surface sealing before the following coating layer.
Important repair areas include:
- Honeycomb concrete
- Pinholes and pores
- Broken edges
- Wall-floor junctions
- Drain edges
- Pipe root areas
- Construction joints
- Cracks and repaired leakage points
- Uneven concrete patches
The goal is to create a sealed, smooth and stable base for the polyurea waterproofing or lining system.
5. Control Moisture, Humidity and Dew Point
Water tank coating projects are sensitive to moisture. Even if the surface looks dry, moisture inside the concrete or condensation on the surface may cause adhesion failure, blistering or pinholes.
Before application, the contractor should measure:
- Ambient temperature
- Substrate temperature
- Relative humidity
- Dew point
- Concrete moisture condition
A practical industry rule is that the substrate temperature should be at least 3 degrees C / 5 degrees F above the dew point. This helps avoid invisible condensation on the surface. If the tank is outdoors, underground, shaded or recently washed, the dew point check becomes even more important.
Do not apply primer or polyurea coating when:
- The substrate is wet or visibly damp
- Condensation is present
- Relative humidity exceeds the product requirement
- Rainwater or washing water remains in pores
- The tank has not fully dried after cleaning
- The surface temperature is too close to the dew point
- Water leakage is still active
Active leakage should be stopped before coating. A waterproof coating should not be used as a shortcut to cover active water flow from behind the substrate.
6. Primer Selection for Concrete Water Tanks
Primer helps seal the substrate, reduce pinholes and improve bonding between the concrete and the polyurea coating layer. For concrete water tanks, a suitable primer is usually required.
BW8010 is suitable as a two-component solvent-free substrate sealing primer for prepared concrete, stone, ceramic tile, wood and metal substrates before waterproof or anti-corrosion coating systems. It helps with substrate sealing, penetration and adhesion promotion. It can also be used with quartz sand for local leveling and pore filling.
Primer application precautions:
- Apply only on a clean, dry and firm substrate
- Mix A and B components according to the stated ratio
- Use the mixed primer within its pot life
- Avoid puddles, dry spots and missed areas
- Pay attention to porous concrete absorption
- Allow the primer to reach the correct condition before the next layer
- Do not exceed the recoat window
- Keep the primer surface clean before applying polyurea
If the primer surface becomes dusty, wet or contaminated, it should be cleaned and treated again before continuing.

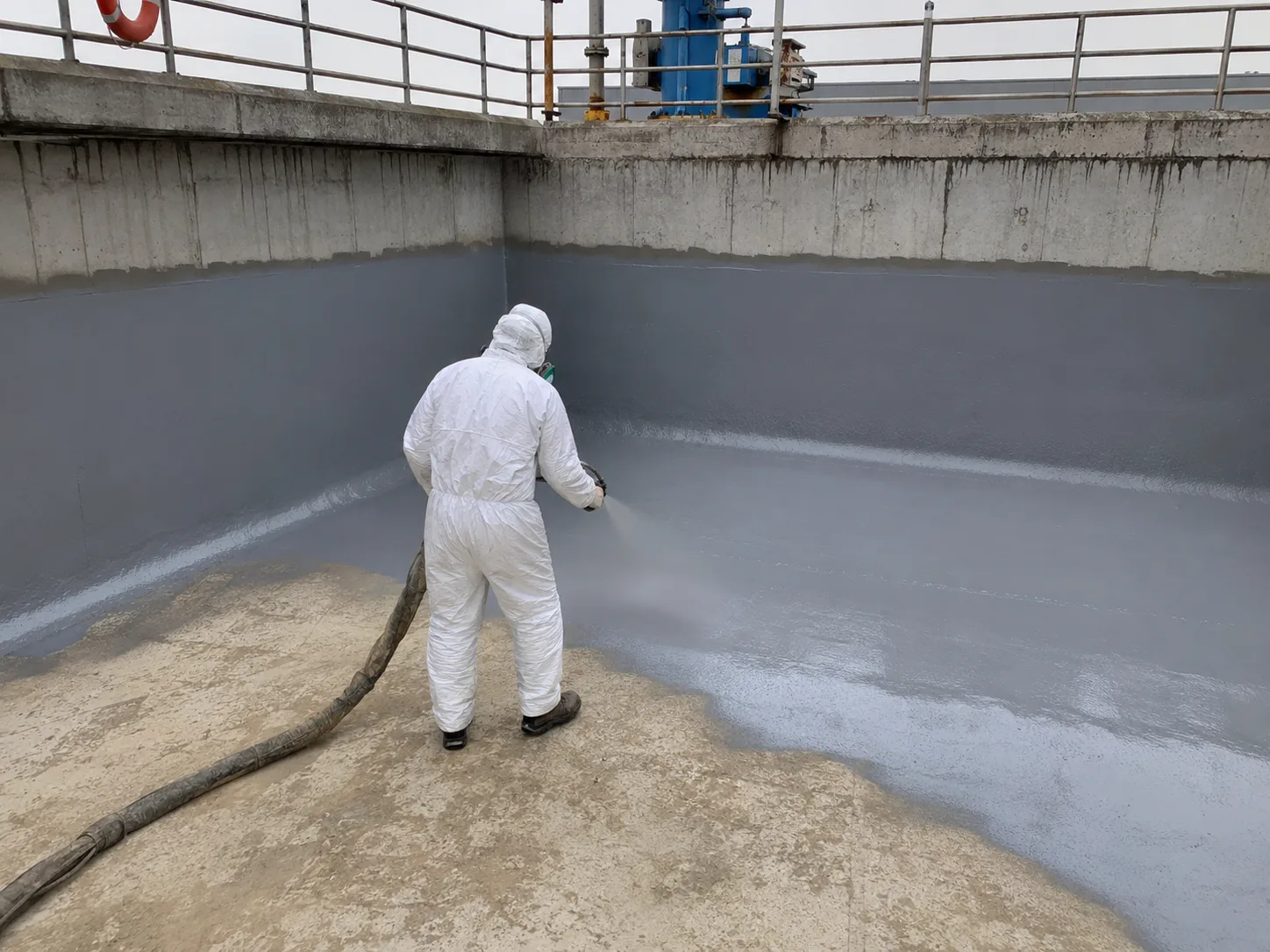

7. Spray Polyurea Application for Water Tank Lining
Spray polyurea is often used as the main waterproofing or protective lining layer in concrete tanks, wastewater tanks and industrial water-retaining structures.
BW3-951 is a two-component aromatic spray polyurea coating for waterproofing, anti-corrosion and protective coating work on prepared concrete and steel substrates. It is suitable for tanks, sewage pools, roofs, steel structures, tunnels, bridges and other industrial protection projects after substrate and system review.
Before spraying, check:
- The substrate and primer are ready
- Moisture and dew point conditions are acceptable
- The spray machine is correctly calibrated
- A/B ratio is correct
- Material temperature and hose temperature are stable
- Spray pressure is balanced
- Spray gun and mixing chamber are clean
- Part B has been agitated evenly
- A small test area has been sprayed and checked
During spraying, the applicator should maintain stable spray distance, angle and movement speed. The coating should be applied evenly over walls, floors, corners, pipe roots and drain areas.
For water tanks, it is important to avoid thin spots at vertical surfaces, internal corners and complex details. These areas often require extra attention because they are common failure points in waterproofing and lining systems.
8. Hand-Applied Polyurea for Pool and Detail Areas
Not every water tank or pool detail is easy to spray. Some areas are too small, too narrow or too complex for spray equipment. In these cases, hand-applied polyurea materials can be useful.
BW6-9527 is a two-component hand-applied polyurea waterproof intermediate layer for flooring, pool and embedded waterproofing systems. It is used where hand application, dense build, strong bonding and controlled intermediate-layer thickness are required beneath finish or protection layers.
Hand-applied polyurea can be used for:
- Swimming pool waterproofing layers
- Wall-floor junctions
- Internal corners
- Pipe penetrations
- Drain details
- Steps and pool edges
- Small repair areas
- Local reinforcement
- Embedded waterproofing under finish systems
For pool systems, the hand-applied layer can help create a dense intermediate waterproofing build before the final finish system. When quartz sand or other compatible filler is allowed by the product system, it can help with build control or surface preparation for the next layer.
9. Key Waterproofing Details in Water Tank Construction
Most water tank leakage problems happen at details, not in the middle of a flat surface. The most important construction quality control points are the nodes.
9.1 Wall-Floor Junctions
The wall-floor junction is one of the highest-risk areas in a water tank. A sharp 90-degree corner is not ideal for coating continuity. It may create stress concentration and make it difficult to achieve even film thickness.
Before coating, internal corners should be rounded or filleted. The primer and polyurea layer should turn continuously from the floor to the wall without gaps, missed areas or sharp breaks.
Recommended treatment logic:
- Clean and repair the corner.
- Create a rounded fillet if needed.
- Apply primer.
- Apply local reinforcement coating.
- Apply the main polyurea membrane continuously over the corner.
- Inspect film thickness and continuity.

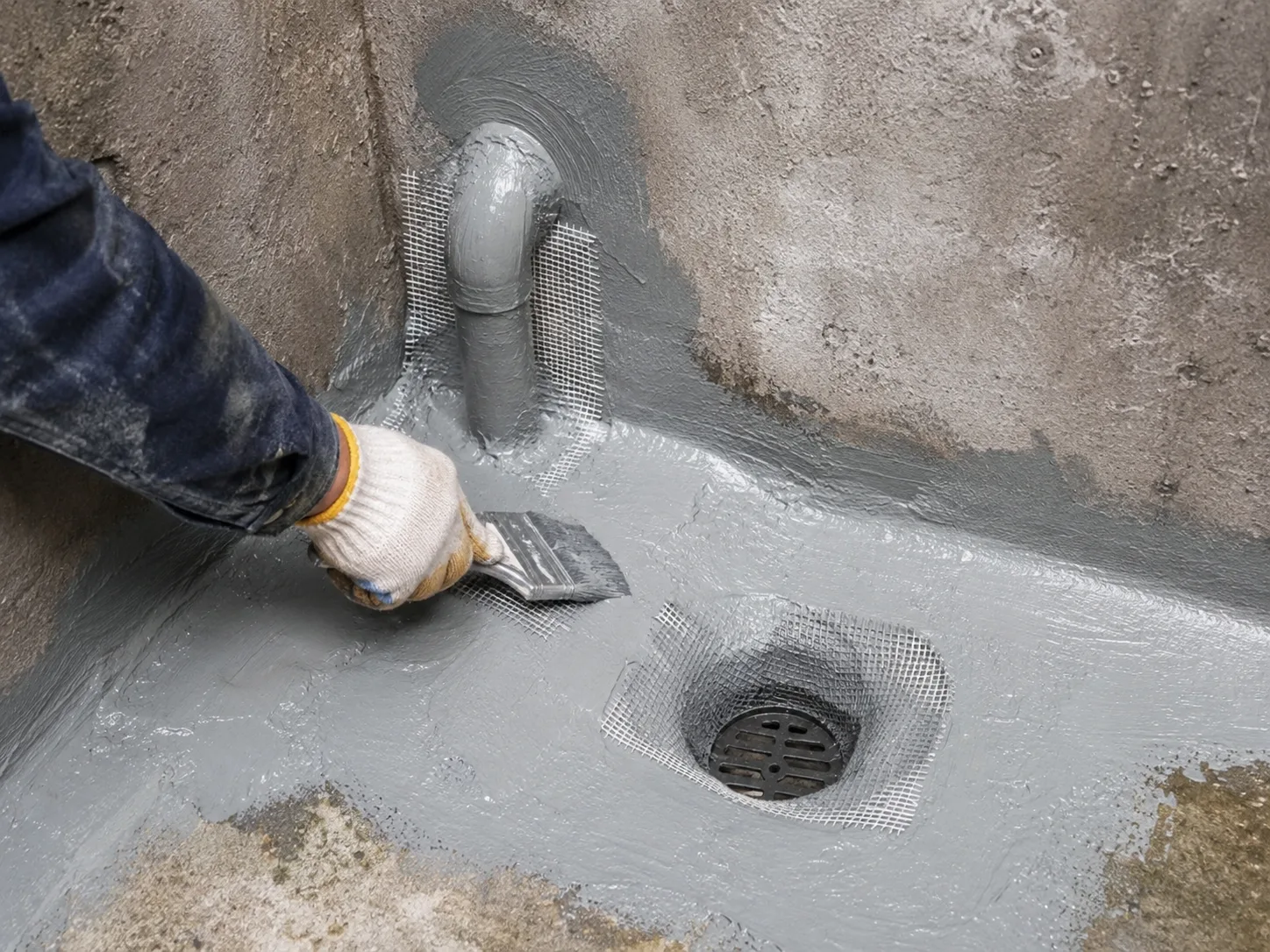

9.2 Pipe Penetrations
Pipe penetrations are common weak points because movement, vibration and poor sealing can create leakage paths.
Before coating, the area around the pipe should be cleaned, roughened and repaired. Any gap between the pipe and concrete should be properly sealed with compatible material. The coating should extend up the pipe and onto the surrounding concrete to form a continuous waterproof collar.
For high-risk penetrations, local reinforcement may be needed before the full-area coating.
9.3 Drains and Outlets
Drain and outlet areas must be treated carefully because they are exposed to water flow, cleaning, impact and possible ponding.
The drain edge should be stable and clean. Broken concrete around the drain must be repaired. The coating should connect tightly to the drain assembly without leaving a gap. If the coating cannot bond properly to the drain material, a compatible detail solution should be confirmed before construction.
9.4 Cracks and Construction Joints
Cracks should be evaluated before coating. Some cracks are static, while others may continue to move. Moving cracks require a more flexible detail design.
For static cracks, clean and repair before primer application. For moving joints or expansion joints, do not simply cover them with a rigid coating layer. Use a compatible joint detail system, flexible sealant or reinforced detail structure according to the project design.
9.5 Steps, Corners and Pool Edges
Swimming pools and water features often include steps, curved edges, corners and decorative structures. These areas should be coated with continuous film thickness and no sharp transitions.
If a finish layer such as tile, decorative coating or exposed topcoat is used above the waterproofing layer, confirm compatibility and adhesion between layers.
10. Topcoat Selection for Exposed Water Tank or Pool Systems
A topcoat may be required when the polyurea layer is exposed to sunlight, cleaning, foot traffic, pool water or decorative requirements.
BW0-8029 is an elastic polyaspartic protective topcoat used over compatible waterproofing or elastic polyurea intermediate layers. It is positioned as the exposed protective finish, not as the only main waterproofing membrane.
A topcoat can help improve:
- Surface protection
- Color stability
- Weather resistance
- Aging resistance
- Cleanability
- Decorative appearance
- Surface durability
For outdoor pools, water parks or exposed water-retaining structures, a compatible topcoat is often important. However, the topcoat should not replace the main waterproofing layer. The system logic should be: substrate preparation + primer + waterproofing or lining layer + exposed protective topcoat when needed.
For drinking water contact or potable water tanks, always confirm the latest technical documents, local regulations and project-specific certification requirements before specifying any coating system.
11. Film Thickness and Coverage Control
Film thickness is critical for water tank waterproofing and lining performance. A coating that is too thin may not provide enough waterproofing, corrosion resistance or crack-bridging ability. A coating that is too uneven may create weak points.
For spray polyurea lining systems, the target dry film thickness should be confirmed according to:
- Tank type
- Water pressure
- Chemical exposure
- Crack risk
- Abrasion risk
- Substrate roughness
- Service life requirement
- Project specification
During construction, check wet film thickness or dry film thickness according to the project requirement. Pay special attention to:
- Internal corners
- Wall-floor junctions
- Pipe roots
- Drains
- Vertical walls
- Repaired areas
- Overlap areas
- Thin edges
After curing, inspect the coating for pinholes, bubbles, holidays, cracks, weak adhesion and mechanical damage. For industrial tanks or wastewater tanks, holiday testing may be required according to the project specification.
12. Common Water Tank Polyurea Problems and How to Avoid Them
Pinholes
Pinholes are often caused by porous concrete, poor primer sealing, air release from the substrate or improper spraying. To avoid pinholes, repair pores, apply suitable primer and inspect the surface before spraying.
Blistering
Blistering may be caused by moisture, vapor pressure, contamination, trapped air or coating over an uncured substrate. Control moisture, dew point and substrate condition before application.
Poor Adhesion
Poor adhesion can be caused by dust, oil, weak concrete, wet substrate, wrong primer, missed recoat window or surface contamination. The solution is better surface preparation, primer selection and environmental control.
Cracking at Corners
Cracking at corners often happens when the corner is too sharp or the film thickness is insufficient. Use fillets, local reinforcement and continuous coating.
Leakage at Pipe Roots
Pipe roots fail when gaps, movement or poor detail treatment remain under the coating. Clean, seal, reinforce and coat the penetration carefully.
UV Discoloration
Some aromatic polyurea coatings may discolor under sunlight. For exposed outdoor systems, a compatible UV-resistant or weather-resistant topcoat should be used.
13. Safety Precautions
Polyurea application should be carried out by trained workers with suitable protective equipment. Spray application is especially important to control because it may involve aerosols and reactive chemical components.
Basic safety precautions include:
- Wear protective clothing and chemical-resistant gloves
- Use goggles or face protection
- Use suitable respiratory protection during spray application
- Maintain good ventilation
- Control overspray
- Keep non-workers away from the spray area
- Follow the latest SDS and TDS
- Store materials away from moisture and direct sunlight
- Keep the work area clean and organized
In enclosed tanks, ventilation and worker protection are especially important. Confined-space procedures may be required depending on the project location and local safety rules.
14. Final Inspection Before Water Filling
Before the water tank is put back into service, the coating system should be inspected carefully.
Inspection checklist:
- Surface is continuous and seamless
- No visible pinholes or bubbles
- No delamination or soft areas
- Corners are fully coated
- Pipe roots are fully sealed
- Drains are properly connected to the coating
- Wall-floor junctions are reinforced
- Film thickness meets the project requirement
- Topcoat is applied where required
- Repair areas are properly blended
- Coating has cured according to the product requirement
- Water test or inspection test is completed when required
Do not fill the tank with water before the system has reached the required curing condition. Curing time may vary depending on temperature, humidity, coating thickness and product type.
Conclusion
Water tank polyurea coating is not just a material application job. It is a complete waterproofing and protective lining system. The key to long-term performance is correct substrate preparation, primer selection, pore filling, detail treatment, spray or hand-applied coating control, topcoat compatibility and final inspection.
For concrete wastewater tanks, swimming pools, water-retaining basins and industrial water structures, the most important principle is simple: solve substrate and detail problems before applying the main coating.
A reliable water tank polyurea system should follow this sequence: inspect the tank, repair the substrate, control moisture, apply the correct primer, reinforce high-risk details, apply the main polyurea waterproofing or lining layer, add a compatible topcoat when needed, and inspect the system before water filling.
When each step is controlled properly, polyurea coating can provide seamless waterproofing, flexible crack-bridging support, chemical resistance, abrasion resistance and long-term protection for water tank and pool structures.
Frequently Asked Questions About Polyurea Water Tank Coating
Can polyurea be used for concrete water tanks?
Yes. Polyurea coating can be used for prepared concrete water tanks, wastewater basins, pools and water-retaining structures. The substrate must be clean, dry, repaired and primed before the main coating layer is applied.
What is the most important step before applying polyurea in a water tank?
Substrate preparation is the most important step. Weak concrete, pores, cracks, moisture, dust, oil and chemical contamination can all affect adhesion and long-term waterproofing performance.
Does a water tank polyurea system need a primer?
In most concrete water tank projects, a primer is recommended. The primer helps seal porous concrete, reduce pinholes and improve adhesion between the substrate and the polyurea coating layer.
How should pipe roots and drains be treated?
Pipe roots, drains and outlets should be cleaned, repaired, sealed and locally reinforced before full-area coating. These details are common leakage points and should not be treated as ordinary flat surfaces.
Does outdoor pool polyurea need a topcoat?
For exposed outdoor pool or water-retaining systems, a compatible UV-resistant or weather-resistant topcoat is often recommended. The topcoat improves surface durability, color stability and weather resistance, but it should not replace the main waterproofing layer.
Can polyurea be used for drinking water tanks?
It depends on the product certification, local regulations and project requirements. For potable water contact, always confirm the latest technical documents, safety data and required drinking-water approvals before specifying the coating system.
