BW6-9527 Hand-Applied Modified Polyurea Thickened Intermediate Waterproof Layer

Q: What is BW6-9527 mainly used for on this page?

BW6-9527 is positioned as a hand-applied modified polyurea thickened intermediate layer for flooring and swimming pool systems, and as a pressure-resistant embedded waterproofing layer where compression resistance, impact resistance and waterproof protection are required.

Q: How is BW6-9527 applied as a thickened intermediate layer?

The data sheet lists a scraping application method using puttying or scraping tools. It is prepared by mixing Part A and Part B at the required ratio, then adding quartz sand or talc powder before use.

Q: What thickness is recommended for BW6-9527?

The application guide lists a recommended dry film thickness of 500-1000 micrometers, with theoretical coverage of 0.7 kg/m2 at 500 micrometers.

Q: What recoating interval should be planned?

The data sheet lists a minimum recoating interval of 1 hour and a maximum of 48 hours. If the maximum interval is exceeded or dust is present, sand and clean the surface before the next coat.

Q: What substrate condition is required before application?

Concrete should be solid, intact, clean and dry. Oil stain, mold, dust and loose material must be removed; concrete surface pH should be below 10 and substrate moisture content below 10%.

Q: Why use BW6-9527 in embedded waterproofing systems?

The sheet lists a seamless tough dense film, strong adhesion, water and alkali resistance, 50 kg·cm impact resistance, -50 to +150°C temperature resistance and acid resistance data, making it suitable for concealed waterproofing layers that need added thickness and pressure resistance.

Product description

BW6-9527 hand-applied modified polyurea thickened intermediate waterproof layer.

Solvent-free hand-applied modified polyurea used as a thickened intermediate layer for flooring, swimming pool and embedded waterproofing systems where compression resistance, impact resistance and durable waterproof protection are required.

What BW6-9527 delivers inside layered systems

Use BW6-9527 when a flooring, swimming pool or embedded waterproofing build-up needs a hand-applied thickened polyurea layer with dense film formation, strong bonding and resistance to water, alkali, impact and temperature change.

Thickened intermediate layerRecommended dry film thickness of 500-1000 µm supports added build in flooring and swimming pool waterproofing systems.

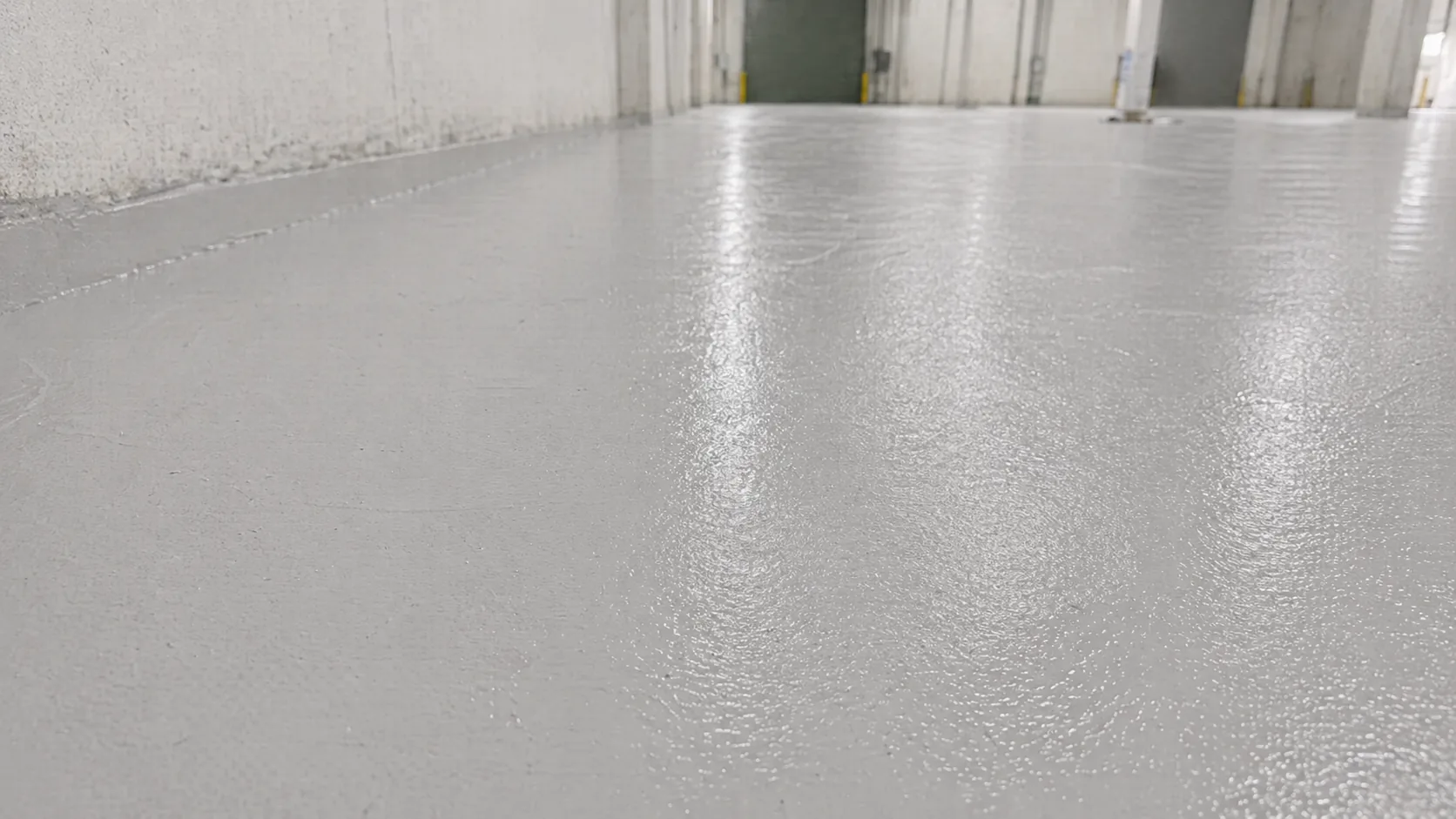

Pressure-resistant embedded waterproofingA seamless, tough and dense film supports concealed waterproof layers that sit under finish or protective systems.
Hand-scraped constructionDesigned for scraping application using puttying tools, supporting local detail work and system build-up control.
Strong concrete adhesionThe sheet lists concrete adhesion ≥3.0 MPa with substrate broken, supporting firm bonding to prepared mineral substrates.
Impact and compression-supporting layer50 kg·cm impact resistance helps the layer serve where floors, pools or embedded waterproofing assemblies need tougher intermediate protection.
Water, acid and temperature resistanceListed resistance data supports durable use below finish systems where water exposure and temperature variation must be considered.

Technical anchors for thickened intermediate waterproofing layers.

Use the data below to evaluate BW6-9527 as a load-supporting, pressure-resistant intermediate polyurea layer in flooring, swimming pool and embedded waterproofing systems.

≥98%Solid content. High solid content supports dense film build for thickened intermediate waterproofing layers.

50 kg·cmImpact resistance. Listed impact resistance supports use in flooring and other assemblies requiring tougher intermediate protection.

-50/+150°CTemperature resistance. Listed temperature resistance from -50 to +150°C shows no change in the data sheet.

168 hAcid resistance. 30% H₂SO₄ for 168 h: no rust, no bubbles and no peeling.

Application scope

Typical use areas for BW6-9527.

BW6-9527 is used as a thickened intermediate polyurea layer in flooring and swimming pool systems, and as a pressure-resistant embedded waterproofing layer under finish or protective systems.

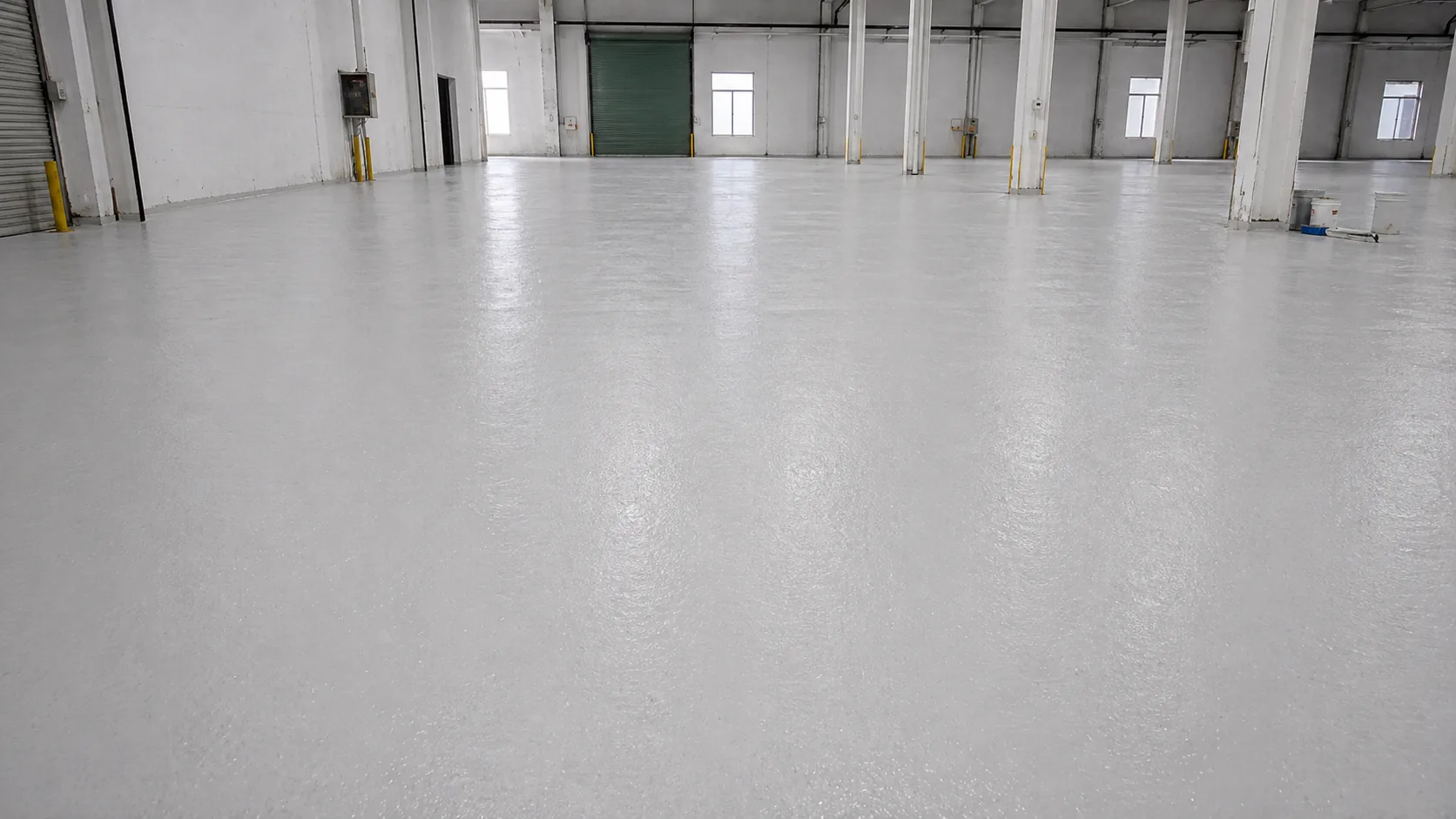

Flooring and pool system layers

Flooring thickened intermediate layerFor floor build-ups that need added polyurea thickness, impact resistance and durable waterproof protection below the finish layer.
Swimming pool waterproof intermediate layerFor pool assemblies where a dense hand-applied layer helps reinforce waterproofing beneath finish systems.
Thick protective layer under finishesUsed below finish or protective systems when a tougher intermediate waterproof layer is required.

Embedded waterproofing and build-up control

Pressure-resistant embedded waterproofing layerFor concealed waterproofing layers that need compression resistance and durable bonding to prepared concrete.
Quartz sand or talc powder additionAfter A/B mixing, the sheet allows adding quartz sand or talc powder and mixing again before use.
Impact and wear resistanceImpact resistance, collision resistance and wear resistance support tougher intermediate protection in demanding systems.

Product information & technical data

Technical data for BW6-9527 thickened intermediate waterproof layer.

Review product information, impact resistance, acid resistance and temperature resistance before selecting BW6-9527 for flooring, swimming pool or embedded waterproofing build-ups.

Product information

Item	Result
Appearance	Flat and bubble free
Solid content (%)	≥98
Pot life (h) @ 25°C, RH 50%	0.5
Surface dry time (h) @ 25°C, RH 50%	≤8
Mixing ratio	A:B = 1:4 by weight
Solid dry time (h)	≤12
Theoretical coverage	0.7 kg/m2 at 500 µm thickness

Typical physical test performance

Item	Result
Adhesion force	Concrete base: ≥3.0 MPa, substrate broken
Impact resistance (kg·cm)	50

Corrosion and temperature resistance

For reference: the chemical medium data is acquired based on GB / T 9274-1988. Ventilation, splash and spillage can affect practical results; independent testing is recommended for specific exposure conditions.

Exposure item	Result
Salt resistance, 360 h	No rust, no bubbles, no peeling
Acid resistance, 30% H₂SO₄, 168 h	No rust, no bubbles, no peeling
Temperature resistance, -50 to +150°C	No change

Application guide

Application conditions and hand-scraping instructions.

Confirm concrete substrate condition, surface dryness, pH, moisture content, temperature, humidity and recoating interval before applying BW6-9527 as an intermediate or embedded layer.

Application environment

Condition	Requirement
Environment temperature	5-35°C
Relative humidity	35-85%
Dew point	≥3°C
Concrete surface pH	<10
Substrate moisture content	<10%

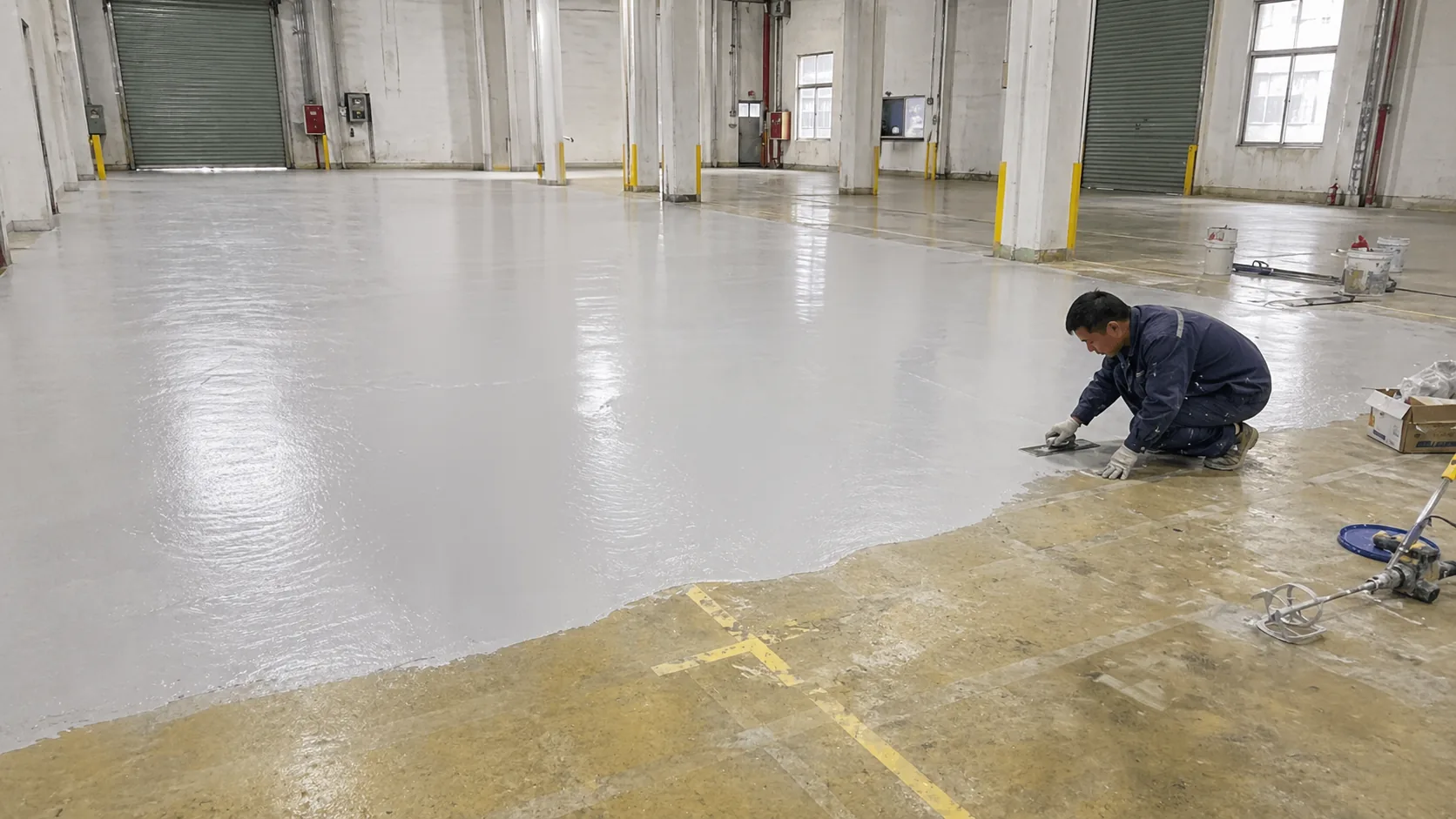

Application instructions

Guide item	Recommendation

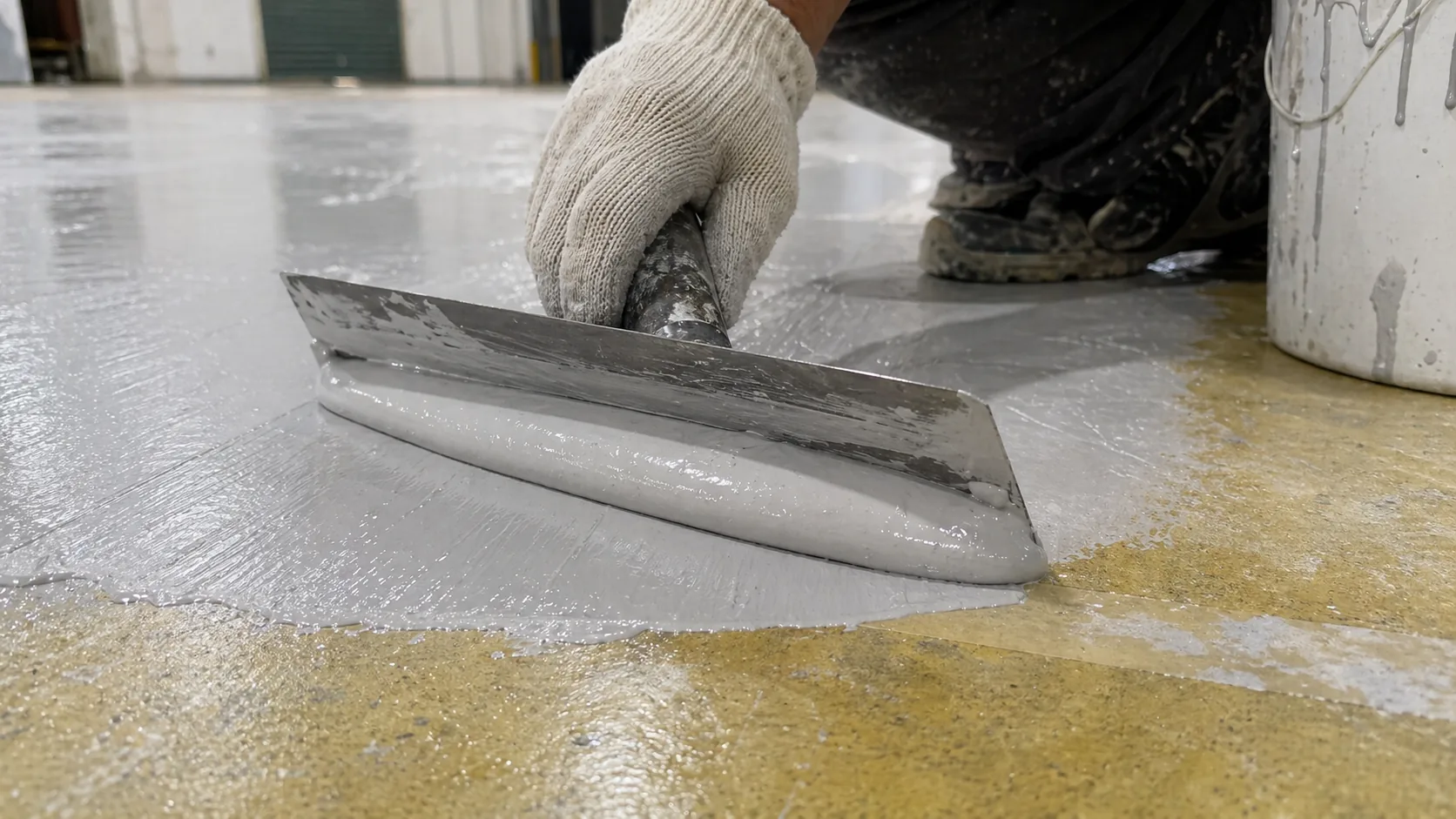

Application method	Scraping application with puttying or scraping tools
Recommended dry film thickness	500-1000 µm
Recoating interval	Minimum 1 h, maximum 48 h
If maximum interval is exceeded	Sand with sandpaper and clean the surface before application
Mixing procedure	Strictly follow A:B = 1:4 by weight, fully mix A and B, then add quartz sand or talc powder and mix again before use

Substrate and application notes

Concrete should be solid, intact, clean and dry; remove oil stain, mold, dust and other loose material before application.
Agitate Part B evenly before use and mix only the amount that can be used within the product pot life.
Keep the application area dry and clean. Contact with water, alcohol, acid and alkali is strictly prohibited during application.
Use in a well ventilated environment; rinse immediately with clean water if material contacts skin or eyes.

Curing time, shelf life and packing

Curing time, storage and packing information for system-layer planning.

Use the curing profile and storage information below to plan recoating work, finish-layer timing, purchasing quantity and material handling.

Product curing time

Note: curing time varies with environmental conditions, especially temperature and relative humidity.

Substrate temperature	Surface dry	Foot traffic	Solid dry
+10°C	10 h	24 h	21 d
+20°C	8 h	12 h	14 d
+30°C	3 h	6 h	7 d

Shelf life & packing

Item	Details
Package	Part A: 1 kg/drum, Part B: 4 kg/drum; Part A: 2 kg/drum, Part B: 8 kg/drum
Shelf life from manufacturing date	10 months, unopened in original packaging
Storage temperature	5-35°C
Package requirement	Keep the product package tightly sealed
Storage precaution	Store in a cool, ventilated place and avoid direct sunlight

Health & safety / integrity declaration

Safety data, handling guidance and project verification.

Product health and safety information

For information and advice on safe handling, storage and disposal of chemical products, users should refer to the most recent Material Safety Data Sheet containing physical, ecological, toxicological and other safety-related data.

Integrity declaration

All technical data in this sheet is based on laboratory tests. Actual testing methods may vary under different circumstances, so project teams should test and verify suitability before full system application.

FAQ

FAQ about BW6-9527 thickened intermediate waterproof layer.

These answers support flooring, swimming pool and embedded waterproofing system selection before ordering.

What is BW6-9527 mainly used for on this page?

BW6-9527 is positioned as a hand-applied modified polyurea thickened intermediate layer for flooring and swimming pool systems, and as a pressure-resistant embedded waterproofing layer where compression resistance, impact resistance and waterproof protection are required.

How is BW6-9527 applied as a thickened intermediate layer?

The data sheet lists a scraping application method using puttying or scraping tools. It is prepared by mixing Part A and Part B at the required ratio, then adding quartz sand or talc powder before use.

What thickness is recommended for BW6-9527?

The application guide lists a recommended dry film thickness of 500-1000 micrometers, with theoretical coverage of 0.7 kg/m2 at 500 micrometers.

What recoating interval should be planned?

The data sheet lists a minimum recoating interval of 1 hour and a maximum of 48 hours. If the maximum interval is exceeded or dust is present, sand and clean the surface before the next coat.

What substrate condition is required before application?

Concrete should be solid, intact, clean and dry. Oil stain, mold, dust and loose material must be removed; concrete surface pH should be below 10 and substrate moisture content below 10%.

Why use BW6-9527 in embedded waterproofing systems?

The sheet lists a seamless tough dense film, strong adhesion, water and alkali resistance, 50 kg·cm impact resistance, -50 to +150°C temperature resistance and acid resistance data, making it suitable for concealed waterproofing layers that need added thickness and pressure resistance.

Request technical documents

Explore polyurea products Polyurea waterproofing Contact technical support

Request TDS, layer build-up guidance or bulk project support.

If you are evaluating BW6-9527 for a flooring intermediate layer, swimming pool waterproof layer, pressure-resistant embedded waterproofing layer or thick protective layer under finish systems, request the latest technical data sheet and project-specific application review before ordering.
