Ship Internal Steel Compartment Polyurea Protection Case

Ship internal steel compartments work in a much more demanding environment than ordinary steel structures. In marine vessels, internal steel areas may be exposed to moisture, condensation, seawater-related humidity, salt contamination, limited ventilation, temperature variation and long-term maintenance difficulty. If the protective coating is weak or discontinuous, corrosion may begin from welds, edges, stiffeners, corners, pipe penetrations and local damaged areas.

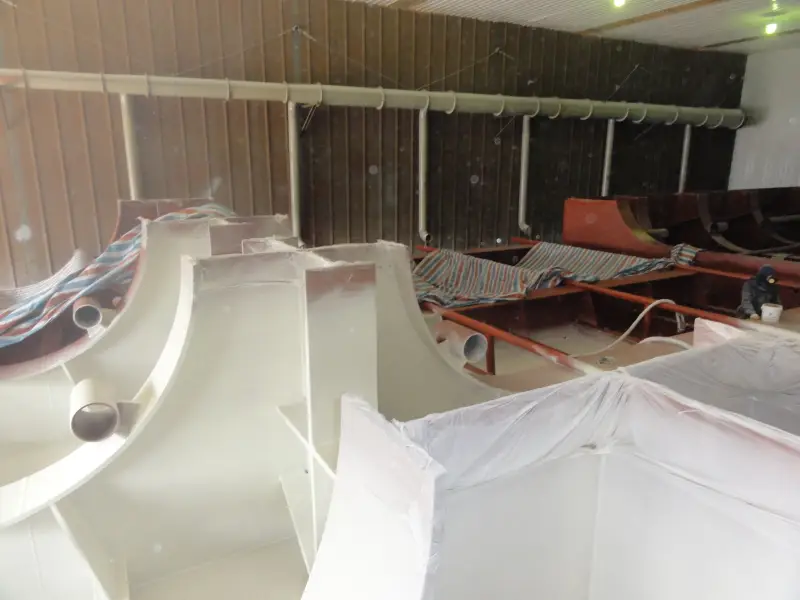

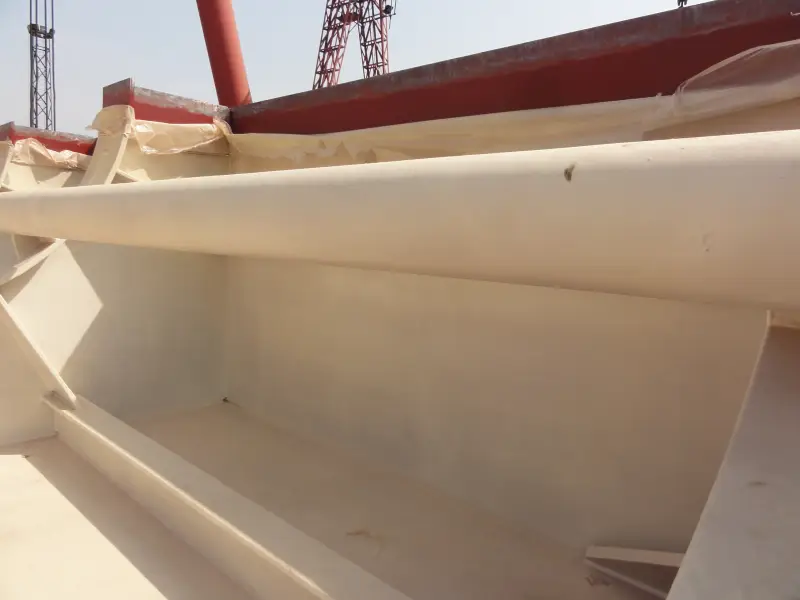

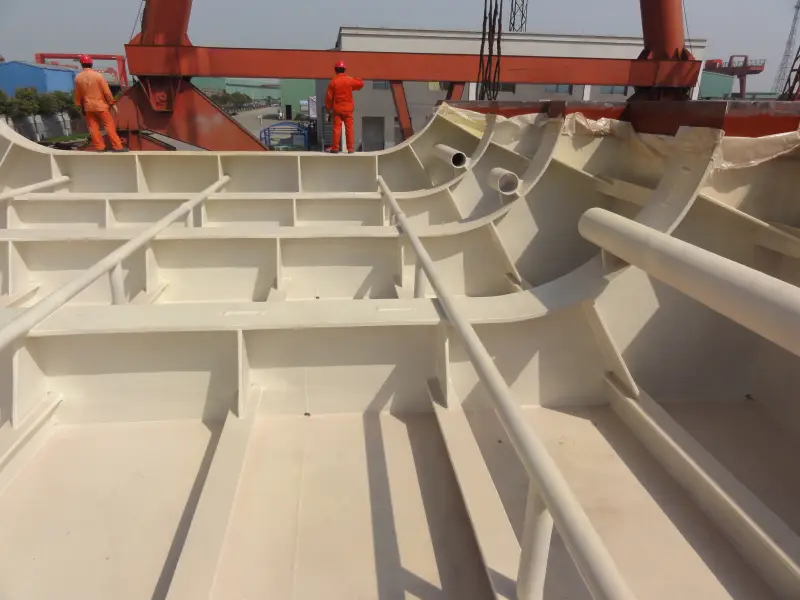

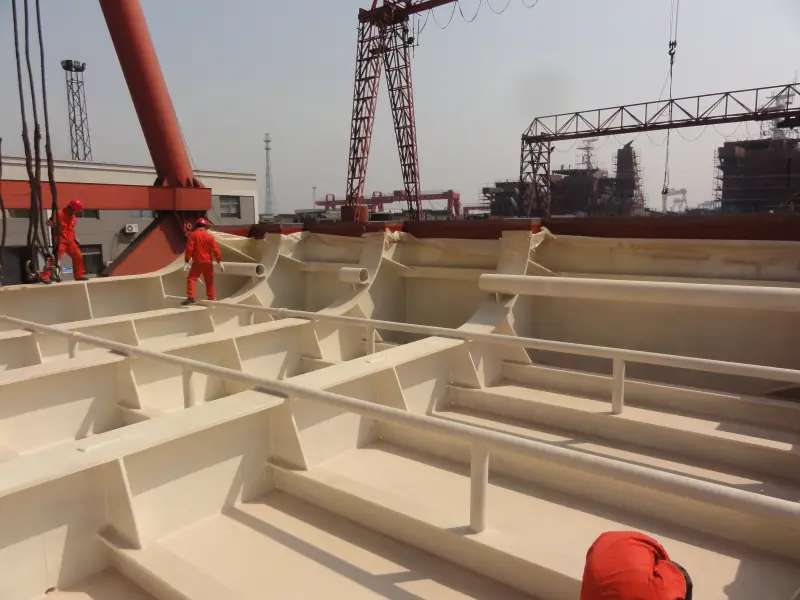

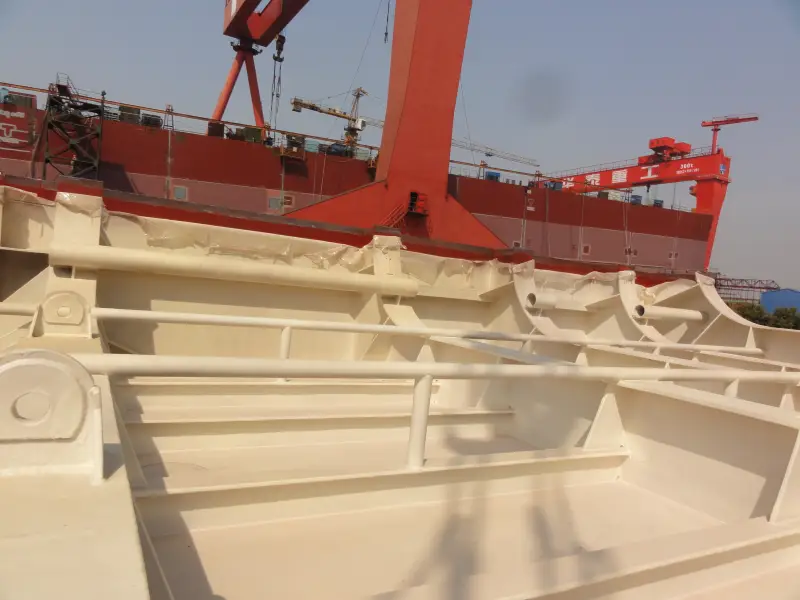

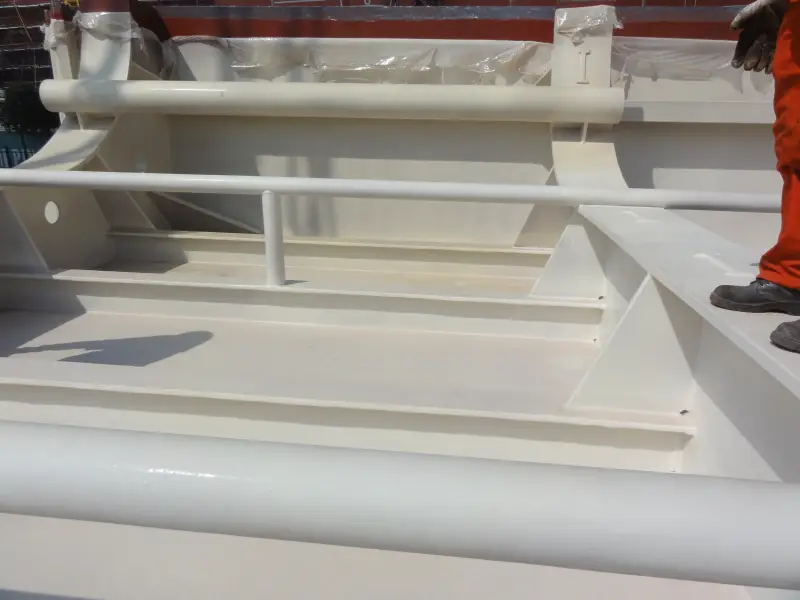

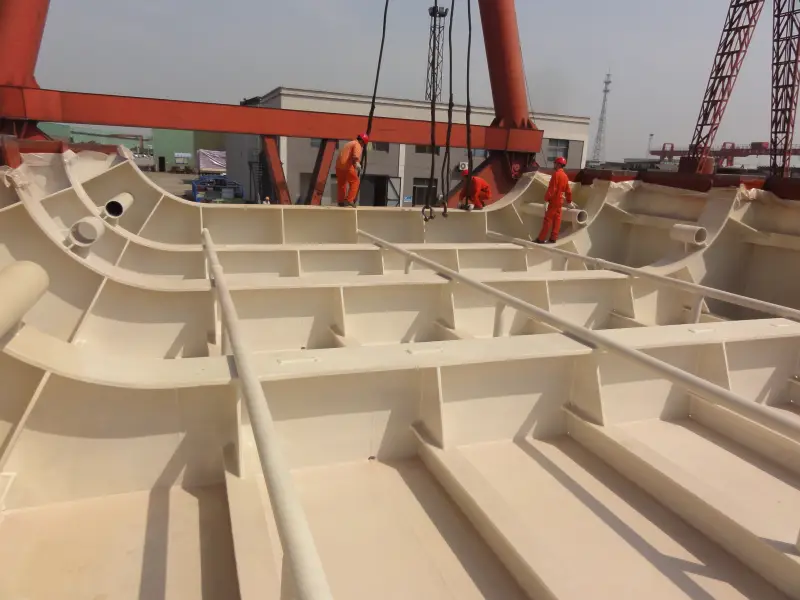

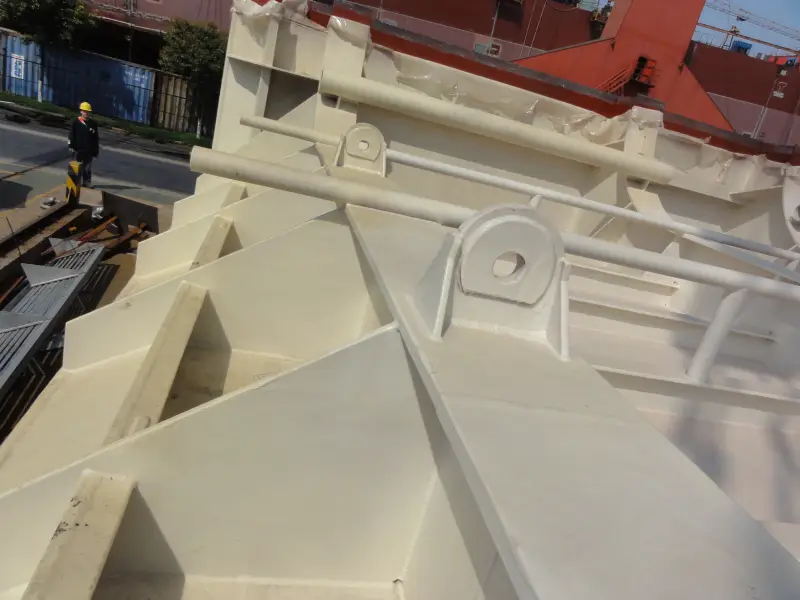

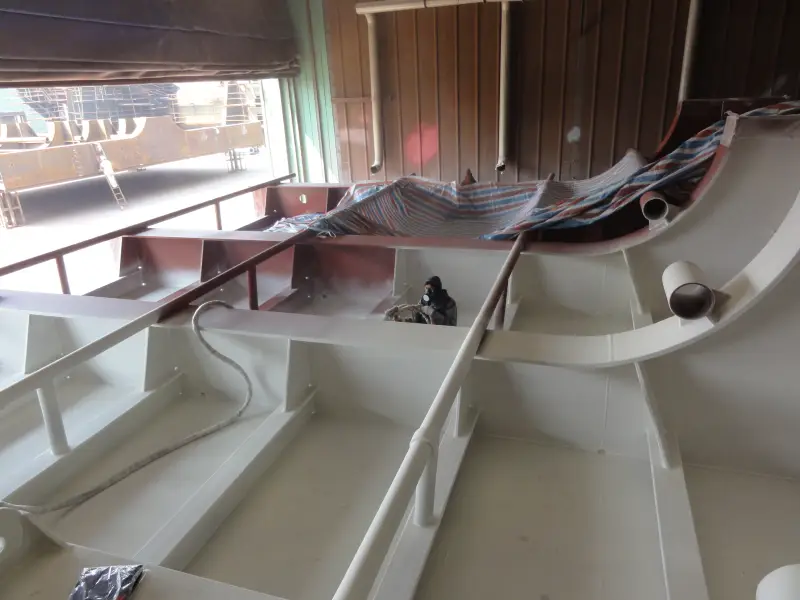

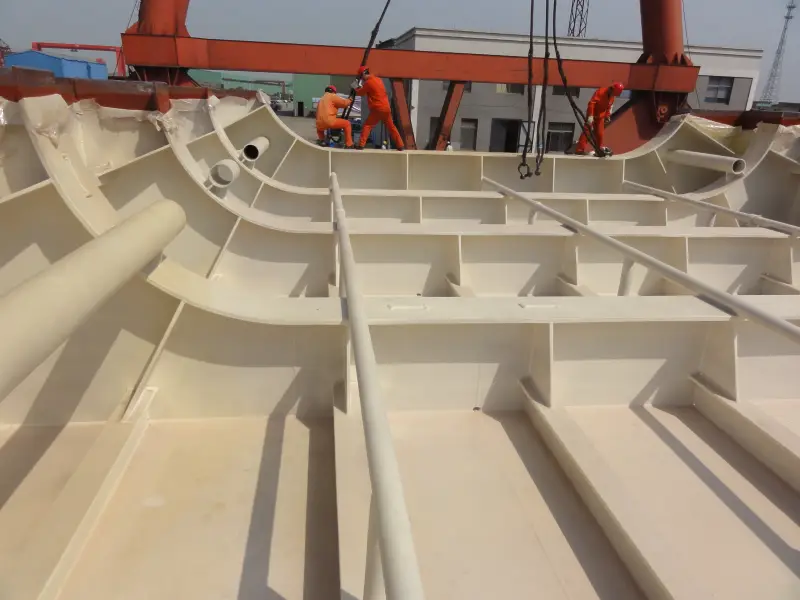

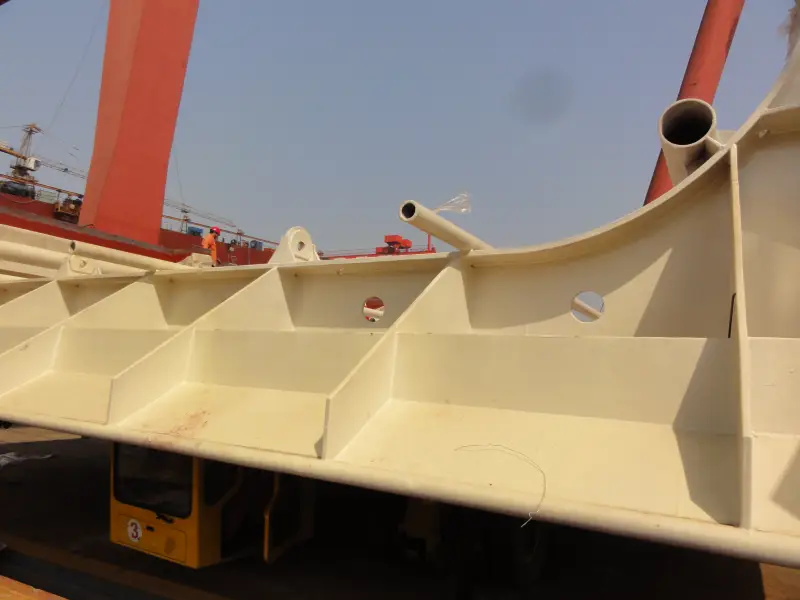

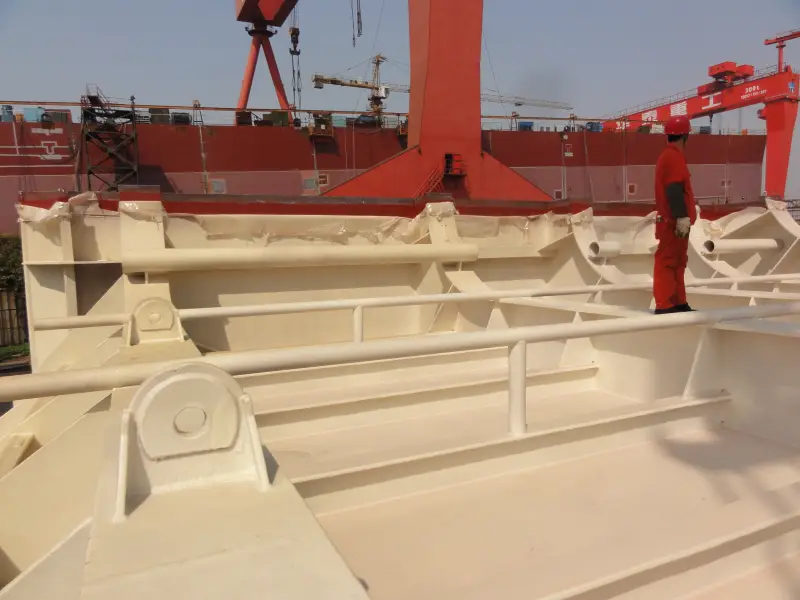

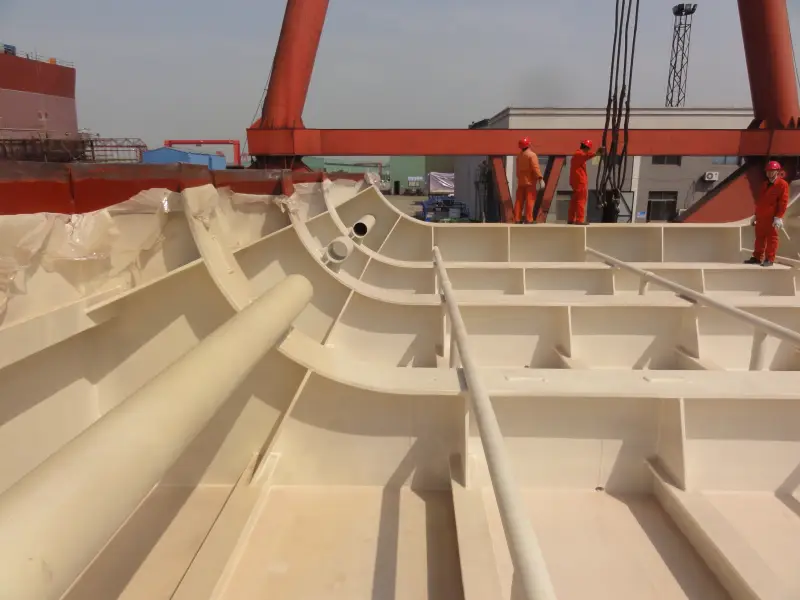

From the project photos, this application appears to involve internal ship steel structures or hull-section compartment areas rather than a simple flat exterior steel surface. These areas include curved steel plates, internal ribs, stiffeners, welded transitions, pipe openings, compartment edges and complex local details. Such structures are difficult to protect with ordinary thin coating methods because the coating must cover both large steel surfaces and many narrow or irregular details.

One of the main pain points in ship internal steel compartment protection is moisture retention. Internal compartments, ballast-related spaces or hull-section areas may hold humidity or condensation for long periods. Moisture can stay around weld seams, stiffener edges, pipe penetrations and lower corner areas. Once salt contamination or seawater-related moisture reaches the steel substrate, corrosion may develop under the coating or around local weak points.

Another challenge is that ship internal structures are not easy to inspect and repair after assembly. Many areas become difficult to access once the vessel structure is completed or put into service. If coating failure starts at welds, edges, ribs or corners, later maintenance may require confined-space work, surface cleaning, repair coating and downtime. For this reason, the coating route must focus on adhesion, continuity and detail coverage from the beginning.

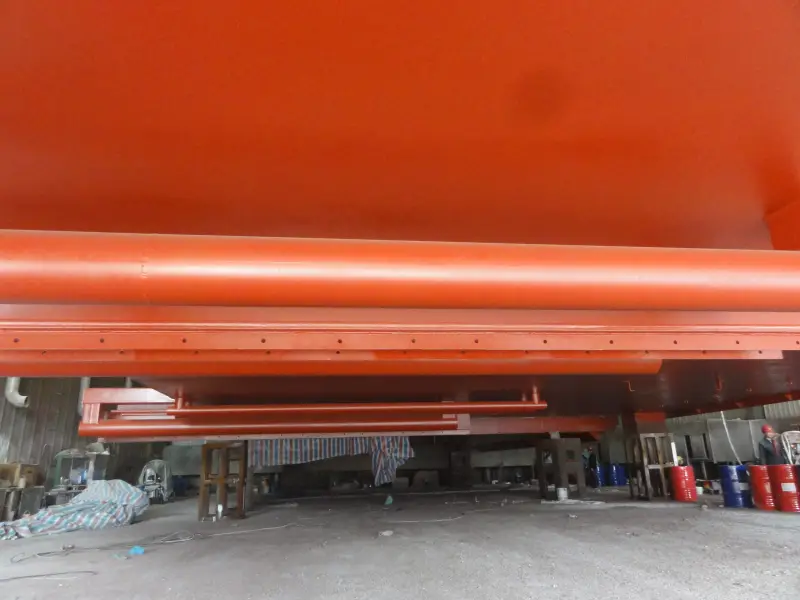

In this project, BW8008 was used as the primer layer for the prepared steel surface. The role of BW8008 is to support adhesion between the metal substrate and the following spray polyurea protective layer. For ship internal steel structures, this primer interface is important because the coating system may need to resist moisture, salt-related contamination, temperature variation and long-term marine service conditions.

BW8008 is not used as the final protective membrane in this route. Its main value is at the metal substrate interface. It helps prepare the steel surface for the following BW3-951 spray polyurea layer and supports the bonding stability of the full coating system. This is especially important around welded joints, stiffener edges, pipe openings and curved steel details where coating failure may start if the primer interface is weak.

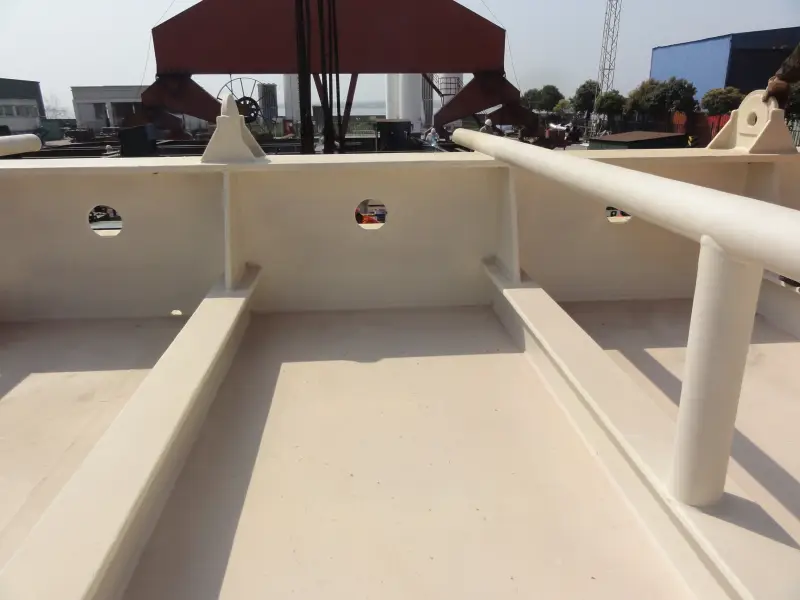

After the BW8008 primer layer, BW3-951 was applied as the main spray polyurea protective coating. The purpose of BW3-951 is to form a continuous, elastomeric and durable protective membrane over the prepared internal steel structure. Compared with ordinary thin coatings, a spray polyurea protective layer can provide a more functional barrier for complex marine steel surfaces that may face moisture, impact, abrasion and corrosion risk.

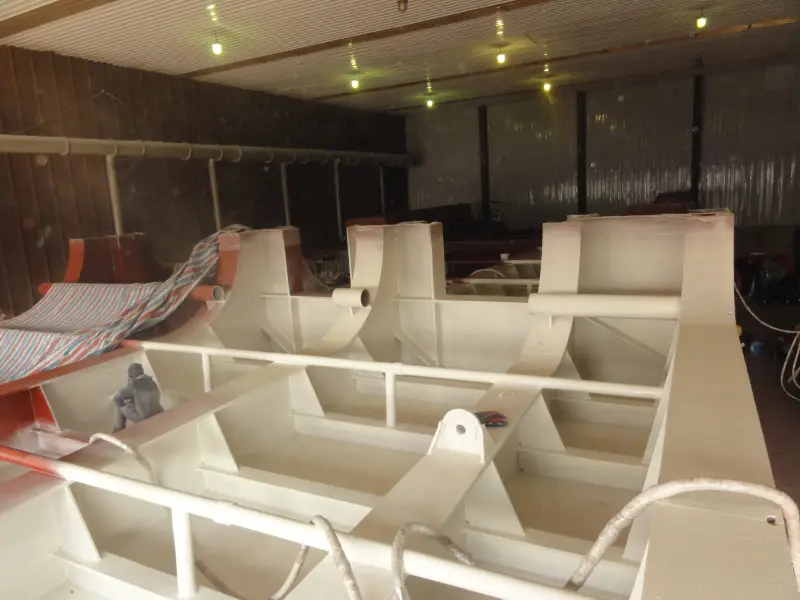

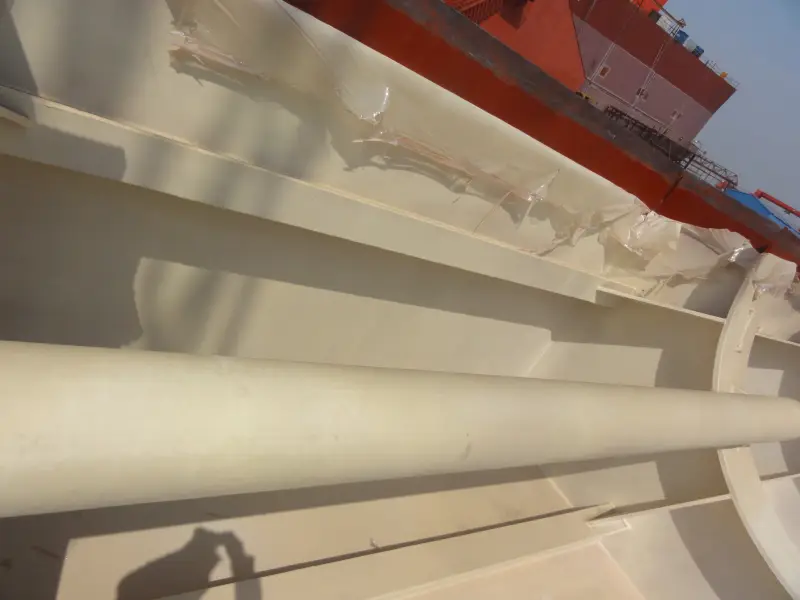

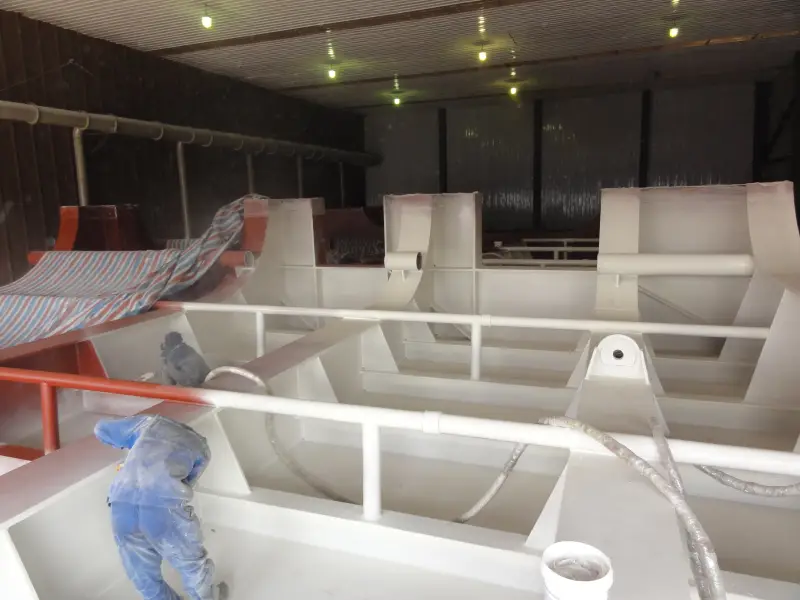

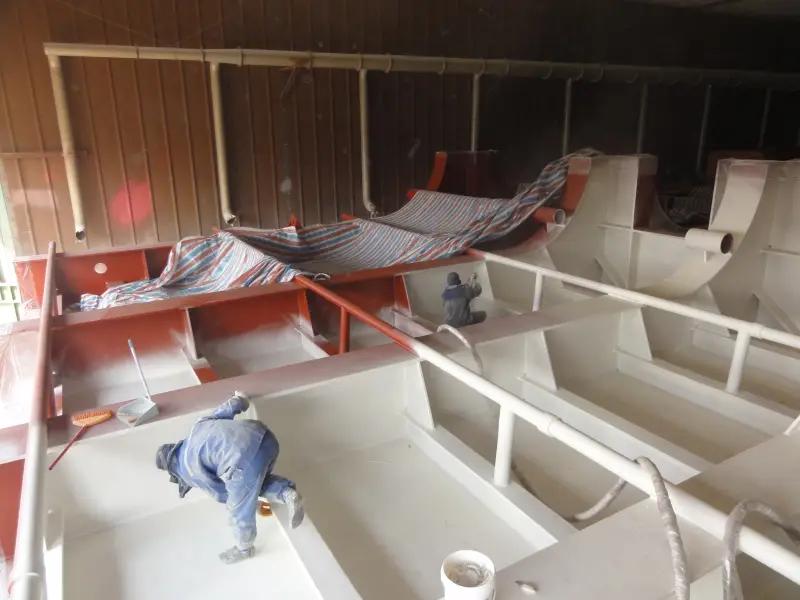

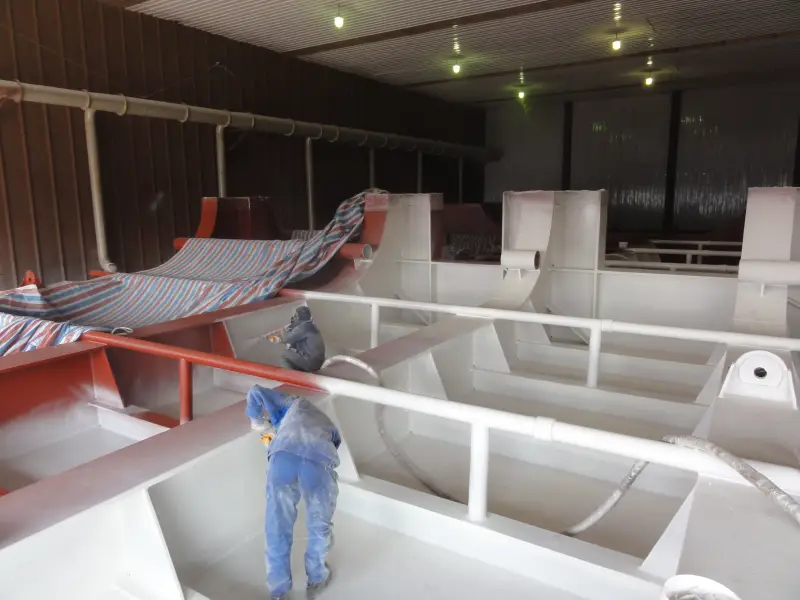

The spray-applied nature of BW3-951 is especially useful for internal ship compartments. The steel structure includes curves, ribs, stiffeners, welded joints, corners and repeated local details. A spray polyurea coating can better follow these shapes and create a more continuous protective layer over the prepared substrate. This helps reduce weak points caused by incomplete coverage on complicated steel geometry.

The elastomeric character of BW3-951 also provides practical value for marine internal structures. Ship steel components may experience vibration, movement, handling stress during construction and local impact during installation or maintenance. A flexible protective membrane can better adapt to the steel geometry and service conditions than a brittle coating layer, while helping maintain surface protection around details.

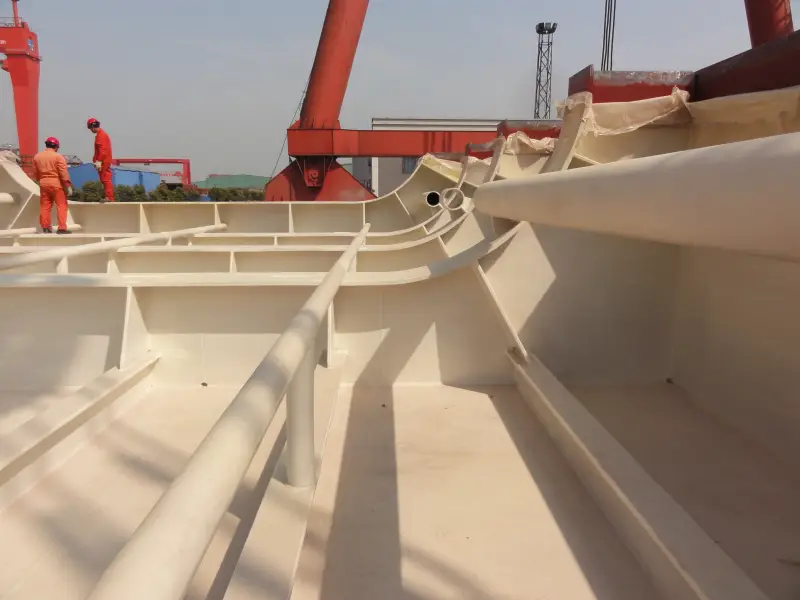

The full coating route has a clear division of function. BW8008 supports metal substrate adhesion and primer interface stability. BW3-951 forms the main spray-applied polyurea protective membrane for the internal steel compartment. Together, the two materials create a coating route focused on corrosion protection, moisture isolation, surface continuity and marine steel structure durability.

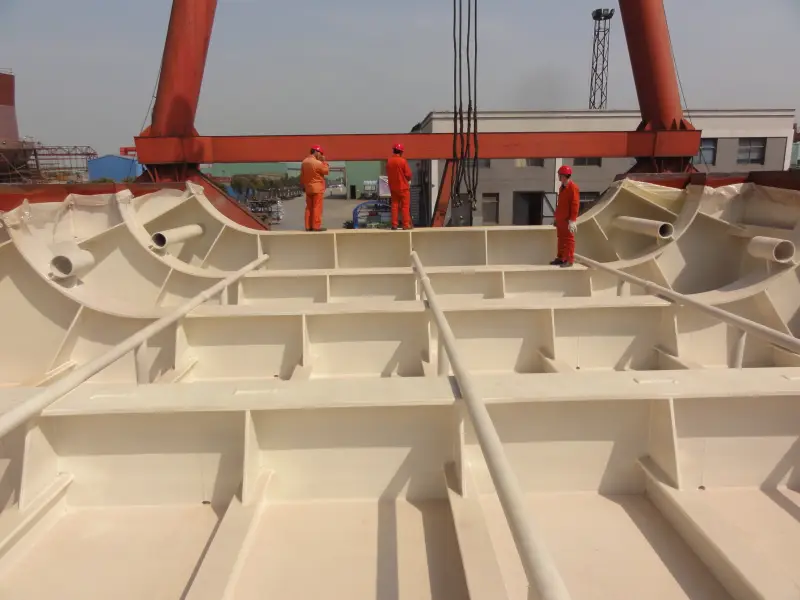

This route is suitable for ship internal steel compartment protection because it addresses the real weak points of marine steel structures. The risk is not only broad-surface corrosion, but also local coating failure around welds, stiffener edges, pipe penetrations, corners and curved transitions. By using a metal primer first and then applying a continuous spray polyurea protective coating, the system is better matched to complex ship compartment and hull-section steel surfaces.

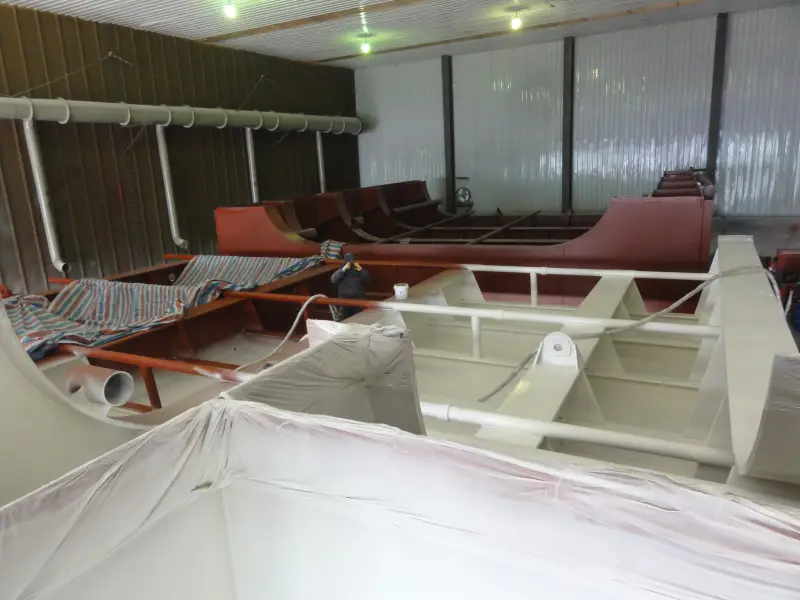

Surface preparation remains critical. Rust, oil contamination, dust, welding residue, salt contamination and unstable surface layers should be removed or treated before primer application. Welds, edges, stiffeners, pipe openings and hard-to-access details should be checked carefully because these areas often determine the long-term reliability of the protective coating system.

The key value of this case is that the coating route does not treat the ship structure as a simple painted steel surface. It considers the actual service risks of internal marine steel areas: moisture, condensation, salt-related corrosion, complex geometry, construction handling and difficult future maintenance. BW8008 provides the metal primer interface, while BW3-951 provides the main continuous spray polyurea protective layer.

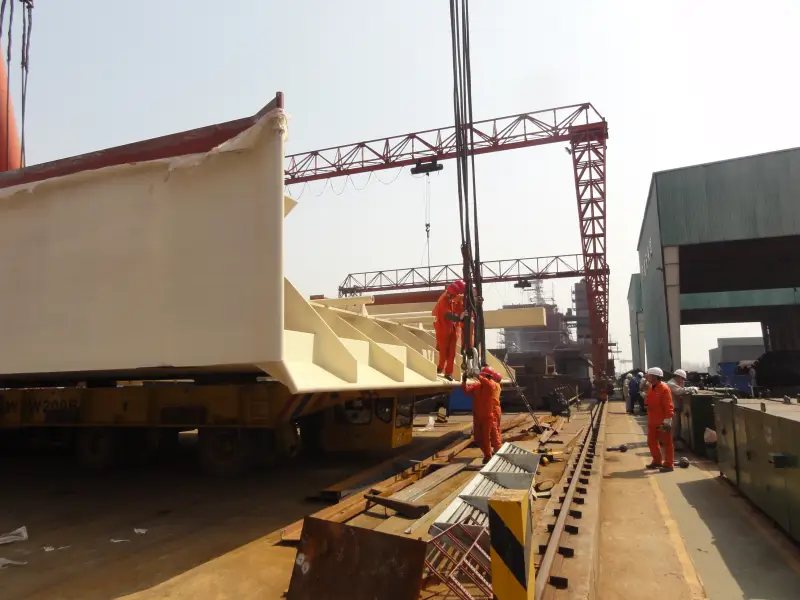

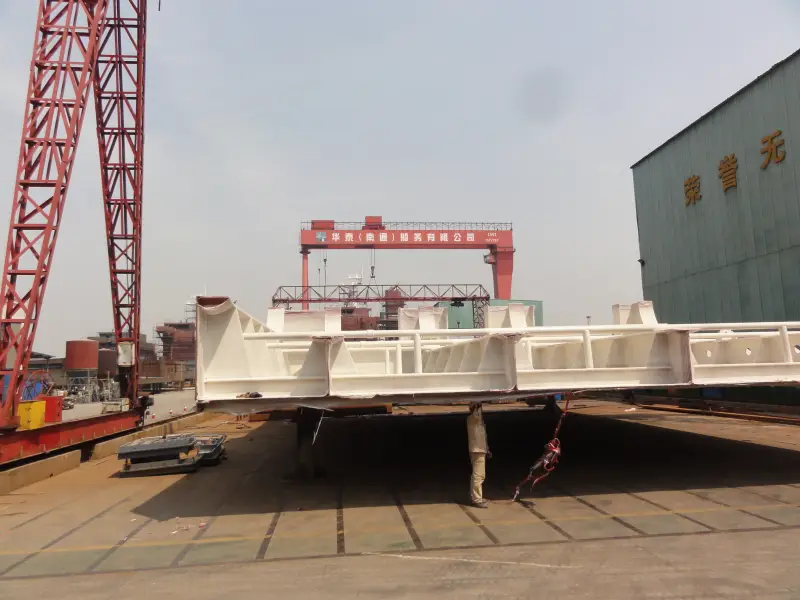

For similar ship internal compartments, hull sections, ballast-related steel areas, marine equipment spaces or shipyard prefabricated steel components, the final coating route should still be reviewed according to steel surface condition, compartment type, moisture exposure, salt contamination risk, ventilation condition, accessibility and project requirements. This case provides an application reference for using BW8008 and BW3-951 to support corrosion protection and surface durability for marine internal steel structures.
