Old Waterproofing Layer Overlay Renovation Case

Old waterproofing layer renovation is different from new concrete roof waterproofing. In a renovation project, the existing roof surface may already have an aged waterproofing layer, old membrane seams, weathered surfaces, local cracks, blisters, wrinkles, weak edges, repair marks and areas with uncertain adhesion. The key challenge is not only to add another coating layer, but to evaluate whether the existing waterproofing layer is stable enough to receive an overlay system.

For this type of roof renovation, full demolition is not always the first or most practical option. If the existing waterproofing layer remains generally stable, well bonded and suitable for overlay after inspection and preparation, a liquid-applied coating route can help restore waterproofing protection with less demolition, less waste and less interruption to the building. However, the old surface must be checked carefully. Loose, hollow, severely damaged, contaminated or poorly bonded areas should be removed, repaired or treated before the overlay coating is applied.

One of the main pain points of old membrane roofs is that water leakage often starts from local weak areas rather than the middle of a broad flat surface. Old seams, lap joints, cracks, roof edges, parapet bases, pipe penetrations, drains and previous repair patches can gradually become leakage points after long-term weathering. If these areas are not treated before the main overlay coating, the new system may inherit the weaknesses of the old roof layer.

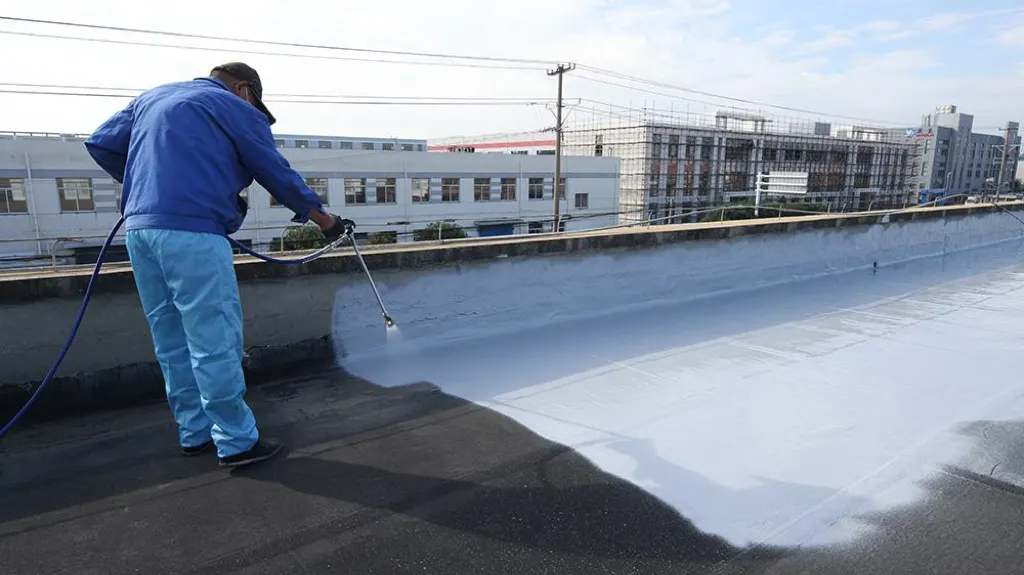

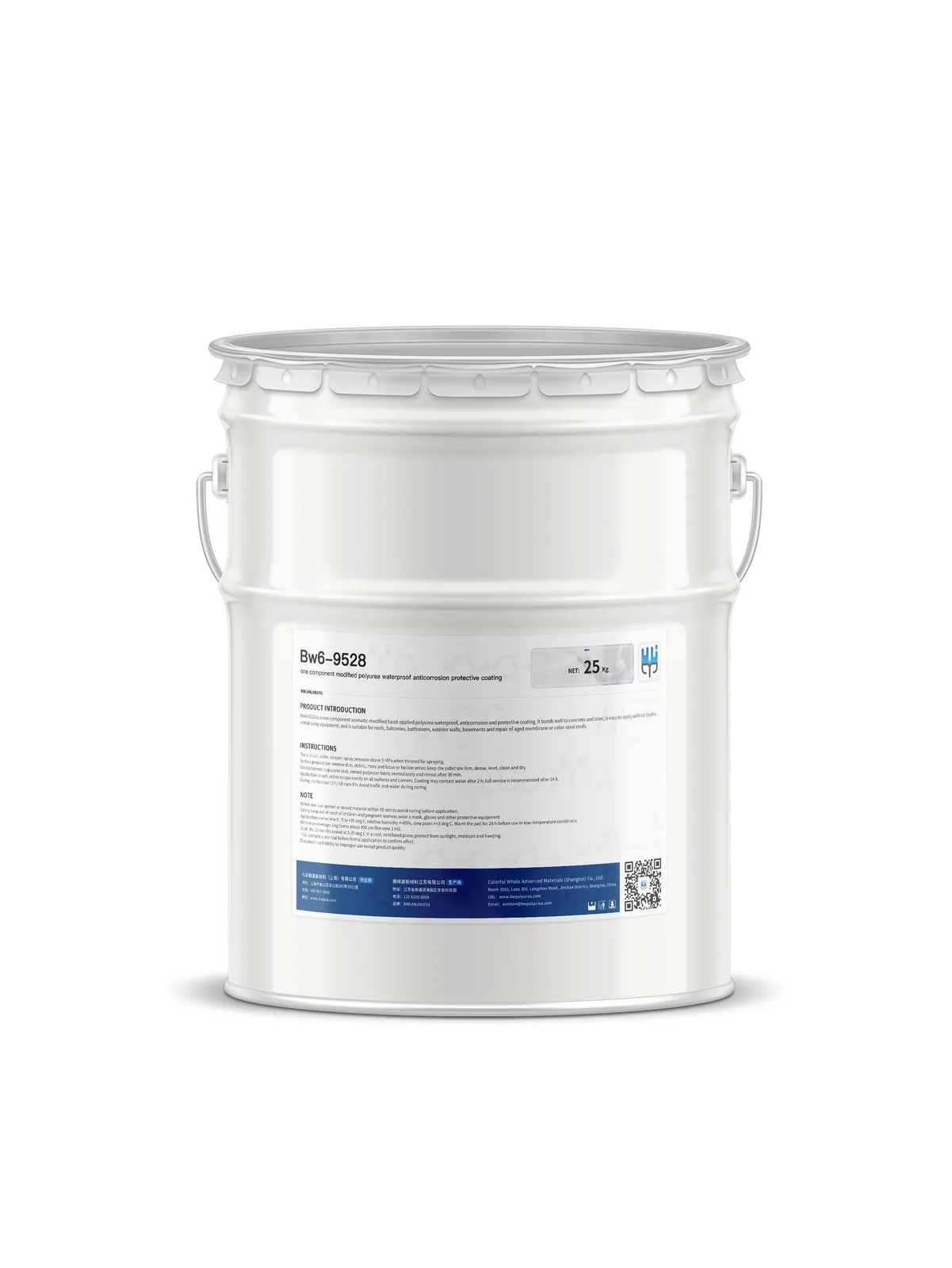

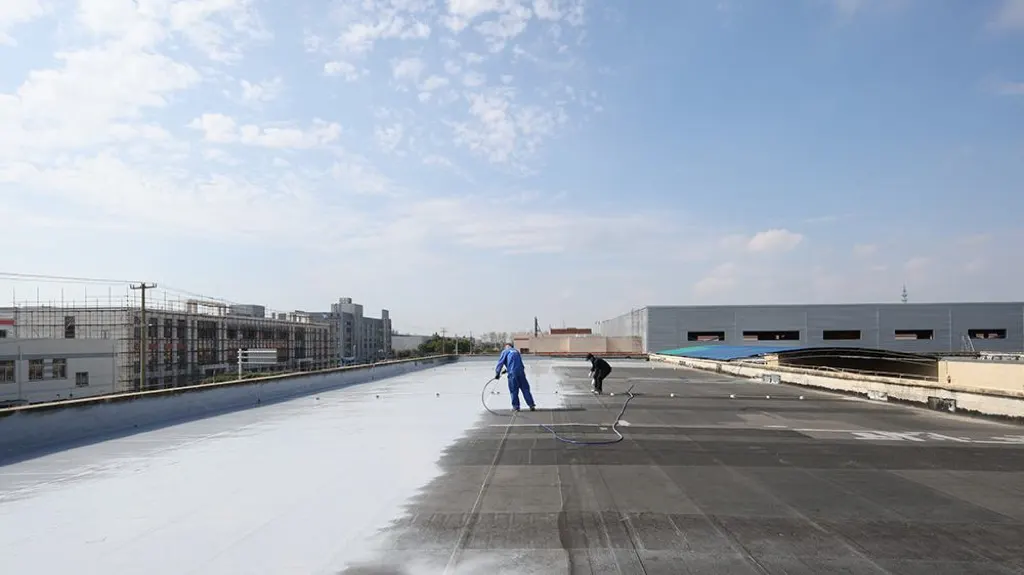

In this case, BW6-9528 was used as the main hand-applied polyurea waterproofing layer at approximately 1.2 mm. This material route is suitable for old waterproofing layer overlay because hand application allows better control over roof details, edges, seams and local repair areas. Compared with a system that only treats the large flat area, a hand-applied polyurea route can be worked into local details more carefully before forming the main waterproofing layer.

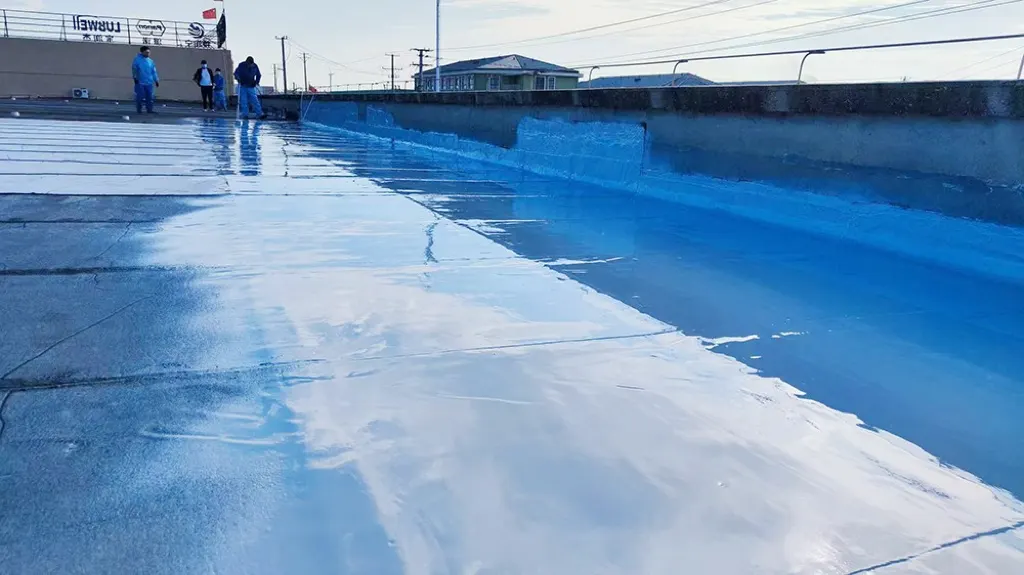

The purpose of BW6-9528 in this project is to create a new continuous waterproofing layer over the prepared old roof surface. At approximately 1.2 mm, the coating is not used as a thin surface paint. It functions as the main waterproofing membrane in the overlay route. The elastomeric character of hand-applied polyurea helps the system adapt better to minor roof movement, small surface irregularities and detail transitions than a rigid coating layer.

Another advantage of this route is that it helps reduce the number of vulnerable seams and overlaps. Existing membrane roofs often contain many lap seams and patch areas. A liquid-applied polyurea overlay can form a more continuous membrane over these prepared areas, helping improve waterproofing continuity across the roof surface. This is especially valuable for renovation projects where the goal is to improve protection without rebuilding the entire roof assembly.

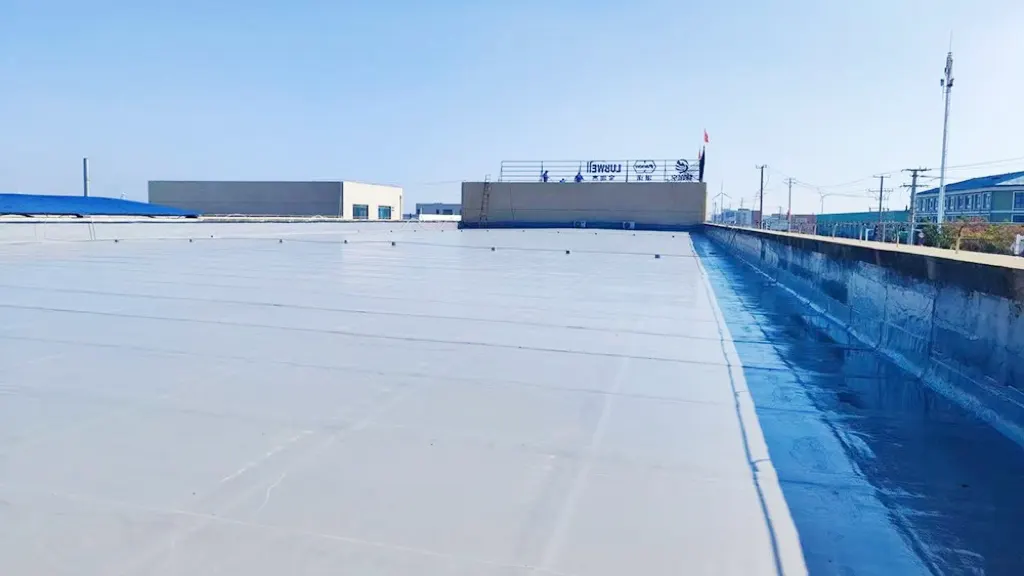

Local detail treatment is still critical. Roof edges, parapets, pipe roots, drains, old membrane laps and cracked areas should be reviewed and repaired before or during BW6-9528 application. These areas may require additional coating build-up or reinforcement according to project conditions. The success of an overlay system depends on whether the weak points of the existing roof are properly addressed before the main membrane is completed.

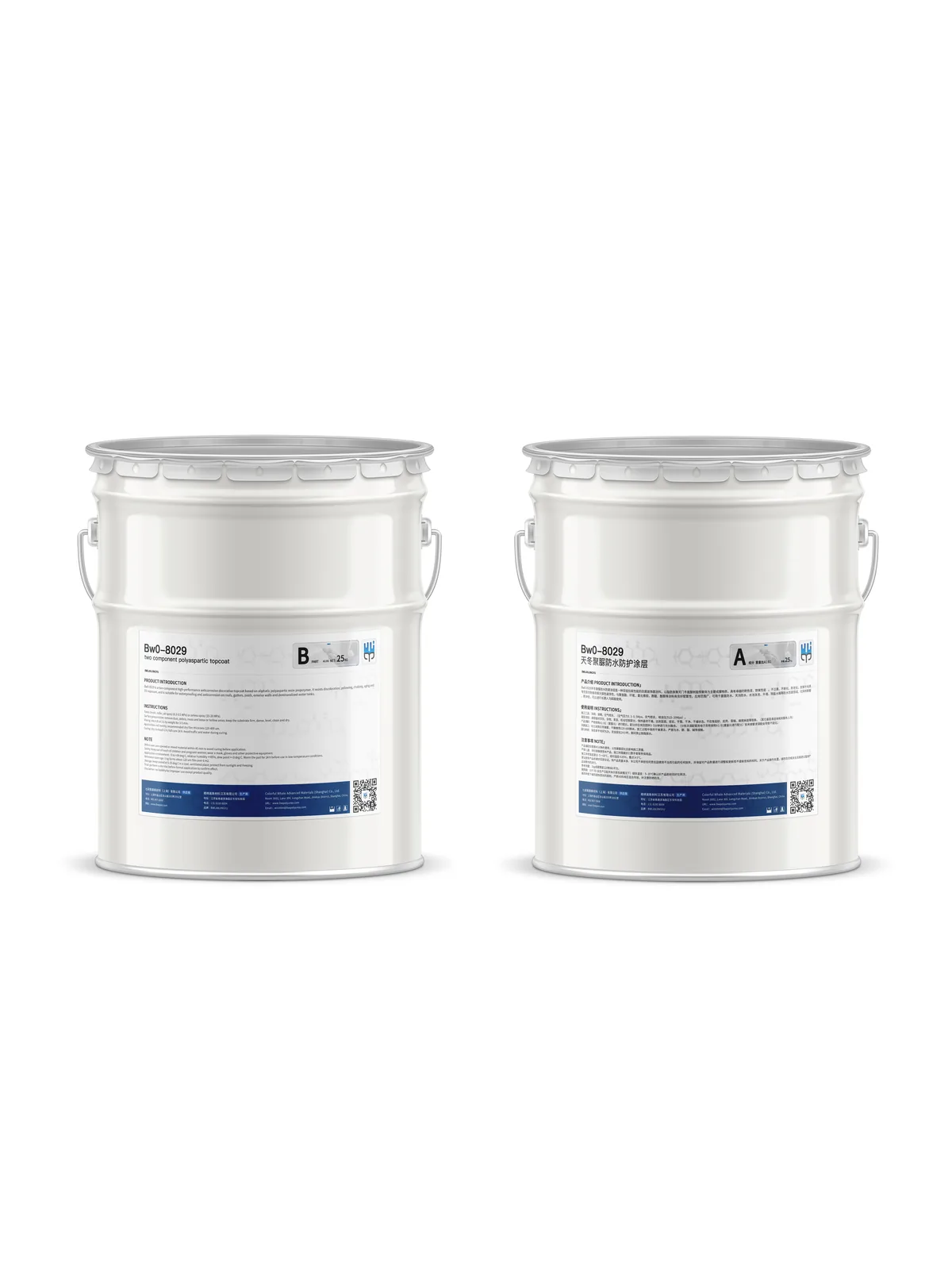

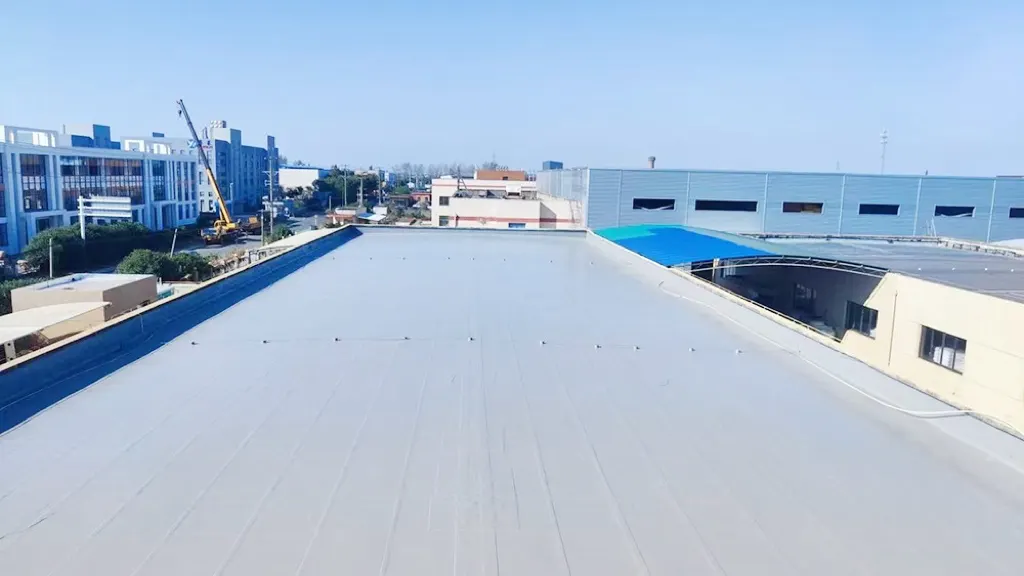

After the BW6-9528 waterproofing layer, BW0-8029 was used as the protective topcoat. Old waterproofing layer renovation projects are often exposed to outdoor weather, sunlight, temperature change, rainwater and long-term surface aging. BW0-8029 helps provide exposed surface protection for the hand-applied polyurea waterproofing layer. In this route, BW0-8029 is not the main waterproofing membrane. Its role is to support weather resistance, surface durability and long-term exposed roof protection.

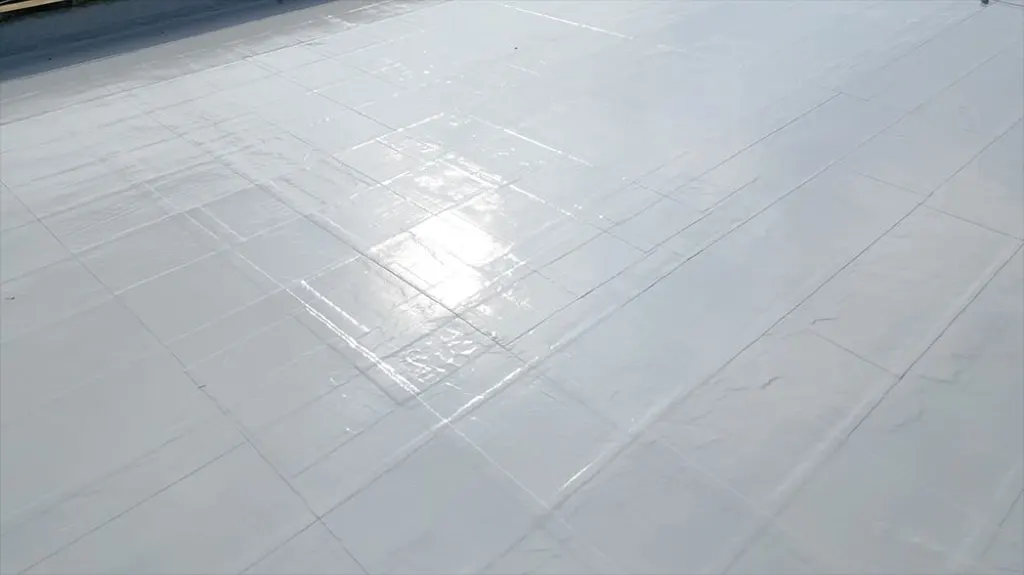

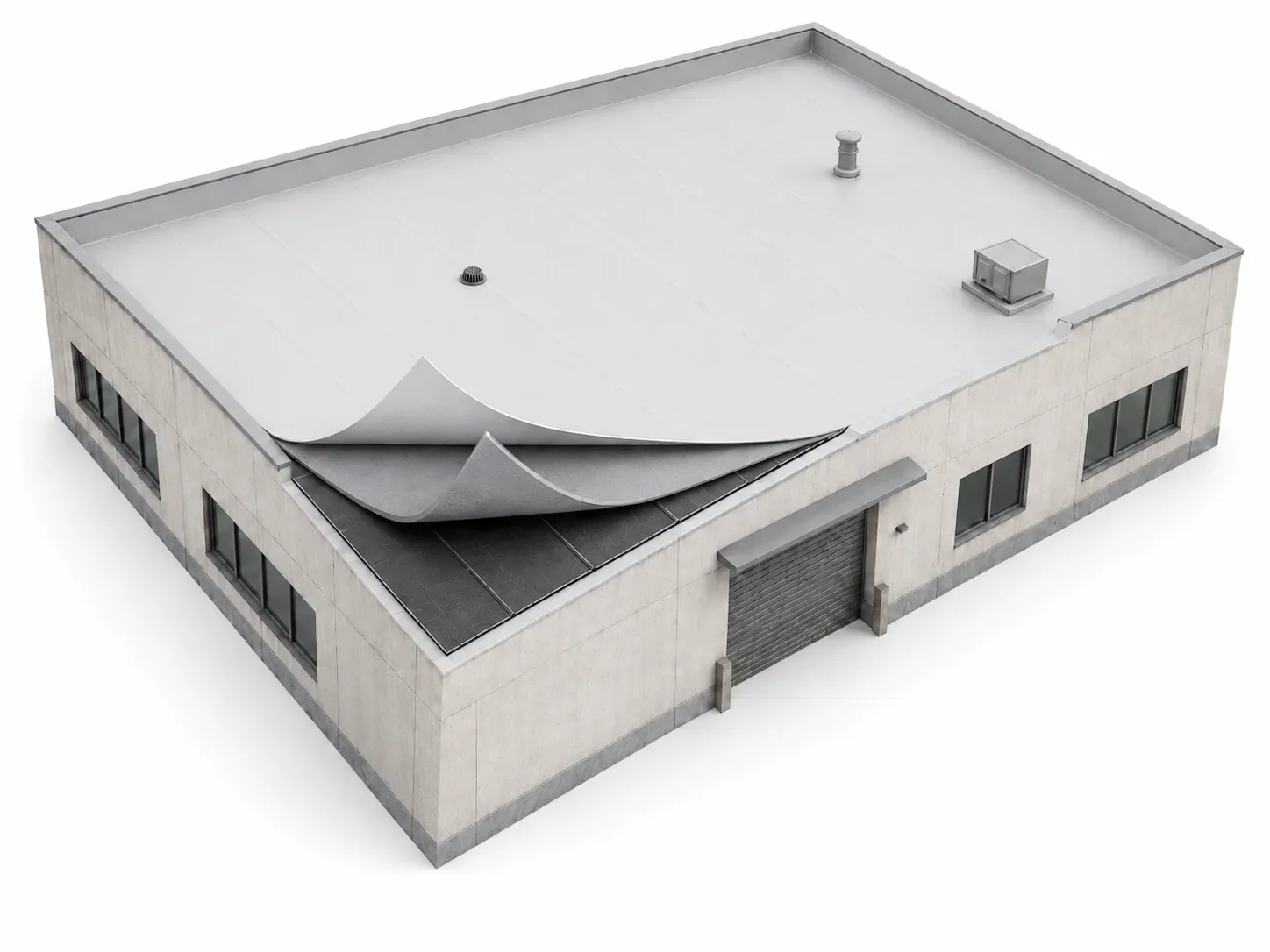

The full coating route therefore has a clear division of function. BW6-9528 provides the main hand-applied polyurea waterproofing membrane at approximately 1.2 mm, while BW0-8029 provides the exposed protective topcoat. The key value of this route is that it can renew the waterproofing protection of a stable existing roof layer while reducing demolition and improving membrane continuity over old seams, patches and weathered surfaces.

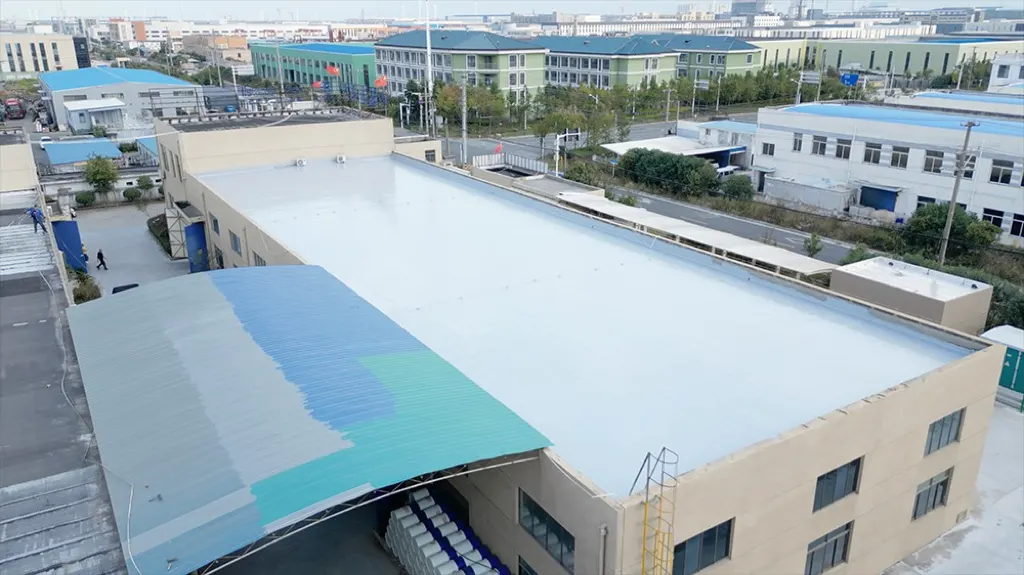

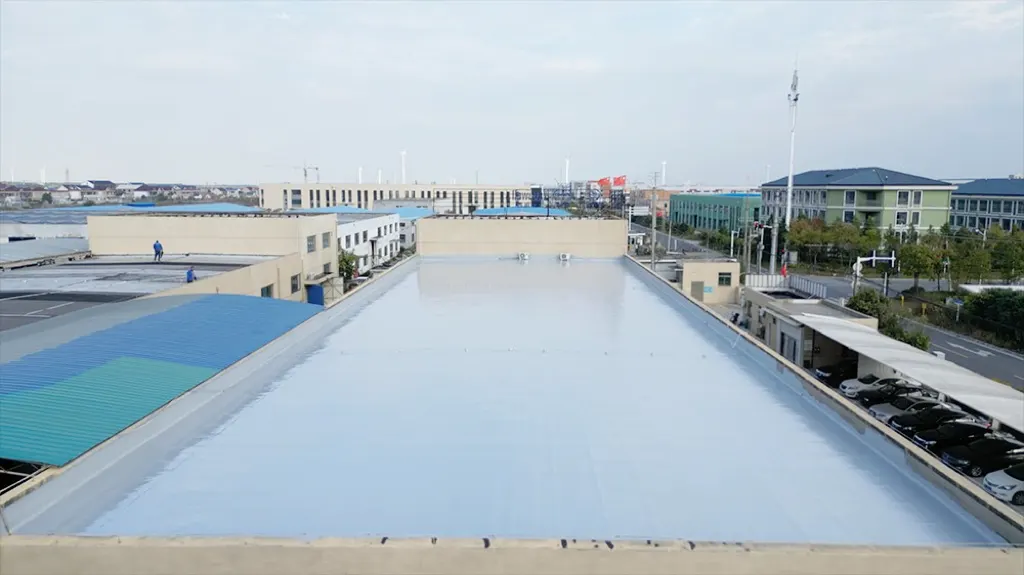

This case shows a practical overlay renovation approach for old waterproofing layers. Instead of treating the project as a new concrete roof or a full tear-off replacement, the coating route focuses on inspection, preparation, local detail treatment, hand-applied polyurea waterproofing and exposed topcoat protection. This makes the system suitable for renovation projects where the existing waterproofing layer can be retained after proper review.

For similar old waterproofing layer renovation projects, the final coating route should still be reviewed according to the existing membrane condition, adhesion, surface contamination, moisture condition, roof drainage, local damage and detail complexity. If the old layer is loose, wet, unstable or severely deteriorated, additional repair or removal may be required before overlay application. This case provides an application reference for using BW6-9528 and BW0-8029 to improve waterproofing continuity and exposed roof protection over prepared old waterproofing layers.
