Demineralized Water and Oil Storage Tank Anti-Corrosion System

Polyurea Anti-Corrosion Protection
for Demineralized Water and Oil Storage Tanks

A polyurea anti-corrosion protection system for prepared steel tank interiors, demineralized water tanks, oil storage tanks and industrial liquid storage tanks exposed to immersion, corrosion risk, water or oil contact and tank maintenance conditions.

View Technical Specifications Get Solution and Quote
Demineralized water tank and oil storage tank anti-corrosion system overview

System build-up

System Build-Up

BW8008 Steel Primer + BW3-9512 Main Tank Anti-Corrosion Protective Layer

  1. 01
    BW8008 Steel Primer

    Supports steel adhesion, anti-corrosion preparation and cathodic disbonding resistance.

  2. 02
    BW3-9512 Main Tank Anti-Corrosion Protective Layer

    Forms the main polyurea anti-corrosion protective lining for demineralized water and oil storage tank exposure.

Layer function

What Each Layer Solves

The storage tank system separates BW8008 steel primer adhesion and cathodic disbonding resistance from the main BW3-9512 polyurea anti-corrosion protective lining.

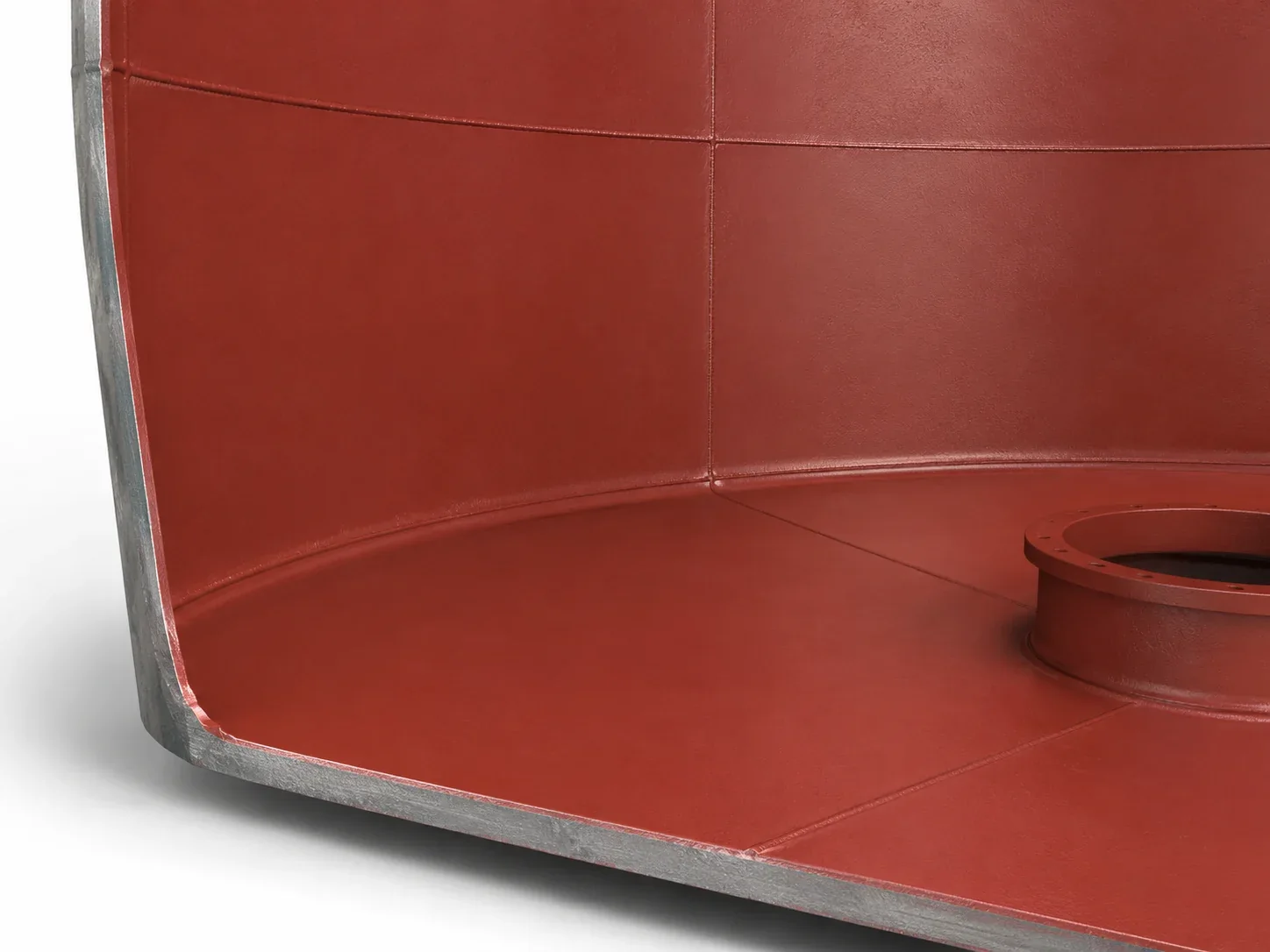

BW8008 steel primer layer for storage tank anti-corrosion system
01

Steel Primer / BW8008

Resists cathodic disbonding and supports steel adhesion.

Main Function
Prepares the cleaned steel tank surface, improves adhesion and provides cathodic disbonding resistance before the main polyurea tank lining is applied.
What It Solves
Cathodic disbonding risk, steel surface oxidation, weak bonding, residual surface profile variation, primer discontinuity and coating detachment between steel substrate and protective lining.
Key Advantage
Helps create a stable metal-bonding base and helps reduce the risk of lining detachment caused by cathodic disbonding under tank anti-corrosion service conditions.

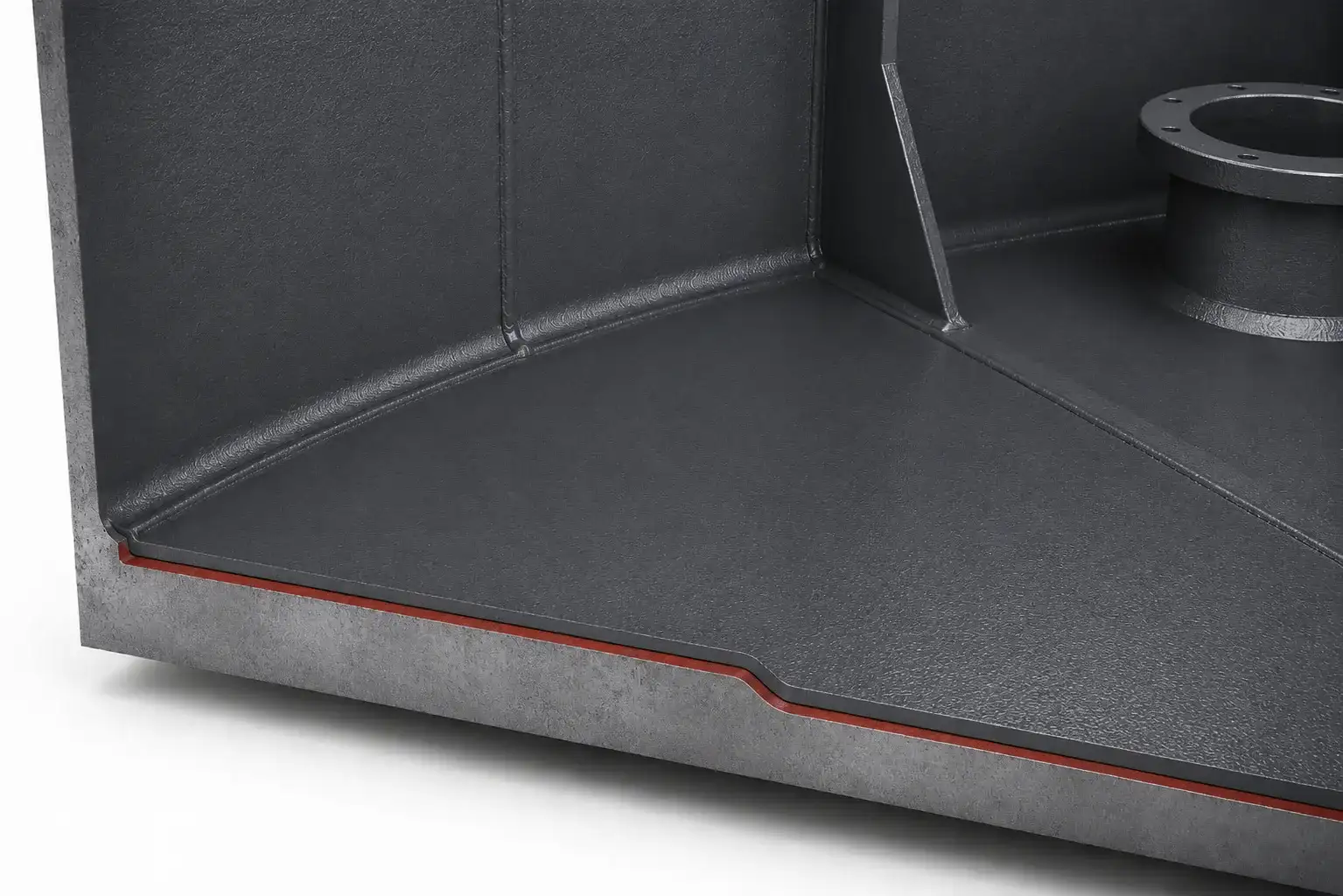

BW3-9512 storage tank anti-corrosion protective layer detail
02

Main Protection / BW3-9512

Forms the main tank anti-corrosion lining.

Main Function
Forms the main polyurea anti-corrosion protective lining over the primed steel tank surface.
What It Solves
Immersion exposure, demineralized water contact, oil contact, corrosion risk, tank wall and bottom-plate lining discontinuity, pinhole risk and surface erosion.
Key Advantage
Provides a continuous thick-film protective lining designed for demineralized water tanks, oil storage tanks and steel storage tank anti-corrosion service.

Application stages

How This System Helps Reduce Storage Tank Corrosion Risks

Storage tank anti-corrosion risks often come from steel surface preparation quality, weld seams, lap joints, tank bottom plates, bottom-to-wall transitions, nozzle areas, manholes, pipe penetrations, internal corners, immersion exposure, demineralized water contact, oil contact, cleaning cycles, corrosion under deposits, pinholes, lining discontinuity, cathodic disbonding and adhesion failure. This system uses BW8008 cathodic disbonding resistant steel primer before BW3-9512 is applied as the main polyurea anti-corrosion protective lining to help improve adhesion, reduce coating detachment risk and support corrosion protection on prepared steel storage tank interiors.

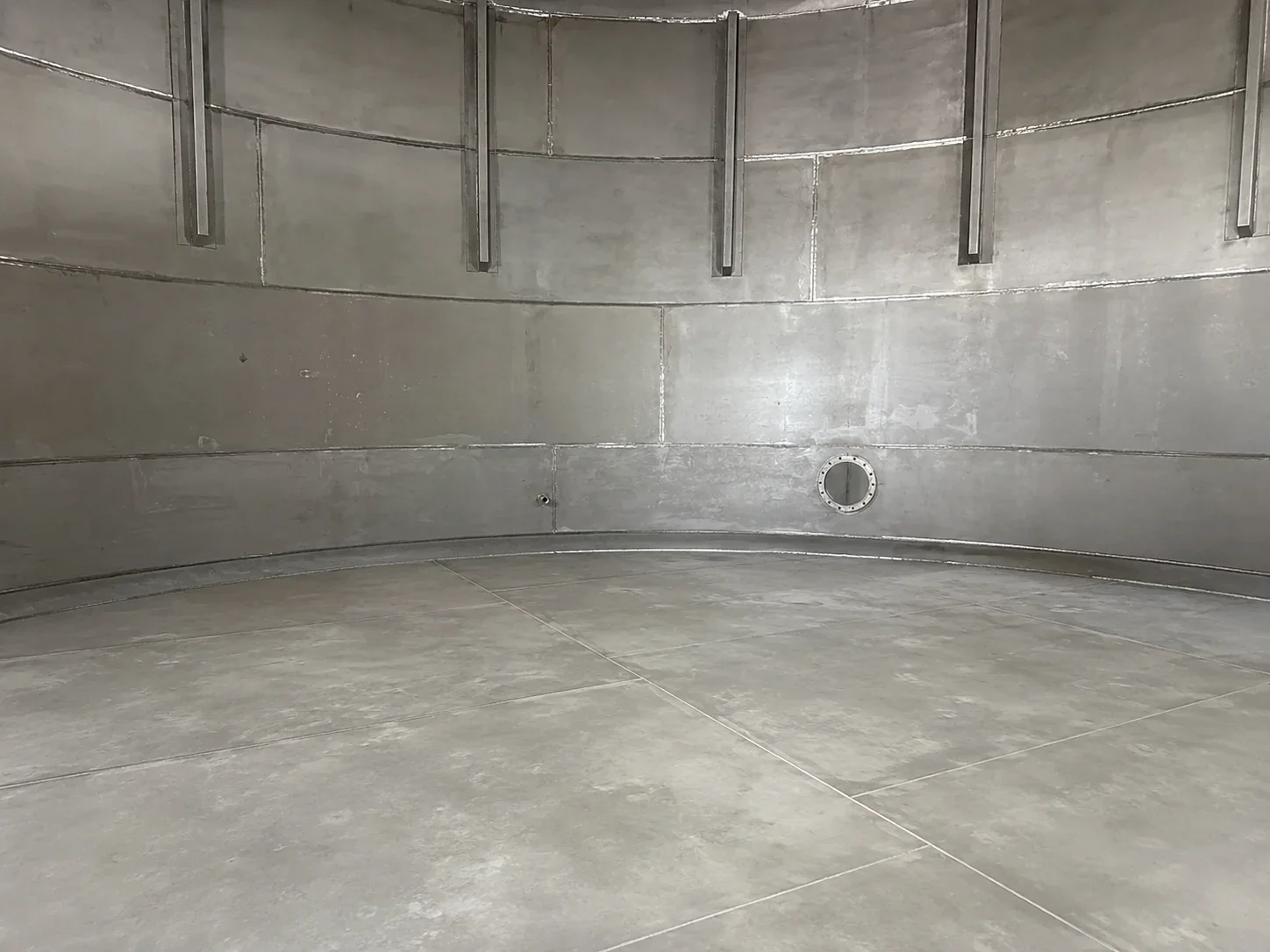

Steel storage tank surface preparation before anti-corrosion coating
01

Steel Surface Preparation

Steel tank interior should be cleaned, rust-treated and prepared according to project specification before primer application. Oil, dust, loose rust, mill scale, weak coating and contamination should be removed.

Reference: confirm surface profile, rust removal quality, cleanliness, dew point margin and inspection requirement before primer application.
02

Weld Seam and Detail Inspection

Weld seams, lap joints, nozzle areas, manholes, pipe penetrations, tank bottom plates, bottom-to-wall transitions and internal corners should be checked before coating application.

Reference: detail inspection should cover pinhole-prone zones, lining discontinuity risk and areas where corrosion under deposits may start.
Weld seam and storage tank detail inspection before BW8008 primer application

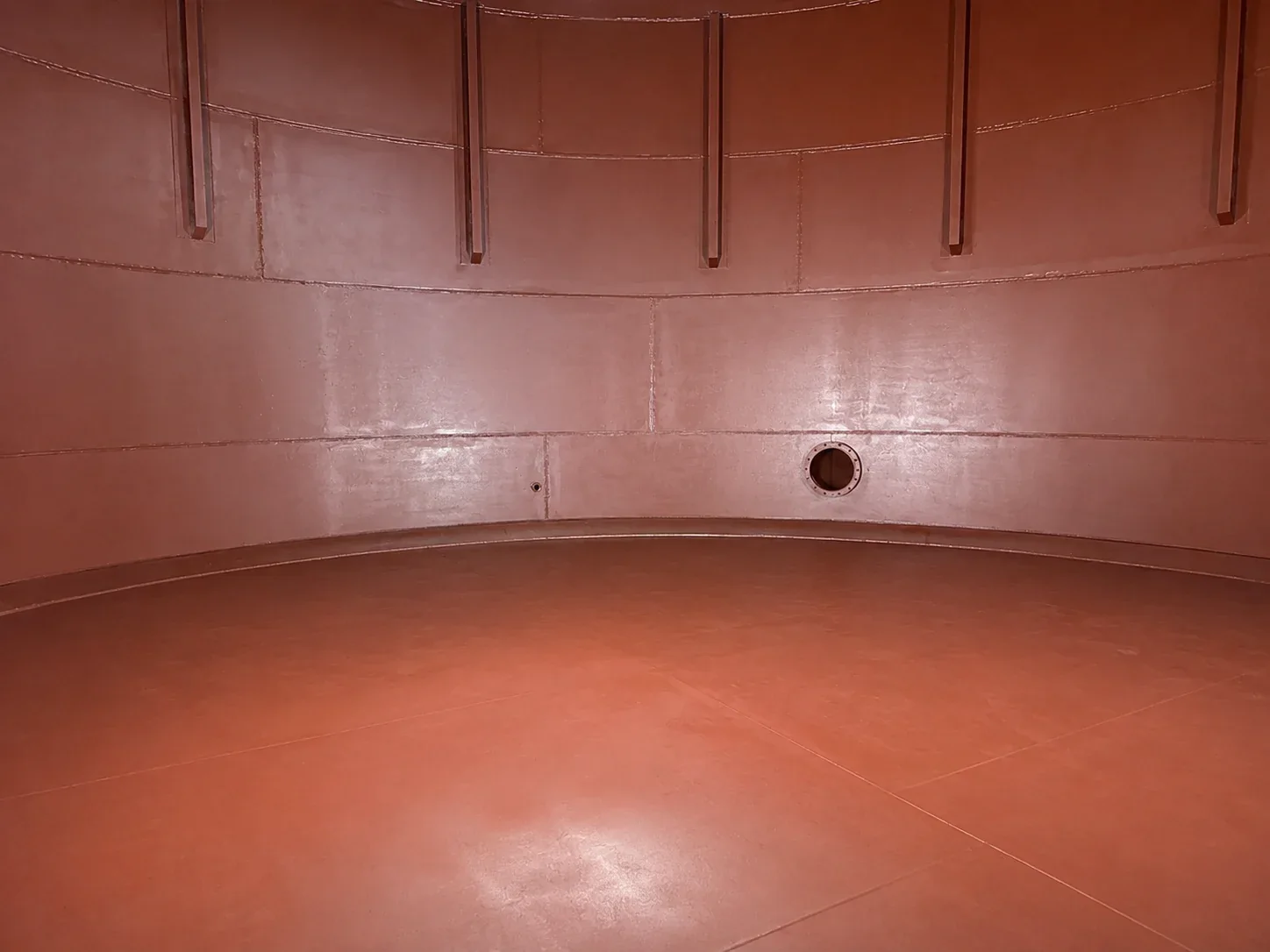

BW8008 steel primer application for storage tank anti-corrosion system
03

BW8008 Steel Primer

Apply BW8008 as the cathodic disbonding resistant steel primer to support adhesion and build the first anti-corrosion interface before BW3-9512 is applied. Without cathodic disbonding resistance, the protective lining may lose adhesion and detach from the steel substrate under service conditions.

Product reference: 30-50 μm recommended dry film thickness; 0.12 kg/m2 at 50 μm film thickness; cathodic disbonding resistance <=15 mm from BW8008 product data. BW8008 Metal Anticorrosion Primer official product packaging image Product usedView BW8008 ->
04

BW3-9512 Main Tank Anti-Corrosion Protective Layer

Apply BW3-9512 as the main polyurea anti-corrosion protective lining for demineralized water tank and oil storage tank service.

System reference: about 1.5 mm main anti-corrosion lining thickness / about 1.68 kg/m2 planning consumption, calculated from BW3-9512 product data theoretical coverage of 1.12 kg/m2 at 1 mm film thickness. Final thickness should be confirmed according to stored medium, immersion condition and project specification. BW3-9512 Heavy-Duty Spray Polyurea Anti-Corrosion Coating official product packaging image Product usedView BW3-9512 ->

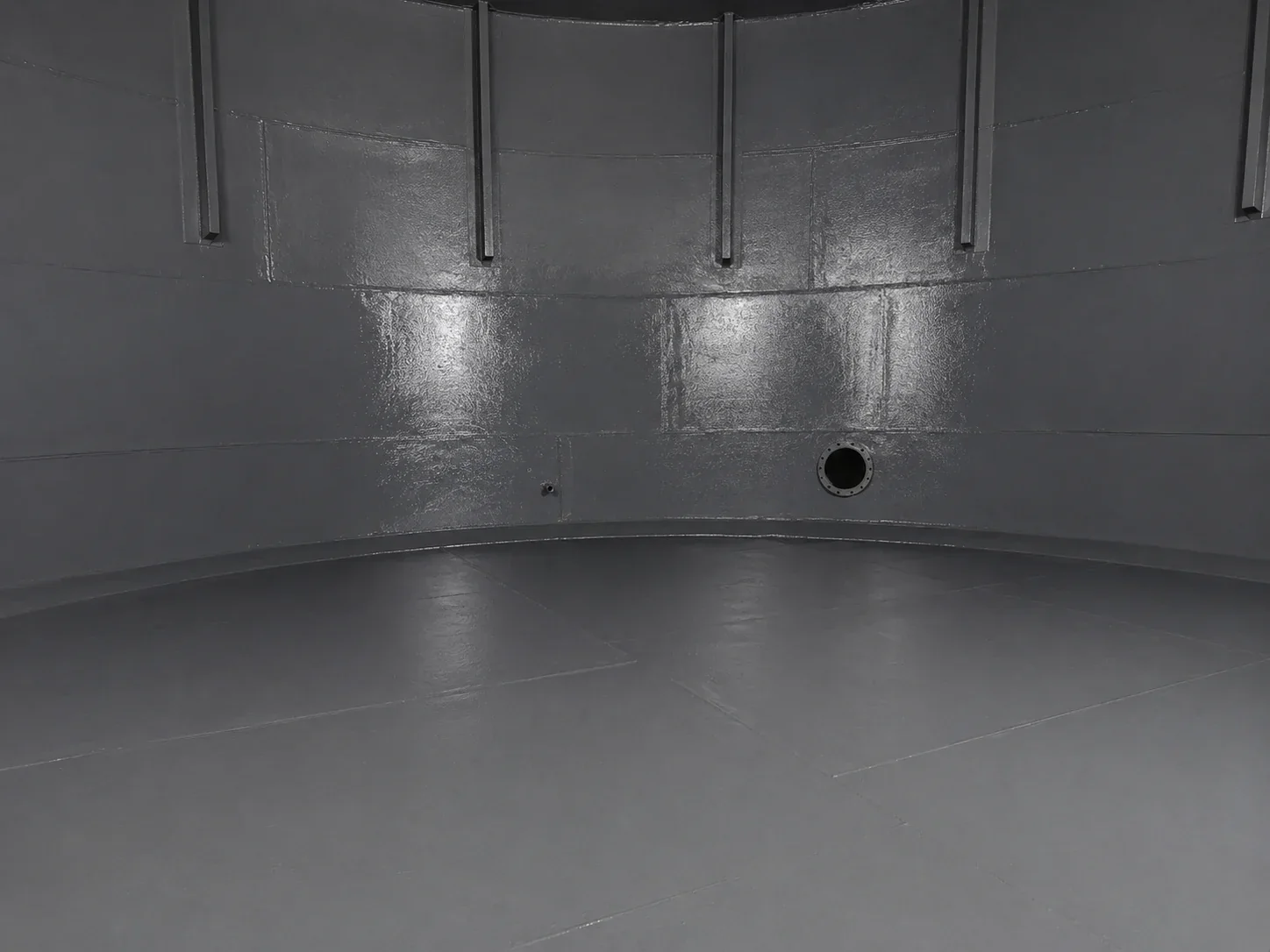

Finished BW3-9512 anti-corrosion protective surface for storage tank

Technical data center

Technical Data Center

Tank-focused planning data for BW8008 steel primer and BW3-9512 storage tank anti-corrosion protective coating.

BW8008 Steel Primer Key Data

ItemTest standard / referenceResult
Product role System planning Steel primer, anti-corrosion interface and cathodic disbonding resistant layer
Recommended dry film thickness Product data reference 30-50 μm
Theoretical coverage Product data reference 0.12 kg/m2 at 50 μm film thickness
Mix ratio By weight A:B = 1:1
Adhesion / tensile strength Product data reference 11.5 MPa or substrate failure
Cathodic disbonding resistance HG / T 3831-2006 <=15 mm
Salt spray resistance Product data reference 1000 h; no rust, bubbles or peeling
Tank relevance System planning Supports steel adhesion, cathodic disbonding resistance, corrosion interface stability and cleaned steel tank preparation before BW3-9512 lining work

BW3-9512 Tank Anti-Corrosion Layer Key Data

ItemTest standard / referenceResult
Product role System planning Main storage tank anti-corrosion protective layer
Solid content Part A / Part B 100% / 100%
Mixing ratio By volume 1 : 1
Gel time @ 25 deg C Product data reference 25-35 s
Product data film thickness range Product data reference 1000-3000 μm
Storage tank system recommended thickness System planning About 1.5 mm
Product data theoretical coverage Product data reference 1.12 kg/m2 at 1 mm film thickness
Planning consumption System calculation About 1.68 kg/m2 at 1.5 mm
Tensile strength GB / T 23446-2009 40 MPa
Steel-base adhesion GB / T 23446-2009 12 MPa
Impermeability 0.4 MPa / 2 h Impermeable
Oil resistance Product data reference 0# diesel and crude oil, 30 d; no rust, bubbles or peeling
Salt spray resistance Product data reference 2000 h; no rust, bubbles or peeling
Tank relevance System planning Used as the main lining for prepared steel tank interiors exposed to demineralized water contact, oil contact, immersion conditions and tank maintenance cycles

Technical values are planning references from current product data. Final material selection, surface preparation standard, stored medium compatibility, film thickness and application conditions should be confirmed according to project specification and the latest technical data sheet.

Quality control

Application & Quality Control

Quality control should focus on steel tank interior readiness, BW8008 primer bonding and BW3-9512 protective-layer continuity before tank service.

01

Steel Readiness

Confirm prepared steel tank interior condition before primer application.

  • Rust removal
  • Oil and contamination removal
  • Surface profile
  • Dew point margin
02

Primer Control

Review BW8008 coverage and recoat timing.

  • Continuous primer film
  • Target primer thickness
  • Recoat interval
  • No loose areas
03

Tank Protective Layer

Check BW3-9512 lining continuity before service.

  • Continuous film
  • Target DFT
  • Weld and detail coverage
  • Final inspection records
Inspection focus
  • Steel surface profile
  • Primer bonding
  • Stored medium review
  • Protective layer continuity

Suitable conditions

Suitable Steel Storage Tank Conditions

Use this section to check whether the project fits a BW8008 + BW3-9512 steel storage tank anti-corrosion system before final specification.

  1. 01

    Demineralized Water Tanks

    Prepared steel tank interiors can be reviewed when corrosion protection, immersion exposure and demineralized water contact are part of the service condition.

    Check before specification: stored medium / DFT / inspection

  2. 02

    Oil Storage Tanks

    Oil storage tanks can be reviewed when steel surfaces need primer bonding and a thick-film polyurea anti-corrosion protective lining.

    Check before specification: oil exposure / steel profile / adhesion

  3. 03

    Steel Storage Tanks

    Steel storage tank interiors require project-specific review of surface preparation, stored medium, service temperature and inspection requirements.

    Check before specification: temperature / medium / standard

  4. 04

    Tank Details and Transitions

    Weld seams, lap joints, nozzle areas, manholes, pipe penetrations, internal corners and bottom-to-wall transitions should be reviewed before coating.

    Check before specification: details / transitions / pinholes

Do not finalize material consumption from area alone. Confirm steel condition, stored medium, target DFT, immersion condition, surface preparation standard and inspection requirement before ordering.

Before you request a quote

Before You Request a Quote

Share the storage tank condition and stored-medium target so the BW8008 + BW3-9512 tank anti-corrosion system can be reviewed before material planning.

Prepare the tank basics first.

A useful storage tank quotation starts with tank type, steel interior condition, stored medium, target DFT and inspection requirement.

Photos or drawings of tank interiors, bottom plates, tank walls, weld seams, lap joints, manholes, nozzle areas, pipe penetrations and worn areas can help review the build-up faster.

  • Tank volume or coating area
  • Tank type
  • Steel interior condition
  • Stored medium
  • Operating temperature
  • Target DFT
  • Surface preparation method
  • Weld and detail condition
  • Inspection standard
  • Project location
  • Construction timeline
  • Required documents

After these details are ready, use the inquiry form below to request a storage tank system review.

FAQ

FAQ About Storage Tank Anti-Corrosion Protection

Common questions about using BW8008 and BW3-9512 for demineralized water tanks, oil storage tanks and steel storage tanks.

What is this polyurea storage tank anti-corrosion system used for?

It is used for prepared steel storage tank interiors where demineralized water tanks, oil storage tanks or industrial liquid storage tanks need a polyurea anti-corrosion protective lining.

What role does BW8008 play in this system?

BW8008 is the cathodic disbonding resistant steel primer. It supports metal adhesion and anti-corrosion interface preparation before the BW3-9512 main tank lining is applied. Without cathodic disbonding resistance, the protective lining may lose adhesion and detach from the steel substrate under service conditions.

Which product forms the main tank anti-corrosion lining?

BW3-9512 forms the main polyurea anti-corrosion protective lining over the primed steel tank surface. BW8008 is the primer layer, not the main protective lining.

Can this system be used for demineralized water tanks?

Yes, demineralized water tank projects can be reviewed when the steel surface preparation standard, immersion condition, tank details and project specification are confirmed.

Can this system be used for oil storage tanks?

Yes, oil storage tank projects can be reviewed when the stored oil condition, operating temperature, cleaning cycle, target DFT and inspection requirements are confirmed.

Which tank details need special attention before coating?

Weld seams, lap joints, tank bottom plates, tank walls, nozzle areas, manholes, pipe penetrations, internal corners and bottom-to-wall transitions should be checked before coating application.

What film thickness is recommended for BW3-9512?

BW3-9512 product data lists a film thickness range of 1000-3000 μm and theoretical coverage of 1.12 kg/m2 at 1 mm film thickness. For this demineralized water and oil storage tank anti-corrosion system, BW3-9512 is recommended at about 1.5 mm as the main protective lining. Final thickness should be confirmed according to stored medium, immersion condition and project specification.

What information is needed before specifying the system?

Share the tank type, coating area, steel condition, rust removal or blasting standard, stored medium, operating temperature, target DFT, tank detail condition and inspection standard before final selection.
