BW3-9512 Petrochemical Heavy-Duty Polyurea Anti-Corrosion Protective Coating

BW3-9512

Heavy-duty aromatic spray polyurea lining for petrochemical storage tanks, containment areas, pipelines, sewage pools and industrial anti-corrosion protection.

View Technical DataRequest TDS & Quote

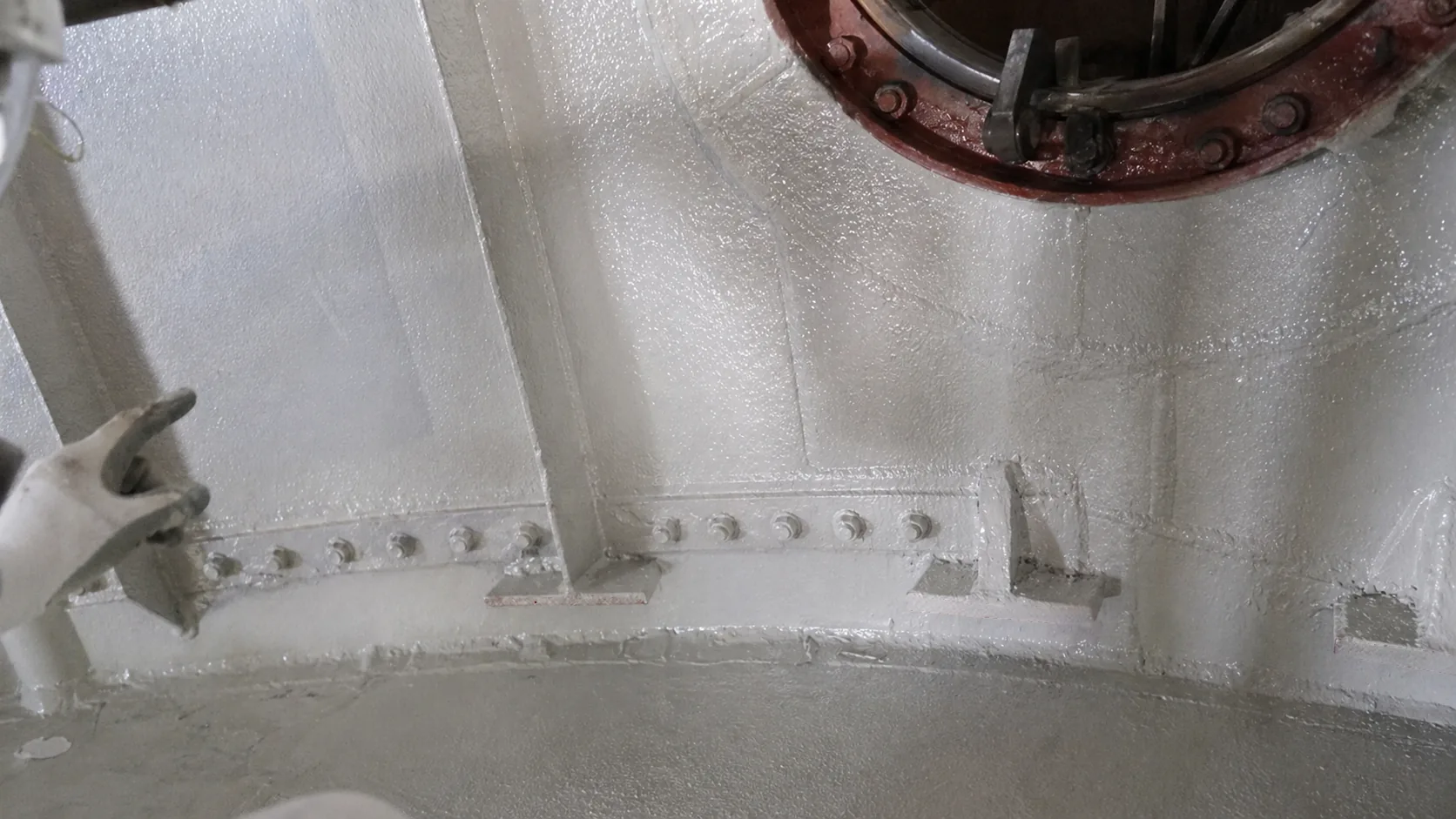

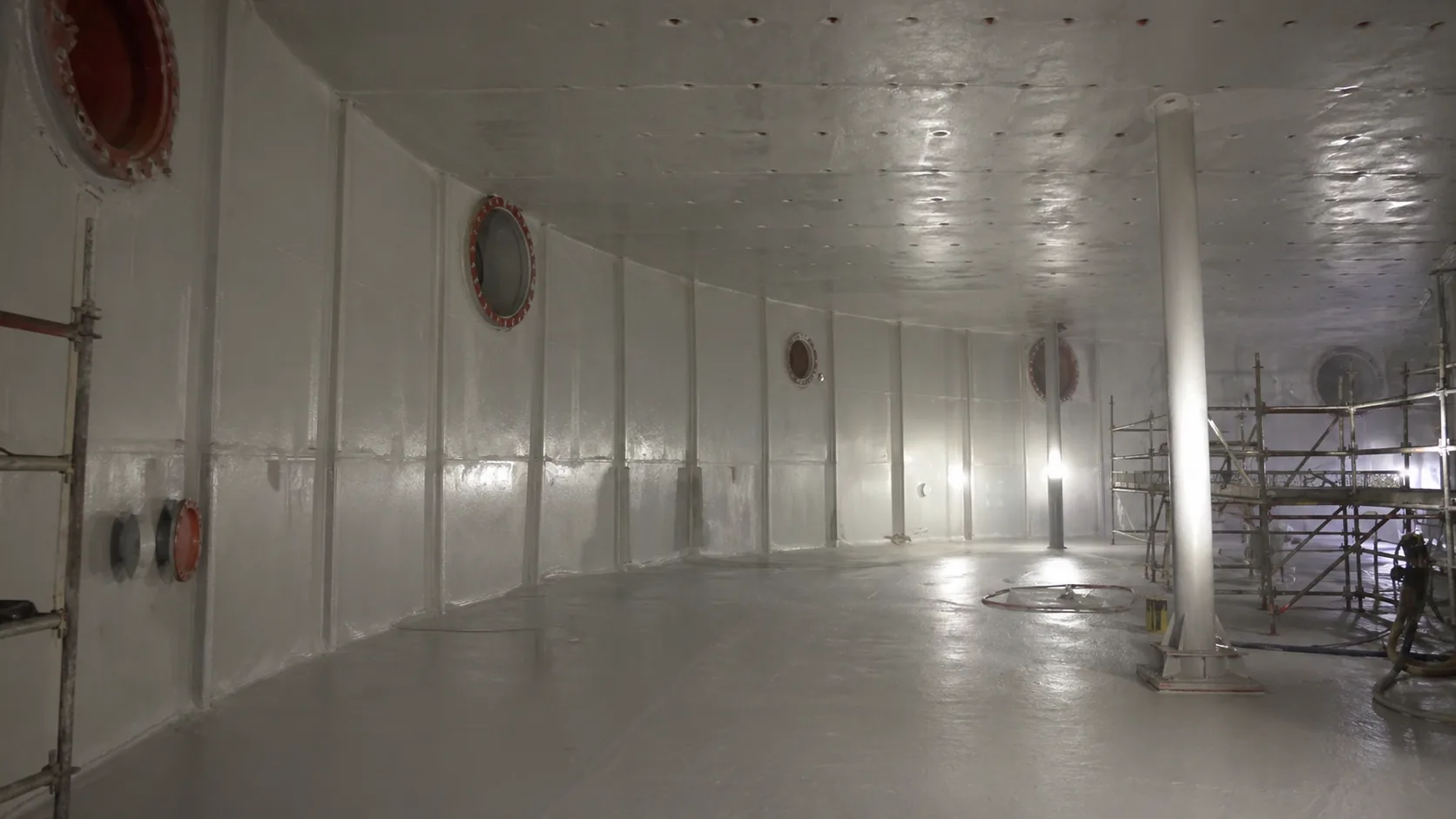

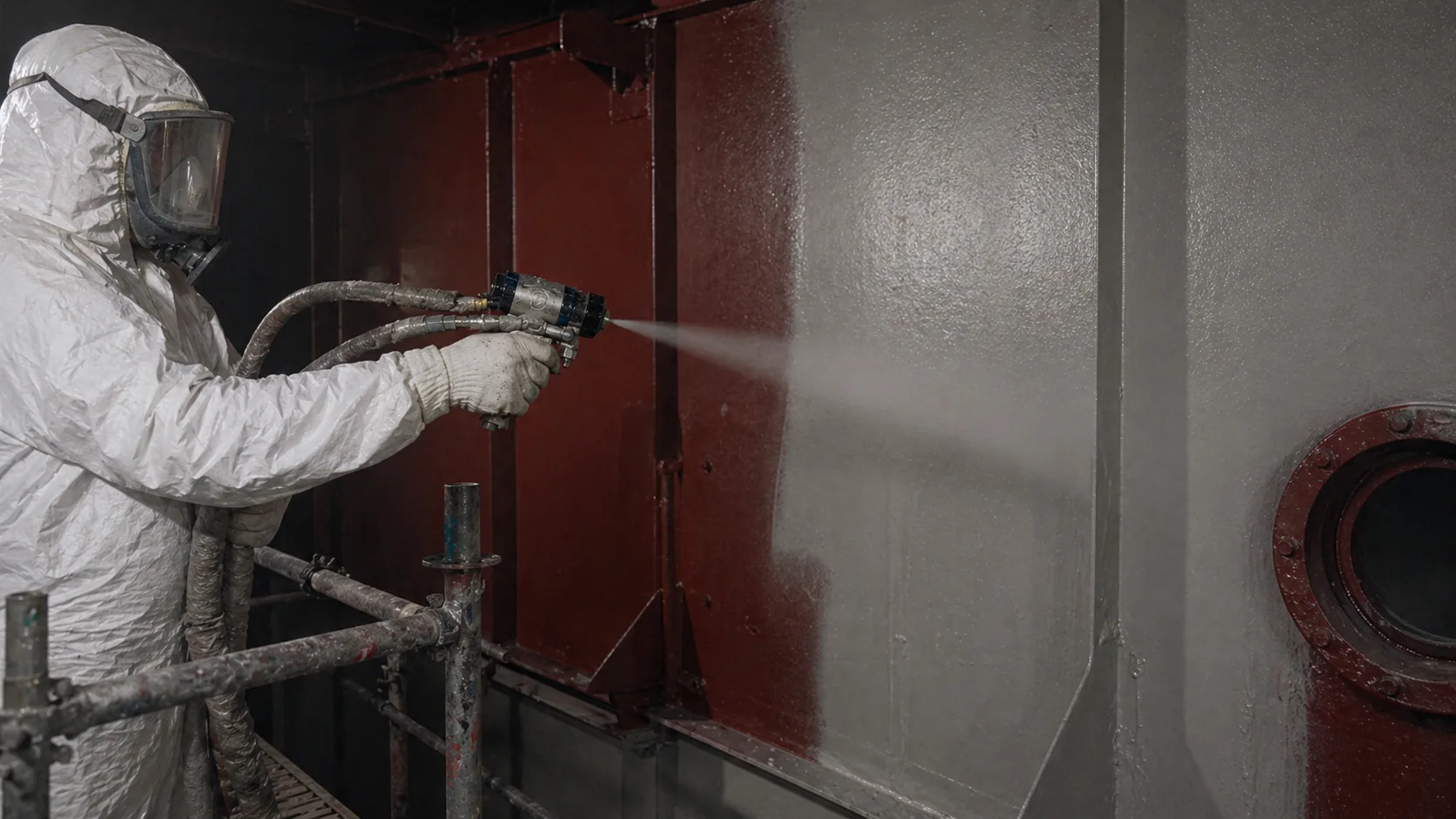

Finished light-gray spray polyurea lining inside a large industrial tank

Product Description

BW3-9512 is a 100% solids aromatic spray polyurea elastomer. Developed by Colorful Whale Advanced Materials (Shanghai) Co., Ltd. in collaboration with leading research institutions, this product represents an advanced heavy-duty anti-corrosion material derived from conventional polyurea formulations, specifically designed for the petrochemical industry. It has been widely applied across the United States and delivers excellent long-term corrosion protection performance.

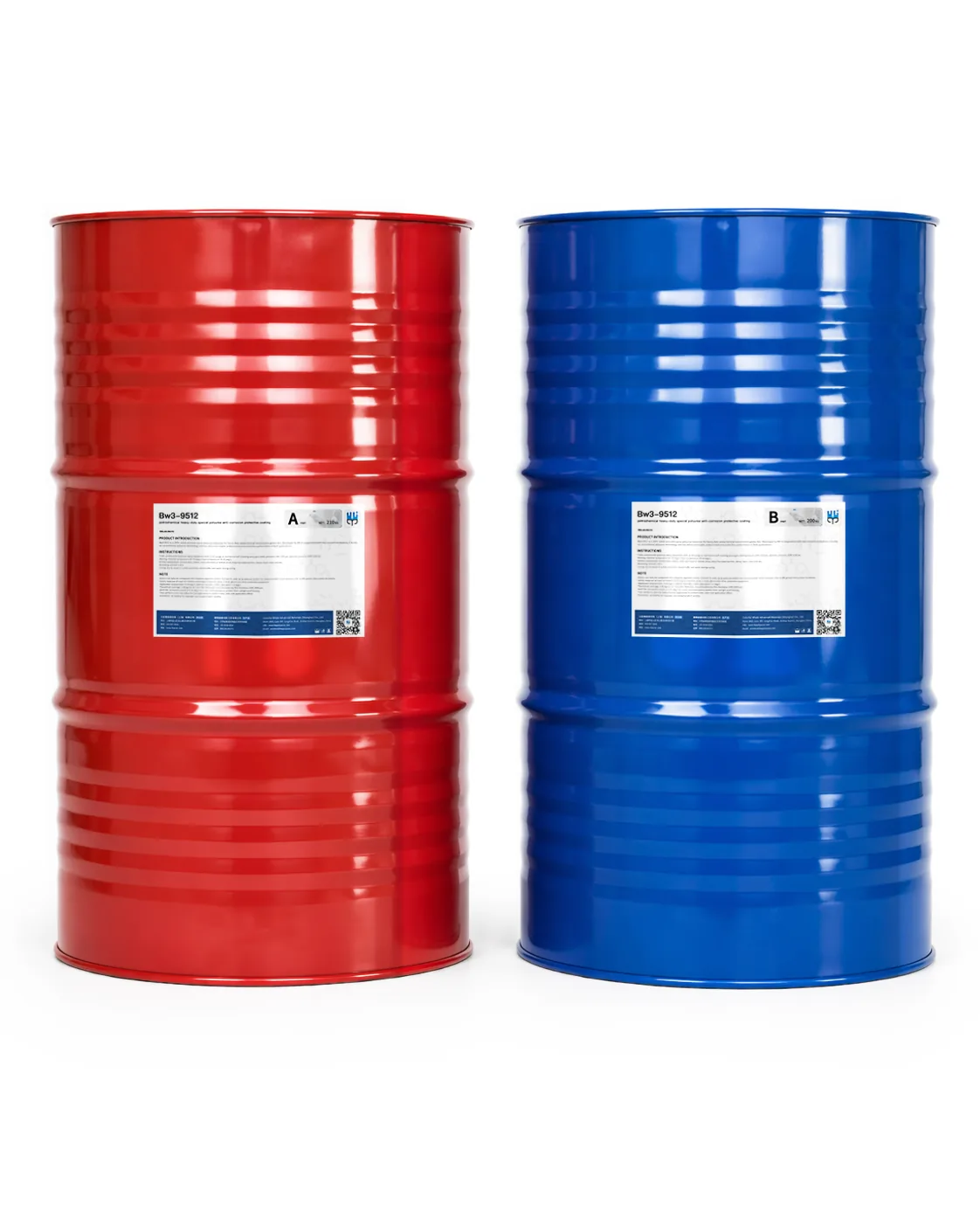

BW3-9512 Part A and Part B product drums

Application Scope

BW3-9512 is used for anti-corrosion protection of petrochemical storage tanks, bunds, towers, wash tanks, pipelines, sewage pools and related facilities.

  • Petrochemical Storage TanksProtective lining review for prepared tank interiors and storage structures exposed to demanding service conditions.
  • Bunds and Containment AreasAnti-corrosion and waterproof protective coating for prepared containment surfaces around chemical or oil-handling areas.
  • Towers and Wash TanksSpray-applied protective coating review for prepared equipment surfaces after substrate and exposure confirmation.
  • Pipelines and Sewage PoolsDense polyurea protective lining for compatible prepared pipeline, sewage and industrial liquid-contact structures.

Designed for Hard, Continuous Protection in Petrochemical Service

BW3-9512 helps form a dense, harder spray-applied polyurea lining for storage tanks, bunds, towers, wash tanks, pipelines and sewage pools. It is a suitable choice when the project requires continuous anticorrosion waterproof protection, chemical-resistance review and stronger mechanical support under confirmed service conditions.

100%Solids ContentBuilds a dense lining without solvent evaporation, helping maintain film build on containment and liquid-contact surfaces.
25-35 sGel TimeSupports controlled spray build on tank walls, curved surfaces, vertical areas and detailed transitions under the stated condition.
40 MPaTensile StrengthProvides stronger mechanical resistance for prepared tanks, pipelines and containment structures in protective lining service.
Shore D 72HardnessGives the cured film a harder protective profile for heavy-duty corrosion, wear and maintenance exposure review.

Product Features and Advantages

BW3-9512 emphasizes dense lining formation, harder film strength and heavy-duty service resistance, supporting protective coating systems exposed to industrial corrosion, liquid contact and mechanical wear.

Film Formation and Application

  • Solvent-Free 100% SolidsBuilds film without solvent evaporation, helping support dense lining formation and consistent film build.
  • Controlled Spray BuildSupports sprayed application on tank walls, curves, slopes and vertical surfaces without sagging under suitable conditions.
  • Dense Seamless LiningForms a continuous protective layer across large areas, joints, corners and equipment details after proper preparation.
  • Harder Film ProfileThe listed Shore D hardness and tensile strength support a tougher lining profile for heavy-duty service review.
  • Durability SupportSupports long-term corrosion protection when medium, primer, film thickness, installation quality and maintenance are confirmed.

Heavy-Duty Protection Performance

  • Adhesion to Prepared SubstratesSupports bonding to steel, concrete, wood, glass fiber and other compatible substrates after proper preparation.
  • Impact and Abrasion ResistanceHelps protect lining surfaces exposed to maintenance wear, impact or demanding industrial service conditions.
  • Chemical Resistance ReviewSupports anticorrosion review for acids, alkali, salts, oils and other listed media under stated test conditions.
  • Waterproof and Impermeable ProtectionForms a continuous barrier for compatible tanks, containment areas and liquid-contact structures.
  • Temperature Variation ResistanceHelps the protective lining handle temperature-change stress after substrate and service conditions are confirmed.

Technical Data

These technical values are measured under controlled laboratory conditions to support product comparison, project selection and specification review. Please confirm final requirements with the latest approved TDS and project-specific conditions.

Product Information

Product data table
ItemPart APart B
AppearancePale yellow liquidAdjustable color
Specific gravity (g/cm³)1.131.04
Viscosity (cps) @ 25°C11001000
Solid content (%)100100
Mix ratio (by volume)11
Gel time (s) @ 25°C25-35
Theoretical coverage (DFT)1.12 kg/m² film thickness: 1 mm

Physical Properties

Product data table
ItemTest standardResult
Hardness (Shore D)GB/T 23446-200972
Tensile strength (MPa)GB/T 23446-200940
Impermeability (0.4 MPa / 2 h)GB/T 23446-2009Impermeable
Wear resistance (750 g / 500 r) / mgHG/T 3831-200618
Adhesive strength (MPa), concrete baseGB/T 23446-20093.3
Adhesive strength (MPa), steel baseGB/T 23446-200912
Cathodic disbondment [1.5 V, (65±5)°C, 48 h]HG/T 3831-2006≤15 mm
Flexural resistance (-20°C, 1.5°)SY/T 0315-2013No cracking
Impact resistance (25°C)SY/T 0315-20136 J impact, no leakage point

Chemical Resistance

For reference: the above data is acquired based on GB / T 9274-1988 test standard. Pay attention to the influence of ventilation, splash and spillage. Independent immersion testing is recommended if other specific data is required

Product data table
Exposure itemResult
Acid resistance 35% H2SO4 or 15% HCl, 30 dNo corrosion, no blistering, no peeling
Alkali resistance 35% NaOH, 30 dNo corrosion, no blistering, no peeling
Salt resistance 60 g/L, 30 dNo corrosion, no blistering, no peeling
Salt spray resistance 2000 hNo corrosion, no blistering, no peeling
Oil resistance 0# diesel, crude oil, 30 dNo corrosion, no blistering, no peeling

Application Environment and Guide

Stable coating performance depends on the right site conditions, material temperature and spray setup. Review the application environment and guide values before installation, and confirm final parameters with the latest TDS and project requirements.

Application Environment

Product data table
ConditionRequirement
Environment temperature0°C-45°C
Product spray heating temperature65°C-70°C
Pipe heating temperature55°C-65°C
Relative humidity≤80%
Dew point≥3°C

Application Guide

Product data table
Guide itemRecommendation
Recommend spray machineGRACO H-XP3 Polyurea spray equipment
Spray gunAir or machine self-cleaning spray gun
Static pressure2300-2500 psi
Dynamic pressure2000-2200 psi
Recommend film thickness1000-3000 μm
Recoating interval≤6 h

Application Note

  • Agitate Part B uniformly before application and thoroughly mix deposited pigments, otherwise product quality may be affected.
  • Spray polyurea within the proper time if the substrate surface is primed. For the application method and interval time of BW polyurea special primer, refer to the related Colorful Whale Advanced Materials (Shanghai) Co., Ltd. brochure.
  • Always apply BW3-9512 on a small area before large application to check that the mix ratio, color and spray effect are correct.

Product Curing Time, Shelf Life and Packing

Use the listed curing profile, shelf life, packing and storage requirements for application scheduling, warehouse handling and order planning.

Product Curing Time

The curing time varies with the environment condition, especially temperature and relative humidity.

Product data table
Substrate temperatureDryFoot trafficSolid dry
+10°C18 s45 min7 d
+20°C13 s15 min6 d
+30°C10 s5 min5 d

Shelf Life & Packing

Product data table
ItemDetails
Shelf life from date of manufacturePart A: 10 months · Part B: 10 months, original package sealed
Storage temperature+5-35°C
PackingPart A 210 kg/drum · Part B 200 kg/drum
Packaging requirementKeep the product package tightly sealed
Storage precautionStore in a cool, ventilated place and avoid direct sunlight

Product Health and Safety Information

Product Health and Safety Information

For information and advice on the safe handling, storage and disposal of chemical products, users shall refer to the most recent Safety Data Sheet containing physical, ecological, toxicological and other safety-related data.

Integrity Declaration

Colorful Whale Advanced Materials (Shanghai) Co., Ltd. guarantees that the technical data stated in this sheet is based on laboratory tests. Actual testing methods may vary due to different circumstances. Users should test and verify applicability. Colorful Whale Advanced Materials (Shanghai) Co., Ltd. does not take any other responsibility except product quality and reserves the right to modify the listed data without prior notice.

BW3-9512 Frequently Asked Questions

Review the main product, substrate, application and document questions before specifying or ordering BW3-9512.

BW3-9512 is a 100% solids aromatic spray polyurea elastomer developed for petrochemical heavy-duty anti-corrosion and protective coating work. It requires professional polyurea spray equipment.

The technical sheet lists petrochemical storage tanks, bunds, towers, wash tanks, pipelines, sewage pools and related facilities for anti-corrosion protection review.

BW3-9512 is positioned for petrochemical heavy-duty corrosion-protection review, with Shore D 72 hardness, 40 MPa tensile strength, 18 mg wear resistance and stronger listed chemical-resistance media. BW3-900 and BW3-951 remain broader spray polyurea protective-coating options.

No. The listed results apply to the stated media, concentrations, durations and laboratory conditions only. Confirm actual chemical media, immersion or splash exposure, temperature and cleaning conditions before specification.

Confirm the steel, concrete, wood or other substrate condition, surface preparation, dryness, primer compatibility, dew point, film thickness and adhesion requirements before spraying BW3-9512.

Review site temperature, relative humidity, dew point, material heating, pipe heating, spray equipment, pressure, film thickness and recoating interval before installation.

Request the latest available TDS, SDS, application guidance, packing information, primer recommendation and project-specific review before ordering BW3-9512.
