BW6-9539 Aliphatic Hand-Applied Polyurea Protective Coating

Product description

BW6-9539 single-component aliphatic polyurea waterproof anticorrosion protective coating.

The aliphatic prepolymer structure gives BW6-9539 high elasticity, high tensile strength, abrasion resistance, impact resistance, corrosion resistance and weatherability for long-term outdoor protection without chalking or discoloration.

BW6-9539 aliphatic hand-applied polyurea protective coating official product packaging image

What BW6-9539 delivers for outdoor waterproof and anticorrosion projects

The formula is built for buyers who need aliphatic color-stable polyurea protection without two-component ratio mixing, while keeping application practical for brush, roller, air spray or airless spray work.

Aliphatic outdoor weatherabilityDesigned for long-term outdoor use with anti-aging, non-chalking and non-discoloring performance.
Waterproof and anticorrosion protectionUsed for outdoor waterproofing and corrosion protection across petroleum, chemical, transportation, construction, power and container sectors.
Hand-applied one-component workflowBrush and roller application are listed alongside air spray and high-pressure airless spray, with no component ratio mixing required.
High elasticity and strength350% elongation, 28 MPa tensile strength and 63 kN/m tear strength support durable protective film performance.
Wear and impact resistanceShore A 82 hardness, 8 mg abrasion resistance and 1.0 kg.m impact resistance support exposed protective coating work.
Strong multi-substrate adhesionThe coating bonds to steel, concrete, wood, fiberglass and other prepared substrates.

Why buyers choose BW6-9539 for outdoor exposed coating systems.

BW6-9539 combines aliphatic chemistry, outdoor weatherability, anti-yellowing color stability and a single-component hand-applied workflow for waterproof and anticorrosion protective coating projects.

AliphaticAliphatic chemistry. The aliphatic prepolymer backbone supports outdoor weather resistance, decorative appearance and resistance to chalking or discoloration.

28 MPaTensile strength. ASTM D-412 tensile strength is listed as 28 MPa, supporting durable waterproof anticorrosion film performance.

1000 hOutdoor weatherability. Accelerated aging shows no bubbles, no cracking, no rust and no peeling after 1000 hours.

Color 2Anti-yellowing / color stability. The data sheet states outdoor use is non-chalking and non-discoloring, with color change level 2 and loss of light level 2 after accelerated aging.

Application scope

Typical use areas for BW6-9539.

Use BW6-9539 for outdoor waterproofing, anticorrosion and protective coating projects where weather resistance, color stability and practical hand application matter.

Outdoor waterproof and anticorrosion work

Bridge maintenanceFor prepared bridge maintenance areas requiring waterproofing, anticorrosion and weather-resistant coating protection.

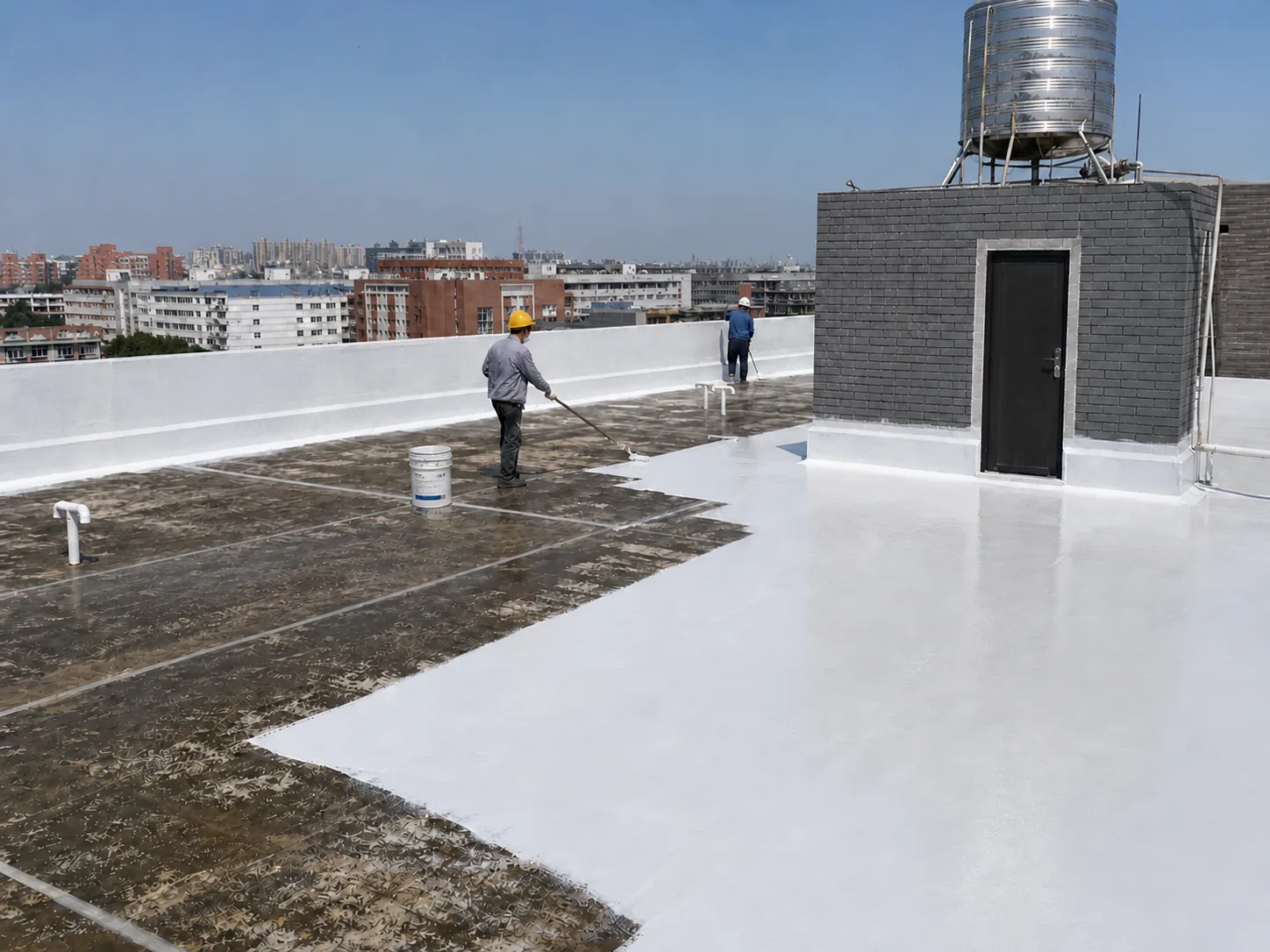

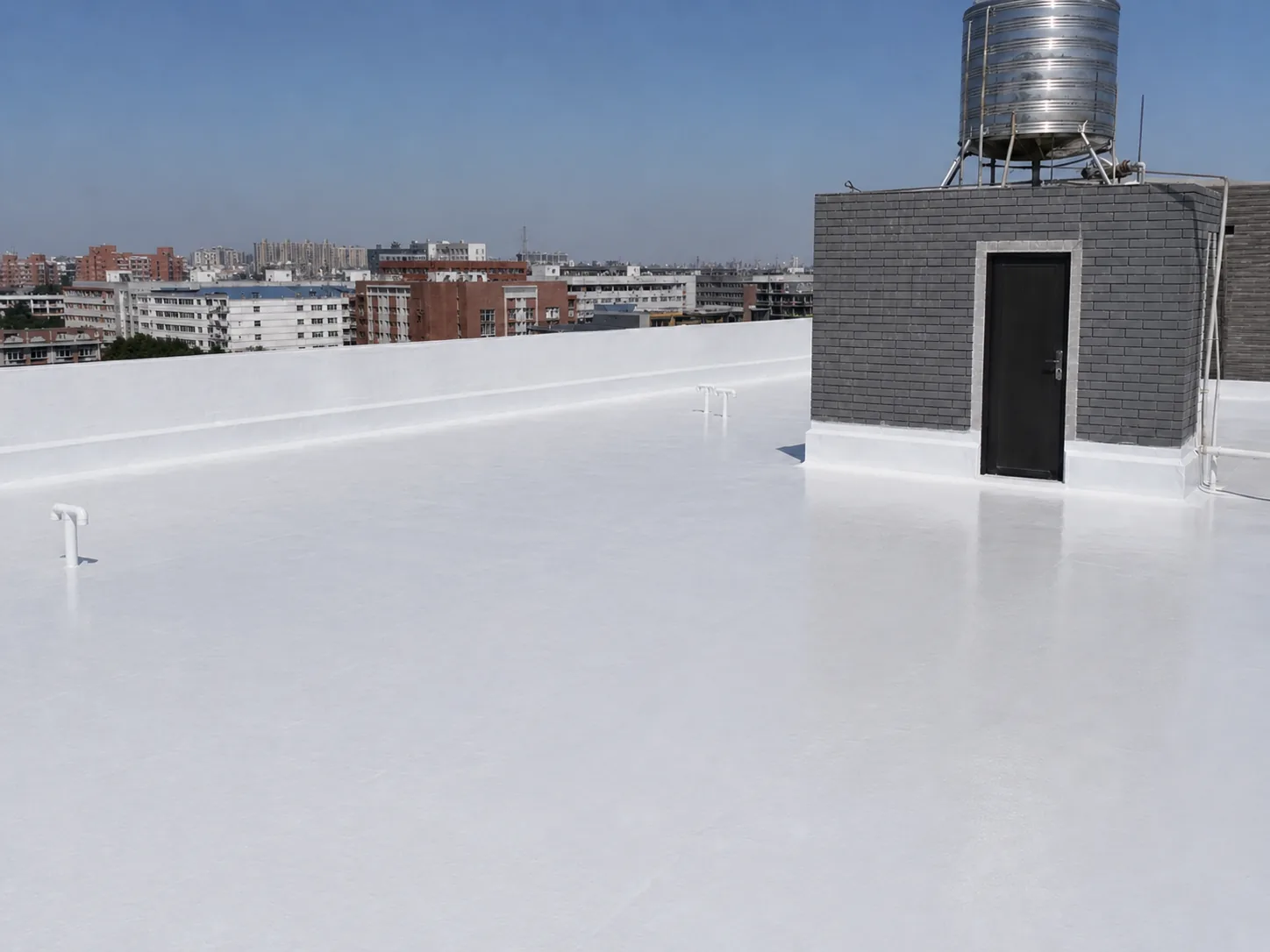

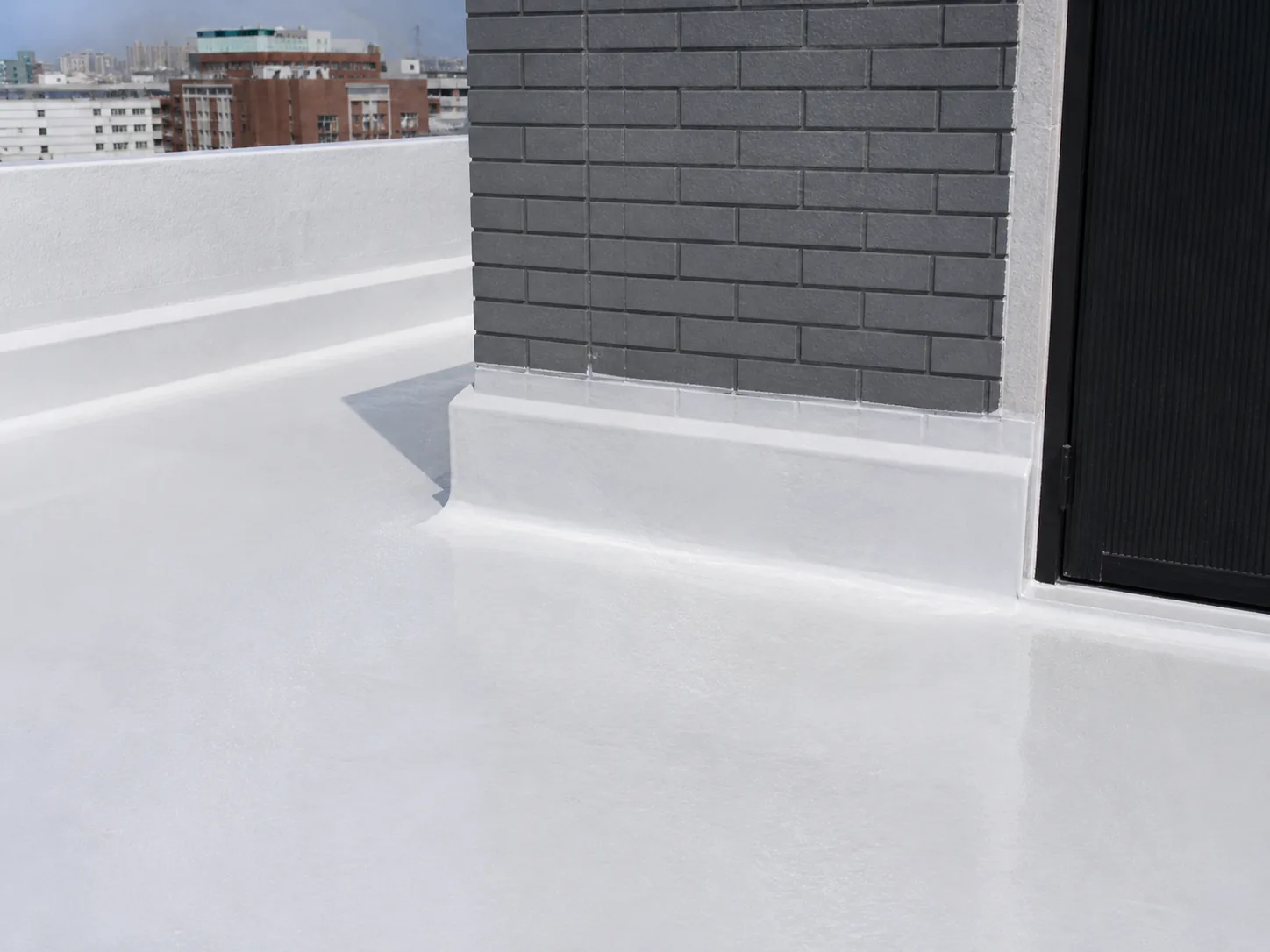

Building roof waterproofingFor roof waterproofing where outdoor exposure and color-stable decorative protection are part of the requirement.
Dams and hydropower structuresFor water conservancy dams and hydropower station building waterproofing after substrate preparation review.

Industrial protective coating fit

Petroleum and chemical projectsFor waterproof and anticorrosion protection where resistance to acids, alkalis, salts, oils and certain organic media must be reviewed.
Transportation, power and containersFor outdoor protective coating work where abrasion, impact and weathering demands are important.
Steel, concrete, wood and fiberglassCompatible with multiple prepared substrates, with surface preparation adjusted to the substrate and service environment.

Product information & technical data

Technical data for BW6-9539 aliphatic hand-applied polyurea protective coating.

Review product information, physical properties, chemical resistance and outdoor durability data for waterproofing and anticorrosion project selection.

Product information

Item	Value
Appearance	Color adjustable
Specific gravity (g/cm3)	1.2
Viscosity (cps) @ 20°C	500
Solid content (%)	75, varying with different colors
Dry time (hour) @ 25°C	3-5
Pot life (h)	1
Theoretical coverage	0.16 kg/m2 at 100 µm thickness

Physical properties

Item	Test standard	Result
Hardness (Shore A)	ASTM D-2240	82
Elongation (%)	ASTM D-412	350
Tensile strength (MPa)	ASTM D-412	28
Tear strength (kN/m)	ASTM D-624	63
Wear resistance (750 g / 500 r), mg	HG / T 3831-2006	8
Adhesive strength (MPa), metal base	HG / T 3831-2006	10
Adhesive strength (MPa), concrete base	HG / T 3831-2006	3.5
Impact resistance (kg.m)	GB / T 23446-2009	1.0
Density (g/cm3)	GB / T 6750-2007	1.2
Anti-aging, accelerated aging 1000 h	GB / T 1865-2009	1000 h, passed

Weatherability / anti-yellowing note: accelerated aging 1000 h records powder level 0, color change level 2 and loss of light level 2, with no bubbles, no cracking, no rust and no peeling.

Chemical resistance

For reference: pay attention to ventilation, splash and spillage. Independent immersion testing is recommended if other specific data is required.

Exposure item	Result
Acid resistance 10%H₂SO₄ or 10%HCl, 30 d	No rust, no bubbles, no peeling
Alkali resistance 10%NaOH, 30 d	No rust, no bubbles, no peeling
Salt resistance 10 g/L, 30 d	No rust, no bubbles, no peeling
Salt spray resistance 2000 h	No rust, no bubbles, no peeling
Oil resistance, 0# diesel and crude oil, 30 d	No rust, no bubbles, no peeling

Application guide

Application conditions, substrate preparation and hand-applied coating guidance.

Confirm temperature, humidity, dew point, substrate preparation, coating method, dry film thickness and recoating interval before applying BW6-9539.

Application environment & substrate treatment

Condition	Requirement
Environment temperature	-5 to +35°C
Relative humidity	35-85%
Dew point on metal surfaces	Substrate temperature must be at least 3°C above dew point
Metal surface	Sandblast to Sa2.5 according to ISO8501-1 or GB8923 where recommended
Concrete surface	Strong, dense, flat, clean and dry; repair sanding, shelling, cracks or honeycomb with putty where needed
Wood surface	Clean and dry, without burrs, fragments or loose debris

Application instructions

Guide item	Recommendation
Recommended dry film thickness	100-200 µm, or according to design requirements
Recoating interval	6-30 h; if over 30 h or dust accumulates, sand and clean before recoating

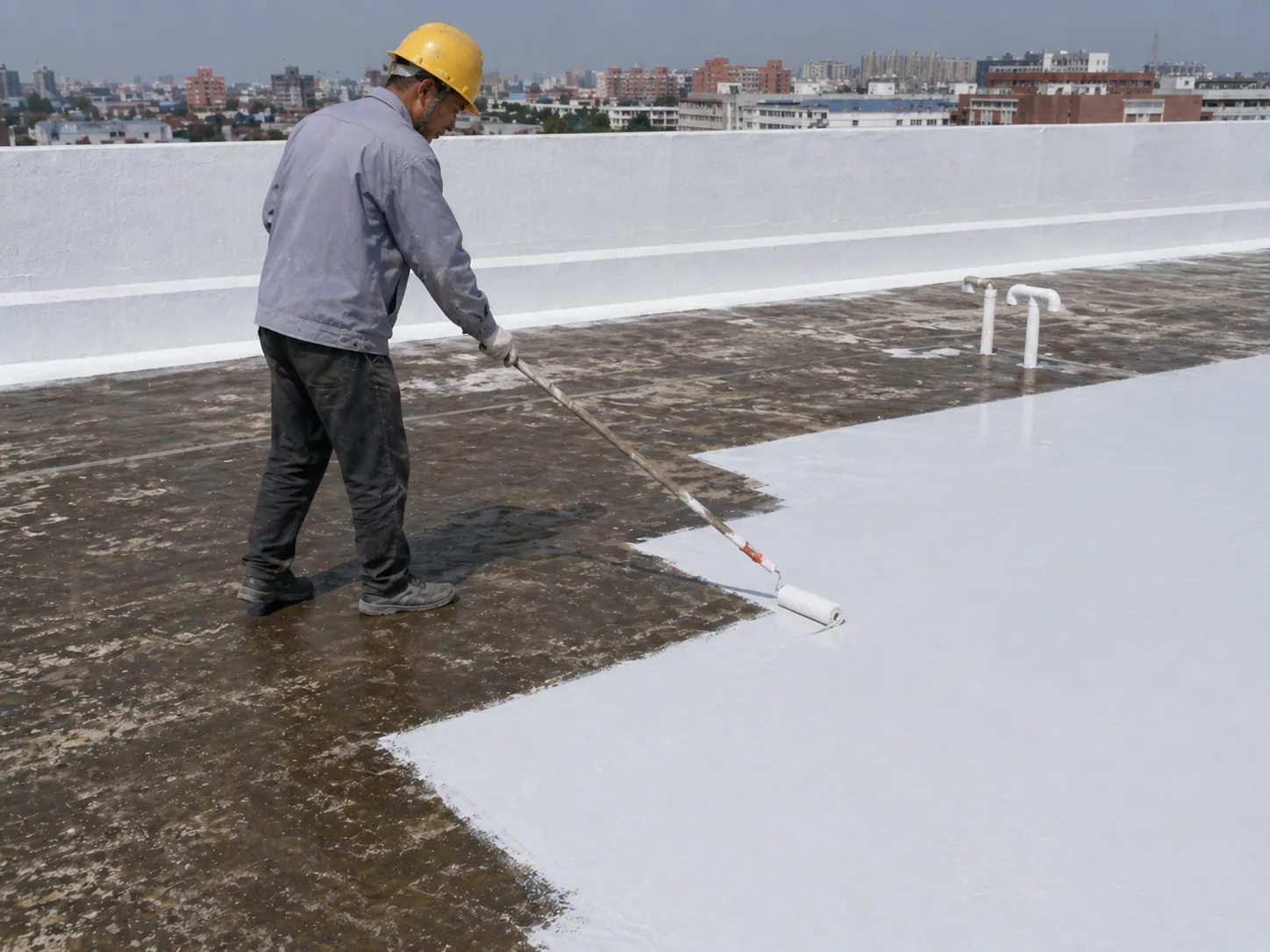

Suggested painting methods	Brush, roller, air spray or high-pressure airless spray
Low-temperature use	Can be used below -10°C; keep the paint bucket in an air-conditioned room for at least 24 h before low-temperature use
Material handling	Stir evenly before use, pour out only the accurate quantity needed, and seal the bucket immediately
Thinner control	Do not add thinner without supplier guidance; call the manufacturer if viscosity changes with environment or humidity

Application tips

BW6-9539 is single-component, so no A/B ratio mixing is required; stir the coating evenly before each use.
Pour out only the accurate quantity needed for one application period, seal the bucket immediately, and do not pour unused material back into the original pail.
If low-temperature application is planned, keep the paint bucket in an air-conditioned room for at least 24 hours before use.
The factory-adjusted viscosity should not be changed with thinner unless the supplier gives specific guidance.

Curing time, shelf life and packing

Curing time, storage and packing information for project planning.

Use the curing profile, shelf-life data and packing details below to plan coating schedule, warehouse handling and bulk project purchasing.

Product curing time

Note: curing time varies with environmental conditions, especially temperature, relative humidity and film thickness.

Substrate temperature	Surface dry time	Foot traffic	Solid dry time
+10°C	6 h	30 h	7 d
+20°C	4 h	24 h	6 d
+30°C	3 h	20 h	5 d

Shelf life & packing

Item	Details
Package	5 kg/drum or 25 kg/drum
Shelf life from manufacturing date	12 months, sealed and unopened
Storage temperature	5-32°C
Package requirement	Keep the product package tightly sealed
Storage precaution	Store in a cool, ventilated place, avoid direct sunlight and keep away from heat

Health & safety / integrity declaration

Safety data, handling guidance and application verification.

Product health and safety information

For information and advice on safe handling, storage and disposal of chemical products, users should refer to the most recent Material Safety Data Sheet containing physical, ecological, toxicological and other safety-related data.

Integrity declaration

All technical data in this sheet is based on laboratory tests. Actual testing methods may vary under different circumstances, so project teams should test and verify suitability before full application.

FAQ

FAQ about BW6-9539 aliphatic hand-applied polyurea coating.

These answers support outdoor waterproofing, anticorrosion and protective coating planning before ordering.

What is BW6-9539 used for?

BW6-9539 is used for outdoor waterproofing and anticorrosion protection in petroleum, chemical, transportation, construction, power and container projects, including bridge maintenance, building roof waterproofing, water conservancy dams and hydropower station building waterproofing.

Why is BW6-9539 suitable for long-term outdoor exposure?

The data sheet describes BW6-9539 as an aliphatic polyurea coating with excellent weatherability, anti-aging performance, non-chalking and non-discoloration behavior for outdoor use, while maintaining good decorative performance.

How can BW6-9539 be applied?

The data sheet lists simple application by brush, roller, air spray or high-pressure airless spray. The application method should be selected according to project area, substrate condition, required film thickness and site controls.

What dry film thickness and recoating interval are recommended?

The data sheet recommends 100-200 micrometers dry film thickness, or according to design requirements. The recoating interval is 6-30 hours; if the interval exceeds 30 hours or dust accumulates, sand and clean the surface before recoating.

What substrates can BW6-9539 bond to?

The data sheet lists excellent adhesion to steel, concrete, wood, fiberglass and other substrates. Metal surfaces are recommended to be sandblasted to Sa2.5, concrete should be strong, dense, flat, clean and dry, and wood should be clean, dry and free of burrs or loose debris.

Does BW6-9539 need component mixing before application?

No component ratio mixing is required because BW6-9539 is a single-component coating. The data sheet still recommends stirring the coating evenly before use, pouring out only the accurate quantity needed each time, and sealing the bucket immediately after use.

Request technical documents

Explore polyurea products Hand-applied polyurea Contact technical support

Request TDS, application guidance or bulk project support.

If you are evaluating BW6-9539 for outdoor waterproofing, anticorrosion, roof, bridge, dam, hydropower or container protective coating work, request the latest technical data sheet, application guidance and project-specific compatibility review before ordering.
