BW3-562 Cold-Spray Polyurea Elastomer Protective Coating

BW3-562

Cold-spray aromatic polyurea elastomer for portable small-area coating, EPS foam protection, vehicle surfaces, equipment liners and irregular object protection.

View Technical DataRequest TDS & Quote

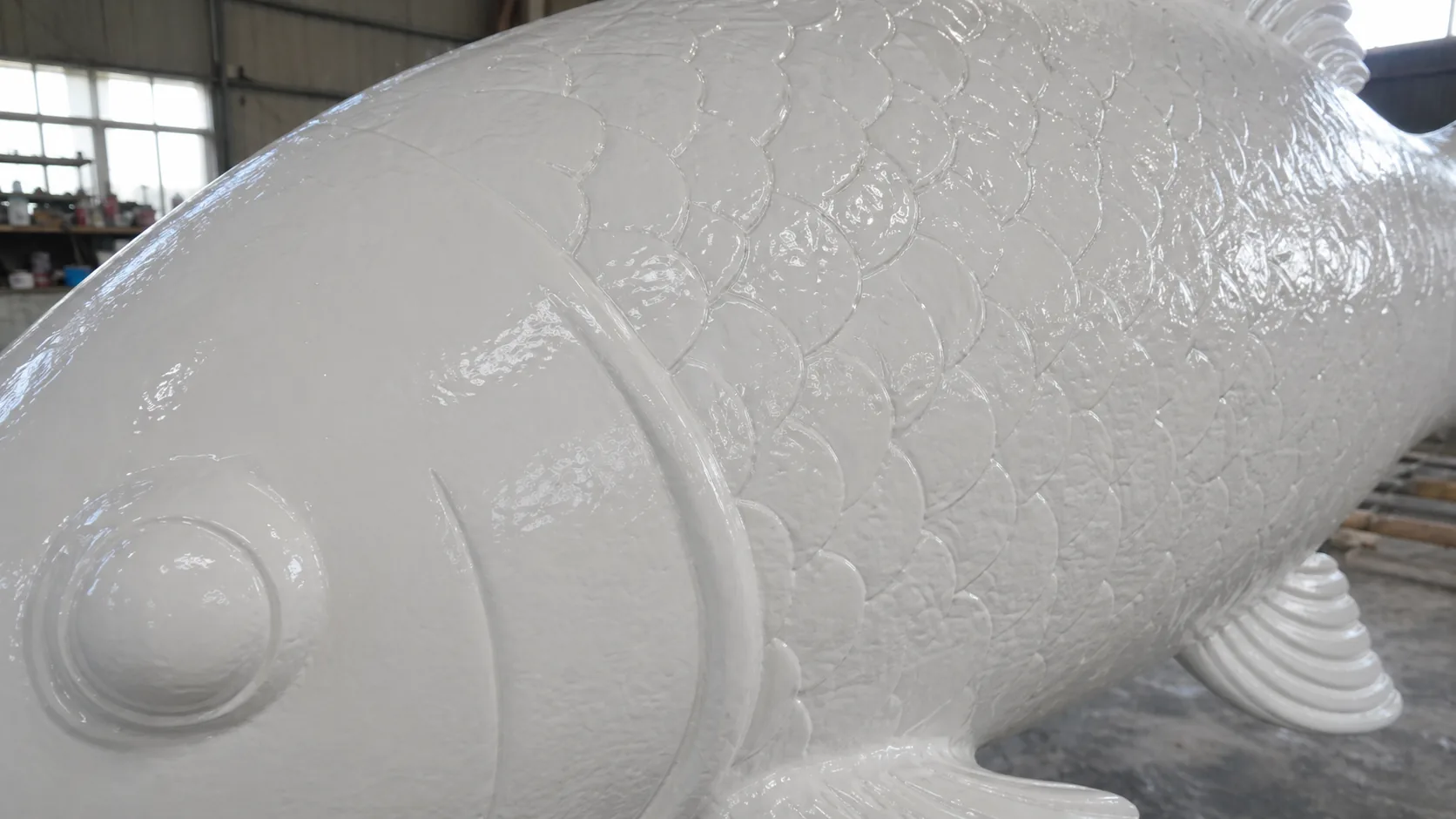

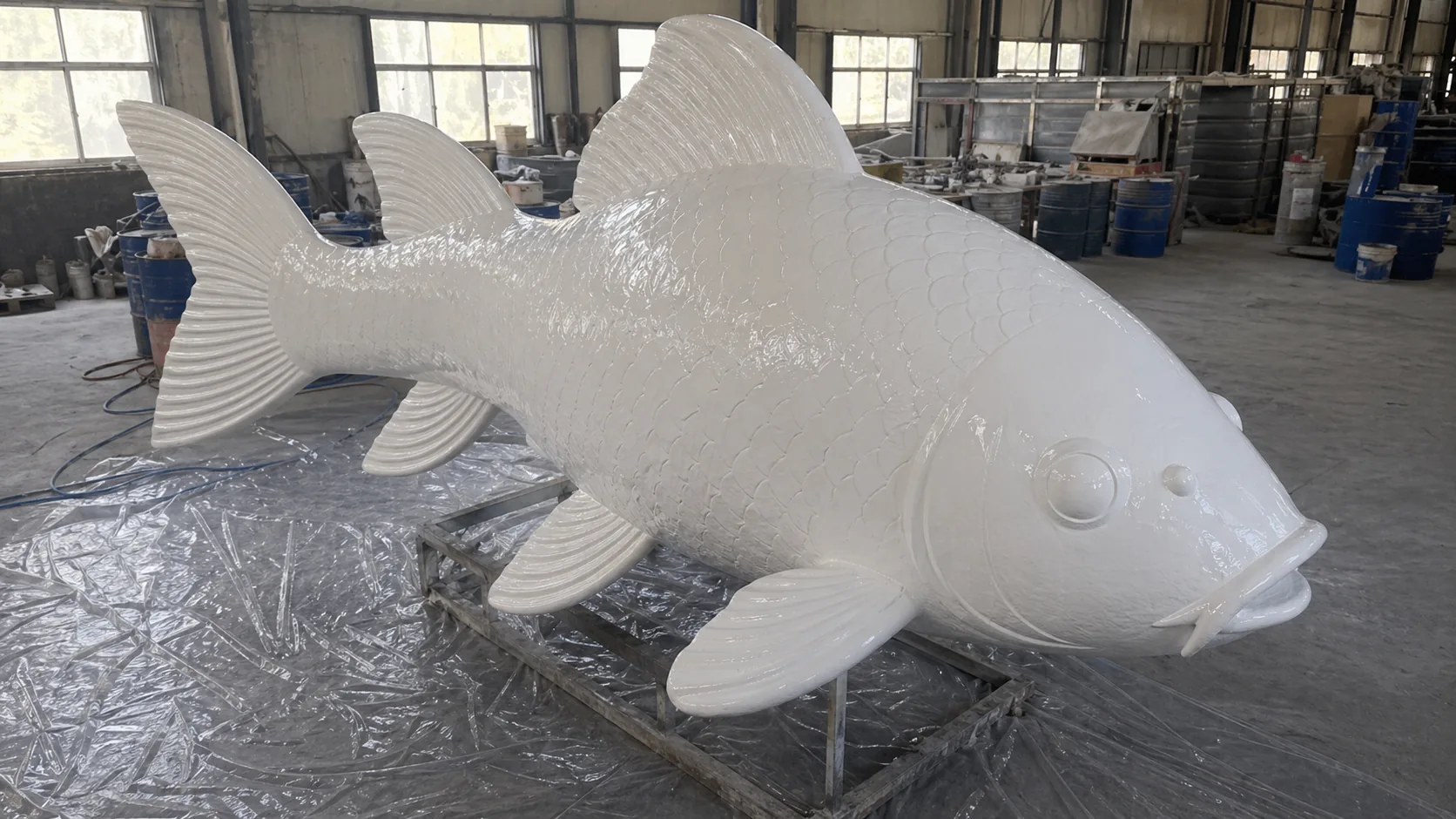

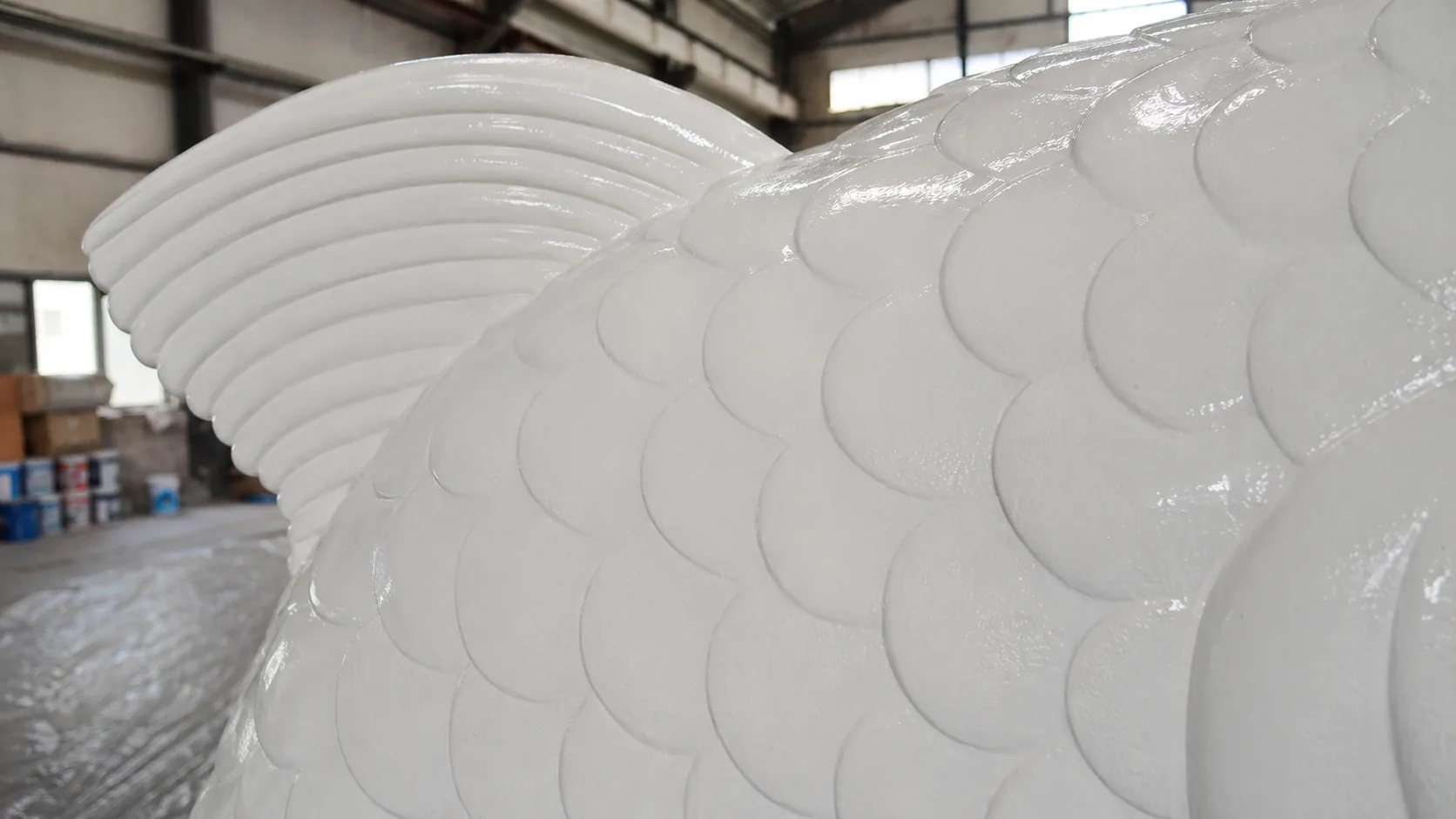

White cold-spray polyurea coating on a foam sculpture surface

Product Description

BW3-562 is a 100% solids aromatic polyurea elastomer, applicable with a simple spray gun at a cost of only several thousand RMB. Featuring easy operation and single-person constructibility, it stands as a revolutionary innovation in the polyurea industry. This product subverts the conventional perception of spray polyurea application technologies and creates favorable prerequisites for the large-scale application of spray polyurea elastomers across diverse scenarios.

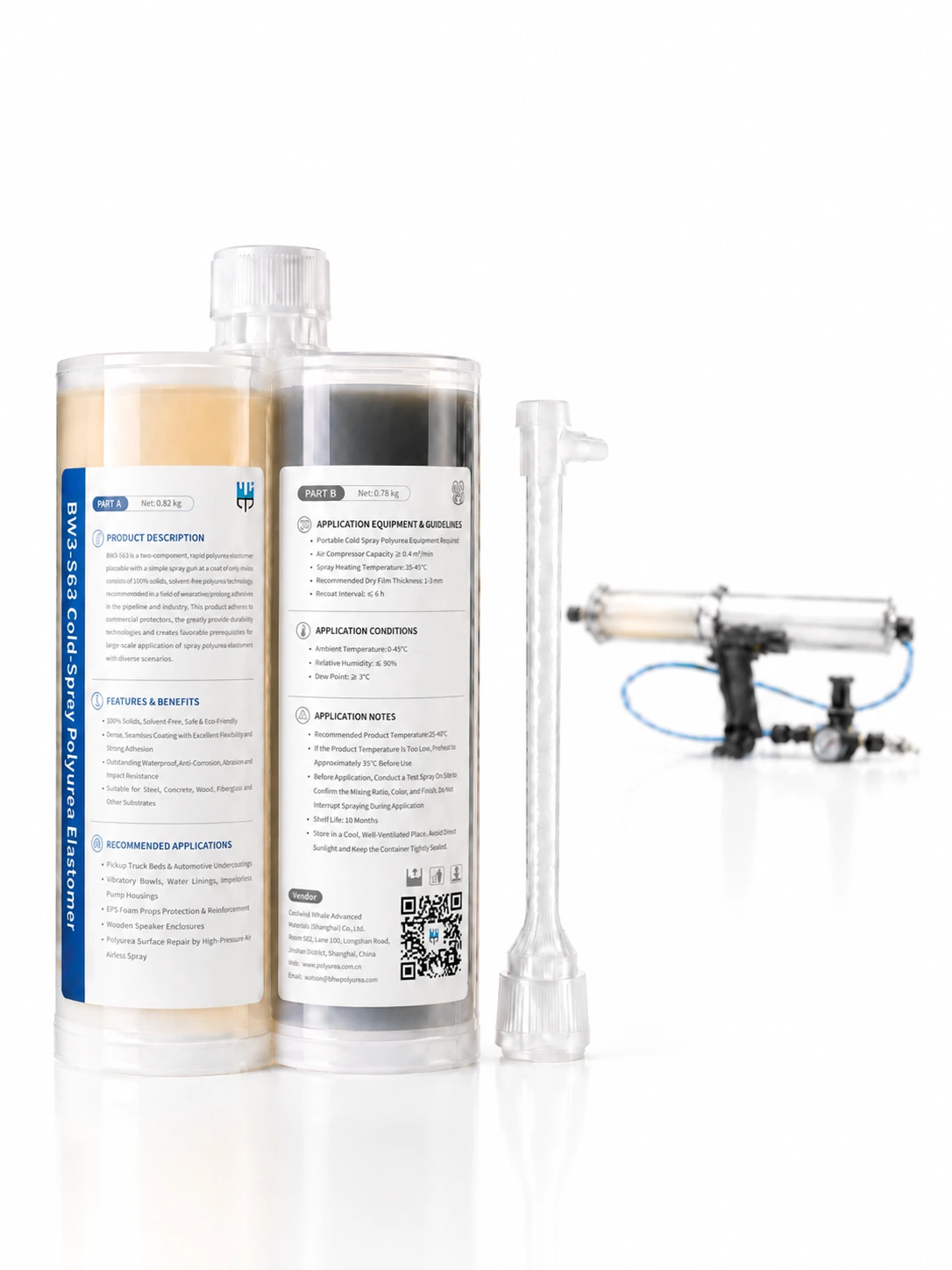

BW3-562 small-set Part A and Part B product packaging

Application Scope

BW3-562 is used for anti-corrosion and abrasion-resistant coating work on pickup truck cargo boxes, vehicle chassis armor, vibrating feeders, mixer linings, impeller surfaces, pump housing liners, EPS foam scenery props and local repair of spray-polyurea project surfaces.

  • Vehicle SurfacesReview for pickup truck cargo boxes, vehicle chassis armor and compatible prepared vehicle surfaces.
  • EPS Foam Props and ScenerySupports surface reinforcement and protective coating review for EPS foam sculpture, film scenery props and custom shaped objects.
  • Small Parts and LinersUsed for vibration bowls, impeller surfaces, pump housing liners, mixer liners and similar prepared equipment surfaces.
  • Local Repair and Small AreasSuitable for local spray-polyurea surface repair and small-area work after surface preparation, sealing route and trial spray are confirmed.

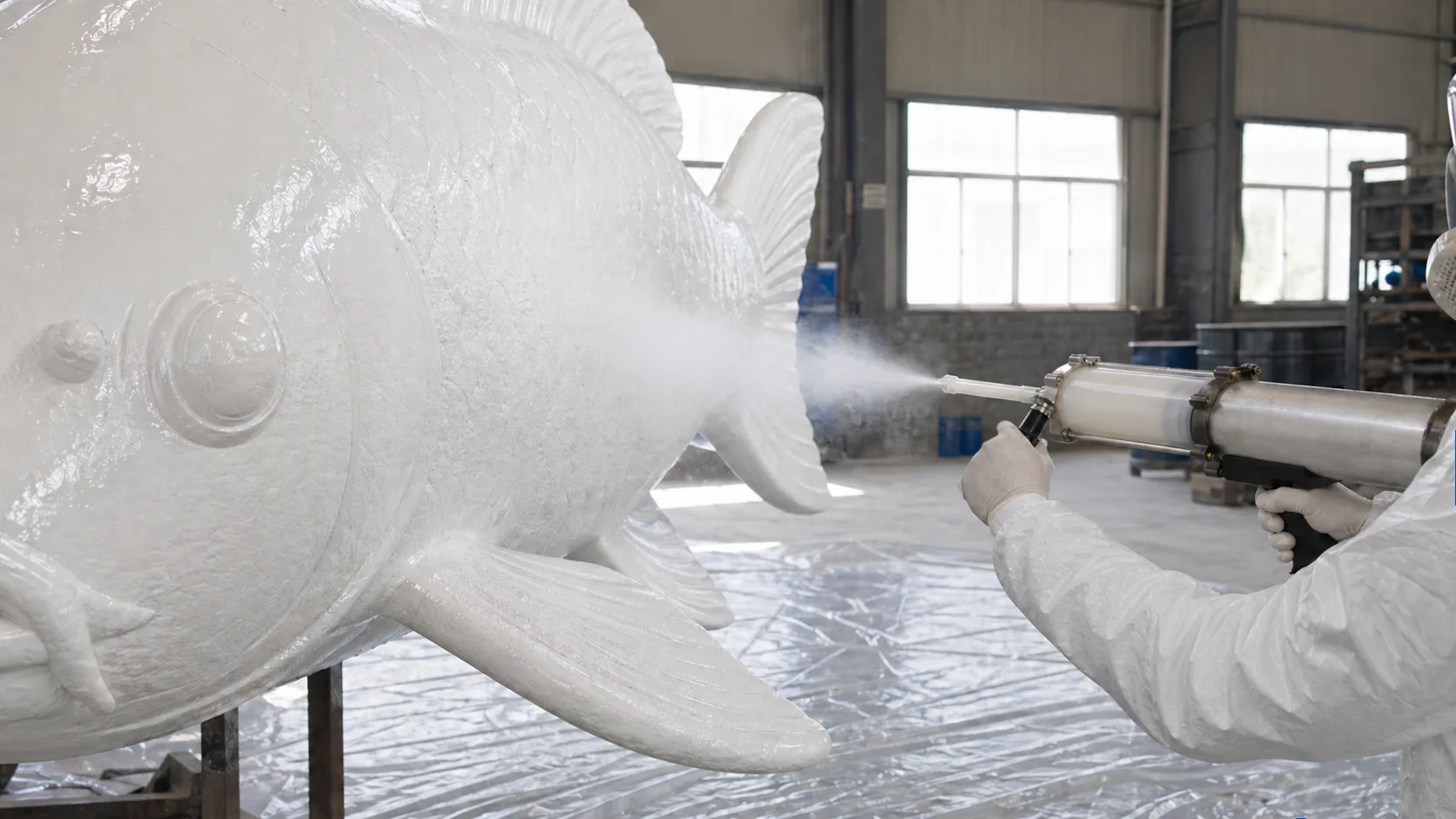

Designed for Portable Cold-Spray Work on Small or Irregular Surfaces

BW3-562 helps applicators build a seamless protective layer with compatible portable cold-spray equipment. It is suited to smaller parts, shaped objects, liner areas, vehicle surfaces, EPS foam props and local repair work where organizing a full project-scale hot-spray setup is not practical.

100%Solids ContentBuilds a solvent-free protective film without solvent evaporation, helping support dense coating build on prepared small surfaces.
50-60 sGel TimeSupports a controllable cold-spray workflow for shaped parts, liners, foam props and local repair details.
16 MPaTensile StrengthProvides mechanical resistance for coated parts exposed to handling, abrasion, impact or protective service conditions.
410%ElongationHelps the elastomeric layer flex with shaped objects, edges, curves and prepared surfaces after proper preparation.

Product Features and Advantages

BW3-562 makes small-area and irregular-surface polyurea protection easier to organize, using portable cold-spray application to build flexible, dense protective films on compatible prepared surfaces.

Film Formation and Portable Application

  • Portable Cold-Spray SetupDesigned for compatible portable cold-spray equipment, helping reduce setup burden for small or local coating work.
  • Adjustable Reaction and Cure WindowReaction and curing time can be adjusted from 2-10 minutes for practical cold-spray application.
  • Spray Build on Irregular SurfacesSupports sprayed formation on curved, sloped, vertical and shaped surfaces without sagging under suitable conditions.
  • Dense Seamless FlexibilityForms a dense, seamless coating that can flex with shaped objects, liners and detail surfaces.
  • Convenient Small-Area WorkSimple application helps pickup beds, chassis armor, liners, EPS foam props and local repair work move more efficiently.

Protection Performance

  • Adhesion to Prepared SubstratesSupports bonding to steel, concrete, wood, glass fiber and other compatible substrates after proper preparation.
  • Impact and Abrasion ResistanceHelps protect pickup beds, liners, impeller surfaces, pump housings and other parts exposed to wear.
  • Chemical Resistance ReviewSupports anticorrosion review for acids, alkali, salts, oils and other listed media under stated test conditions.
  • Waterproof PerformanceForms a continuous protective layer for compatible prepared substrates and small structures.
  • Temperature Variation StabilitySupports service review where coated parts may face temperature variation after curing.
  • Local Repair SupportCan be reviewed for local repair of existing spray-polyurea project surfaces after compatibility and trial application.

Technical Data

These technical values are measured under controlled laboratory conditions to support product comparison, project selection and specification review. Please confirm final requirements with the latest approved TDS and project-specific conditions.

Product Information

Product data table
ItemPart APart B
AppearancePale yellow liquidAdjustable color
Specific gravity (g/cm³)1.121.05
Viscosity (cps) @ 25°C800500
Solid content (%)100100
Mix ratio (by volume)11
Gel time (s) @ 25°C50-60
Theoretical coverage (DFT)1.08 kg/m² film thickness: 1 mm

Physical Properties

Product data table
ItemTest standardResult
Hardness (Shore A)GB/T 23446-200992
Elongation rate (%)GB/T 23446-2009410
Tensile strength (MPa)GB/T 23446-200916
Tear strength (kN/m)GB/T 23446-200960
Impermeability (0.4 MPa / 2 h)GB/T 23446-2009Impermeable
Wear resistance (750 g / 500 r) / mgGB/T 23446-20094.8
Adhesive strength (MPa), concrete baseGB/T 23446-20093.2
Adhesive strength (MPa), steel baseGB/T 23446-200911
Cathodic disbondment [1.5 V, (65±5)°C, 48 h]HG/T 3831-2006≤15 mm

Chemical Resistance

For reference: the above data is acquired based on GB / T 9274-1988 test standard. Pay attention to the influence of ventilation, splash and spillage. Independent immersion testing is recommended if other specific data is required

Product data table
Exposure itemResult
Acid resistance 10% H2SO4 or 10% HCl, 30 dNo corrosion, no blistering, no peeling
Alkali resistance 10% NaOH, 30 dNo corrosion, no blistering, no peeling
Salt resistance 30 g/L, 30 dNo corrosion, no blistering, no peeling
Salt spray resistance 2000 hNo corrosion, no blistering, no peeling
Oil resistance 0# diesel, crude oil, 30 dNo corrosion, no blistering, no peeling

Application Environment and Guide

Stable coating performance depends on the right site conditions, material temperature and spray setup. Review the application environment and guide values before installation, and confirm final parameters with the latest TDS and project requirements.

Application Environment

Product data table
ConditionRequirement
Ambient temperature0°C-45°C
Relative humidity≤90%
Dew point marginSubstrate surface temperature should be at least 3°C above the dew point
Metal surface preparationSandblast and remove rust to Sa2.5 according to ISO 8501-1 or GB 8923 where applicable
Other substratesConsult BW Polyurea technical personnel for other substrate treatments

Application Guide

Product data table
Guide itemRecommendation
Application equipmentProfessional portable cold-spray polyurea equipment
Air compressor air delivery rate≥0.4 m³/min
Product use temperature25°C-40°C
Product spraying heating temperature35°C-45°C
Recommended dry film thickness1000-3000 μm
Recoating interval≤6 h

Application Note

  • For metal surfaces, review blast cleaning to Sa2.5 according to ISO 8501-1 or GB 8923. For concrete, prepare a firm, dense, flat, clean and dry surface. For wood, keep the surface clean, dry and free of burrs or loose fragments.
  • Use BW3-562 at the required material temperature. If product temperature is too low, warm it to around 35°C according to the latest application instruction before use.
  • Spray polyurea within the proper interval if the substrate surface is primed. For BW polyurea primer application and recoat interval, refer to the related Colorful Whale Advanced Materials (Shanghai) Co., Ltd. brochure.
  • Always apply BW3-562 on a small area before larger application to check that the mix ratio, color and spray effect are correct.

Product Curing Time, Shelf Life and Packing

Use the listed curing profile, shelf life, packing and storage requirements for application scheduling, warehouse handling and order planning.

Product Curing Time

The curing time varies with the environment condition, especially temperature and relative humidity.

Product data table
Substrate temperatureDryFoot trafficSolid dry
+10°C30 s45 min7 d
+20°C23 s15 min6 d
+30°C17 s5 min5 d

Shelf Life & Packing

Product data table
ItemDetails
Shelf life from date of manufacture10 months, original package sealed
Storage temperature+5-35°C
Packing1.6 kg/set · Part A 0.82 kg · Part B 0.78 kg
Packaging requirementKeep the product package tightly sealed
Storage precautionStore in a cool, ventilated place and avoid direct sunlight

Product Health and Safety Information

Product Health and Safety Information

For information and advice on the safe handling, storage and disposal of chemical products, users shall refer to the most recent Safety Data Sheet containing physical, ecological, toxicological and other safety-related data.

Integrity Declaration

Colorful Whale Advanced Materials (Shanghai) Co., Ltd. guarantees that the technical data stated in this sheet is based on laboratory tests. Actual testing methods may vary due to different circumstances. Users should test and verify applicability. Colorful Whale Advanced Materials (Shanghai) Co., Ltd. does not take any other responsibility except product quality and reserves the right to modify the listed data without prior notice.

BW3-562 Frequently Asked Questions

Review the main product, substrate, equipment, application and document questions before specifying or ordering BW3-562.

BW3-562 is a 100% solids aromatic cold-spray polyurea elastomer designed for compatible portable cold-spray equipment and smaller protective coating work.

The technical sheet lists pickup truck beds, vehicle underbody protection, vibration bowls, mixer liners, impeller surfaces, pump housing liners and EPS foam scenery props.

BW3-562 is positioned for simple-gun cold-spray application and smaller or irregular coating work. Professional hot-spray BW3 products are usually reviewed for larger project-scale waterproofing, lining or corrosion-protection work.

The technical sheet lists simple spray-gun application and recommends using the material at 25°C-40°C. If the product temperature is too low, warm it to around 35°C according to the latest application instruction before use.

The technical sheet lists a 1:1 volume mix ratio, 50-60 s gel time at 25°C, theoretical coverage of 1.08 kg/m² at 1 mm film thickness and 1000-3000 μm recommended dry film thickness. Confirm final build values with the latest TDS and project requirements.

Confirm metal, concrete, wood or other substrate preparation, primer or sealing method, moisture condition, surface strength, color, spray effect, film thickness and recoat window before larger application.

Request the latest TDS, SDS, application guidance, equipment guidance, primer or sealing recommendation and sample-test review before ordering BW3-562.
