BW3-9009 Aliphatic Spray Polyurea Anti-Corrosion Waterproof Protective Coating

BW3-9009

100% solids aliphatic spray polyurea coating for exposed outdoor waterproofing and anti-corrosion protection where weather resistance, UV stability and color retention are required.

View Technical DataRequest TDS & Quote

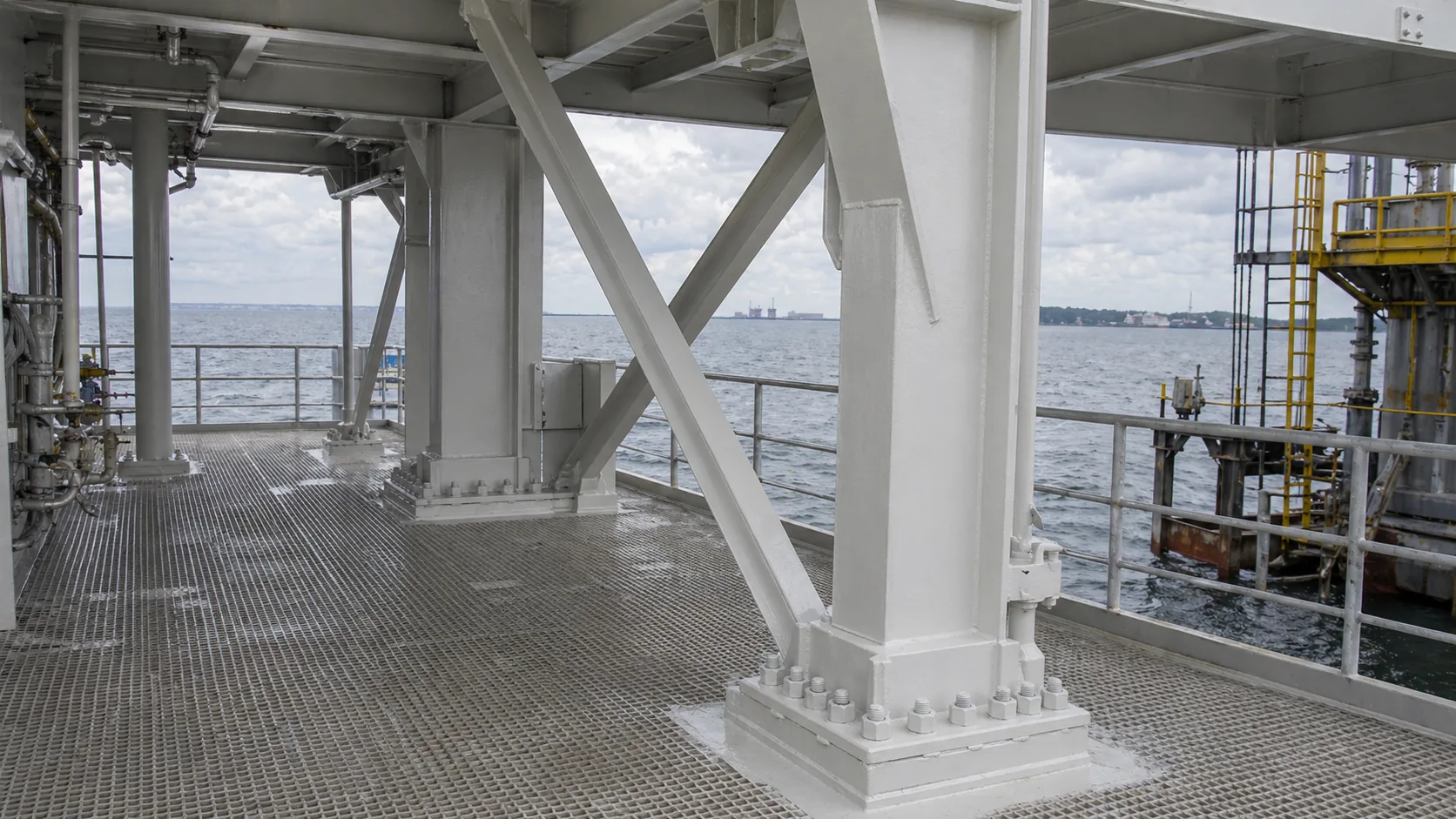

Finished light-gray protective coating on an outdoor marine steel structure

Product Description

BW3-9009 is a 100% solids aliphatic polyurea elastomer formed through the reaction of an aliphatic isocyanate component and an amino compound component. Its application requires professional polyurea spraying equipment. This coating not only exhibits outstanding waterproofing, anti-corrosion and wear-resistant properties, but also features excellent aging resistance. It is ideal for outdoor applications without chalking or discoloration. This product is widely employed in industrial and commercial anti-corrosion and waterproofing applications.

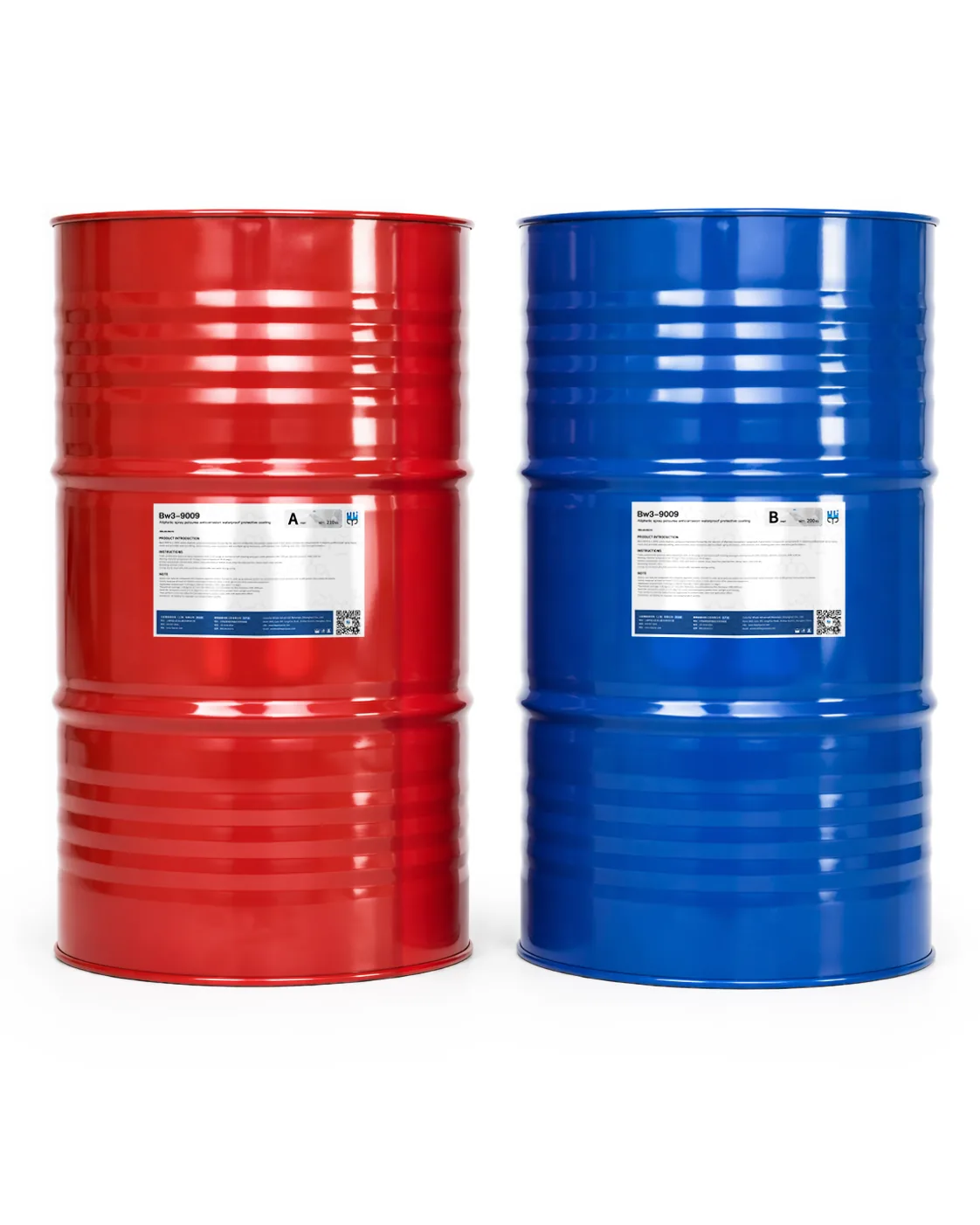

BW3-9009 Part A and Part B product drums

Application Scope

BW3-9009 is used for anti-corrosion, waterproof and weather-resistant protective coating work in construction, chemicals, transportation, metallurgy, electric power, aerospace, marine, shipbuilding and other fields.

  • Outdoor Construction SurfacesProtective coating review for prepared roofs, exterior concrete and exposed structural surfaces.
  • Chemical and Industrial AreasAnti-corrosion and waterproof protection where acids, alkali, salts, oils or chemical splash may be reviewed.
  • Transportation, Metallurgy and Electric PowerWeather-resistant protective coating for compatible prepared industrial and infrastructure surfaces.
  • Marine, Shipbuilding and Aerospace-Related UsesExposed-surface protection where weathering, color appearance and anti-corrosion performance need project review.

Designed for Exposed Outdoor Protection with Color-Stability Review

BW3-9009 helps applicators build a seamless aliphatic spray-applied protective layer for exposed project surfaces. It is a suitable choice when outdoor service needs waterproofing, anti-corrosion protection, weather resistance and reduced chalking or discoloration compared with standard aromatic exposure routes.

100%Solids ContentBuilds a solvent-free protective film without solvent evaporation, helping support consistent coating thickness on exposed surfaces.
40-100 sGel TimeProvides a longer listed timing window for professional aliphatic spray work, detail coverage and surface finishing review.
1000 hArtificial AgingSupports outdoor weathering review with listed no blistering, cracking, rusting or peeling under the stated test.
Shore D 60HardnessProvides a harder exposed protective surface profile for anti-corrosion, waterproofing and wear-service review.

Product Features and Advantages

BW3-9009 is designed for exposed outdoor protection, combining aliphatic weathering performance with spray-applied waterproofing, anti-corrosion resistance and long-term surface appearance stability.

Film Formation and Application

  • Solvent-Free 100% SolidsBuilds film without solvent evaporation, helping maintain coating thickness and reduce shrinkage during cure.
  • Controlled Aliphatic Spray BuildSupports sprayed application on curved, sloped and vertical outdoor surfaces under suitable equipment settings.
  • Dense Seamless FlexibilityForms a continuous coating across prepared exposed surfaces, joints, corners and detail transitions.
  • Longer Gel-Time WindowThe listed gel time gives applicators a different working profile than fast aromatic spray polyurea products.
  • Durability SupportSupports outdoor protective service when substrate preparation, primer, UV exposure and maintenance conditions are confirmed.

Outdoor Protection Performance

  • Weather Resistance and Color-Stability ReviewDesigned for outdoor use where chalking, discoloration and gloss loss need to be reviewed with listed artificial-aging data.
  • Adhesion to Prepared SubstratesSupports bonding to steel, concrete, wood, glass fiber and other compatible substrates after proper preparation.
  • Impact and Abrasion ResistanceHelps protect exposed surfaces subject to wear, impact, maintenance access or industrial service conditions.
  • Chemical Resistance ReviewSupports anticorrosion review for acids, alkali, salts, oils and other listed media under stated test conditions.
  • Waterproof PerformanceForms a continuous protective membrane for compatible prepared outdoor substrates and structures.

Technical Data

These technical values are measured under controlled laboratory conditions to support product comparison, project selection and specification review. Please confirm final requirements with the latest approved TDS and project-specific conditions.

Product Information

Product data table
ItemPart APart B
AppearanceTransparent liquidAdjustable color
Specific gravity (g/cm³)1.051.02
Viscosity (cps) @ 25°C780650
Solid content (%)100100
Mix ratio (by volume)11
Gel time (s) @ 25°C40-100
Theoretical coverage (DFT)1.08 kg/m² film thickness: 1 mm

Physical Properties

Product data table
ItemTest standardResult
Hardness (Shore D)ASTM D-224060
Elongation rate (%)ASTM D-41260
Tensile strength (MPa)ASTM D-41215
Tear strength (kN/m)ASTM D-62455
Impermeability (0.4 MPa / 2 h)HG/T 3831-2006Impermeable
Wear resistance (750 g / 500 r) / mgHG/T 3831-20066.0
Adhesive strength (MPa), concrete baseHG/T 3831-20063.2
Adhesive strength (MPa), steel baseHG/T 3831-200610.5
Cathodic disbondment [1.5 V, (65±5)°C, 48 h]HG/T 3831-2006≤15 mm
Artificial aging resistance (1000 h)GB/T 1865-2009No blistering, cracking, rusting or peeling; chalking grade 0, color change grade 2, gloss loss grade 2

Chemical Resistance

For reference: the above data is acquired based on GB / T 9274-1988 test standard. Pay attention to the influence of ventilation, splash and spillage. Independent immersion testing is recommended if other specific data is required

Product data table
Exposure itemResult
Acid resistance 10% H2SO4 or 10% HCl, 30 dNo corrosion, no blistering, no peeling
Alkali resistance 10% NaOH, 30 dNo corrosion, no blistering, no peeling
Salt resistance 30 g/L, 30 dNo corrosion, no blistering, no peeling
Salt spray resistance 2000 hNo corrosion, no blistering, no peeling
Oil resistance 0# diesel, crude oil, 30 dNo corrosion, no blistering, no peeling

Application Environment and Guide

Stable coating performance depends on the right site conditions, material temperature and spray setup. Review the application environment and guide values before installation, and confirm final parameters with the latest TDS and project requirements.

Application Environment

Product data table
ConditionRequirement
Environment temperature0°C-45°C
Relative humidity≤90%
Dew point≥3°C
Metal surface preparationSandblast and remove rust to Sa2.5 according to ISO 8501-1 or GB 8923 where applicable
Concrete surface preparationPrepare a strong, dense, flat, clean and dry surface before coating
Wood surface preparationKeep the surface clean and dry, without burrs, fragments or loose debris

Application Guide

Product data table
Guide itemRecommendation
Recommend spray machineSpecial polyurea spraying equipment
Spray gunFusion-air purge or mechanical purge
Static pressure2300-2500 psi
Dynamic pressure2000-2200 psi
Heating temperature for product spraying65°C-70°C
Pipeline heating temperature55°C-65°C
Recommend film thickness1000-3000 μm
Recoating interval≤6 h

Application Note

  • Agitate Part B uniformly before application and thoroughly mix deposited pigments, otherwise product quality may be affected.
  • Spray polyurea within the proper time if the substrate surface is primed. For the application method and interval time of BW polyurea special primer, refer to the related Colorful Whale Advanced Materials (Shanghai) Co., Ltd. brochure.
  • Always apply BW3-9009 on a small area before large application to check that the mix ratio, color and spray effect are correct.

Product Curing Time, Shelf Life and Packing

Use the listed curing profile, shelf life, packing and storage requirements for application scheduling, warehouse handling and order planning.

Product Curing Time

The curing time varies with the environment condition, especially temperature and relative humidity.

Product data table
Substrate temperatureDryFoot trafficSolid dry
+10°C30-40 min60 min7 d
+20°C20-30 min50 min6 d
+30°C10-20 min40 min5 d

Shelf Life & Packing

Product data table
ItemDetails
Shelf life from date of manufacturePart A: 10 months · Part B: 10 months, original package sealed
Storage temperature+5-35°C
PackingPart A 210 kg/drum · Part B 200 kg/drum
Packaging requirementKeep the product package tightly sealed
Storage precautionStore in a cool, ventilated place and avoid direct sunlight

Product Health and Safety Information

Product Health and Safety Information

For information and advice on the safe handling, storage and disposal of chemical products, users shall refer to the most recent Safety Data Sheet containing physical, ecological, toxicological and other safety-related data.

Integrity Declaration

Colorful Whale Advanced Materials (Shanghai) Co., Ltd. guarantees that the technical data stated in this sheet is based on laboratory tests. Actual testing methods may vary due to different circumstances. Users should test and verify applicability. Colorful Whale Advanced Materials (Shanghai) Co., Ltd. does not take any other responsibility except product quality and reserves the right to modify the listed data without prior notice.

BW3-9009 Frequently Asked Questions

Review the main product, outdoor exposure, substrate, application and document questions before specifying or ordering BW3-9009.

BW3-9009 is a 100% solids aliphatic spray polyurea elastomer formed from an aliphatic isocyanate component and an amine compound component. It requires professional polyurea spray equipment.

The technical sheet lists construction, chemicals, transportation, metallurgy, electric power, aerospace, marine, shipbuilding and other anti-corrosion, waterproof and weather-resistant protective fields.

BW3-9009 uses aliphatic chemistry for exposed outdoor surfaces where weather resistance, chalking resistance and color-stability review matter. Aromatic BW3 options are often reviewed for general waterproofing, lining or hidden protection layers.

Yes. Confirm surface preparation, substrate condition, primer compatibility, moisture, dew point, target film thickness and the permitted recoat window before spraying BW3-9009.

The technical sheet lists artificial aging resistance for 1000 h to GB/T 1865-2009, with no blistering, cracking, rusting or peeling; chalking grade 0, color change grade 2 and gloss loss grade 2.

Review site temperature, relative humidity, dew point, material heating, pipe heating, spray equipment, pressure, film thickness and recoating interval before installation.

Request the latest TDS, SDS, application guidance, primer recommendation, weathering data and project-specific review before ordering BW3-9009.
