BW0-8028 Polyaspartic Metal Anticorrosion Coating

Q: What is BW0-8028 polyaspartic metal anticorrosion coating used for?

BW0-8028 is used for anticorrosion and protection of steel structures, storage tanks, containers, valves, natural gas pipelines, frames, axles, shelves, tank trucks, swimming pools, sewage pools and chemical cofferdams.

Q: Why is BW0-8028 suitable for outdoor metal protection?

BW0-8028 uses polyaspartic ester and aliphatic polyisocyanate chemistry to provide high gloss, color retention, UV resistance, anti-yellowing performance and weather resistance for long-term outdoor applications.

Q: Can BW0-8028 be applied directly to metal?

The product data lists DTM use, meaning BW0-8028 can be applied directly to properly prepared metal surfaces. Surface cleanliness, profile, moisture and compatibility should still be verified before full application.

Q: What chemical resistance data is listed for BW0-8028?

The data sheet lists resistance to 40% H2SO4 or 10% HCl for 240 h, 40% NaOH for 240 h, 60 g/L salt for 240 h, 1000 h salt spray, engine oil for 240 h and 48 h water exposure.

Q: How can BW0-8028 be applied?

BW0-8028 can be applied by hand brush, roller, air spray at 0.3-0.5 MPa, or airless spray at 15-20 MPa, with recommended dry film thickness of 150-300 μm.

Q: What should buyers confirm before ordering BW0-8028?

Buyers should confirm substrate preparation, A/B weight ratio, pot life, application method, film thickness, recoat interval, chemical exposure, color requirement and the latest technical data sheet.

Product description

BW0-8028 polyaspartic anticorrosion coating.

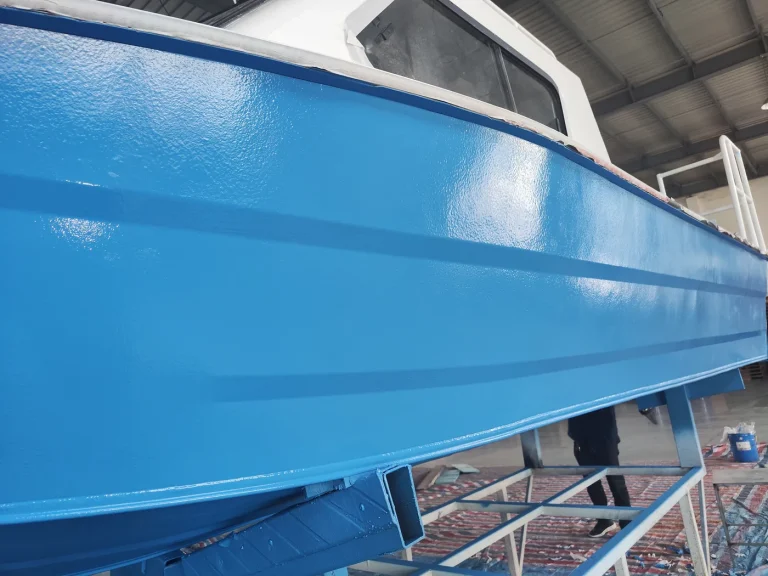

Use it when metal structures, storage tanks, pipelines, vehicles, pools or chemical containment areas need high-gloss anticorrosion protection with outdoor color retention. Confirm surface preparation, A / B weight ratio, pot life, film thickness and chemical exposure before ordering. Key data to review: 1000 h salt spray resistance, 240 h chemical resistance, 9.3 MPa metal adhesion and direct-to-metal application.

BW0-8028 Polyaspartic Metal Anticorrosion Coating official product packaging image

What BW0-8028 delivers

BW0-8028 forms a high-crosslinking polymer network from polyaspartic ester and polyisocyanate, giving the coating strong physical and chemical performance for metal anticorrosion projects.

Bright dense filmHigh solids, low density and good leveling for a tough, dense, full-gloss and bright-colored coating film.
Coating compatibilityExcellent adhesive strength with good compatibility over polyurethane, epoxy and other coating films.
Scratch and stain resistanceHigh hardness supports scratch resistance, stain resistance, abrasion resistance and impact resistance.
Outdoor anticorrosionResists acid, alkali, salt and weathering while supporting UV resistance, anti-yellowing and gloss retention.

Technical advantages for metal protection.

Documented product advantages include salt spray resistance, acid / alkali / salt chemical resistance, metal-base adhesion and direct-to-metal application potential. Final suitability should be verified against the metal substrate, coating system and service environment.

1000 hSalt spray resistance. Salt spray resistance test result with no rust, bubbles or peeling, supporting long-term metal anticorrosion protection.

240 hChemical resistance. Resists 40% H2SO4 or 10% HCl, 40% NaOH and 60 g/L salt solution for 240 h with no rust, bubbles or peeling.

9.3 MPaMetal adhesion. Metal-base adhesion result under HG/T 3831-2006, supporting coating-system compatibility on steel and metal substrates.

DTMDirect to metal. Can be applied directly to metal surfaces for steel structures, tanks, containers, pipelines, frames and other anticorrosion projects.

Application scope

Typical use areas for BW0-8028.

Anti-corrosion and protection of steel structures, storage tanks, containers, valves, natural gas pipelines, frames, axles, shelves, tank trucks, swimming pools, sewage pools and chemical cofferdams.

Product features

High solids levelingHigh solids and low density with good leveling for a tough, dense and bright coating film.
Strong compatibilityCompatible with polyurethane, epoxy and other coating films when the coating system is reviewed.
DTM potentialCan be applied directly to properly prepared metal surfaces.
Weather resistanceNo discoloration, UV resistance, no yellowing, no powdering and aging resistance are listed in the data sheet.

Project fit

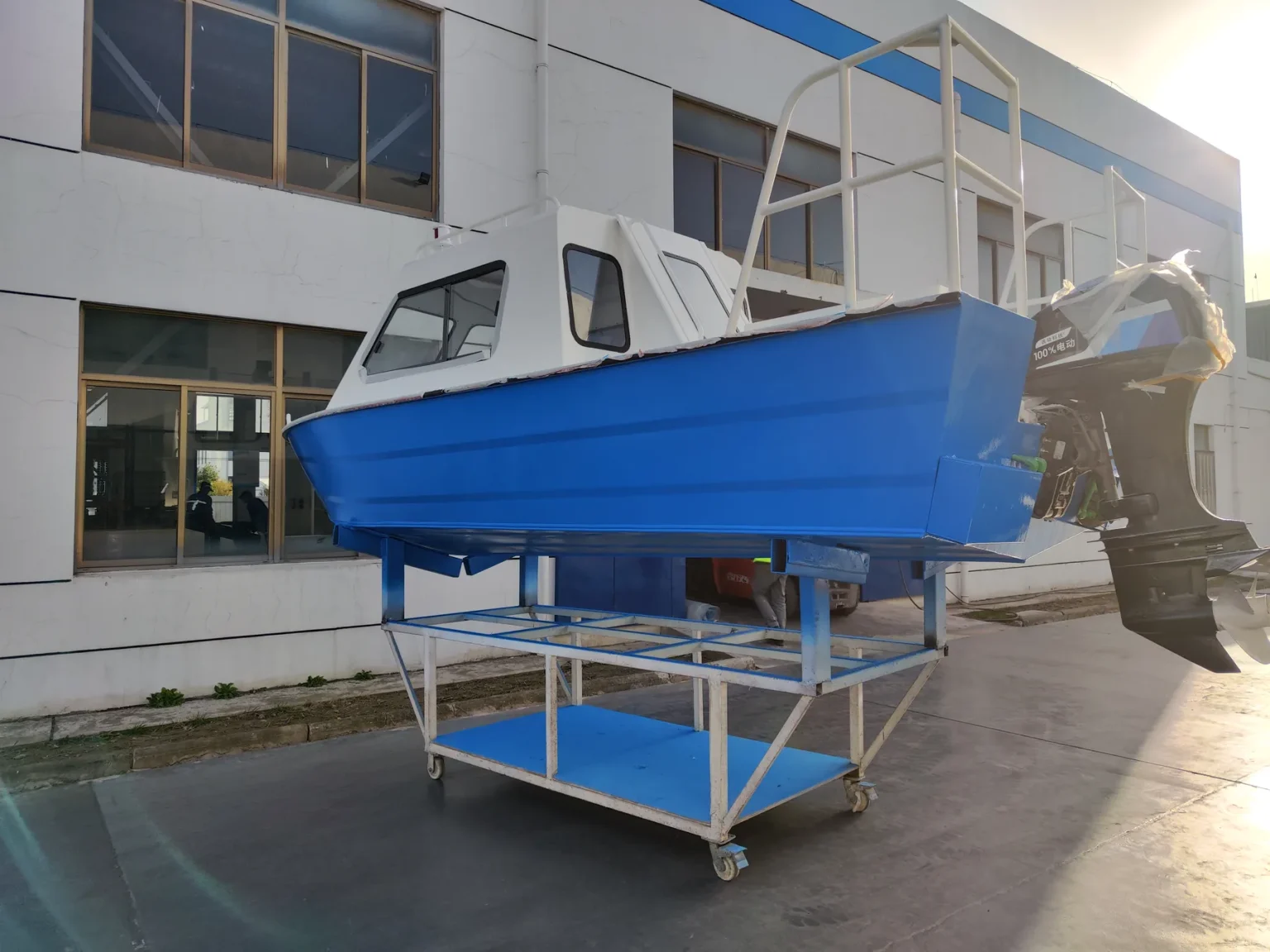

Use BW0-8028 when the project needs anticorrosion protection plus finish appearance, gloss retention and outdoor exposure resistance.

Substrate reviewConfirm rust removal, surface cleanliness, moisture condition and primer or DTM compatibility.
Exposure reviewMatch film thickness, color requirement, chemical splash, immersion risk and UV exposure to the project specification.

Product information & technical data

Technical data for BW0-8028 polyaspartic metal anticorrosion coating.

Review product information, physical properties and chemical resistance data for BW0-8028 in a cleaner table structure optimized for technical comparison and procurement review.

Product information

Item	Part A	Part B
Appearance	Light yellow liquid	Color adjustable
Specific gravity (g/cm³)	1.04	1.50
Viscosity (cps)@ 25°C	40-60	100-200
Solid content (%)	75	90
Mix ratio (by weight)	1	2
Surface dry time (h)	1
Pot life (h)@ 25°C	1
Theoretical coverage (DFT)	0.15 kg/m² film thickness 100 μm

Physical properties

Item	Test standard	Result
Pencil hardness	-	H
Adhesive strength (MPa) metal base	HG / T 3831-2006	9.3
Adhesive strength (MPa) concrete base	HG / T 3831-2006	2.8
Impermeability	-	2.1 MPa
Bending test (cylindrical shaft)	-	≤1 mm
Abrasion resistance (750 g / 500 r) mg	HG / T 3831-2006	5
Impact resistance kg·cm	GB / T 1732	50
Anti-aging, accelerated aging 1000 h	GB / T 14522-1993	Loss of light <1, chalking <1

Chemical resistance

For reference: the above chemical resistant property is obtained according to GB / T 9274-1988 test method. Pay attention to ventilation, splash and spillage. Independent immersion testing is recommended if other specific data is required.

Exposure item	Result
Acid resistance 40%H₂SO₄ or 10%HCl, 240 h	No rust, no bubbles, no peeling
Alkali resistance 40%NaOH, 240 h	No rust, no bubbles, no peeling
Salt resistance 60 g/L, 240 h	No rust, no bubbles, no peeling
Salt spray resistance 1000 h	No rust, no bubbles, no peeling
Oil resistance, engine oil, 240 h	No rust, no bubbles, no peeling
Water resistance, 48 h	No bubbles, no wrinkles, no color change, no peeling

Application environment & guide

Application conditions, equipment and recoat guidance.

Check temperature, humidity, dew point, mixing ratio, film thickness and recoating interval before application.

Application environment

Condition	Requirement
Environment temperature	-5°C to +35°C
Relative humidity	≤85%
Dew point margin	Substrate temperature ≥3°C above dew point

Application guide

Guide item	Recommendation
Hand brush or roller	Suitable for brush and roller application

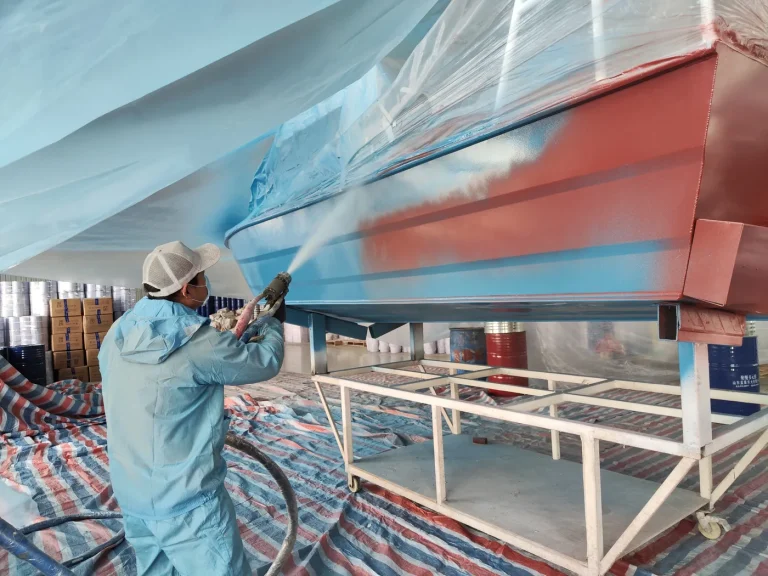

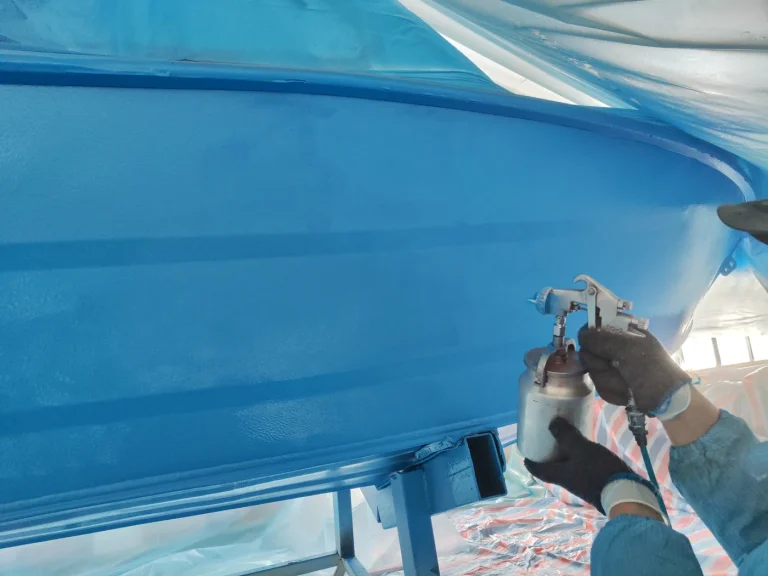

Air spray	Air pressure 0.3-0.5 MPa
Airless spray	Spray pressure 15-20 MPa
Recommended DFT	150-300 μm
Recoating interval	Minimum 1 h, maximum 24 h
Mixing requirement	Strictly mix Part A and Part B at the correct ratio and use the mixed material within 1 h

Application note

Agitate Part B evenly prior to application.
Strictly mix the two parts at the correct ratio, mix evenly and use up the mixed material within 1 h.
Seal the package well after use to avoid moisture absorption.
Keep the application site clean and dry, and avoid contact with water, alcohols, acids and alkali during application.

Curing time, shelf life and packing

Curing time, storage and packing information for project planning.

Use the curing profile, shelf-life data and packing details below to plan coating application timing, warehouse handling and bulk project purchasing.

Product curing time

Note: the curing time varies with environmental conditions, especially temperature and relative humidity.

Substrate temperature	Surface dry time	Foot traffic	Solid dry time
+10°C	2 h	24 h	7 d
+20°C	1.5 h	8 h	7 d
+30°C	1 h	6 h	7 d

Shelf life & packing

Item	Details
Packing	Part A: 25 kg/barrel · Part B: 25 kg/barrel
Shelf life from manufacturing date	Part A: 10 months · Part B: 10 months under sealed condition
Storage temperature	+5°C to +35°C
Package requirement	Keep the package drum well sealed after use to avoid moisture absorption
Storage precaution	Store in a cool, ventilated place and avoid direct sunlight

Health & safety / integrity declaration

Safety data, handling guidance and application verification.

Product health and safety information

For information and advice on safe handling, storage and disposal of chemical products, users shall refer to the most recent Material Safety Data Sheet containing physical, ecological, toxicological and other safety-related data.

Integrity declaration

Colorful Whale Advanced Materials (Shanghai) Co., Ltd. guarantees all technical data stated in this sheet are based on laboratory tests. Actual testing methods may vary due to different circumstances. Please test and verify applicability. Colorful Whale Advanced Materials (Shanghai) Co., Ltd. assumes no responsibility except for product quality and reserves the right to modify listed data without prior notice.

FAQ

FAQ about BW0-8028 polyaspartic metal anticorrosion coating.

These answers support engineering review, contractor planning and bulk project purchasing before ordering.

What is BW0-8028 polyaspartic metal anticorrosion coating used for?

BW0-8028 is used for anticorrosion and protection of steel structures, storage tanks, containers, valves, natural gas pipelines, frames, axles, shelves, tank trucks, swimming pools, sewage pools and chemical cofferdams.

Why is BW0-8028 suitable for outdoor metal protection?

BW0-8028 uses polyaspartic ester and aliphatic polyisocyanate chemistry to provide high gloss, color retention, UV resistance, anti-yellowing performance and weather resistance for long-term outdoor applications.

Can BW0-8028 be applied directly to metal?

The product data lists DTM use, meaning BW0-8028 can be applied directly to properly prepared metal surfaces. Surface cleanliness, profile, moisture and compatibility should still be verified before full application.

What chemical resistance data is listed for BW0-8028?

The data sheet lists resistance to 40% H2SO4 or 10% HCl for 240 h, 40% NaOH for 240 h, 60 g/L salt for 240 h, 1000 h salt spray, engine oil for 240 h and 48 h water exposure.

How can BW0-8028 be applied?

BW0-8028 can be applied by hand brush, roller, air spray at 0.3-0.5 MPa, or airless spray at 15-20 MPa, with recommended dry film thickness of 150-300 μm.

What should buyers confirm before ordering BW0-8028?

Buyers should confirm substrate preparation, A/B weight ratio, pot life, application method, film thickness, recoat interval, chemical exposure, color requirement and the latest technical data sheet.

Request technical documents

Explore polyurea products Polyaspartic systems Contact technical support

Request TDS, application guidance or bulk project support.

If you are evaluating BW0-8028 for metal anticorrosion, outdoor coating or chemical-resistance work, request the latest technical data sheet, application guidance and project-specific compatibility review before ordering.
